Lazer ST4 Evolution

€274.95
Tax included

Lazer 0004-EVO-B
Lazer ST4 Evolution
Lazer ST series -

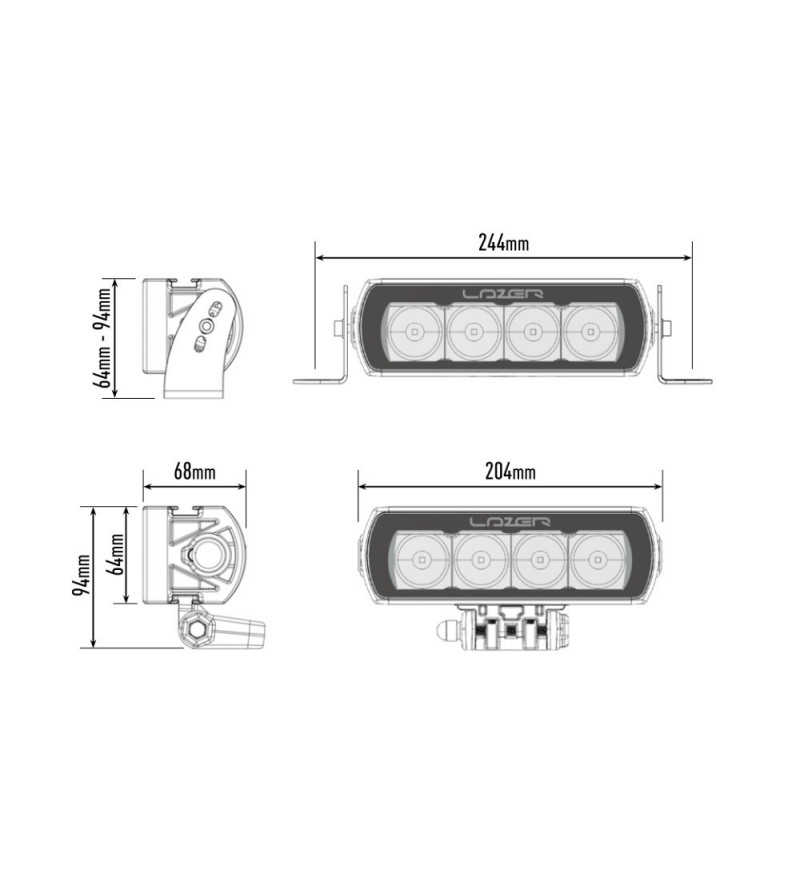

Dimensions Size (mm): 204(w) x 64(h) x 68(d)
E-Approval E-approved
Sales unitSingle item
Delivery1-3 business days
BeamDriving (45°)

Drive safe, please take care of local rules for lights and accessories

Lighting zone 3: Driving / Combo

Light zones


Choose your configuration below

Wiring Kits
CAN Interface
Lazer CAN-LZR Can-Bus Contactless Reader (voor CAN-LZR)
Quantity

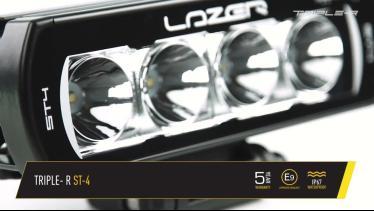

Lazer ST4 Evolution Videos

Lazer ST4 Evolution
Lazer ST4 Evolution

Lazer ST4 Evolution

The ST / T Evolution range of products feature highly efficient, premium ‘bin’ 11W LEDs in combination with vacuum-metallised conical optics to deliver a powerful beam pattern with wide spread. This makes the products especially well-suited to rural and off-road applications. Incorporating the same electrical and product design across both ST and T lights, the former indicates lights that are UNECE certified to Regulation 112 as high beam driving lights, while the latter indicating the larger light bars not certified and intended for off-road use only operated via an independent switch.

Available in sizes ranging from the 124mm (5”) ST2 to the 1164mm (46”) T28, these are LED light bars benefitting from huge versatility, having been adopted across a wide range of different applications and vehicle types, since the products were first launched in 2010. Since then, the range has been re-engineered and re-designed incorporating the latest and best technology alongside a more contemporary, seamless, low profile design making them easier to install, more resistant to dirt, snow and ice accumulations and with styling guaranteed to complement and enhance the appearance of modern vehicles.

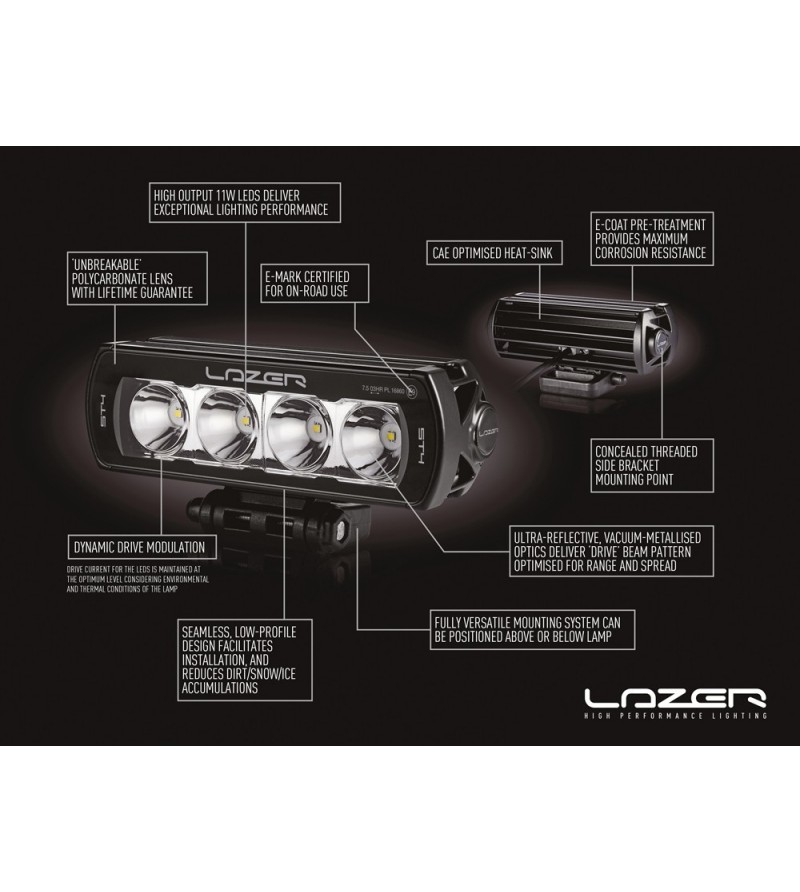

Superior lighting performance is delivered by the high power 11W LEDs, alongside advanced electronic design, combined with sophisticated thermal management systems and ultra-reflective vacuum-metallised reflectors to harness the maximum amount of light where you need it: on the road or trail ahead. Like all Lazer products, the LEDs are carefully selected at 5000k colour temperature to maximise sharpness and definition of your surroundings.

Performance aside, the ST / T Evolution LED light bars are built to last backed by a comprehensive 5 year warranty. Designed, engineered and manufactured in-house, in the UK, there’s no compromise when it comes to build quality, ensuring the lights perform as well as they look and function for years to come.

What's included:

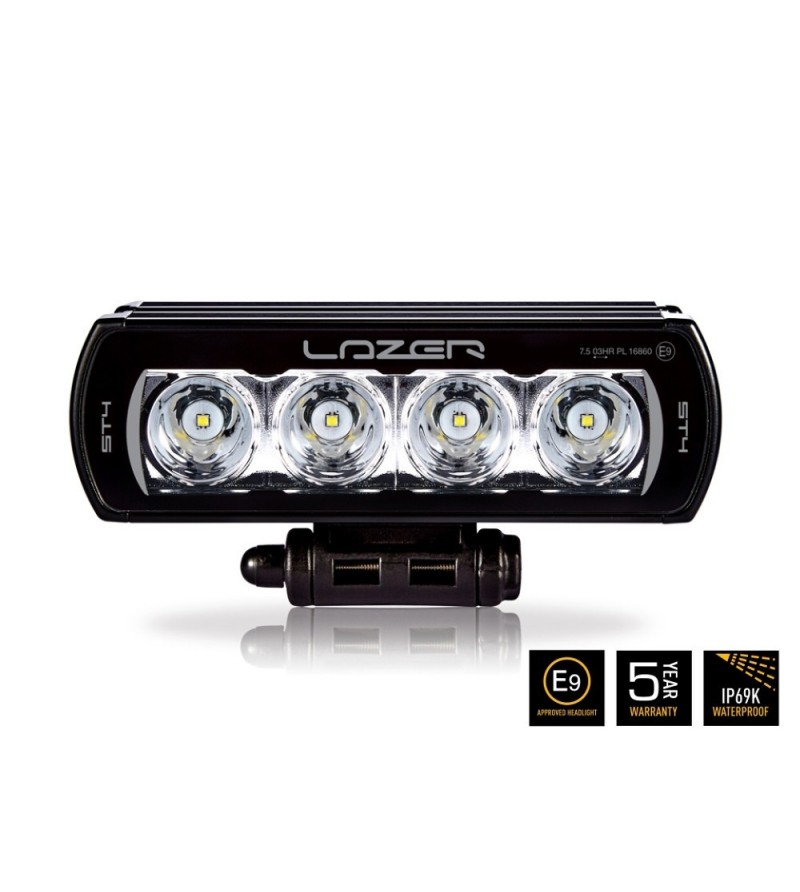

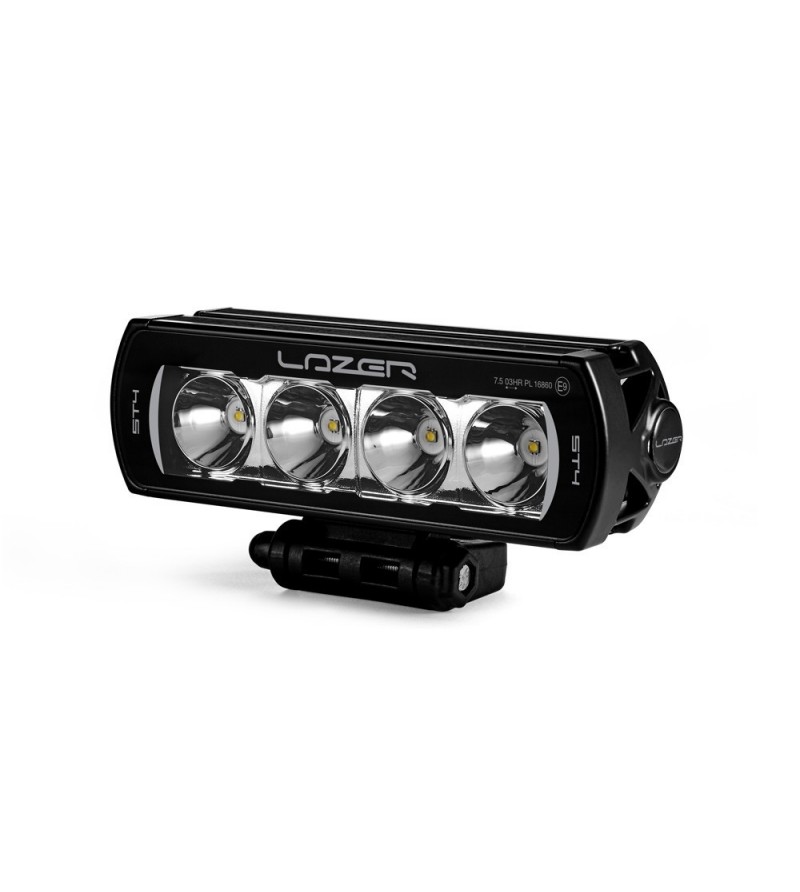

- 1x ST4 Evolution LED Spotlight
- 1x Centre Mount (1114k)
- 1x Wiring and Installation Instructions

0004-EVO-B 5060404991637

Data sheet

Very suitable for
Marine
Lighting - Type
Driving Light
Series
Lazer ST Evolution
E-mark
yes
ECE R112
Approved
Accessory
Lighting
Sales unit
Single item
12 Volt
yes
24 Volt
yes
Size ( Ø / ↔ )
e) LEDbar 8"-15"
Width (mm)
204
Depth (mm)
68
Height (mm)
64
Weight (kg)
670g
Lumen
4136
Beam type
Driving (45°)
Lighting zone 3: Driving / Combo
3

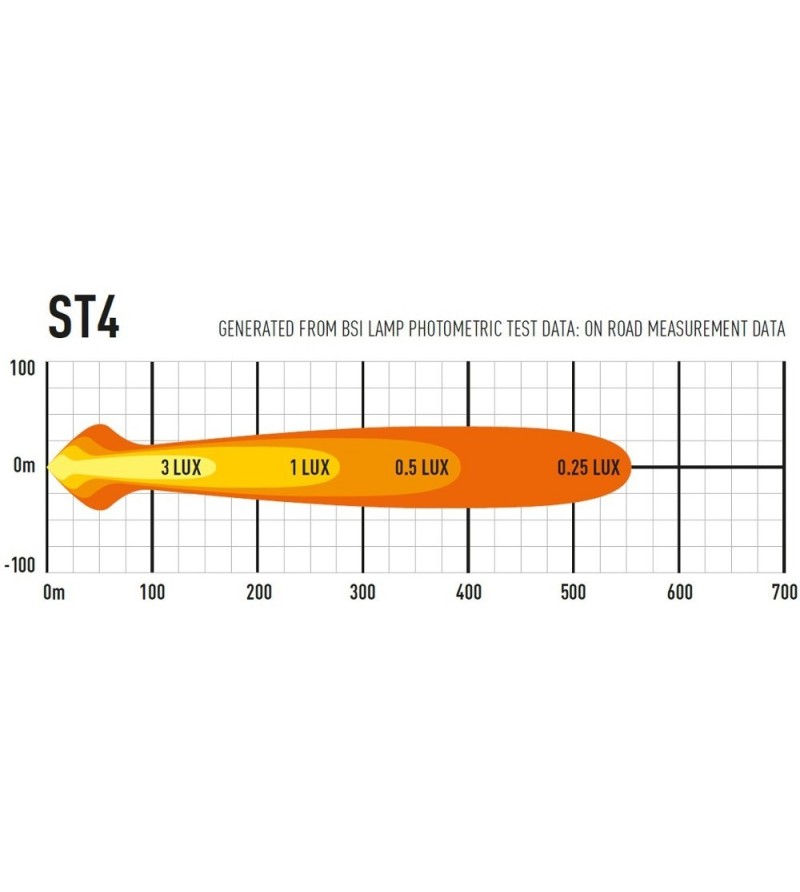

Light distance (m) at 0.25 lux
555
Light distance (m) at 1 lux
278
Light color
white/xenon white
Kelvin
5000
IP rating
IP69K
Color of glass
Blank
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
Chrome / RVS
no
Shape
Ledbar short
Reference number per unit
7.5
Position light
no
Voltage
9-32 Volt
Watts
47
Wattage per LED
11W
LEDs per lamp
4
Light type
LED
4WD/Offroad
Yes
Car / SUV / Van
Yes
Agriculture
Yes
Motor/ATV
Yes
Truck
Yes
Heavy Industries
Yes
Country of Origin
United Kingdom
Standard Delivery time
1-3 business days
Electric Device
yes

Specific References

EAN13
5060404991637
