Wiring kit - Lazer - 1 lamp - extra long - incl switch - 2 pins - Superseal - 12V

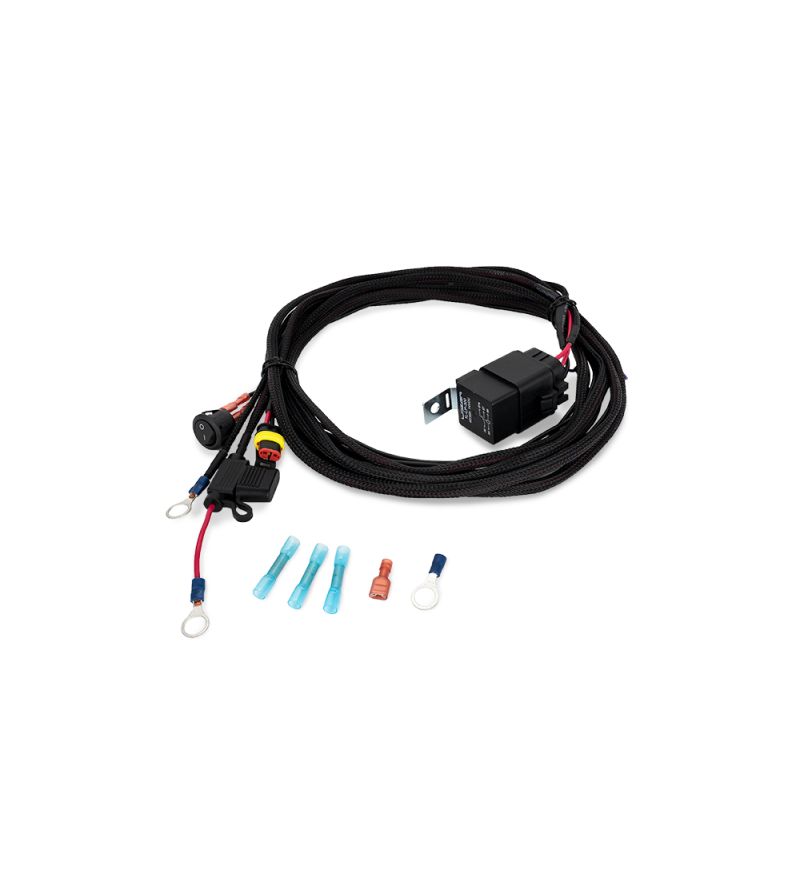

Lazer Wiring kit 1 lamp - Extra long (12V)

3m cable length
Includes 12V relay and 20 amp fuse
Superseal connections

The ideal solution for wiring a pair of E-mark approved Lazer high performance LED spotlights. The setup is quick, easy, and reliable with 2-pin superseal connections and no configuration procedures. The kit features a 12V relay (in waterproof housing), 35A fuse, a battery terminal at one end, and 3.2m of flat-profile flex on both lamp cables, and allows for the operation of Lazer products either in parallel with the standard lighting on the vehicle, and/or via an independent switch which can be mounted inside your vehicle.

All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.

Compatible with:
ST Evolution (All Products)
Triple-R 750 Elite (Gen2)
Triple-R 850 Elite (Gen2)
Triple-R 1000 Elite (Gen2)
Linear-6 (Std / Elite)
Linear-12 (Std / Elite)
Linear-18 (Std / Elite)
Linear-36
Linear-42
Linear-48

PRODUCT FEATURES
one-Lamp Wiring Kit "Long" for Lazer E-mark approved driving lights
Flat cable profile facilitates installation inside/along vehicle trim panels
3.2m cable lengths
Includes 12V relay and 35 amp fuse
Superseal connections
Includes optional on/off switch for independent operation of high beam
Braided cable sections for added protection in engine bay
