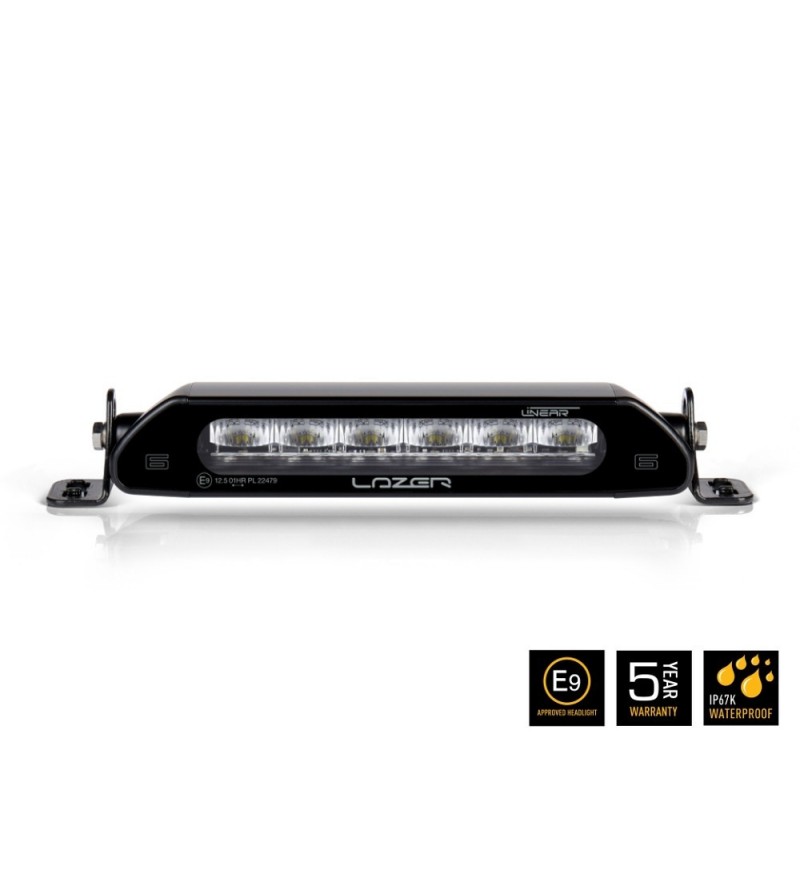

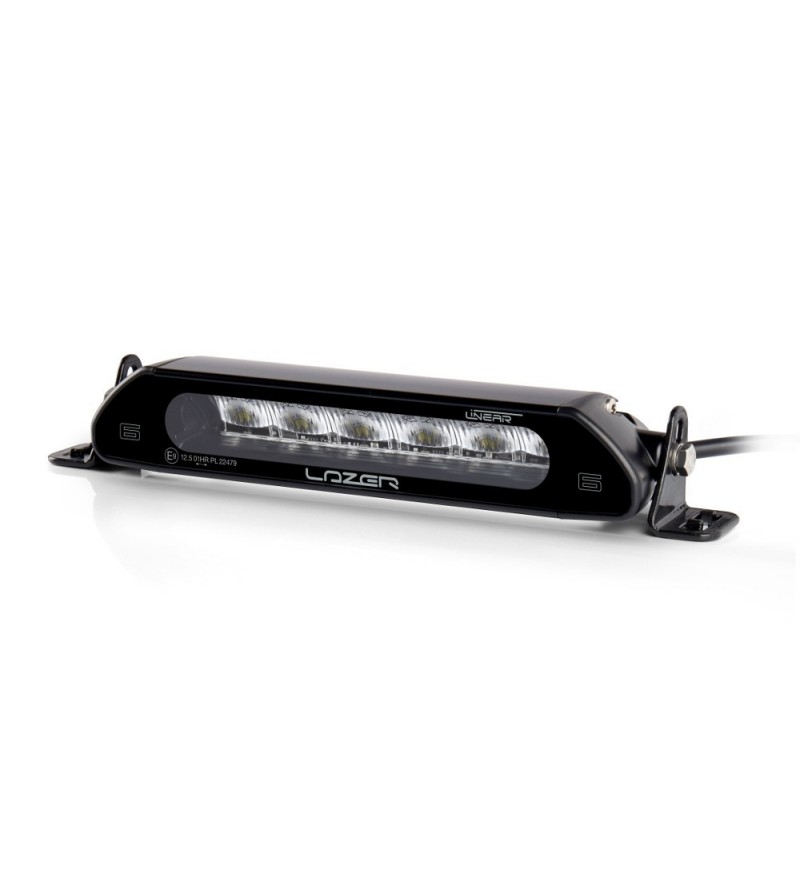

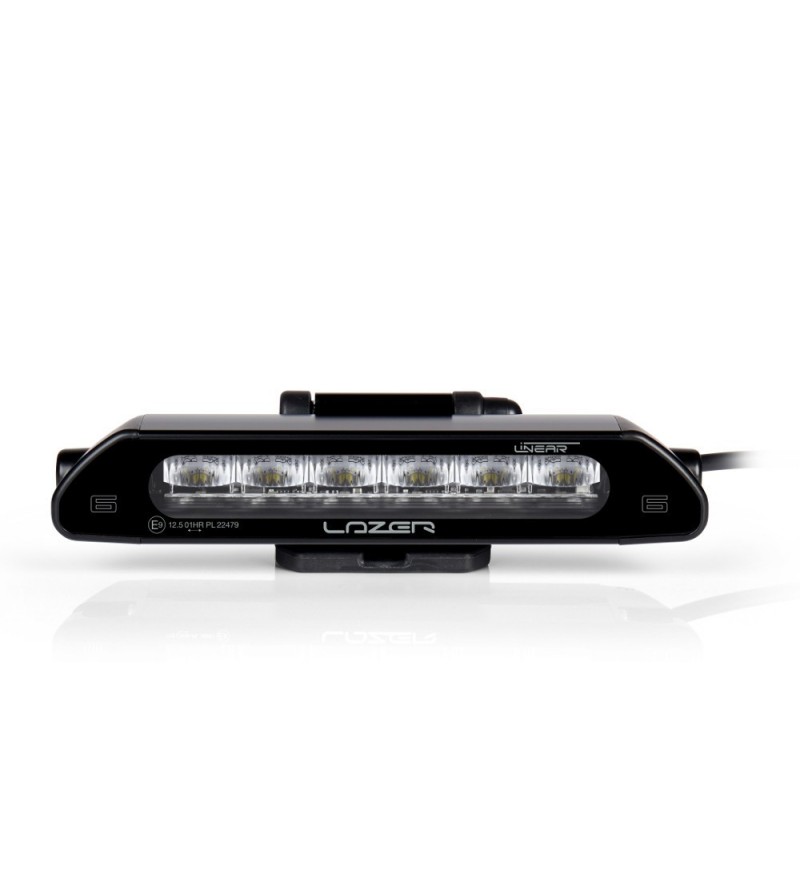

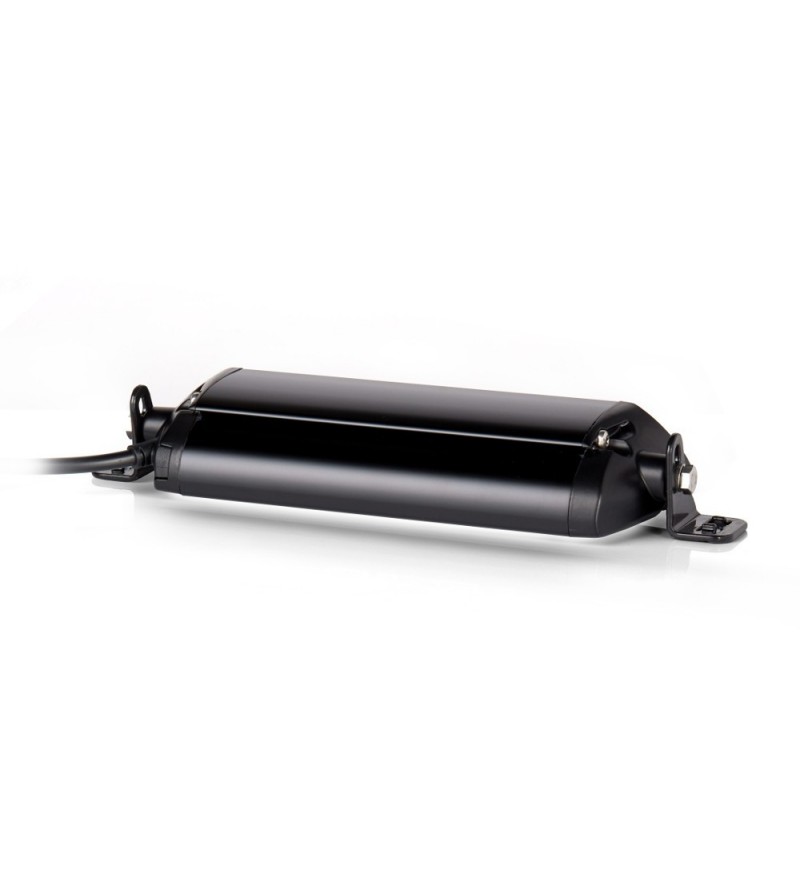

LED Light bar - Lazer - Linear 6 - 9'' - Driving

€214.95 (tax incl.)

€177.64 (tax excl.)

  • Reference: 0L06-LNR
  • Producttype: LED Light bar

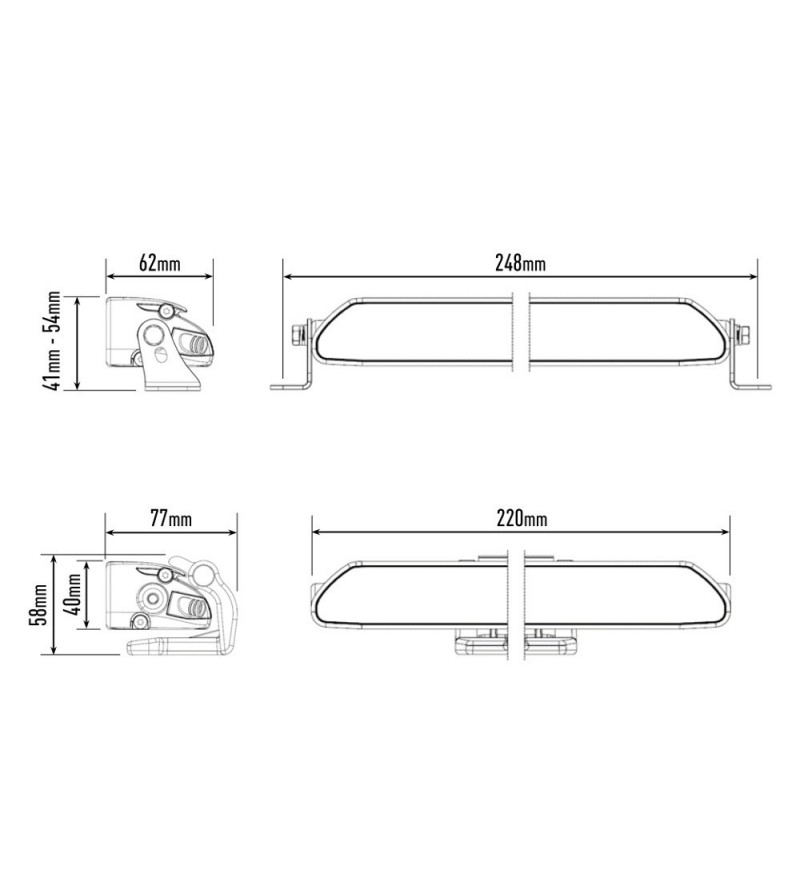

  • Dimensions (mm): 220 (w) x 40 (h) x 62 (d)
  • E-mark: yes
  • Beam type: Driving
  • Sales unit: Single item
  • Standard Delivery time: 1-3 business days
The Lazer Linear 6 - 9'' Driving is a powerful LED light bar that brightens every ride. With its sleek design and bright beams, it ensures optimal visibility and safety for adventurous journeys in any environment.
...Continue

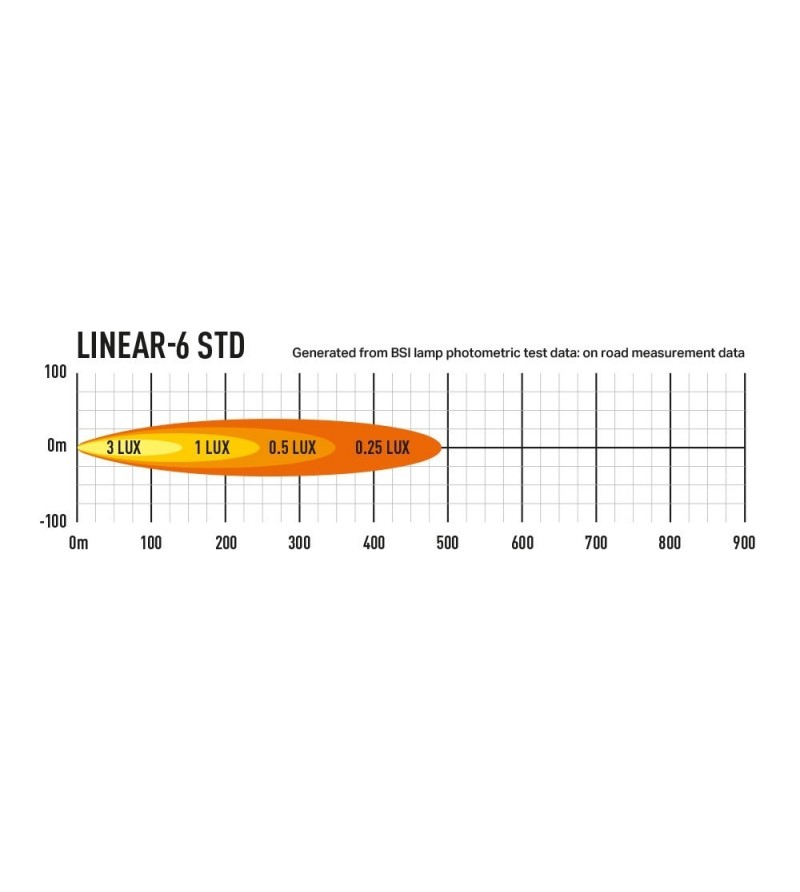

Driving Beam Pattern

Quantity

Lazer Linear- 6

What's included:

  • x1 Linear-6 Standard LED Lamp
  • x1 Side Mount (1126k)
  • Male connector and Installation Instructions

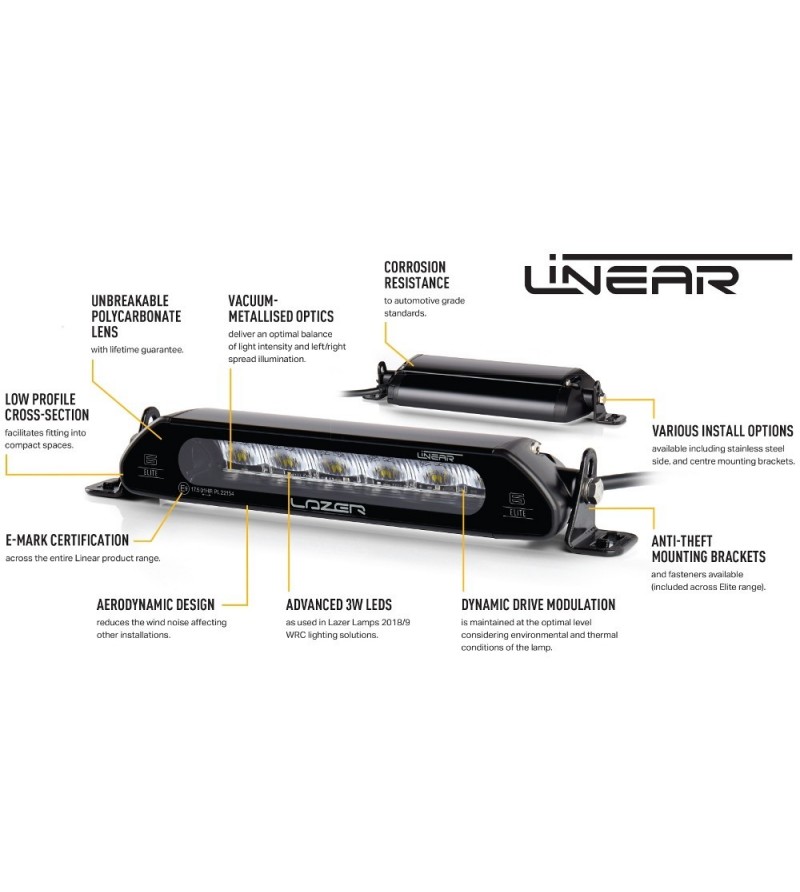

Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.

The Linear range is available in a variety of sizes from the 232mm (9”) Linear-6 to the 1282mm (51”) Linear-48. With the exception of the range topping Linear-48, all Linear products are fully UNECE certified to Regulation 112 as Class B Driving lights (for on-road use). Elite level products are also available across Linear-6/12/18 product lines with these products boasting twice the light output compared to the equivalent Standard version. The Linear-12 Elite and Linear-18 Elite lights are also available with the option for integrated position light function providing added safety and styling benefits.

Despite the diminutive proportions of the Linear products, the LED light bars are packed full of advanced and innovative features to maximise performance and longevity. With the products designed, engineered and built in-house, at our UK facility, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed by our comprehensive 5-year warranty.

Linear products are especially well-suited to roof mount installations where the sleek, aero design of the aluminium housing eliminates nearly all wind noise, and the comparatively low up/down spread of light ensures no glare off the vehicle bonnet.

0L06-LNR 5060404992375

Data sheet

Accessory
Lighting
Producttype
LED Light bar
Product serie
Linear
Serial model
6
Series
Lazer Linear
Size ( Ø / ↔ )
2) Medium
Shape
Ledbar
Width (mm)
220
Height (mm)
40
Depth (mm)
62
Weight (kg)
495g
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Light color
White
Position light
No position light
Color temperature
5000K
Reference number per unit
12.5
E-mark
yes
ECE approval
R112
Glass color
Clear
Chrome / RVS
no
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
IP rating
IP67K
Lumen
2250
Light distance (m) at 1 lux
247
Light distance (m) at 0.25 lux
494
Voltage
12V
18V
24V
30V
Watts
21W
LEDs per lamp
6
Wattage per LED
3W
number of pins
2 pins
Connector
Superseal
Sales unit
Single item
Standard Delivery time
1-3 business days
prodcat1
H
Shipping Size
S

Specific References

Lazer Linear-6
Lazer Linear-6
Lazer Linear-6 Standard
Lazer Linear-6 Standard
