Lazer Linear-12 Elite with position light - 0L12-PL-LNR

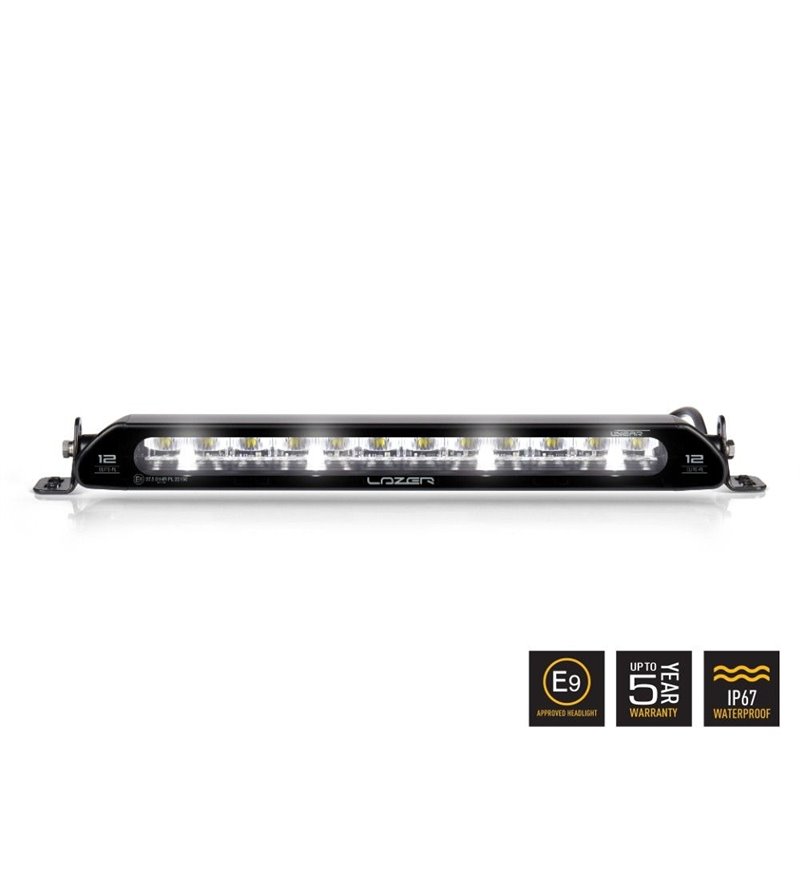

LED Light bar - Lazer - Linear 12 - Elite - 15'' - Position light White - Driving

€444.95 (tax incl.)

€367.73 (tax excl.)

  • Reference: 0L12-PL-LNR
  • Producttype: LED Light bar

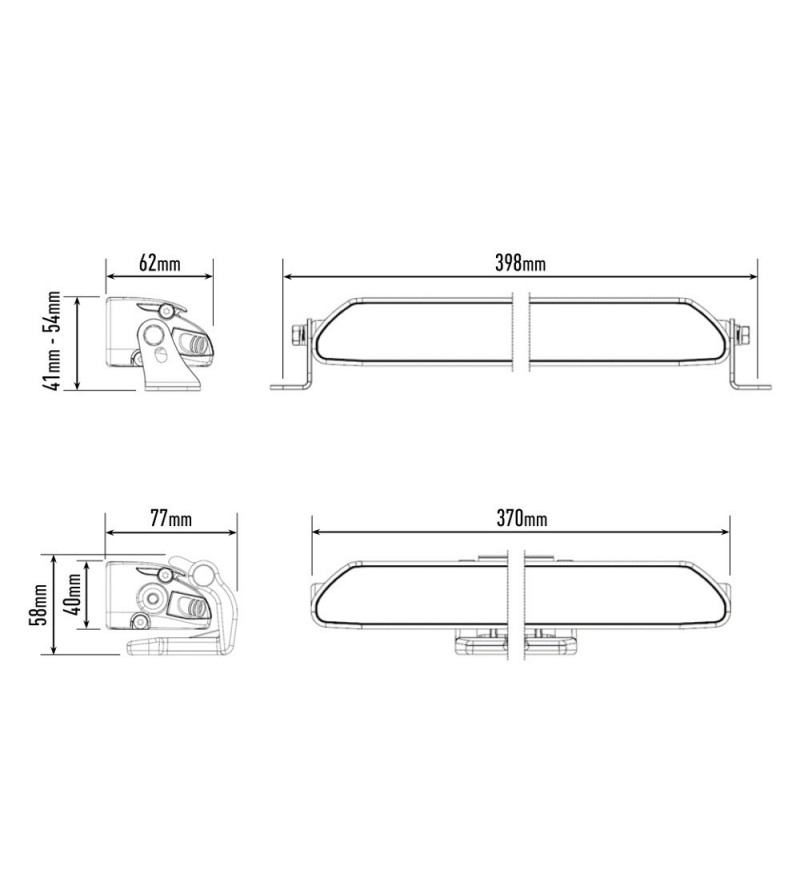

  • Dimensions (mm): 370 (w) x 40 (h) x 62 (d)
  • E-mark: yes
  • Position Light Color: White
  • Beam type: Driving
  • Sales unit: Single item
  • Standard Delivery time: 1-3 business days
The Lazer Linear 12 Elite - 15'' Driving with white position light is perfect for any ride. With powerful illumination and a sleek design, it ensures optimal visibility and safety for adventurous journeys in all conditions.
...Continue

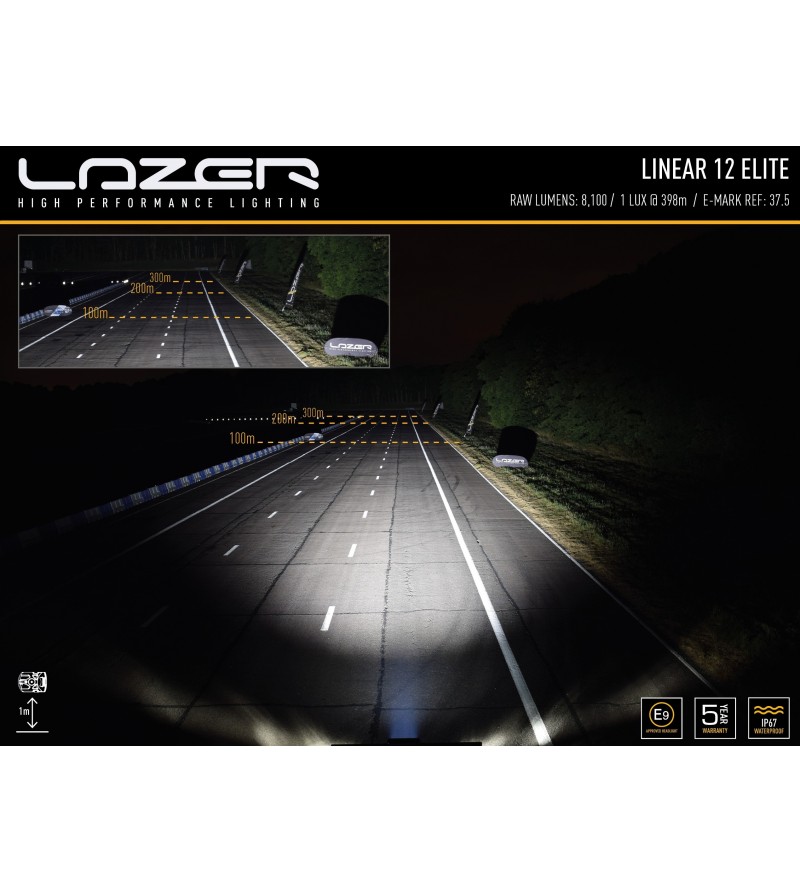

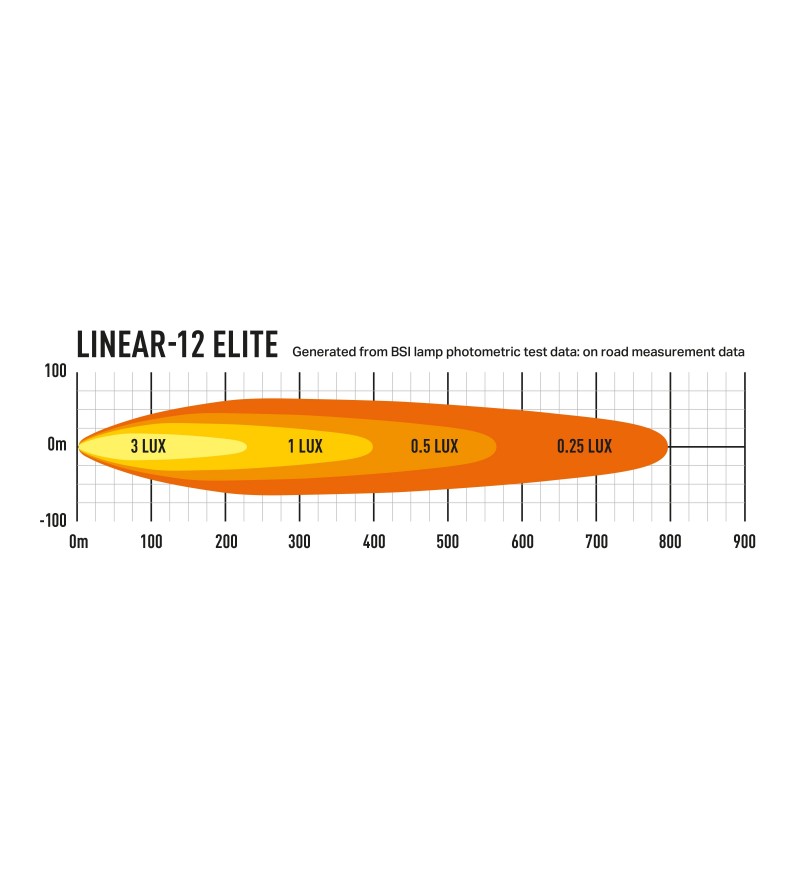

Driving Beam Pattern

Quantity

Lazer Linear-12 Elite with position light

What's included:

  • 1x Linear-12 Elite (with Position Light) LED Lamp

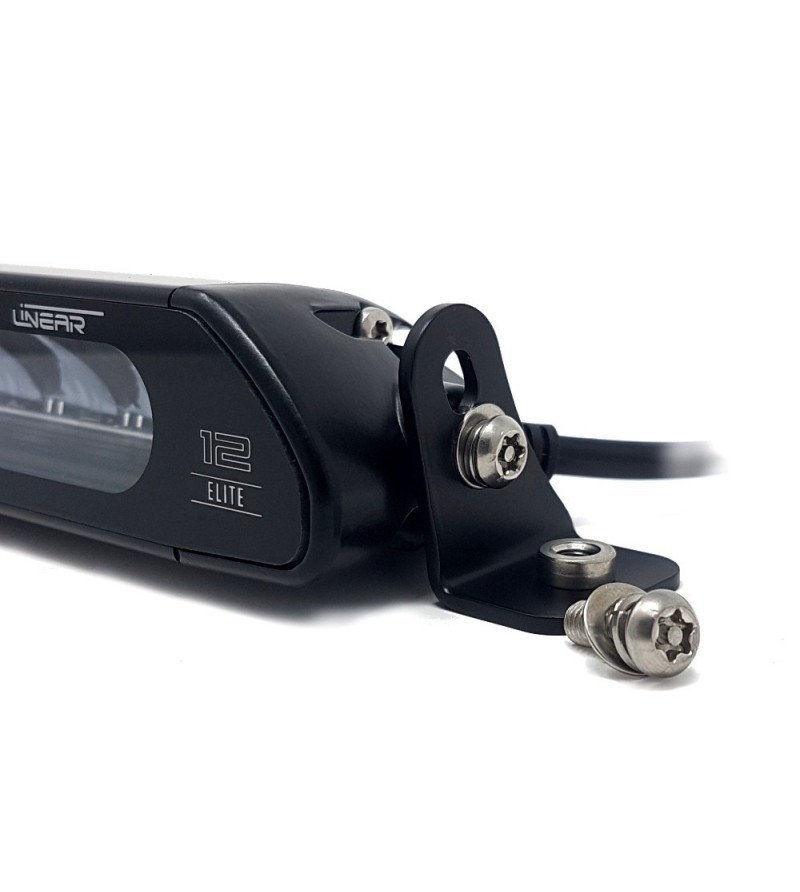

  • 1x Anti-Theft Side Mount (1127k)
  • Male connector and Installation Instructions

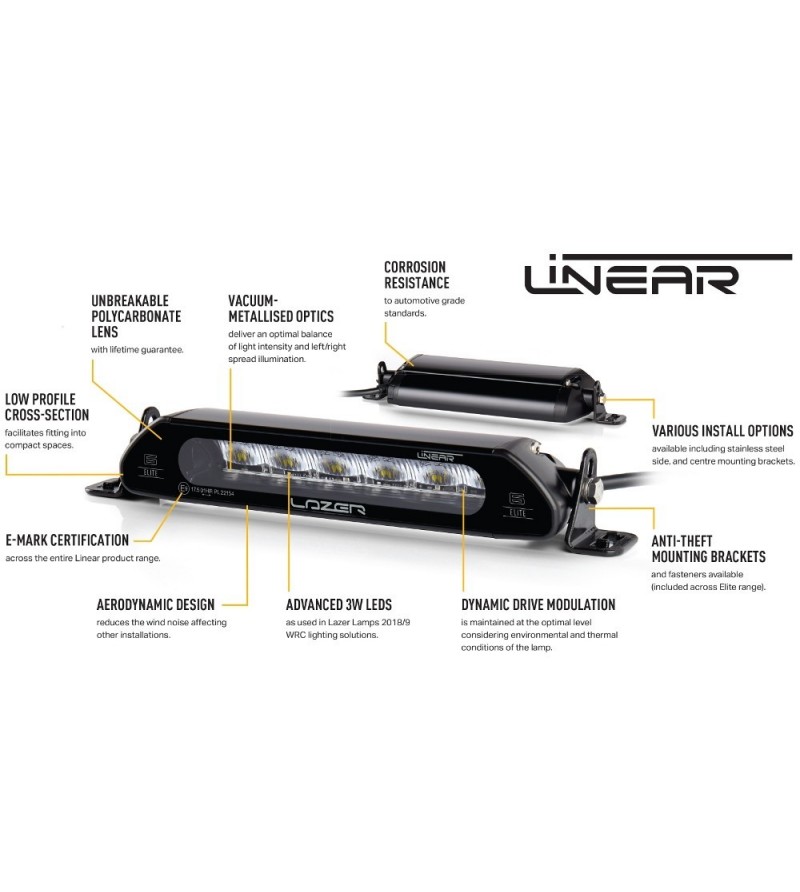

Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.

Despite the diminutive proportions of the Linear products, the LED light bars are packed full of advanced and innovative features to maximise performance and longevity. With the products designed, engineered and built in-house, at our UK facility, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed by our comprehensive 5-year warranty.

Linear products are especially well-suited to roof mount installations where the sleek, aero design of the aluminium housing eliminates nearly all wind noise, and the comparatively low up/down spread of light ensures no glare off the vehicle bonnet.

0L12-PL-LNR 5060404992467

Data sheet

Accessory
Lighting
Producttype
LED Light bar
Product serie
Linear
Serial model
12
Version
Elite
Series
Lazer Linear
Size ( Ø / ↔ )
2) Medium
Shape
Ledbar
Width (mm)
370
Height (mm)
40
Depth (mm)
62
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Light color
White
Position light
Position light
Color of position light
White
Color temperature
5000K
Reference number per unit
37.5
E-mark
yes
ECE approval
R7
R112
Glass color
Clear
Chrome / RVS
no
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
IP rating
IP67K
Lumen
8100
Light distance (m) at 1 lux
398
Light distance (m) at 0.25 lux
796
Voltage
12V
18V
24V
30V
LEDs per lamp
24
Wattage per LED
3W
number of pins
2 pins
Connector
Superseal
Sales unit
Single item
Standard Delivery time
1-3 business days
prodcat1
H
Shipping Size
S

Specific References

Lazer Linear-12 Elite met positielicht
Lazer Linear-12 Elite met positielicht
