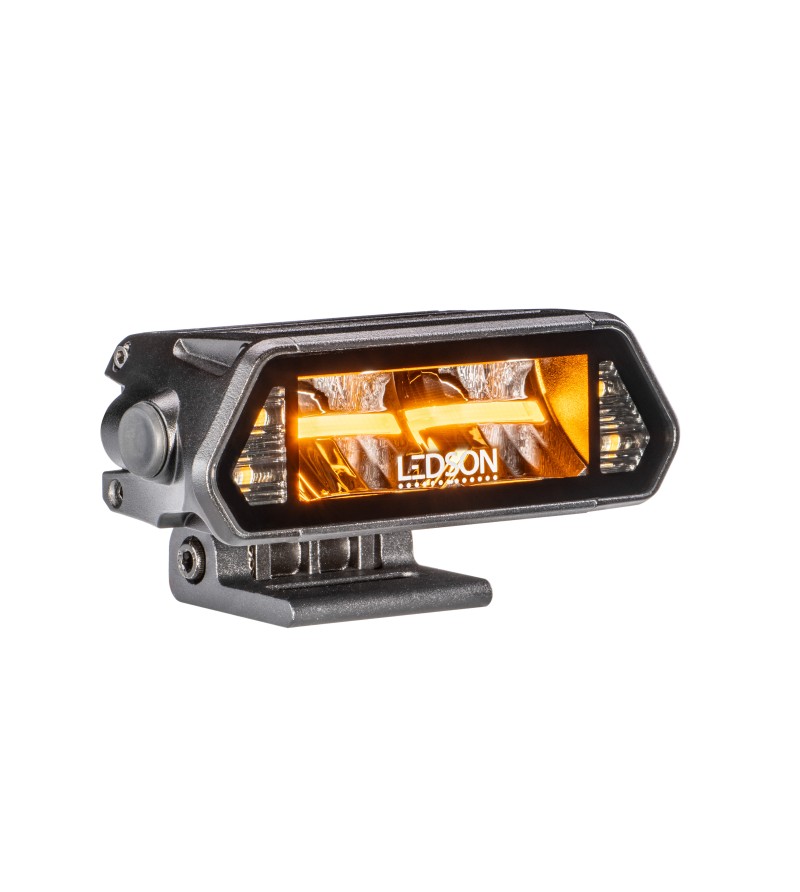

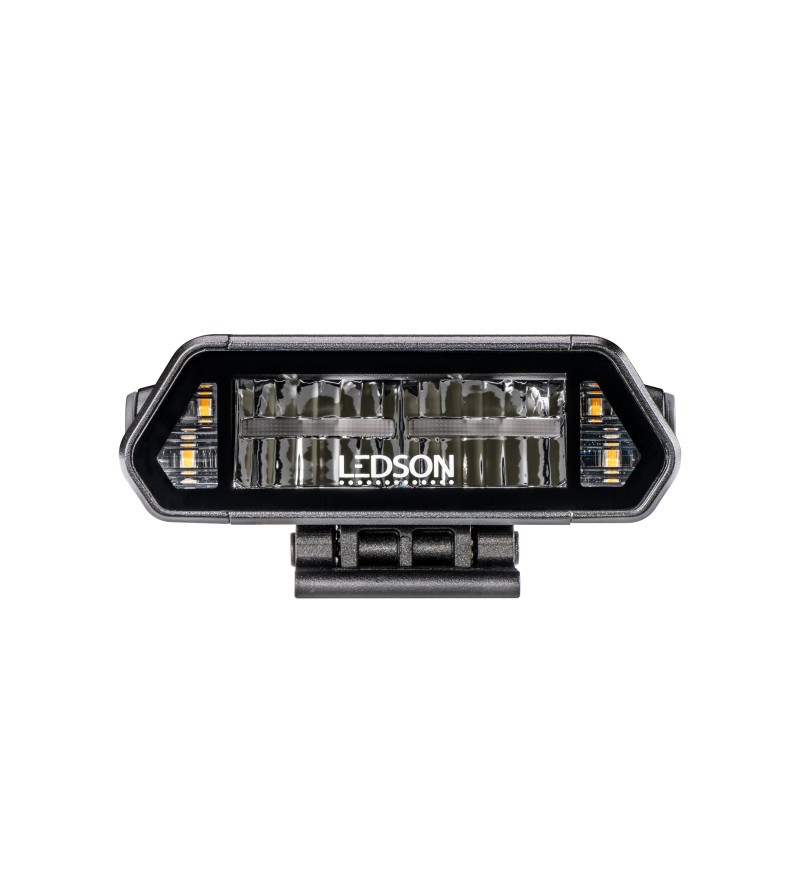

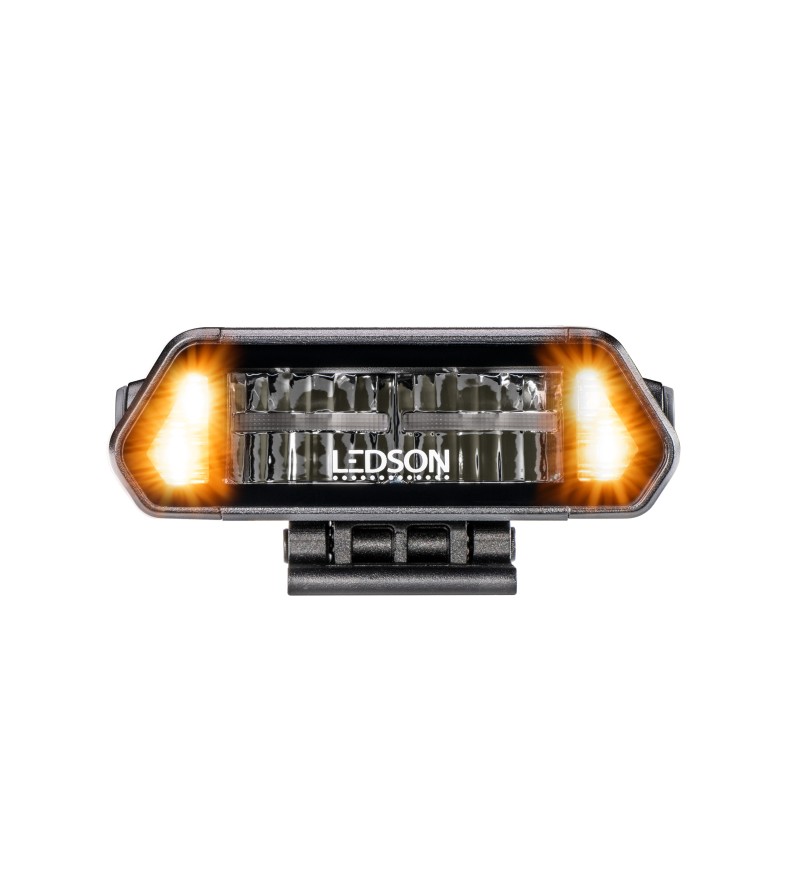

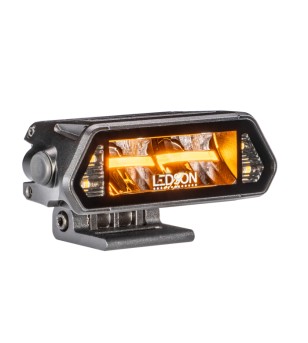

      Ledson Epix5+ Strobe LED bar - 334915029 - Lights and Styling

      LED Light bar - Ledson - Epix 5+ - Strobe - 5" - 12.8cm - Position light White/Amber - 10 flash patterns - Driving

      €117.50(tax incl.)

      €97.11 (tax excl.)

      • Reference: 334915029
      • Producttype: LED Light bar
      • Dimensions (mm): 128 (w) x 43 (h) x 61 (d)
      • E-mark: Yes
      • Strobe function: 10 flash patterns
      • Beam type: Driving
      • Sales unit: Single item
      • Standard delivery time: 1-3 business days
      x
      ...Continue

      Driving Beam Pattern

      Quantity :

      Must-have accessoires

      Wiring Kit

      Wiring kit - Ledson - Connect - 1 lamp - 6 pins - Deutsch DT - 12V

      Wiring kit - Ledson - Connect - 1 lamp - 6 pins - Deutsch DT - 12V

      €47.95

      Ledson Epix5+ Strobe LED Bar

      What's Included:

      • Epix5+ Strobe LED Bar
      • Bolts and screws for mounting the bar on a suitable surface
      • Smart mounting details
      • 6-pin DT cable
      • Installation manual

      EPIX5+ Strobe

      The LED light bar combines a modern look with the performance needed to handle all conditions. With a power of 30W, this bar provides a Driving Beam light with an impressive range of 225 meters. It delivers 1,700 actual lumens and a color temperature of 5000K, ensuring strong and natural lighting in any situation. Ledson's smart brackets make it easy to mount the light bar virtually anywhere on your vehicle, in the configuration that best suits your needs.

      Features and Technical Specifications:

      • Position lights integrated into the reflector
      • Selectable position light in white or yellow/orange
      • E-marked according to ECE R149 (R112), R7, R65, and R10 (EMC certified)
      • Driving beam pattern
      • Range: 225 m (1 lux)
      • 2,450 lumens (theoretical), 1,700 lumens (actual)
      • Color temperature 5000K (neutral white)
      • 30 W (8 x 15 W LEDs)
      • Voltage: 9-36V
      • IP69K (water/dustproof)
      • Aluminum housing and polycarbonate lens
      • Reflective optics on the sides
      • Pressure equalization membrane
      • Electronic thermal management
      • DT connector (included)
      • 1.8A at 12V and 0.9A at 24V
      Ledson
      334915029

      Data sheet

      General: Accessory
      Lighting
      General: Producttype
      LED Light bar
      General: Product serie
      Epix
      General: Serial model
      5+
      General: Version
      Strobe
      General: Series
      Lights & Styling
      Dimensions and weight: Size ( Ø / ↔ )
      1) Compact
      General: Shape
      Ledbar
      Dimensions and weight: Width (mm)
      128
      Dimensions and weight: Height (mm)
      43
      Dimensions and weight: Depth (mm)
      61
      Light and vision: Beam type
      Driving
      Light and vision: Light type
      LED
      Light and vision: Lighting - type
      Driving light
      Signal light
      Light and vision: Light color
      White
      Light and vision: Position light
      Position light
      Light and vision: Color of position light
      Amber
      White
      Lights and vision: Signal lights
      Flash light
      Light and vision: Strobe function
      10 flash patterns
      Light and vision: Lumen
      1700
      Lights and vision: Light distance (m) at 1 lux
      225
      certifications and delivery: E-mark
      Yes
      Technical specifications: Voltage
      12V
      18V
      24V
      30V
      36V
      Technical specifications: LEDs per lamp
      8
      Technical specifications: Wattage per LED
      15W
      Technical specifications: Number of pins
      6 pins
      Technical specifications: Connector
      Deutsch DT
      design and material: Chrome / RVS
      No
      design and material: Housing color
      Black
      design and material: Housing material
      Aluminum
      certifications and delivery: IP rating
      IP69K
      fit and mounting: Mount
      Normal
      certifications and delivery: Sales unit
      Single item
      certifications and delivery: Standard delivery time
      1-3 business days
      Size in inches
      5
      Size in cm
      12.8
      Prodcat1
      M
      Shipping Size
      Standard
      certifications and delivery: IR-code
      a11.D12.st

      Specific References

      UPC
      1
      EAN13
      7323230052322
      MPN
      0015-100-006287
