    LED Light bar - Ledson - Epix 20+ - 20.1" - 51cm - Position light White/Amber - Driving - Pack

    €429.95(tax incl.)

    €355.33 (tax excl.)

    • Reference: 1360253
    • Producttype: LED Light bar
    • Dimensions (mm): 510 (w) x 43 (h) x 61 (d)
    • E-mark: Yes
    • Beam type: Driving
    • Sales unit: Pack
    • Standard delivery time: 4-7 business days
    x
    ...Continue

    Driving Beam Pattern

    This pack contains

    Quantity :
    • Pay Pay in a secure environment
    • Questions Questions about this product? Our experts are here to help
    • 4.8/5 4.8/5 More than 10,000 customers have already gone before you

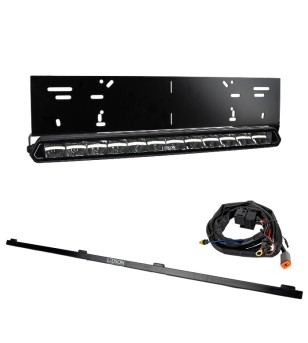

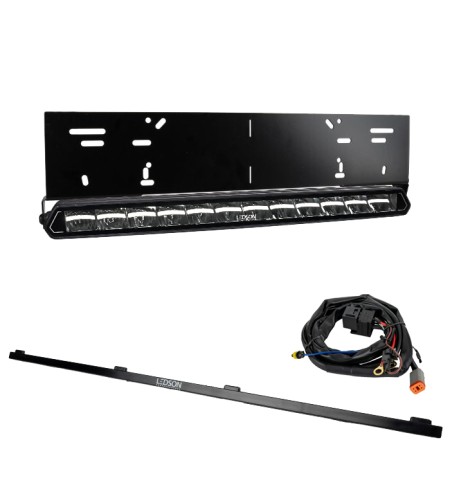

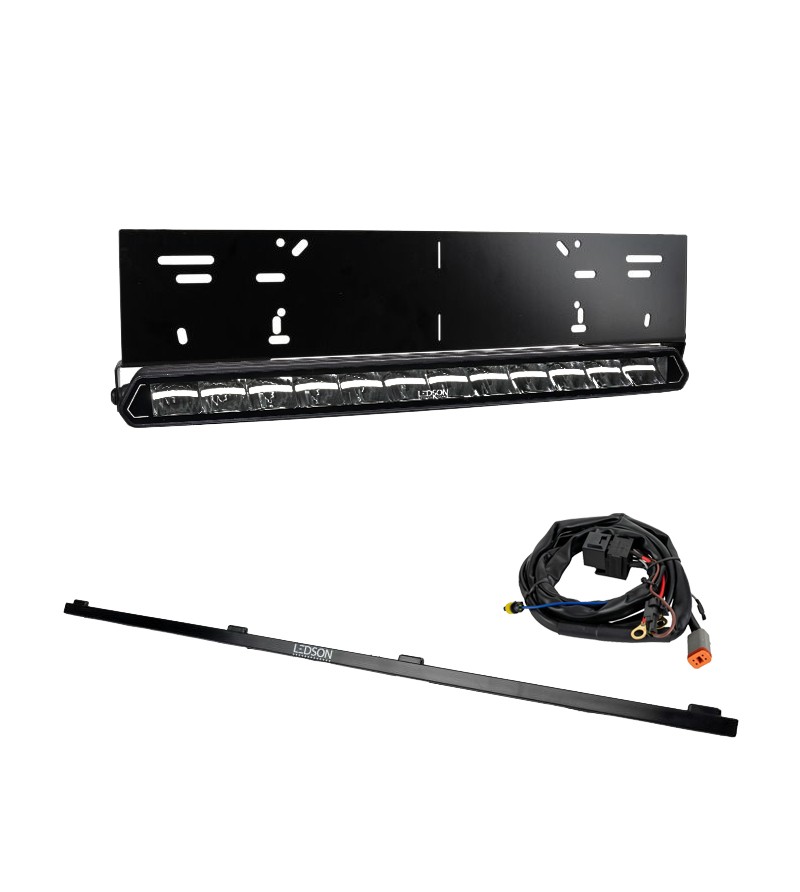

    Ledson Epix20+ LED Bar Kit

    What's Included:

    Maximum Performance and Safety

    The dynamic ignition of the position lights gives the bar an effective start-up. Everything you need and want in a LED bar can be found in the Epix+. We have maximized performance in an E-approved mode, with the option for Powerboost when you choose "off-road". Approved R65 strobe lights ensure your visibility while working on the road and keep you safe in all weather conditions and times of the day. Self-developed smart mounts provide easy installation almost anywhere on the vehicle, however you want it.

    Features and Technical Specifications:

    • Position light with unique dynamic ignition, integrated into the reflector
    • Selectable position light in xenon white or yellow/orange
    • Driving Beam light pattern (wide and elongated)
    • E-marked R112, R7, R10 (EMC approved)
    • Range: 458 m (1 lux), Powerboost: 530 m (1 lux)
    • 15,500 lumens (theoretical), 11,800 lumens (actual)
    • Color temperature 5000K (xenon white)
    • 180W (12 x 15 W LEDs)
    • Voltage: 9-36V
    • IP69K (water/dustproof)
    • Aluminum housing and polycarbonate lens
    • Side-reflecting optics
    • Pressure equalization membrane
    • Electronic heat management
    • DT connector (included)
    Ledson
    1360253

    Data sheet

    General: Accessory
    Lighting
    General: Producttype
    LED Light bar
    General: Product serie
    Epix
    General: Serial model
    20+
    General: Series
    Lights & Styling
    Dimensions and weight: Size ( Ø / ↔ )
    2) Medium
    General: Shape
    Ledbar
    Dimensions and weight: Width (mm)
    510
    Dimensions and weight: Height (mm)
    43
    Dimensions and weight: Depth (mm)
    61
    Light and vision: Beam type
    Driving
    Light and vision: Light type
    LED
    Light and vision: Lighting - type
    Driving light
    Light and vision: Light color
    White
    Light and vision: Position light
    Position light
    Light and vision: Color of position light
    Amber
    White
    Light and vision: Signal lights
    Flash light
    Light and vision: Theoretical Lumens
    Theoretisch: 15.500
    Werkelijk: 11.800
    Light and vision: Light distance (m) at 1 lux
    Range: 458 Powerboost: 530
    certifications and delivery: E-mark
    Yes
    certifications and delivery: Certifications
    R10
    R112
    Technical specifications: Voltage
    12V
    18V
    24V
    30V
    36V
    Technical specifications: LEDs per lamp
    12
    Technical specifications: Wattage per LED
    15W
    Technical specifications: Connector
    Deutsch DT
    Design and material: Chrome / RVS
    No
    Design and material: Housing color
    Black
    Design and material: Housing material
    Aluminum
    certifications and delivery: IP rating
    IP69K
    fit and mounting: Mount
    Normal
    certifications and delivery: Sales unit
    Pack
    certifications and delivery: Standard delivery time
    4-7 business days
    Size in inches
    20.1
    Size in cm
    51
    Prodcat1
    M
    Shipping Size
    Standard
    certifications and delivery: IR-code
    a0..pa

    Specific References

    UPC
    1
    EAN13
    7323230047861
    MPN
    0001-100-011245
