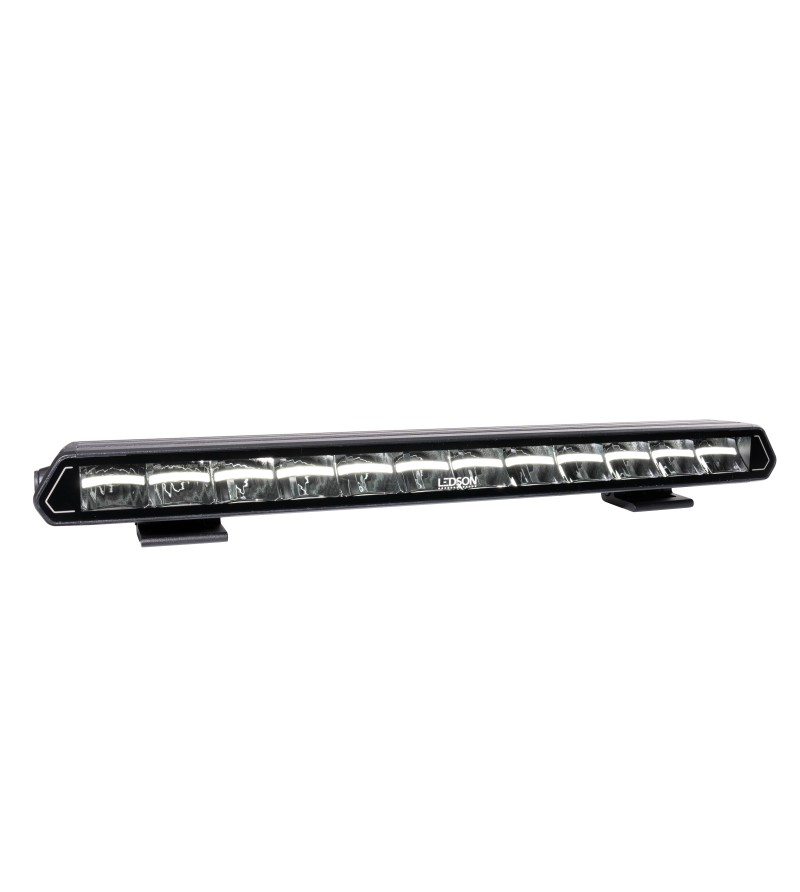

LED Light bar - Ledson - Epix 20+ - 20.1" - 51cm - Position light White/Amber - Driving

Ledson Epix 20+ with dynamic DRL - 334915128

LED Light bar - Ledson - Epix 20+ - 20'' - Position light White/Amber - Driving

LED Light bar - Ledson - Epix 20+ - 20.1" - 51cm - Position light White/Amber - Driving

€309.95(tax incl.)

€256.16 (tax excl.)

Reference: 334915128
Producttype: LED Light bar
Diameter: 218
Dimensions (mm): 510 (w) x 43 (h) x 61 (d)
E-mark: Yes
Beam type: Driving
Sales unit: Single item
Standard delivery time: 1-3 business days

...Continue

Must-have accessoires

Wiring Kit

	Reference: 7801004 Producttype: Wiring kit Standard delivery time: 1-3 business days x ...Continue	Wiring kit - Ledson - Connect - 1 lamp - 4 pins - Deutsch DT - 12V €47.95
	Reference: 7801013 Producttype: Wiring kit Standard delivery time: 1-3 business days x ...Continue	Wiring kit - Ledson - Connect - 2 lamps - 4 pins - Deutsch DT - 12V €62.99
	Reference: 8213-DT4 Producttype: Wiring kit Sales unit: Single item Standard delivery time: 1-3 business days The Lazer 3-meter extension cable with 4 pins easily creates extra connections for all your 12V projects. This flexible cable is perfect for expanding your lighting or equipment setup. ...Continue	Wiring kit - Lazer - Extension cable - 4 pins - Deutsch DT - 12V €44.95

Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you

Ledson Epix 20+ with Dynamic Position Light

What's included:

Epix20+ Powerboost 20" LED bar
Bolts and screws for mounting the bar to a suitable surface

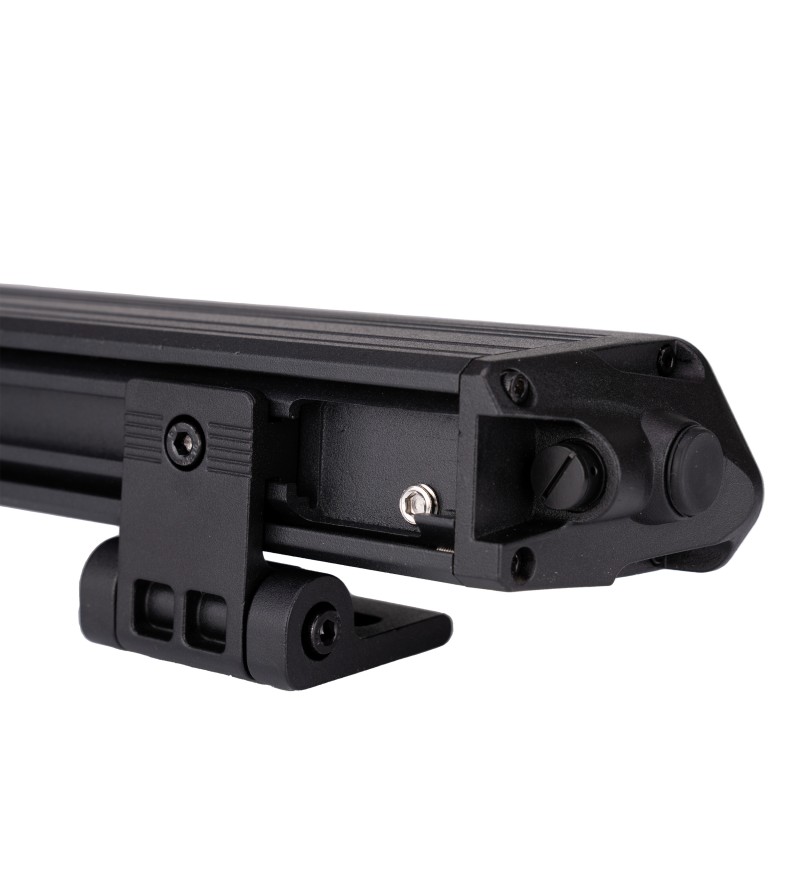

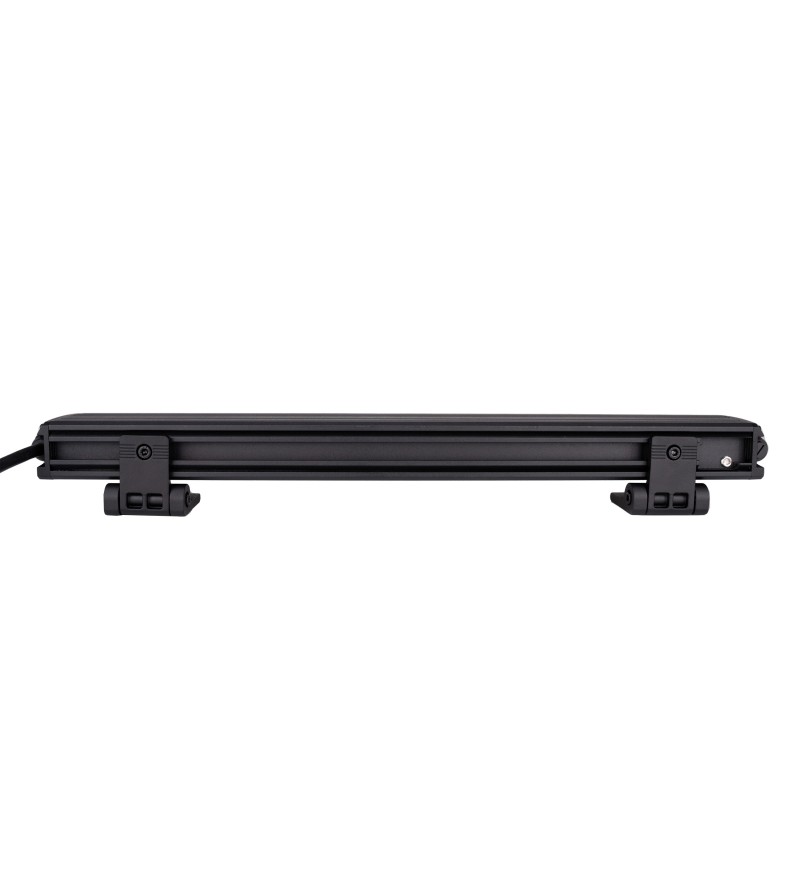

Smart mounting options
DT cable 4-pin

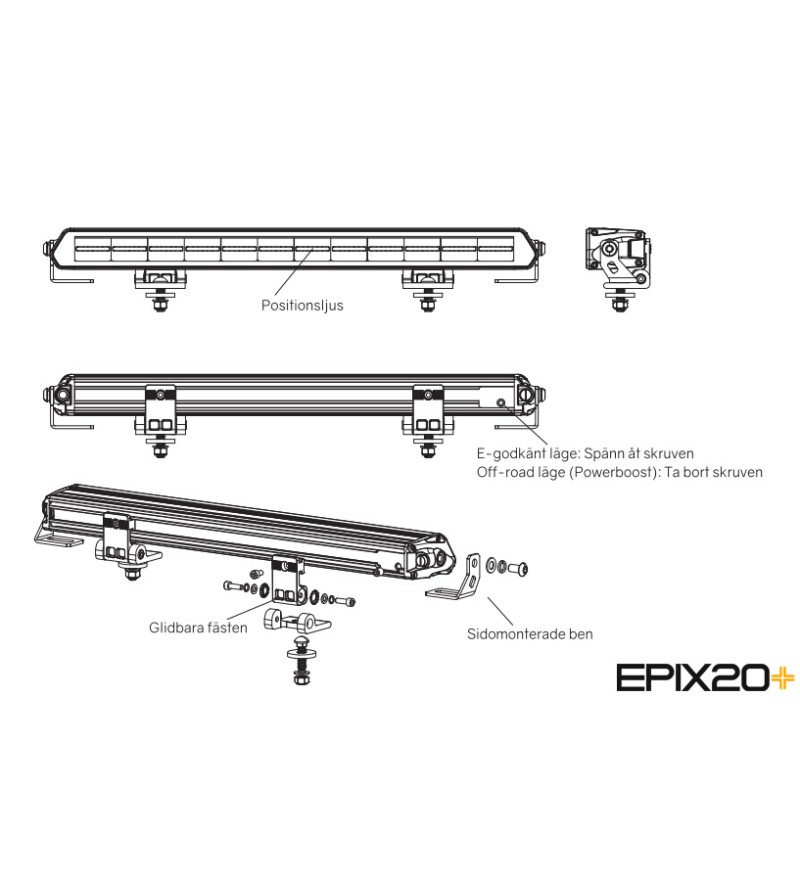

Installation instructions

Ledson Epix+

The design of this bar is uniquely developed by Ledson and harmonizes with the most modern vehicles today, elevating your vehicle to a new level. The dynamic position light activates with a powerful motion that guides the light neatly from one side of the bar to the other before it fully illuminates. The position light is integrated into the reflector, a completely unique feature that sets you apart just that little bit extra.

Features and Technical Specifications:

Position light with unique dynamic activation, integrated into the reflector
Selectable position light in xenon white or yellow/orange
“Driving Beam” light pattern (wide and elongated)
E-marked R112, R7, R10 (EMC approved)

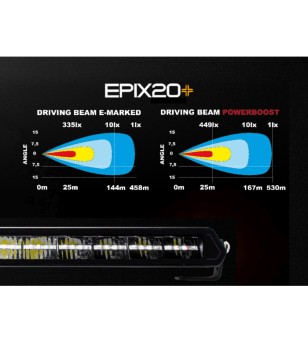

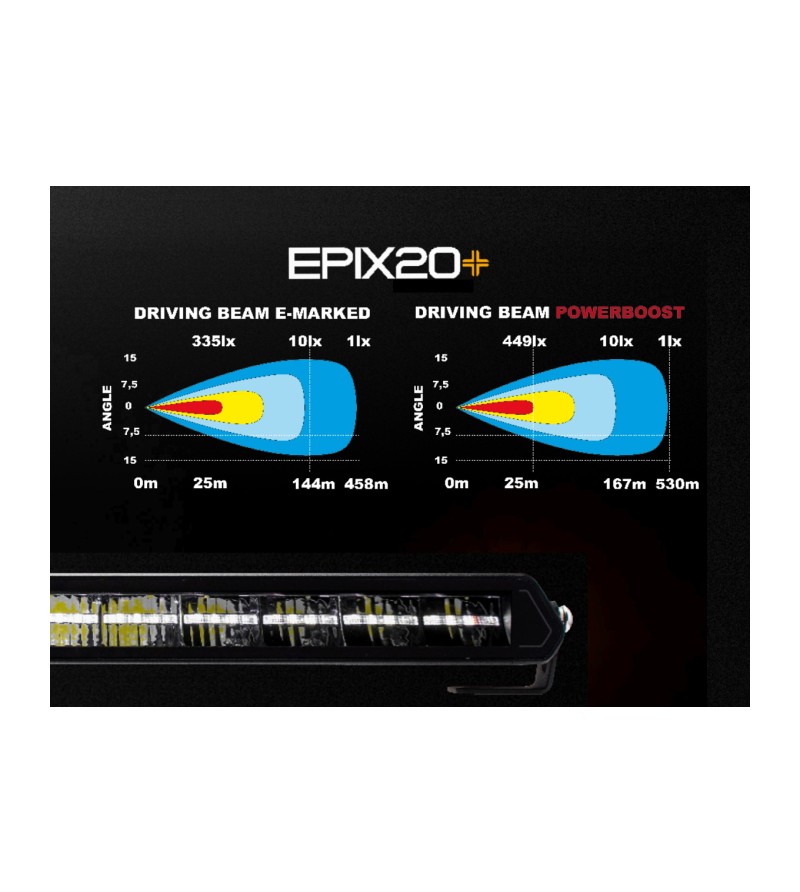

Range: 458 m (1 lux), Powerboost: 530 m (1 lux)
15,500 lumens (theoretical), 11,800 lumens (actual)
Color temperature 5000K (Neutral White)
180 W (12 x 15 W LEDs)
Voltage: 9-36V
IP69K (water and dustproof)
Aluminum housing and polycarbonate lens
Side-reflecting optics
Pressure equalization membrane
Electronic thermal management
DT connector (included)

Reference 334915128

Data sheet

General: Accessory: Lighting
General: Producttype: LED Light bar
General: Product serie: Epix
General: Serial model: 20+
General: Series: Lights & Styling
Dimensions and weight: Size ( Ø / ↔ ): 2) Medium
General: Shape: Ledbar
Dimensions and weight: Diameter (mm): 218
Dimensions and weight: Width (mm): 510
Dimensions and weight: Height (mm): 43
Dimensions and weight: Depth (mm): 61
Light and vision: Beam type: Driving
Light and vision: Light type: LED
Light and vision: Lighting - type: Driving light
Light and vision: Light color: White
Light and vision: Position light: Position light
Light and vision: Color of position light: Amber
White
Light and vision: Signal lights: Flash light
Light and vision: Theoretical Lumens: 12000
9600
Light and vision: Light distance (m) at 1 lux: 425
Light and vision: Light distance (m) at 0.25 lux: 850
certifications and delivery: E-mark: Yes
certifications and delivery: Certifications: R10
R112
Technical specifications: Voltage: 12V
18V
24V
30V
36V
Technical specifications: LEDs per lamp: 12
Technical specifications: Wattage per LED: 10W
Technical specifications: Number of pins: 4 pins
Technical specifications: Connector: Deutsch DT
Design and material: Chrome / RVS: No
Design and material: Housing color: Black
Design and material: Housing material: Aluminum
certifications and delivery: IP rating: IP68
fit and mounting: Mount: Normal
certifications and delivery: Sales unit: Single item
certifications and delivery: Standard delivery time: 1-3 business days
Size in inches: 20.1
Size in cm: 51
Prodcat1: M
Shipping Size: Standard
certifications and delivery: IR-code: a7.D12.st

Specific References

UPC: 1
EAN13: 7323230047397
MPN: 0005-100-016010

Unboxing Ledson Epix 20
