LED Light bar - Viklight - Ymer 20 - 20'' - Position light

LED Light bar - Viklight - Ymer 20 - 20'' - Position light White/Amber - Driving

€324.95 (tax incl.)

€268.55 (tax excl.)

  • Reference: VLY20EM
  • Producttype: LED Light bar
  • Dimensions (mm): 515 (w) x 38 (h) x 69 (d)
  • E-mark: yes
  • Position Light Color: White/Amber
  • Beam type: Driving
  • Sales unit: Single item
  • Standard Delivery time: 4-7 business days
x
...Continue

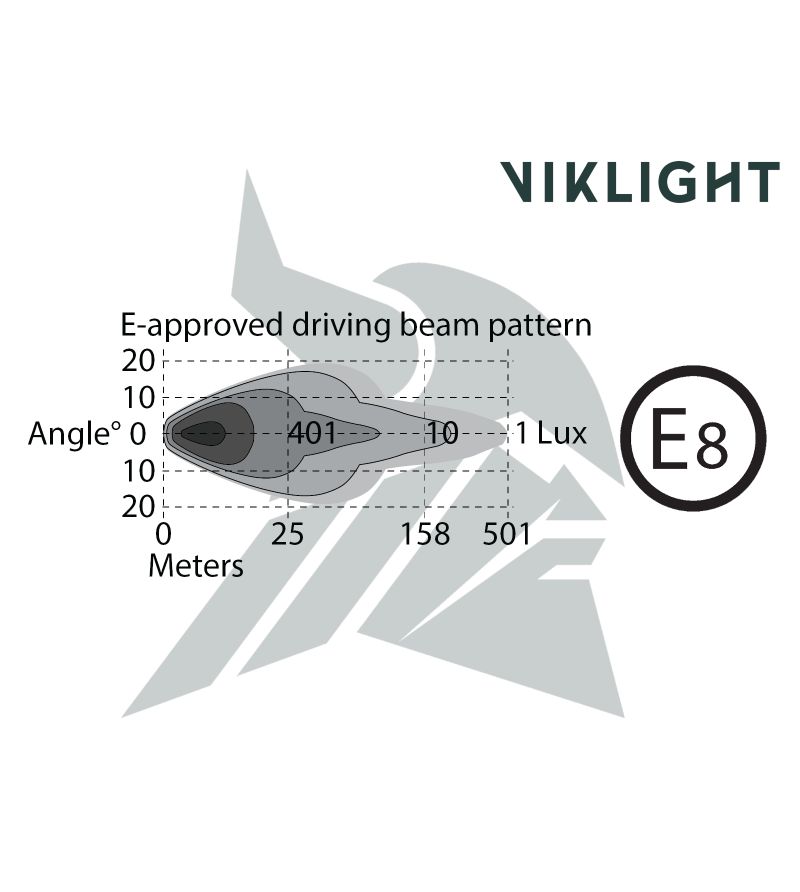

Driving Beam Pattern

Quantity

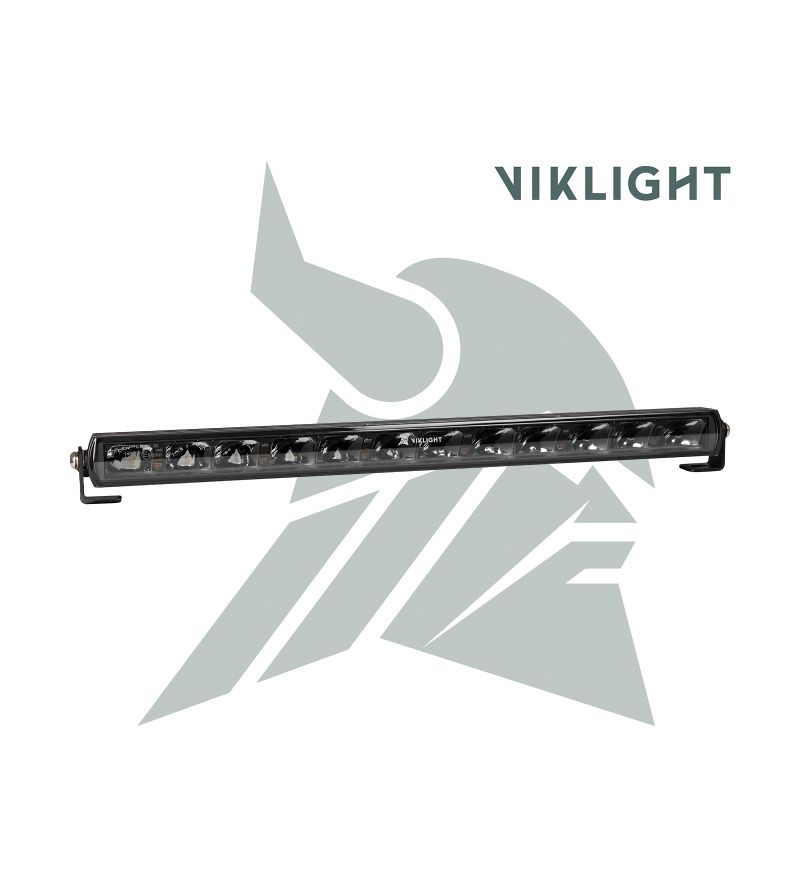

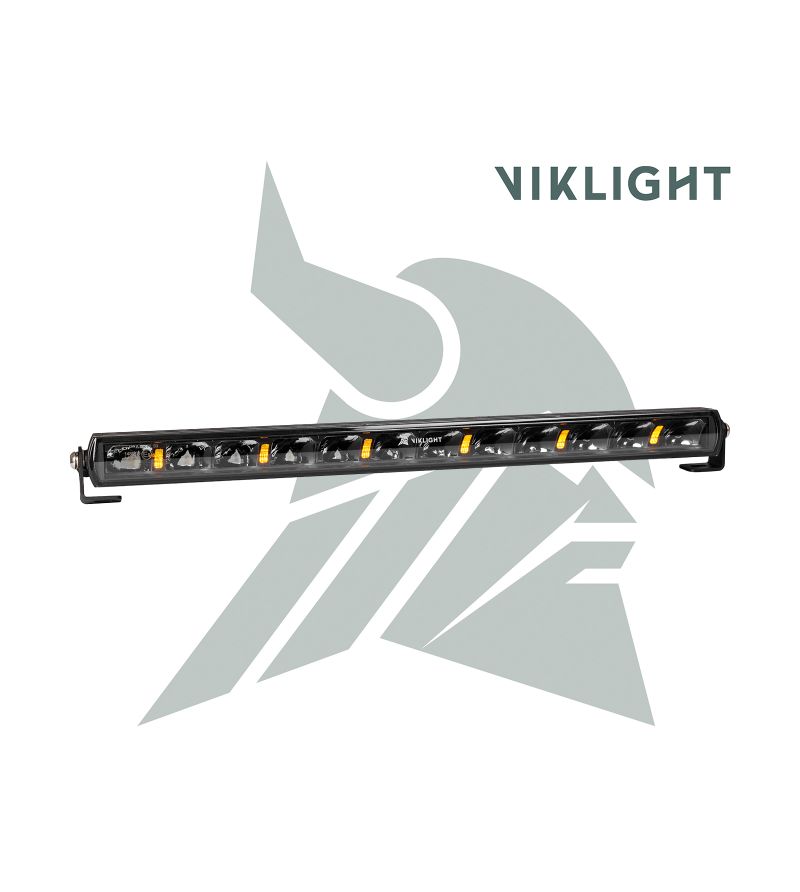

An evolution of one of our most popular LED Light bars, the updated Viklight Ymer now shines even further than before at 1 lux at 581 meters. The LED Light bar features a modern upright position light in a choice of orange or white.

The combined light pattern provides both wide light on the outer edges of the road and length on straight country roads.

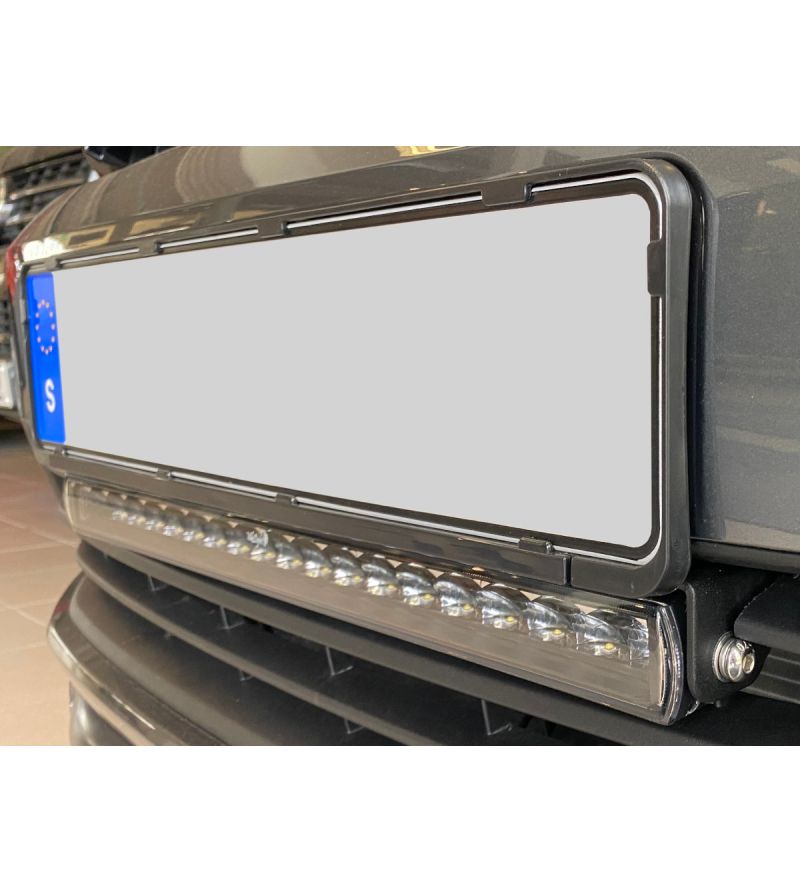

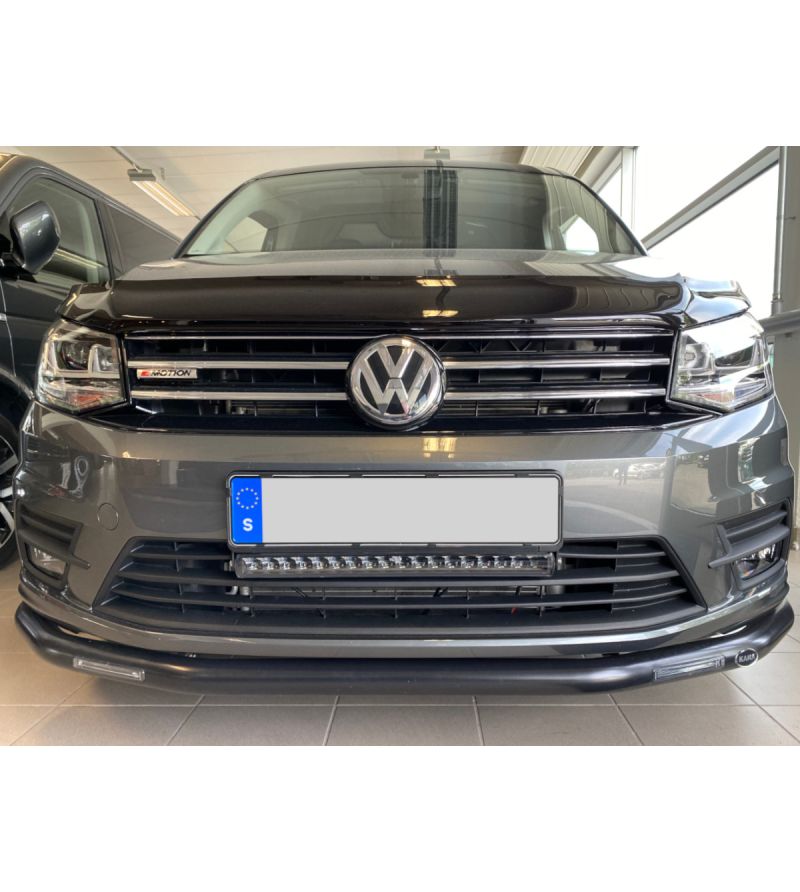

The convenient dimensions allow the LED Light bar to be easily mounted below or above the license plate, and the ramp dimensions match a standard license plate.

-E-mark as additional lighting
-Customized license plate holder available as an accessory
-Only 38.5 mm high, lightweight and easy to mount
-Good light output, 1 lux at 581 meters!
-Lexan lens

What else do I need?
The lightbar does not include its own cable set, but the lightbar's DT connector fits well with our DT cable set.
An additional separate DT connector is included.

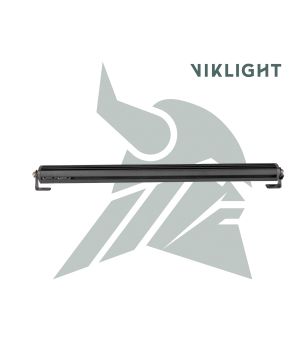

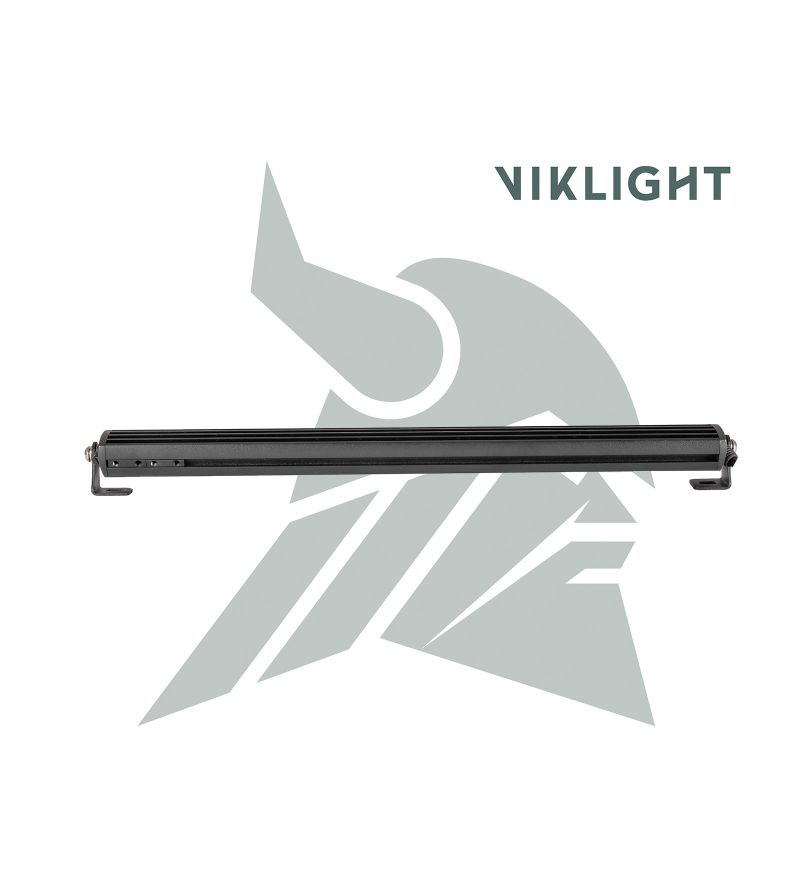

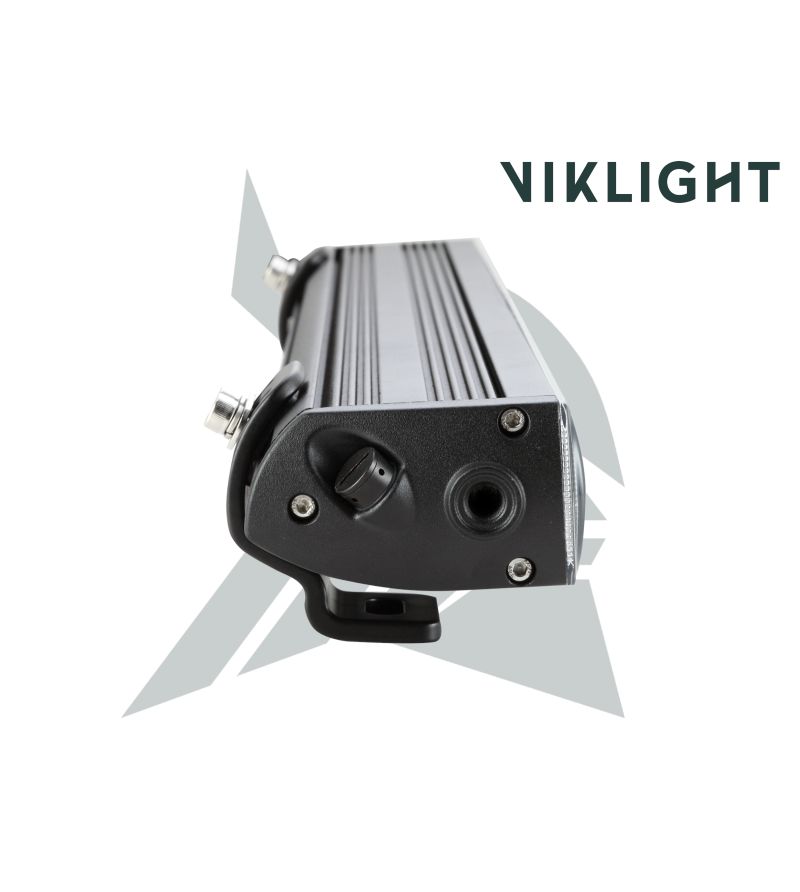

The LED Light bar has two different mounting systems to facilitate installation, a stepless rail on the back of the bar and L-shaped metal feet for mounting on the short sides

LED Light bar data Viklight Ymer 20-inch:
Lamp housing: Aluminum
Ventilating membrane according to the Gore-Tex principle allows any condensation to escape.
Number of LEDs: 12 LG LEDs (94W)
Number of lumens: 11 400 theoretical (5800 in ECE mode)
Light intensity at 1 lux: 581 meters
E-mark: Yes, ECE R112 Reference number 50 in ECE mode
Voltage: 9-30 volt DC
Color temperature: approx. 6500 K
Light pattern: Combination light pattern, extends and widens the main beam.
IP class: IP68, weatherproof.

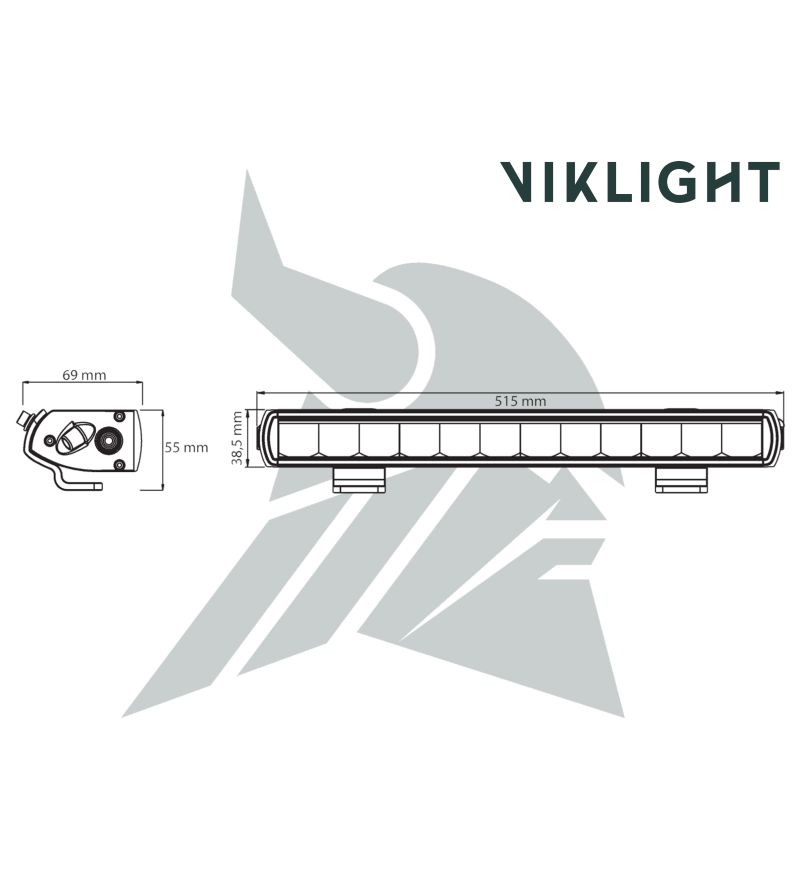

Length: 515 mm
Height excl. mounting bracket: 38.5 mm
Height incl. mounting bracket: 55 mm
Depth: 69 mm
Lens: Polycarbonate

Electrical connection:
White cable: 12/24v+ for white position light
Yellow cable: 12/24v+ for orange position light
Green cable: 12/24v+ for ECE mod (lower power)

WLTP information
WLTP weight: 1.2kg
WLTP frontal area: 0.0206 (m2)

3-year warranty.

Viklight
VLY20EM

Data sheet

Accessory
Lighting
Producttype
LED Light bar
Product serie
Ymer
Serial model
20
Size ( Ø / ↔ )
2) Medium
Shape
Ledbar
Width (mm)
515
Height (mm)
38
Depth (mm)
69
Weight (kg)
1.2
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Light color
White
Position light
Position light
Color of position light
Amber
White
Color temperature
6500K
Reference number per unit
50
E-mark
yes
ECE approval
R112
Glass color
Clear
Chrome / RVS
no
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
Product color
black
IP rating
IP68
Mount
Normal
Lumen
11400
Light distance (m) at 1 lux
581
Voltage
12V
18V
24V
30V
Watts
94W
LEDs per lamp
12
number of pins
4 pins
Connector
2 pins DTP
Wiring included
No
Sales unit
Single item
Standard Delivery time
4-7 business days
prodcat1
M
Shipping Size
S

Specific References
