LED Light bar - Viklight - Tellus 20 - 21'' - curved - Position light White - Driving

€359.95 (tax incl.)

€297.48 (tax excl.)

  • Reference: TEL20EM
  • Producttype: LED Light bar

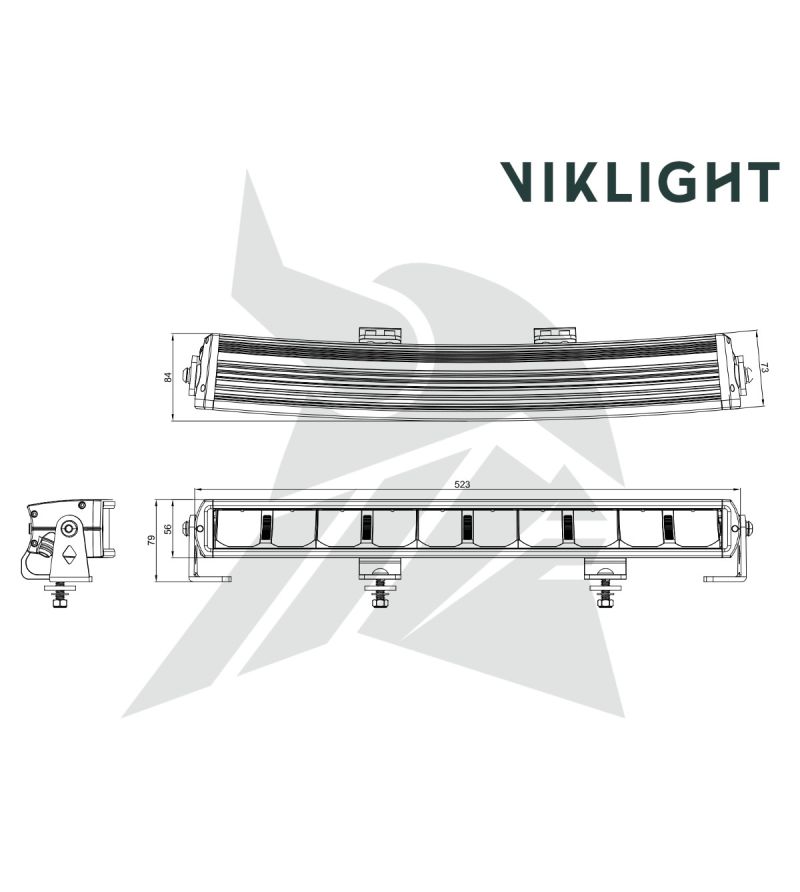

  • Dimensions (mm): 523 (w) x 56 (h) x 84 (d)
  • E-mark: yes
  • Position Light Color: White
  • Beam type: Driving
  • Sales unit: Single item
  • Standard Delivery time: 4-7 business days
x
...Continue

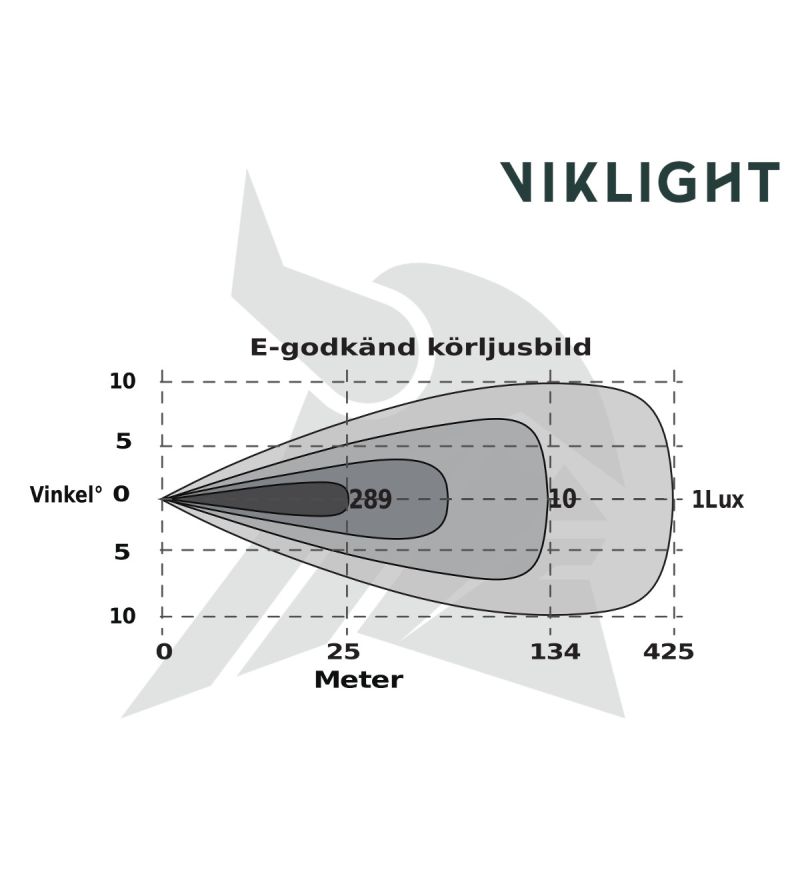

Driving Beam Pattern

Must-have accessories

Wiring Kit

Wiring kit - Luminalights - 1 lamp - 3 pins - Deutsch DT - 12V

Wiring kit - Luminalights - 1 lamp - 3 pins - Deutsch DT - 12V

€32.95
Quantity

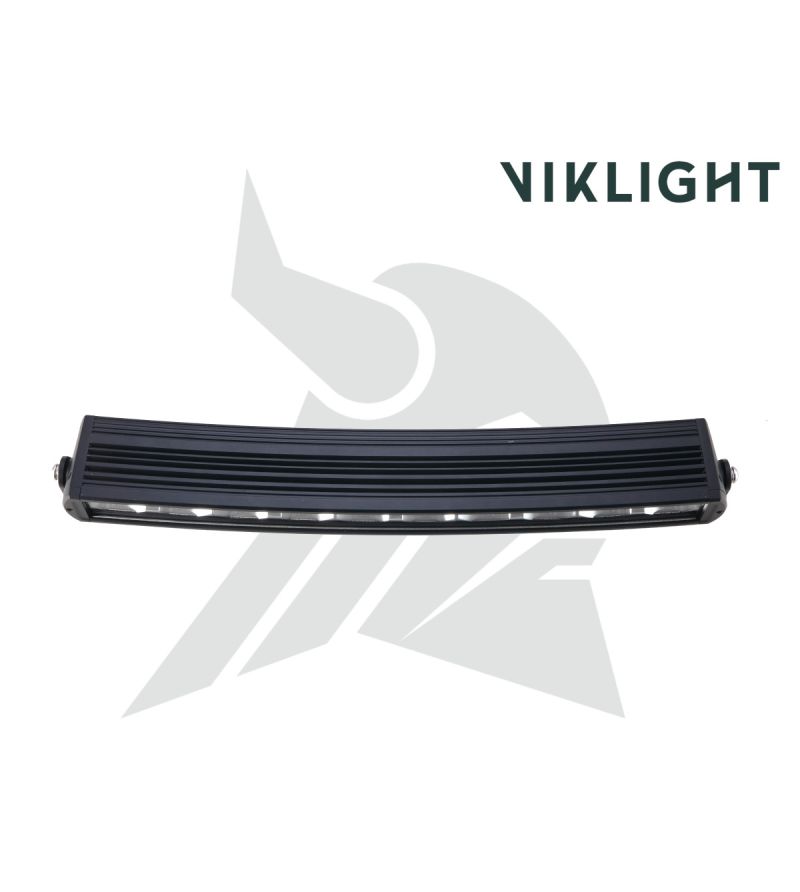

The Viklight Tellus is a curved LED Light bar for situations where a bright LED Light bar with a slightly lower profile is required, for example, compared to the Ramer series. The curvature of the LED Light bar provides a wide, fan-shaped light pattern and has a range of approximately 425 meters (the distance at which the light quantity of 1 lux is measured). The light pattern is suitable for roads and highways.

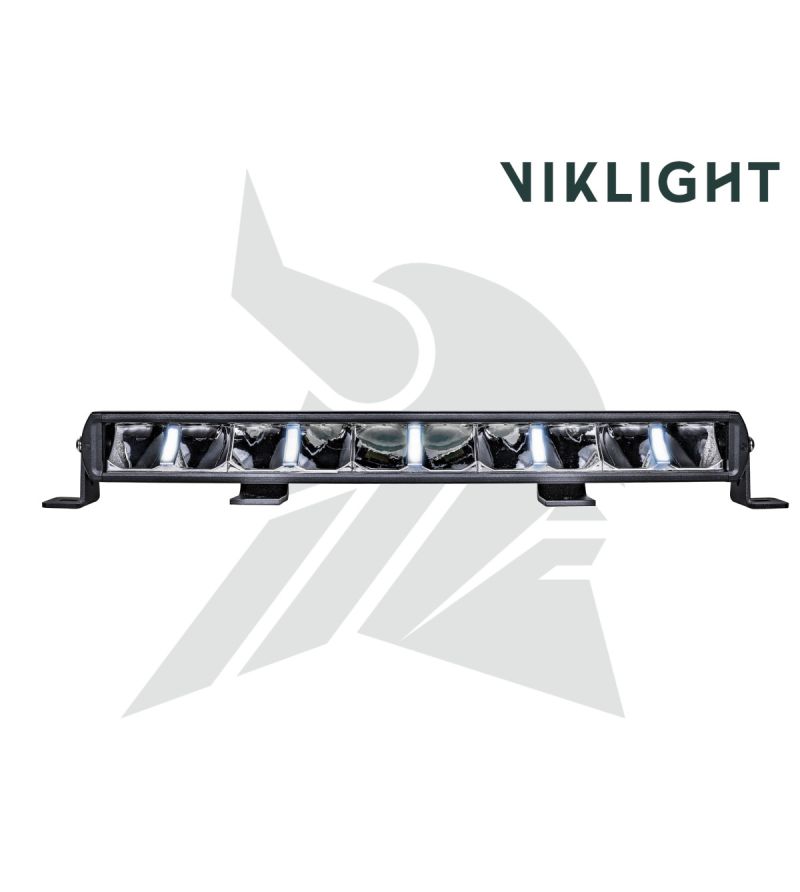

LED position light
Viklight Tellus has a modern LED position light.

What else do you need?
The light bar is not supplied with its own cable set, but we can supply one.
The Tellus has a three-pin DT connector.

What type of vehicle does this LED light bar fit?
The LED Light bar fits on most cars and vans and can be mounted under the license plate with a license plate holder.

Details LED-ramp Viklight Tellus 20-inch:

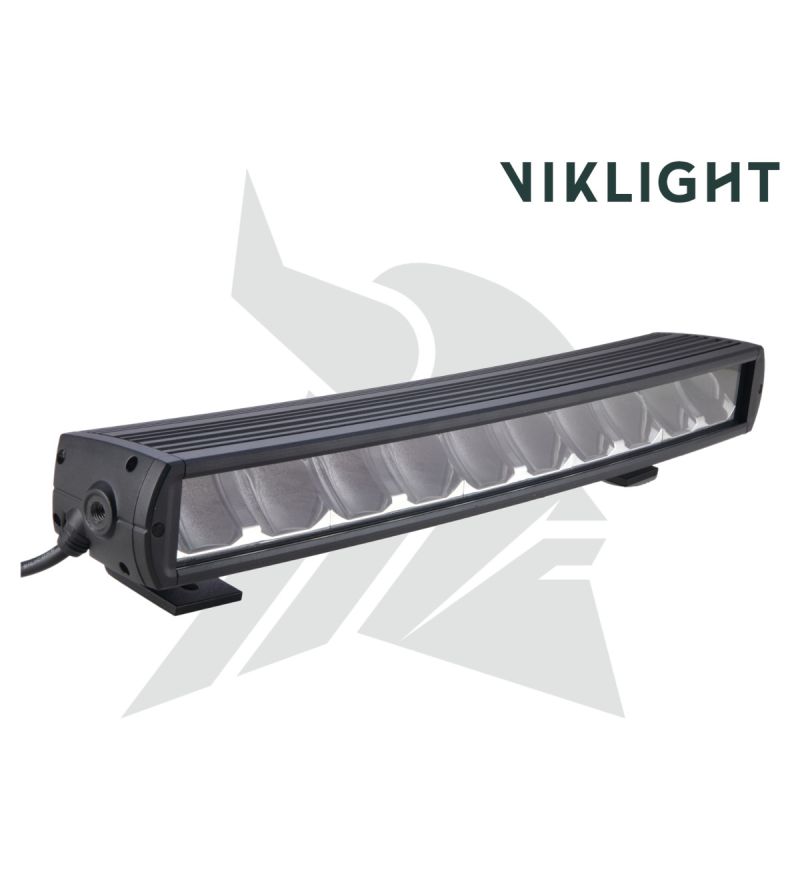

Bracket: Stepless rail at the back of the LED Light bar and side-mounted feet with 360 degree adjustability included.
A ventilating membrane based on the Gore-Tex principle allows any condensation to escape.
Number of LEDs: 10 x 10 watt LEDs (100W)
Number of lumens: 9500 theoretical
Length of light at 1 lux: 425 meters
E-mark: Yes, according to ECE R7, R10 & R112 (reference number 45)
Voltage: 9-36 volts DC
Light pattern: High beam, extends and widens the main beam
IP class: IP68, weatherproof.
Length: 523 mm
Height excl. mounting bracket: 56 mm
Height incl. mounting bracket: 79 mm
Depth: 84 mm

WLTP information
WLTP weight: 1.8 kg
WLTP front surface: 0.0292 (m2)

This LED Light bar has a 3-year warranty.

Viklight
TEL20EM

Data sheet

Accessory
Lighting
Producttype
LED Light bar
Product serie
Tellus
Serial model
20
Feature
curved
Size ( Ø / ↔ )
2) Medium
Shape
Ledbar
Width (mm)
523
Height (mm)
56
Depth (mm)
84
Weight (kg)
1.8
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Light color
White
Position light
Position light
Color of position light
White
Color temperature
6000K
Reference number per unit
45
E-mark
yes
ECE approval
R7
R10
R112
Glass color
Clear
Chrome / RVS
no
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
Product color
black
IP rating
IP68
Mount
Normal
Lumen
9500
Light distance (m) at 1 lux
425
Voltage
12V
18V
24V
30V
36V
Watts
100W
LEDs per lamp
10
Wattage per LED
10W
number of pins
3 pins
Connector
Deutsch DT
Wiring included
No
Sales unit
Single item
Standard Delivery time
4-7 business days
