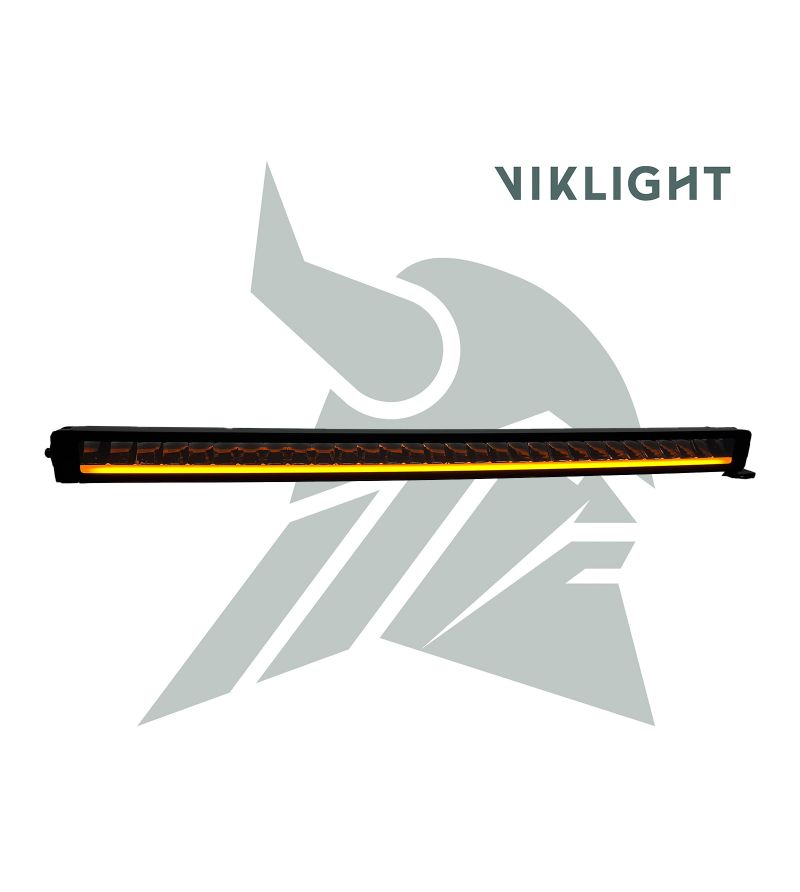

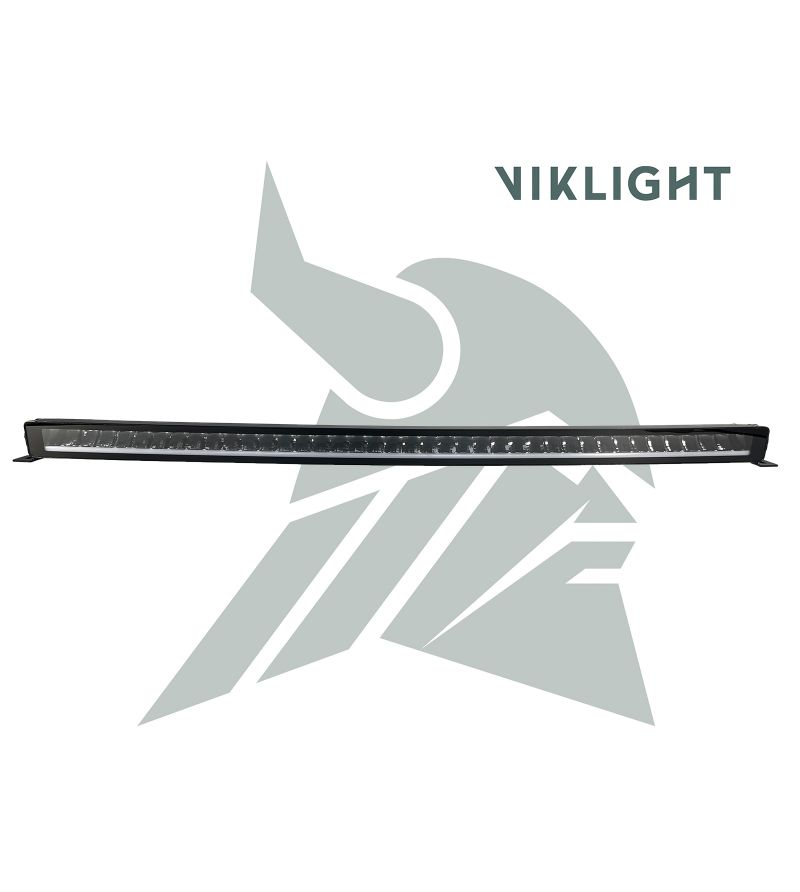

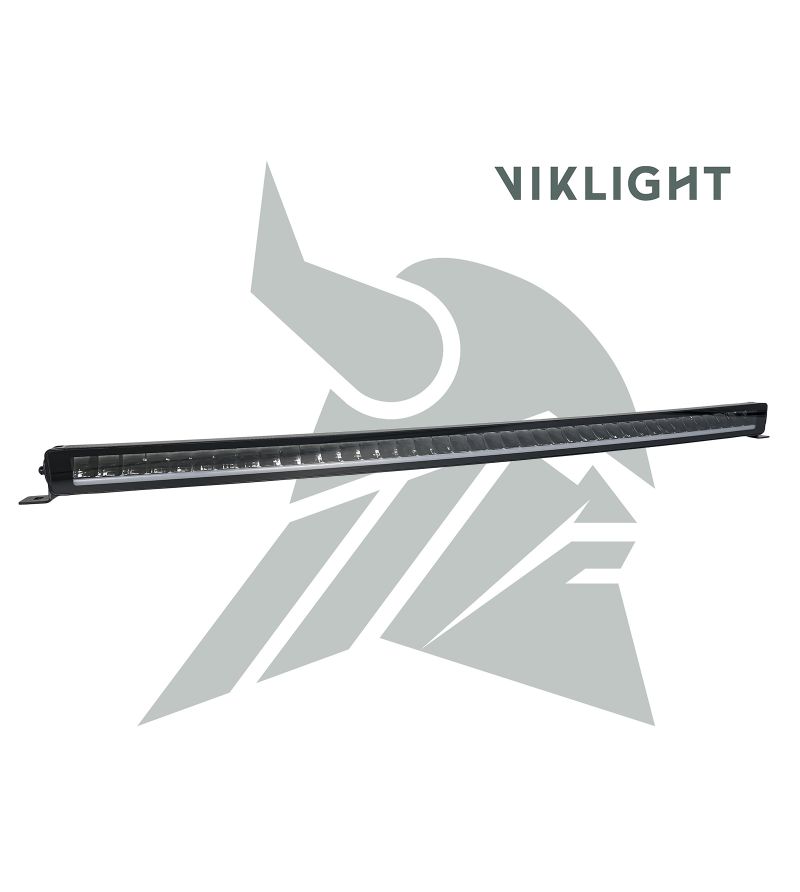

LED Light bar - Viklight - Ramer 2.0 40 - 41" - curved - Position light White/Amber - 1 flash pattern - Driving

€759.95 (tax incl.)

€628.06 (tax excl.)

  • Reference: VLR40.2
  • Producttype: LED Light bar
  • Dimensions (mm): 1053 (w) x 53 (h) x 65 (d)
  • E-mark: yes
  • Position Light Color: White/Amber
  • Strobe function: 1 flash pattern
  • Beam type: Driving
  • Sales unit: Single item
  • Standard Delivery time: 4-7 business days
x
...Continue

Driving Beam Pattern

Quantity

The new Viklight Ramer 2.0 has a curved shape that creates a fan-shaped light pattern that widens and extends the regular high beam.
This light pattern is versatile and very suitable for all types of conditions and environments.

Feet for lateral mounting with 360-degree adjustability are included. The Viklight Ramer can be mounted hanging or standing.
The ventilating membrane based on the Gore-Tex principle allows any condensation to escape.

The LED Light bars are available in three lengths - 20, 30 and 40 inches.

Specifications Viklight Ramer 2.0 40-inch:
Lamp housing: black metal
Ventilating membrane based on the Gore-Tex principle allows any condensation to escape.
Number of LEDs: 40 LP (6W)
Number of lumens: 16700 theoretical
Light distance at 1 lux: 857m
E-mark: Yes, R149/148 - Reference number 45 in ECE mod.
EMC-R10 - Radio interference suppression
Voltage: 9-36V
Contact: DT-6
Color temperature: 5600~6100k
Light output: Spot beam
IP class: IP68
Length (mm): 1053
Height excl. mounting bracket (mm): 53
Height incl. mounting bracket (mm): 64.5
Depth (mm): 64.6
Lens: Clear glass

Viklight
VLR40.2

Data sheet

Accessory
Lighting
Producttype
LED Light bar
Product serie
Ramer 2.0
Serial model
40
Feature
curved
Size ( Ø / ↔ )
3) Large
Shape
Ledbar
Width (mm)
1053
Height (mm)
53
Depth (mm)
65
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Light color
White
Position light
Position light
Color of position light
Amber
White
Signal lights
Flash light
Strobe function
1 flash pattern
Color temperature
5700K
Reference number per unit
45
E-mark
yes
ECE approval
R148
R149
Glass color
Clear
Chrome / RVS
no
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
Product color
black
IP rating
IP68
Mount
Normal
Lumen
16700
Light distance (m) at 1 lux
857
Voltage
12V
18V
24V
30V
Watts
240W
LEDs per lamp
40
Wattage per LED
6W
number of pins
6 pins
Connector
Deutsch DT
Wiring included
No
Sales unit
Single item
Standard Delivery time
4-7 business days
prodcat1
M
Prodcat2
AB
Shipping Size
M
