Grille kit - DSM - Integra - Optibeam Savage 12 - Volkswagen - Crafter - 2017+

€599.95 (tax incl.)

€495.83 (tax excl.)

  • Reference: 8020107334
  • Producttype: Grille kit
  • E-mark: yes
  • Position Light Color: White/Amber
  • Sales unit: Set

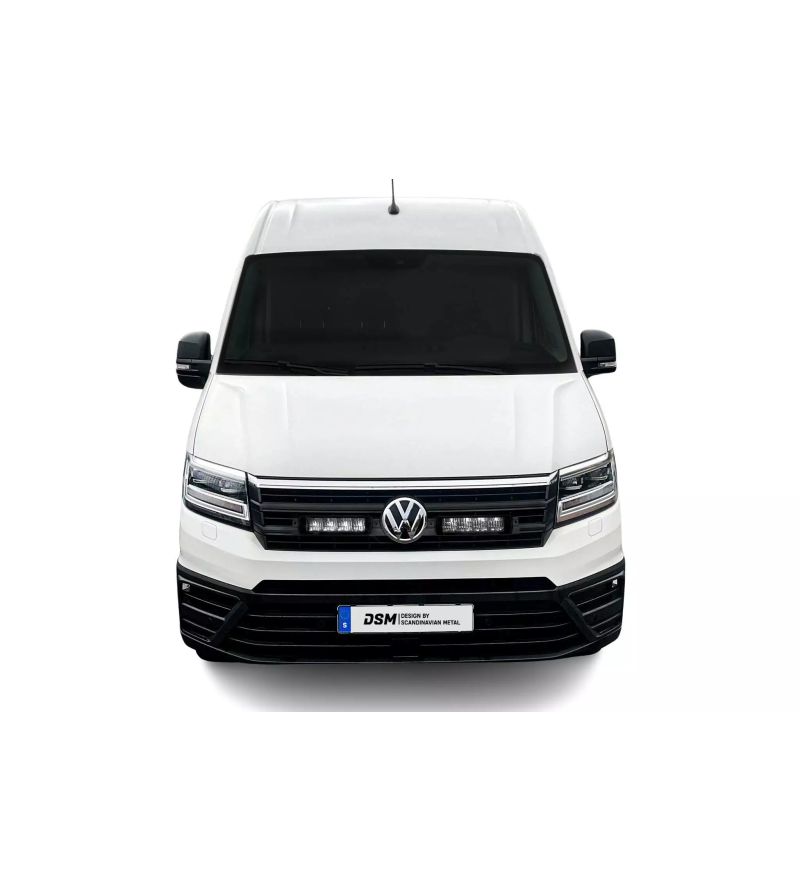

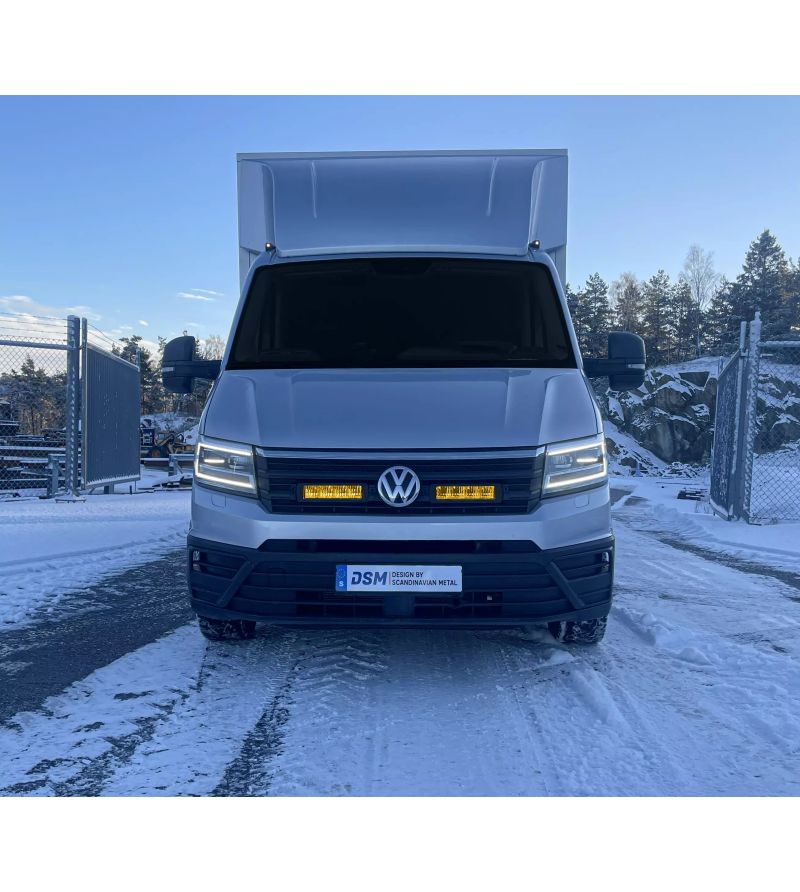

This Grille kit for the Volkswagen Crafter provides a subtle and stylish installation of a set of super high beam headlights that feature white and amber position light
...Continue

Quantity

New DSM INTEGRA model-specific LED ramps for Volkswagen (VW) Crafter 2017+

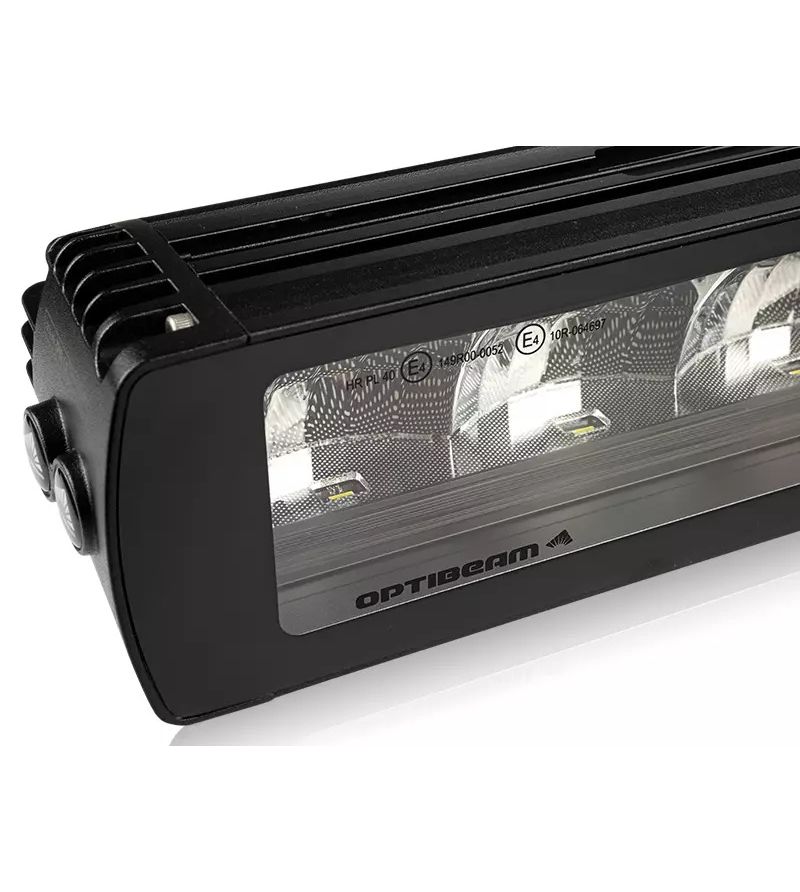

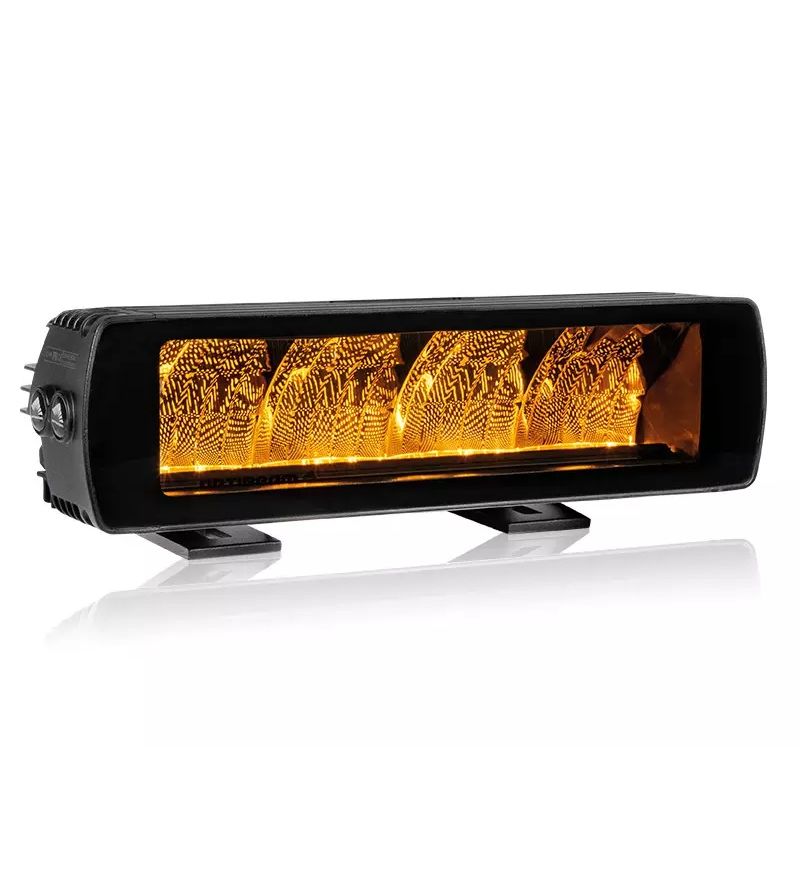

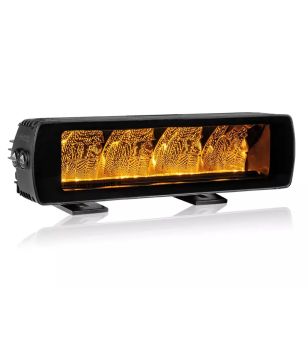

DSM INTEGRA is a perfectly fitting DSM concept with model-specific mounting brackets for the integrated installation of LED Light bars. DSM INTEGRA was designed in Sweden and has been adapted to endure Scandinavian conditions. DSM INTEGRA kits are easy to install thanks to their functional Scandinavian design. The DSM INTEGRA customized packages come with high-quality premium LED Light bars from the Scandinavian company Optibeam Lights. This package contains two Optibeam Savage 12 IIs. These have a stylish built-in position light called Streetshine Ambient that illuminates the reflectors of the spotlight. The position light can be set to white or orange as desired. The orange position light can also be used as a warning light.

Technical information about this package:

- Light pattern: High beam (high beam pattern with good width and range in the light pattern)
- Lighting distance: 679m @ 1 Lux (Total lighting distance: 1358m @ 0.25 Lux)
- Wattage: 140W
- Voltage: 9-36V
- Theoretical Lumen: 8000 lm / LED lights
- Measured Lumen: 4140 lm / LED lights
- Color temperature 5000K
- LED lifespan: more than 30,000 hours
- Width: 307 mm / per LED Light bar
- Depth: 87 mm / per LED Light bar
- Height: 81 mm / per LED Light bar
- Cable length: 220 cm
- Durable polycarbonate lens
- Aluminum frame
- Approved for use on public roads
- ECE R112, ECE R10 and R7
- Warranty: 36 months

This package contains:

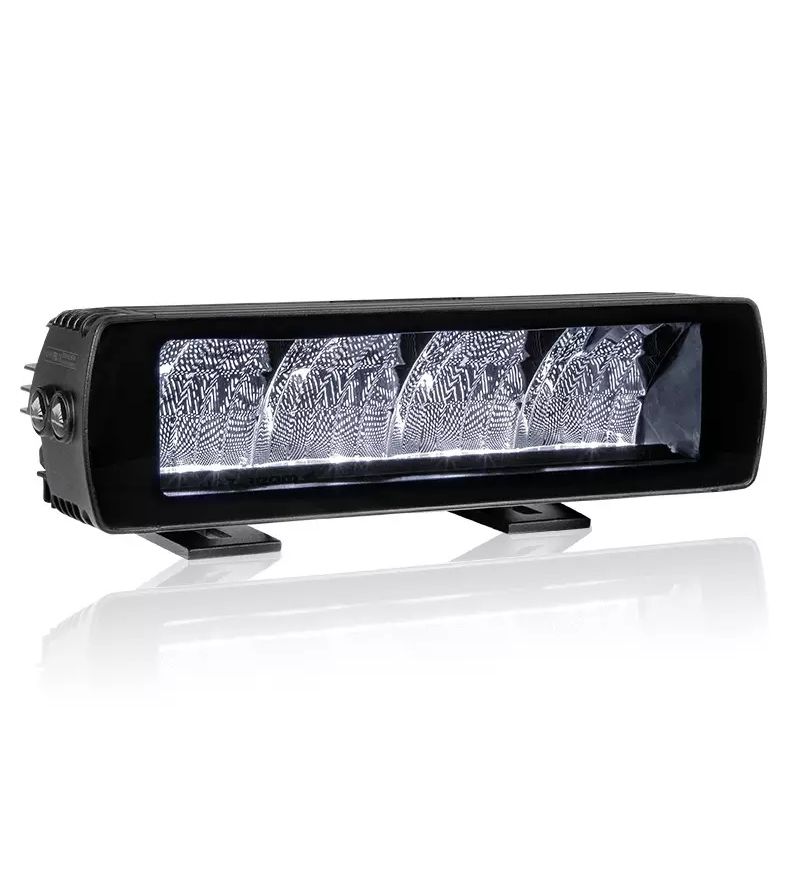

2x Optibeam Savage 12 II

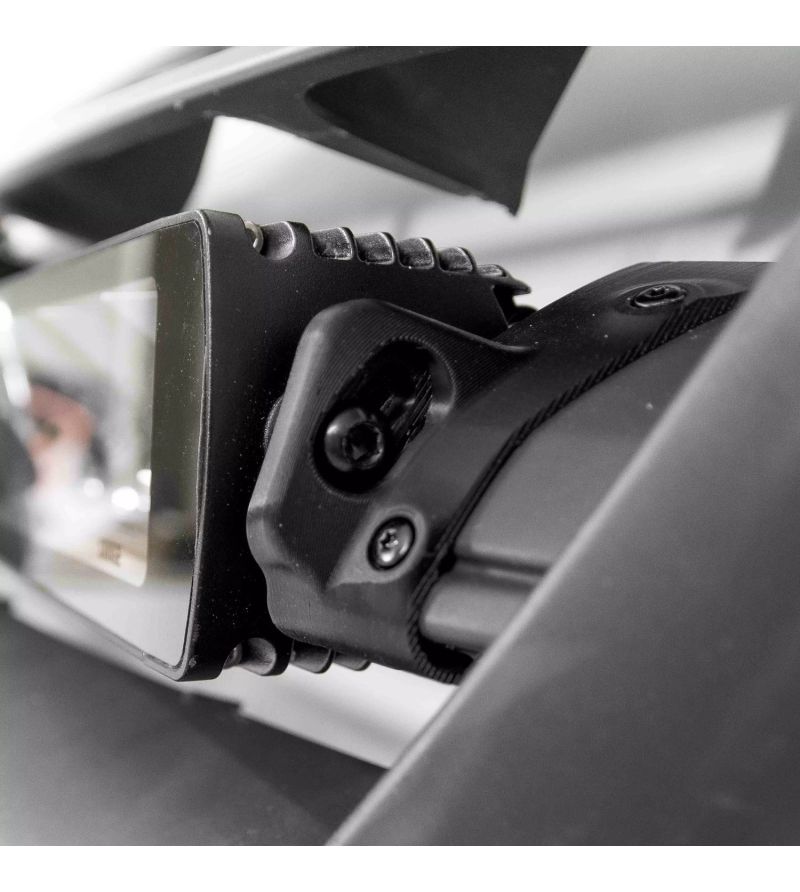

1 set DSM INTEGRA brackets modeled for VW Crafter 2017+
1 set of installation instructions
1 set of cables for 2 HD Max 300W spotlights

8020107334

Data sheet

Producttype
Grille kit
Product serie
Integra
Version
Optibeam Savage 12
Position light
Position light
Color of position light
Amber
White
Color temperature
5000K
E-mark
yes
ECE approval
R7
R10
R112
Glass color
smoke
IP rating
IP68
Lights
Lights included
Lumen
16000
Actual Lumens
8280
Light distance (m) at 1 lux
679
Light distance (m) at 0.25 lux
1358
Voltage
12V
18V
24V
30V
36V
Wiring included
Yes
Vehicle brand
Volkswagen
Model
Crafter
Year of construction series
2017+
Works with front radar
Yes, this functions
Works with front camera
Yes, this functions
Works with parking sensors
Yes, this functions
Works with rain sensor
Yes, this functions
Sales unit
Set
vehicle type
van
Shipping Size
S

Specific References
