Driving light - Tralert - Phantom White - 9'' - white - smoke - Position light White/Amber - Driving

€259.95 (tax incl.)

€214.83 (tax excl.)

  • Reference: WD-16016W
  • Producttype: Driving light
  • Diameter (mm): 220
  • Dimensions (mm): 220 (w) x 205 (h) x 74 (d)
  • E-mark: yes
  • Version: white
  • Position Light Color: White/Amber
  • Beam type: Driving
  • Sales unit: Single item
  • Standard Delivery time: 1-3 business days
x
...Continue

Driving Beam Pattern

Quantity

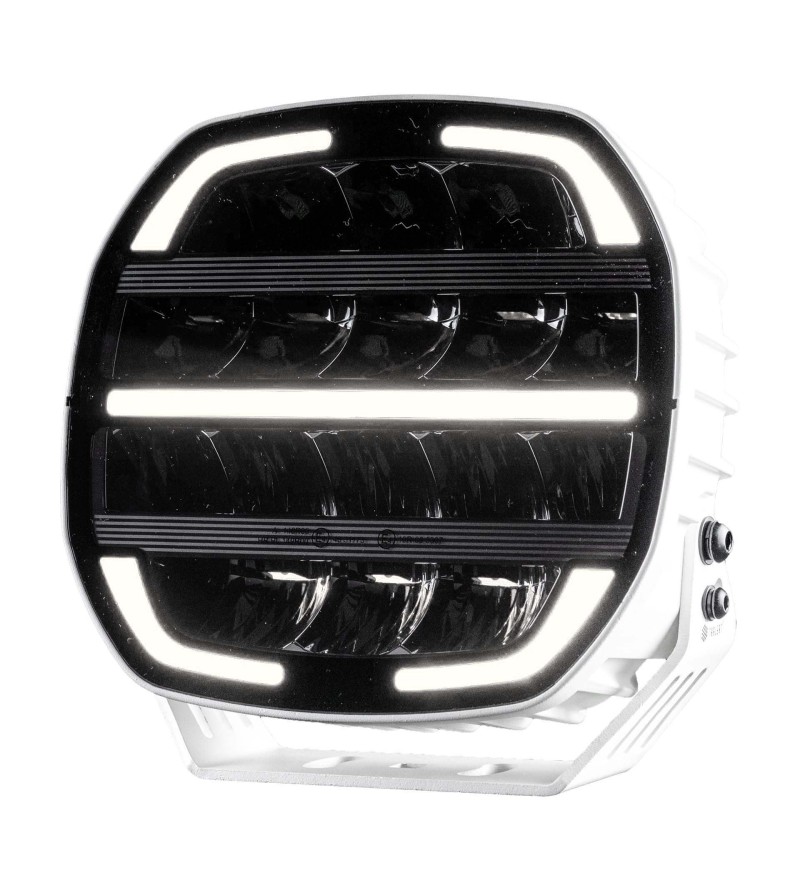

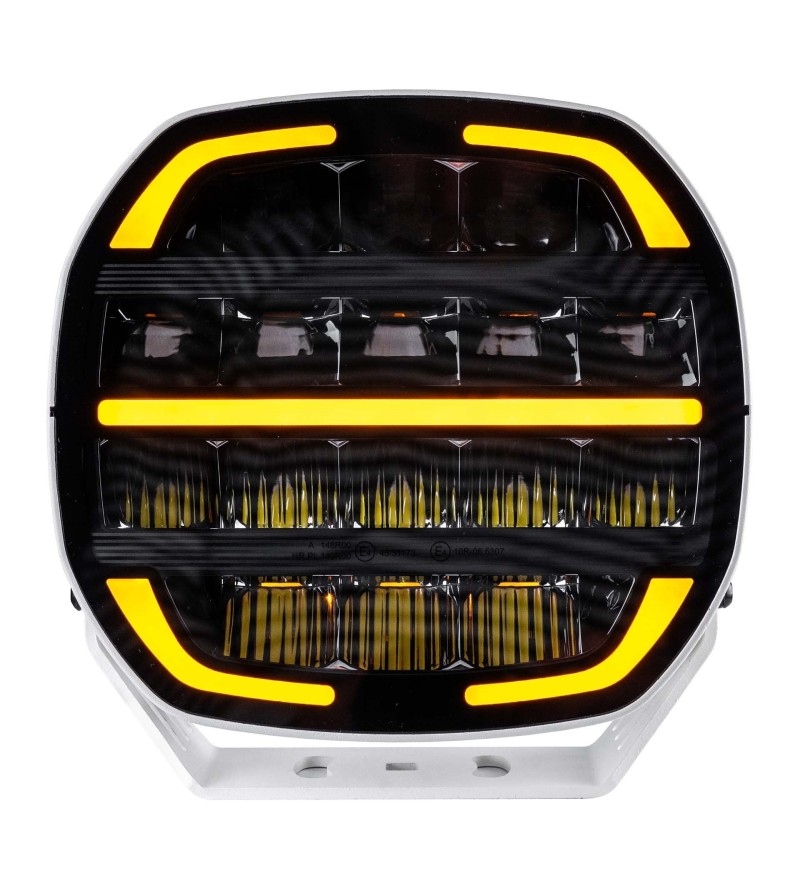

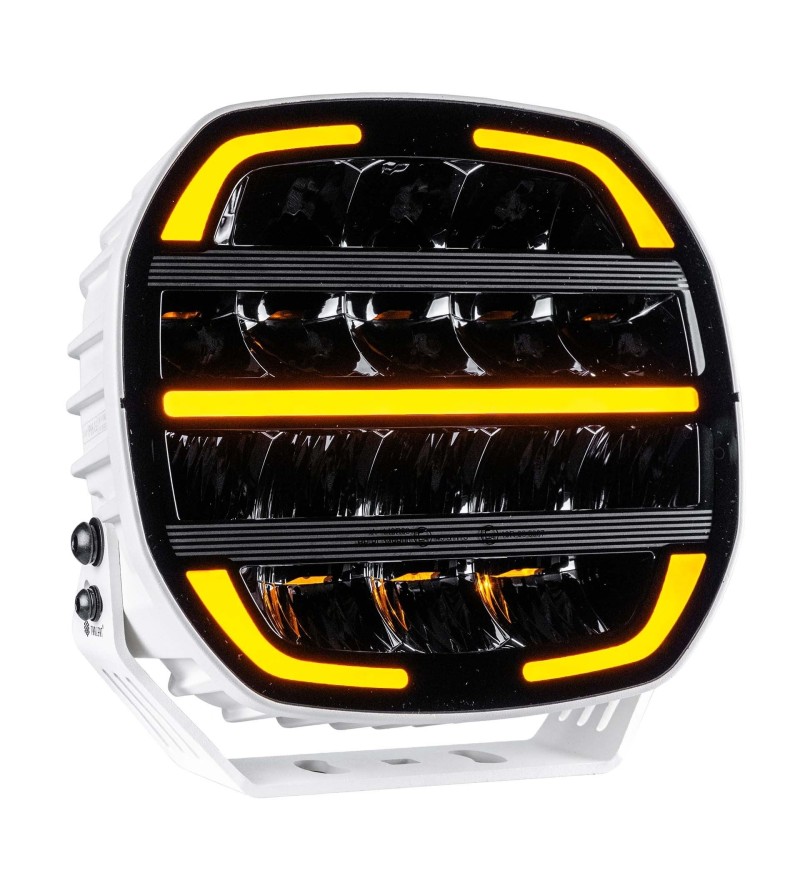

New in the LED spotlight range: the TRALERT® Phantom Series. The spotlight for when your vehicle deserves or requires only the best in terms of optics and functionality. A real eye-catcher due to its dark-look lens and uniquely designed daytime running lights. The Phantom Series consists of two models: a variant with black housing (WD-16016) and a variant with white housing (WD-16016W). Both spotlights have a light output of no less than 16,000 lumens, resulting in excellent visibility under all circumstances.

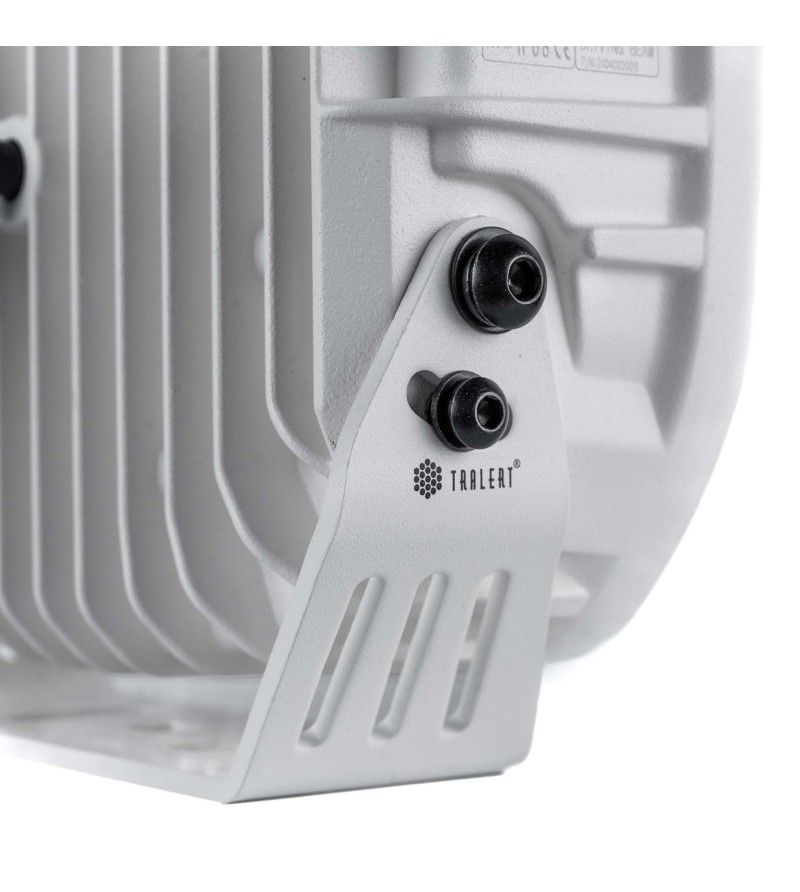

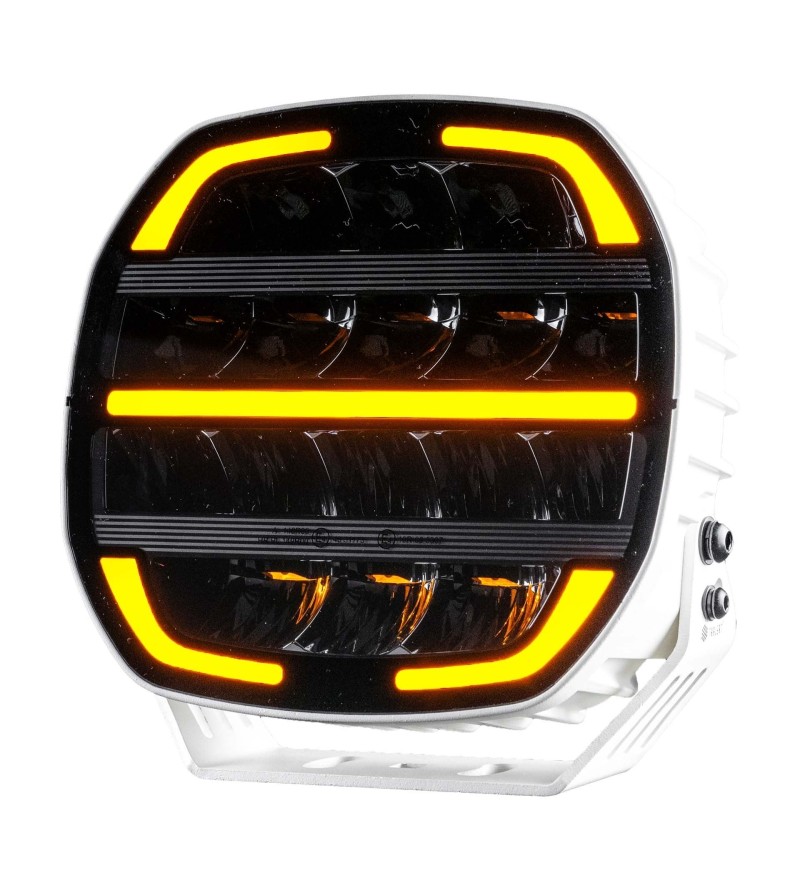

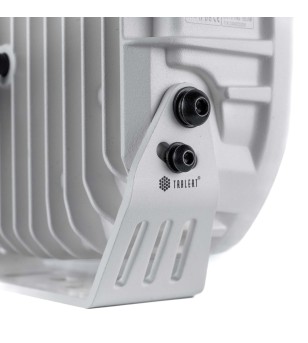

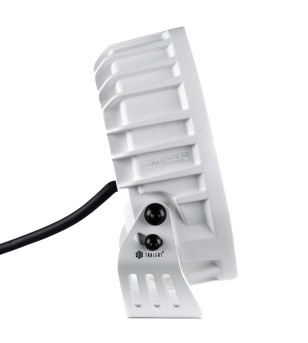

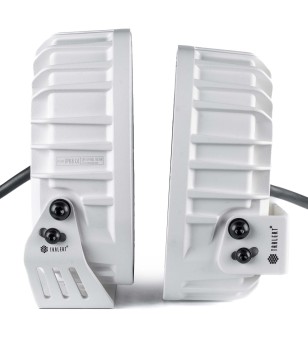

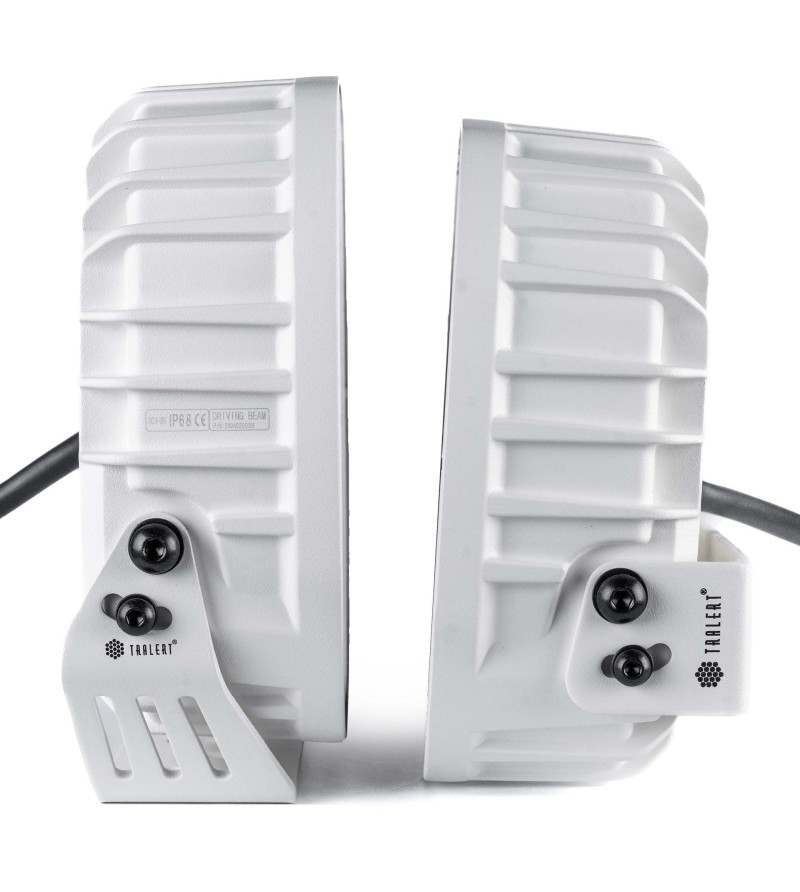

This LED spotlight series from TRALERT® is also equipped with duo-color daytime running lights. You can choose between amber or white daytime running lights. The Phantom Series also comes standard with two mounting brackets: one for mounting at the bottom and one for mounting at the rear. This allows the WD-16016(W) to be beautifully mounted on almost all truck brands.

Tralert
WD-16016W 8720364581954

Data sheet

Accessory
Lighting
Producttype
Driving light
Product serie
Phantom
Serial model
White
Size ( Ø / ↔ )
3) Large
Shape
Round
Diameter (mm)
220
Width (mm)
220
Height (mm)
205
Depth (mm)
74
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Light color
White
Position light
Position light
Color of position light
Amber
White
Color temperature
6000K
Reference number per unit
45
E-mark
yes
ECE approval
R10
R148
R149
Glass color
smoke
Housing color
white
Material
Aluminium
IP rating
IP68
Mount
Normal
Lumen
16000
Light distance (m) at 1 lux
667
Light distance (m) at 0.25 lux
1334
Voltage
12V
18V
24V
30V
36V
Watts
160W
Ampere
12V: 13,3A / 24V: 6,6A
LEDs per lamp
16
Wattage per LED
10W
number of pins
6 pins
Connector
Deutsch DT
Cable Length (cm)
300
Sales unit
Single item
Standard Delivery time
1-3 business days
