€214.95 (tax incl.)

€177.64 (tax excl.)

  • Reference: WD-80120.1
  • Producttype: Driving light
  • Diameter (mm): 218
  • Dimensions (mm): 218 (w) x 218 (h) x 84 (d)
  • E-mark: yes
  • Position Light Color: White/Amber
  • Beam type: Driving
  • Sales unit: Single item
  • Standard Delivery time: 1-3 business days
x
...Continue

Driving Beam Pattern

Quantity

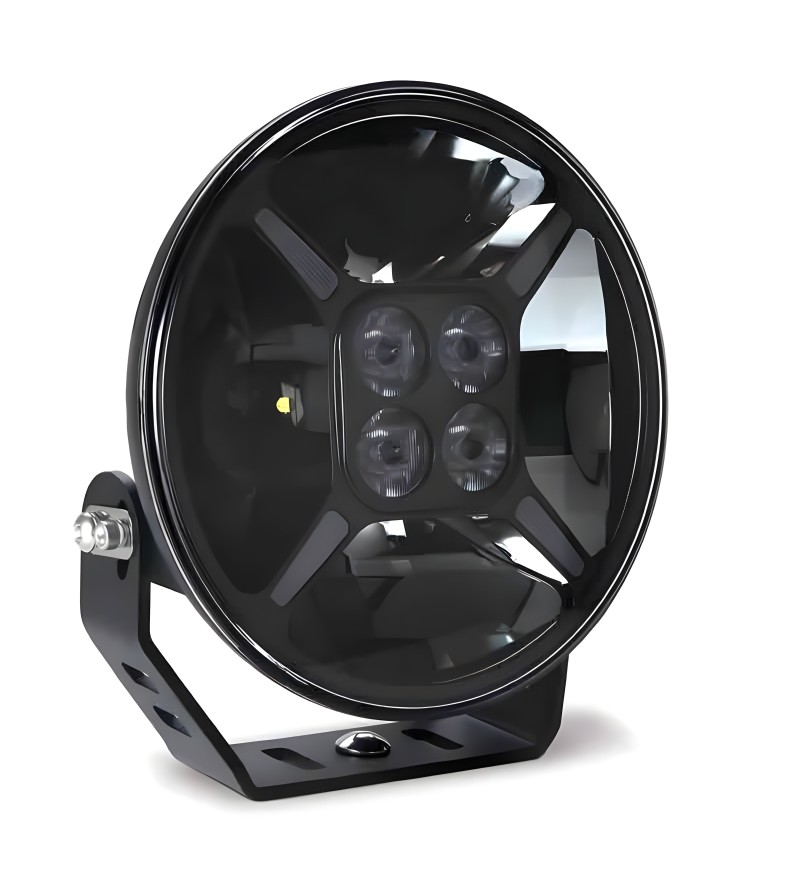

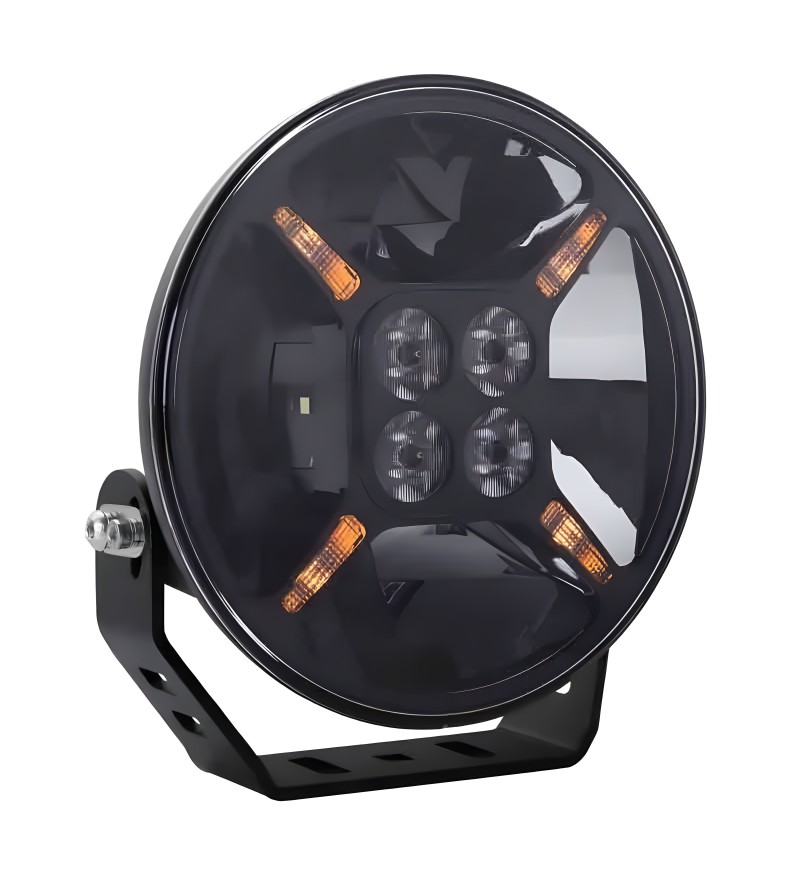

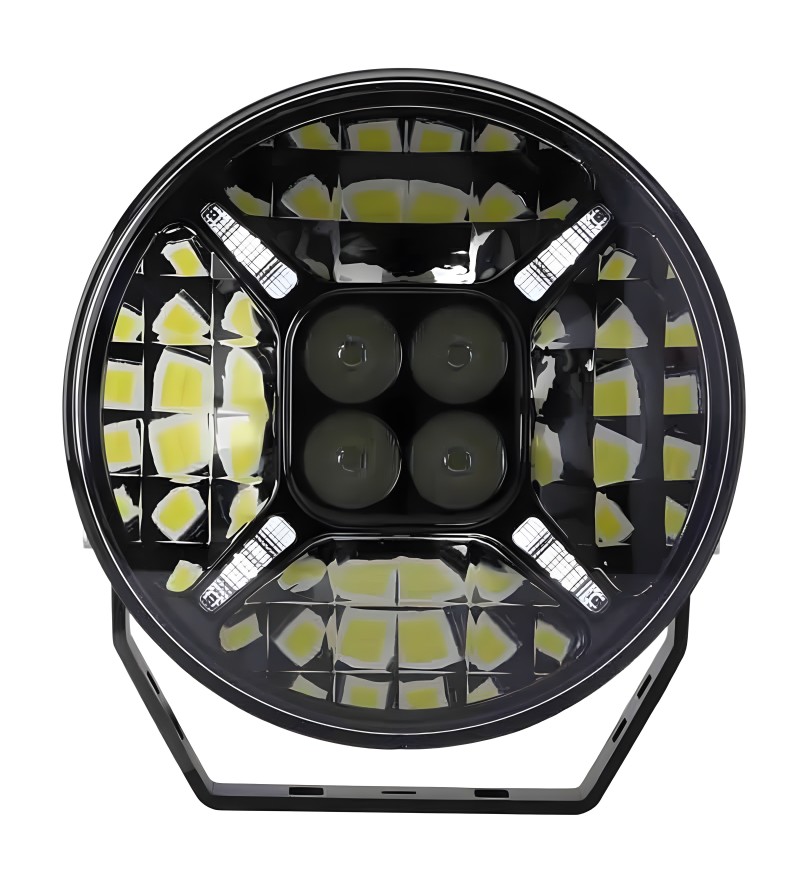

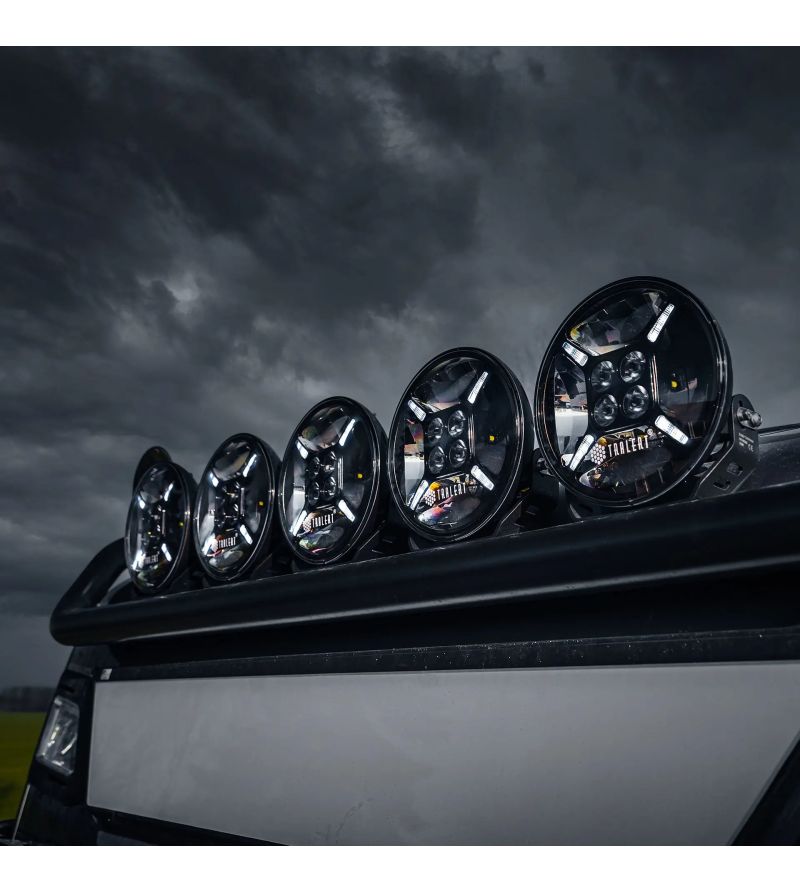

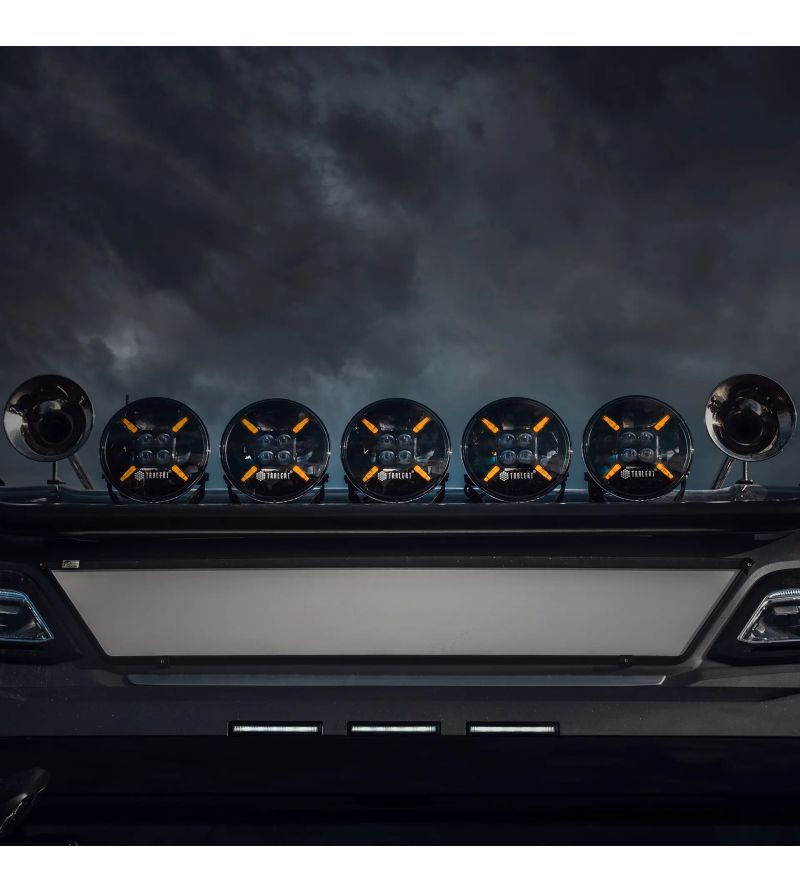

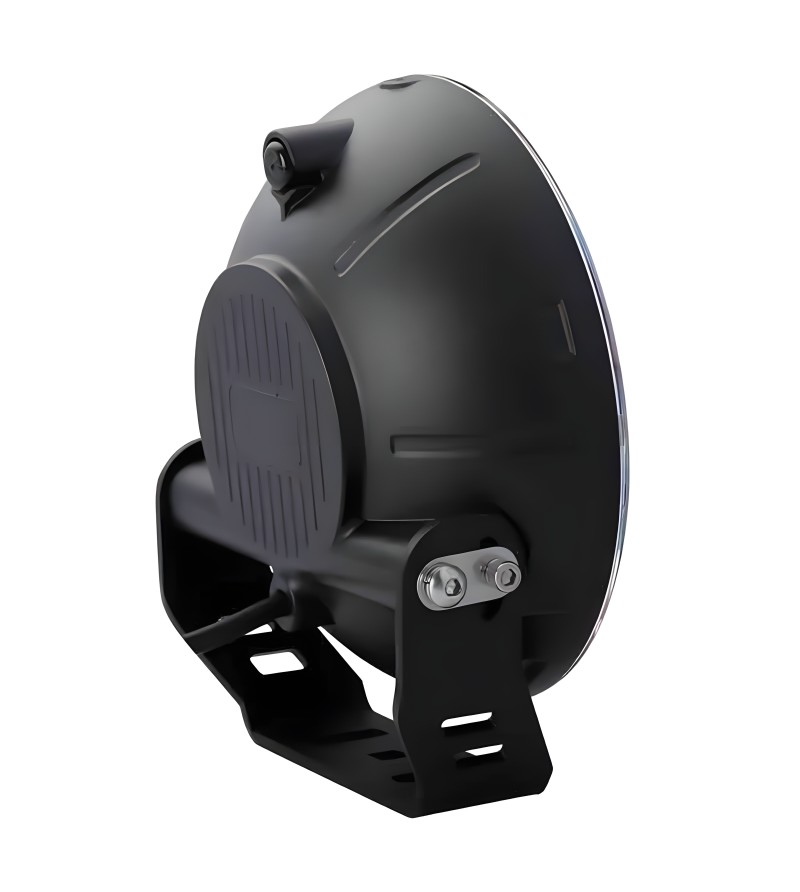

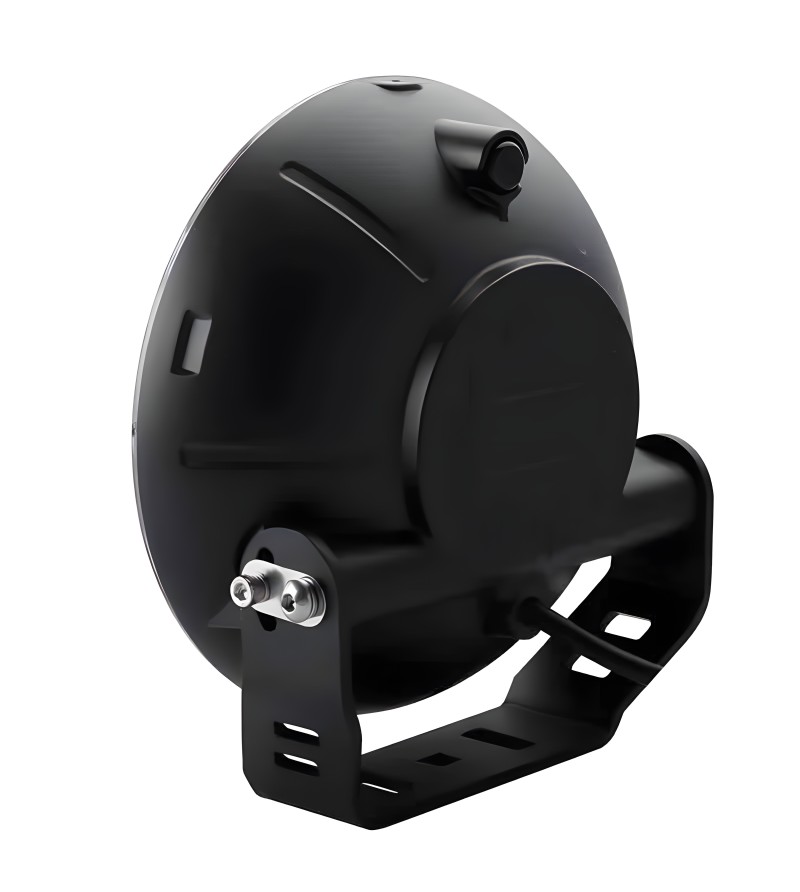

Make your truck or 4x4 unique with The Graveler. This LED spotlight with daytime running lights is built to excel not only in looks but also in functionality and quality. The uniqueness of this spotlight includes the daytime running lights, which can be chosen in white or amber light. Additionally, the lamp is made from the best materials, such as a shock-resistant polycarbonate lens and a robust housing with an adjustable mounting foot. The spotlight has an IP rating of IP69K, making it resistant to high-pressure water jets. The electronics are equipped with ETM, a thermal management system that regulates internal heat development. This system contributes to the long lifespan of the LED spotlight. The EMC suppression (ECE-R10) is also of high value, as spotlights are often mounted high on the cabin where much electronics, including the radio, are located. Good EMC suppression is an absolute must. With The Graveler, you will not experience any EMC issues.

Advantages:

+ ECE-R112 & ECE-R7 certified (excluding the amber marker light)

+ Perfect light distribution due to the combination of TIR & RFT lens technology

+ In addition to this round version, TRALERT also offers an oval version, The Infinity series

Both The Graveler and The Infinity series come with a 3m, 4-pin connection cable. This cable features a 4-pin Deutsch connector on the lamp side and an open wire end on the other side. A 4-pin Deutsch connector is placed 15cm from the lamp for easy connection to the 3m extension cable. This ensures 100% reliable wiring to the cabin and prevents extra work by soldering and connecting loose wires.

We recommend using extension cables with Deutsch connectors when connecting these LED spotlights and not cutting off connectors. Additionally, we advise using a relay to handle the heavy load. If you have questions about connecting, please feel free to contact us; we are happy to assist you.

Tralert
WD-80120.1 8720364581244

Data sheet

Accessory
Lighting
Producttype
Driving light
Product serie
Graveler
Size ( Ø / ↔ )
3) Large
Shape
Round
Diameter (mm)
218
Width (mm)
218
Height (mm)
218
Depth (mm)
84
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Light color
White
Position light
Position light
Color of position light
Amber
White
E-mark
yes
ECE approval
R7
R10
R112
Housing color
black
Material
Aluminium
IP rating
IP69K
Mount
Normal
Lumen
12000
Voltage
12V
18V
24V
30V
36V
Watts
120W
LEDs per lamp
8
number of pins
4 pins
Connector
Deutsch DT
Cable Length (cm)
300
Sales unit
Single item
Standard Delivery time
1-3 business days
prodcat1
M
Shipping Size
S
