Driving light - Tralert - Graveler - 9'' - Chroom - Position

Driving light - Tralert - Graveler - 9'' - Chroom - Position light White/Amber - Driving

€214.95 (tax incl.)

€177.64 (tax excl.)

  • Reference: WD-80120C.1
  • Producttype: Driving light
  • Diameter (mm): 218

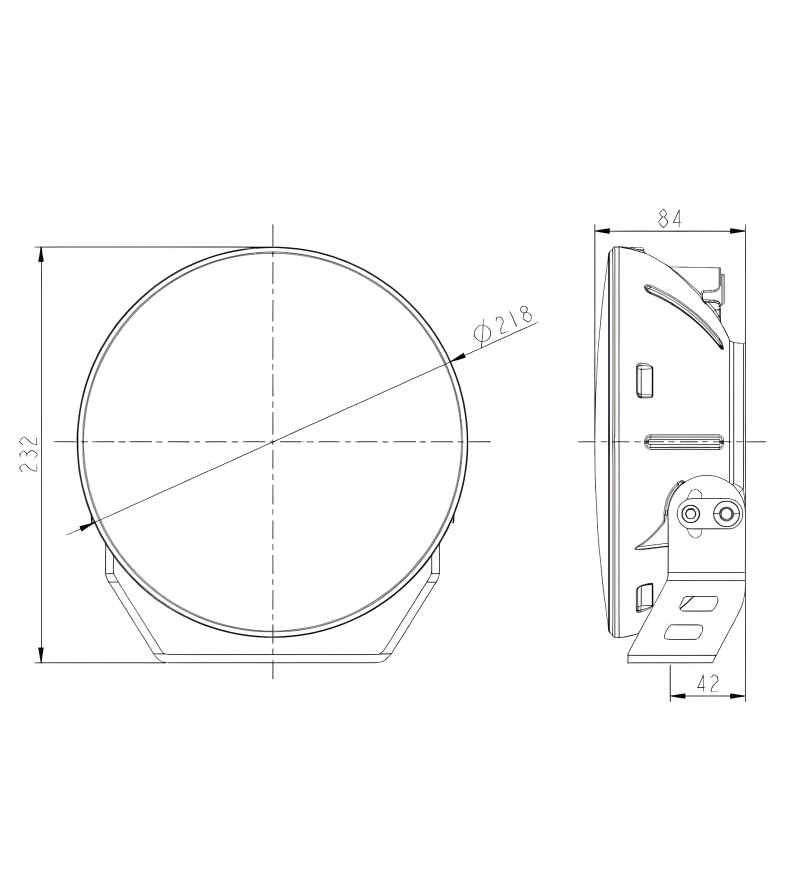

  • Dimensions (mm): 218 (w) x 218 (h) x 84 (d)
  • E-mark: yes
  • Version: Chroom
  • Position Light Color: White/Amber
  • Beam type: Driving
  • Sales unit: Single item
  • Standard Delivery time: 1-3 business days
x
...Continue

Driving Beam Pattern

Quantity

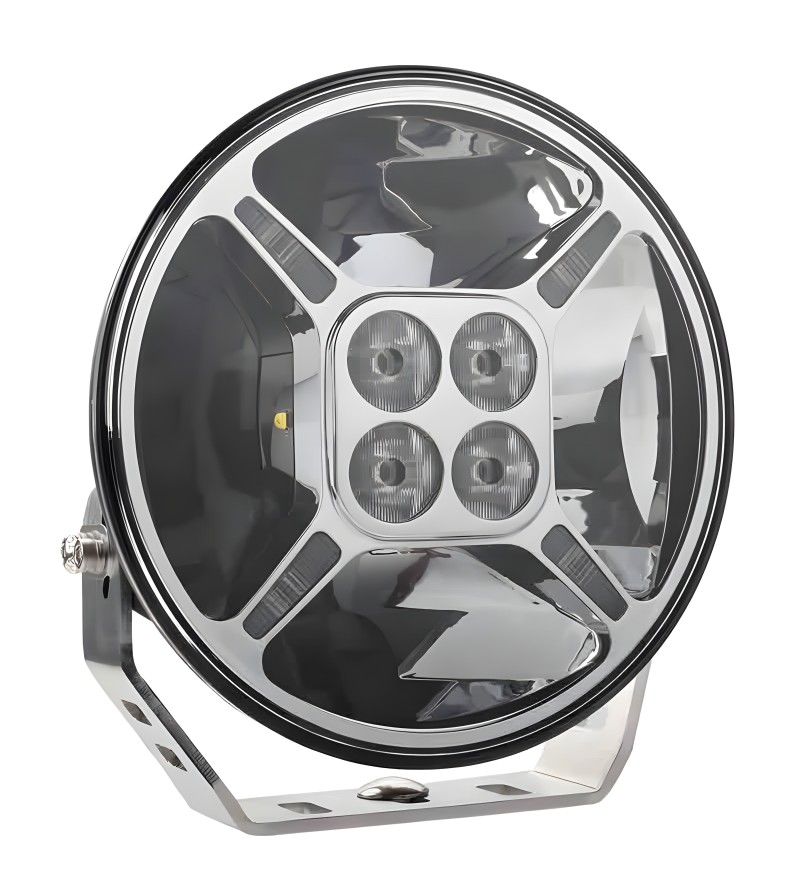

Make your truck or 4x4 unique with The Graveler, this LED spotlight with daytime running lights is built to excel not only in its great looks but also in functionality and quality. The unique feature of this spotlight is, among others, the daytime running light, which can be chosen in white or amber light. Additionally, the lamp is equipped with the best materials such as the impact-resistant Polycarbonate lens and the robust housing with adjustable mounting foot. The spotlight has an IP rating of IP69K and is thus high-pressure spray resistant. The electronics are equipped with ETM, this thermal management system regulates internal heat development. This system contributes to the long lifespan of the LED spotlight. The EMC suppression (ECE-R10) is also of high value, as spotlights are often placed high on the cabin where a lot of electronics, including the radio, are located. Good EMC suppression is therefore an absolute must. With The Graveler, you will not experience any EMC problems.

Advantages:

+ ECE-R112 & ECE-R7 certified (excl. the amber marker light)

+ Perfect light image through the combination of TIR & RFT lens technology

+ Besides this round version, Tralert also offers an oval version, The Infinity series

Both The Graveler and The Infinity series are equipped with a 3m 4-pole connection cable, this cable is fitted with a 4-pole Deutsch connector on the lamp side and an open wire end on the other side. A 4-pole Deutsch connector is placed 15cm from the lamp, where you click on the 3m extension cable. This way you have 100% reliable wiring up to the cabin and avoid extra work by soldering and connecting loose cables.

We advise using extension cables with Deutsch connectors when connecting these LED Spotlights and not to cut off connectors. We also recommend using a relay to handle the heavy load. If you have questions about the connection, please feel free to contact us, we are happy to advise you.

Tralert
WD-80120C.1 8720364581282

Data sheet

Accessory
Lighting
Producttype
Driving light
Product serie
Graveler
Size ( Ø / ↔ )
3) Large
Shape
Round
Diameter (mm)
218
Width (mm)
218
Height (mm)
218
Depth (mm)
84
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Light color
White
Position light
Position light
Color of position light
Amber
White
E-mark
yes
ECE approval
R7
R10
R112
Housing color
Chroom
Material
Aluminium
IP rating
IP69K
Mount
Normal
Lumen
12000
Voltage
12V
18V
24V
30V
36V
Watts
120W
LEDs per lamp
8
number of pins
4 pins
Connector
Deutsch DT
Cable Length (cm)
300
Sales unit
Single item
Standard Delivery time
1-3 business days
prodcat1
M
Shipping Size
S
