Driving light - Denali - D7 - Pro - 4'' - Driving Fog Combo

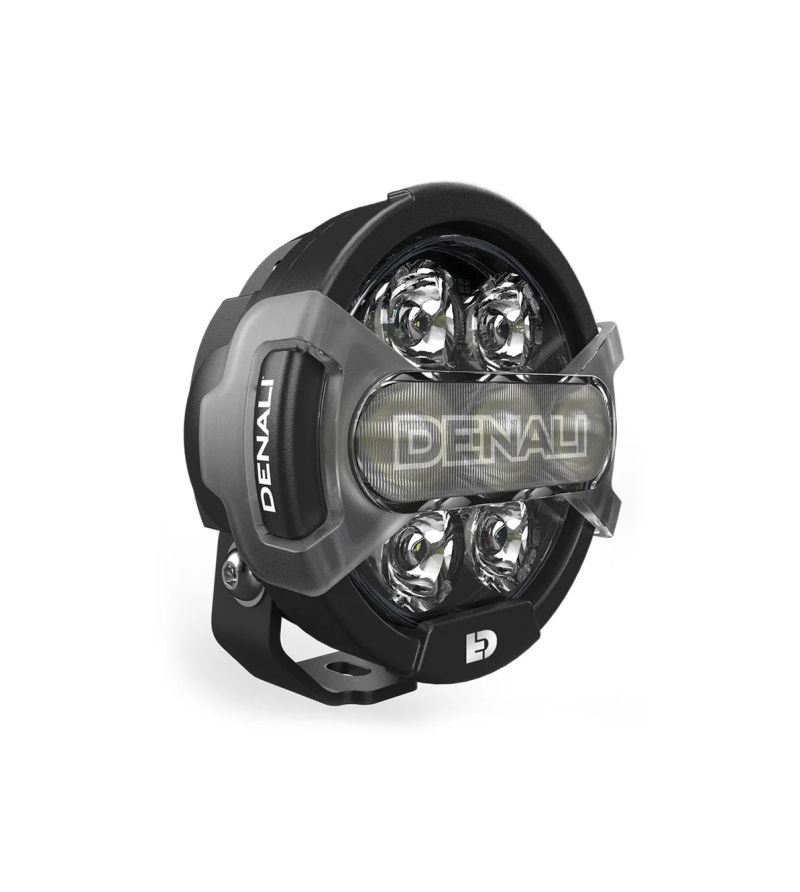

Driving light - Denali - D7 Pro - 4'' - Modular X-Lens System - Driving Fog Combo

€499.95 (tax incl.)

€413.18 (tax excl.)

  • Reference: DNL.D7P.050
  • Producttype: Driving light
  • Diameter (mm): 43
  • Dimensions (mm): 114 (w) x 121 (h) x 74 (d)
  • E-mark: yes
  • Beam type: Driving Fog Combo
  • Sales unit: Single item
  • Standard Delivery time: 4-7 business days
Picture the most powerful driving light ever built, then add a flood beam, spot beam, and hybrid beam, a multi-color DRL mode, two fully dimmable circuits, and the option to change the beam shape and beam color on the fly.
...Continue

Driving-Fog Beam Pattern

Quantity

Picture the most powerful driving light ever built, then add a flood beam, spot beam, and hybrid beam, a multi-color DRL mode, two fully dimmable circuits, and the option to change the beam shape and beam color on the fly. That's the D7 PRO, and it looks even better than it sounds.

The D7 PRO features a split dual-circuit design that allows fully independent on/off and dim of a center flood beam and outer spot beam. Use our revolutionary DialDim Switch or CANsmart Controller to effortlessly control all lighting functions from a single halo dimmer switch or the vehicle OEM handlebar controls.

Add to that, our patent pending X-Lens system which allows you to change the center flood or DRL beam color to white, amber, or selective yellow on-the-fly giving riders more flexibility and functionality than ever before.

Last but not least, the D7 PRO has a "DRL Boost Mode" which allows you to run the center optics as a dim DRL or dial it up to 100% up to create a high-power flood beam. The innovative center optics can also flash in sync with your turn signals when paired with the amber X-Lenses.

D7 PRO Pod Features
HiDrive LEDS 11,900 Lumens Per Pod - Seven 14-Watt LEDs combined with our proprietary TIR optics make this the brightest light under 4.5” ever released

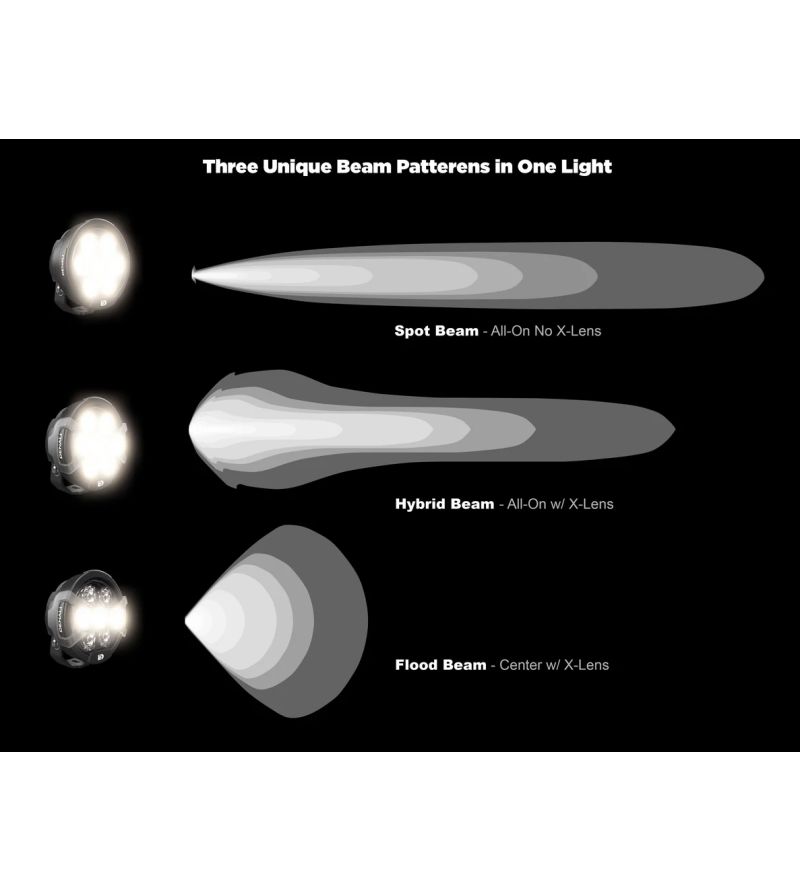

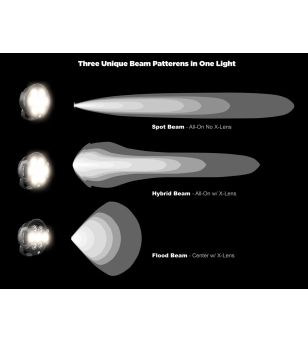

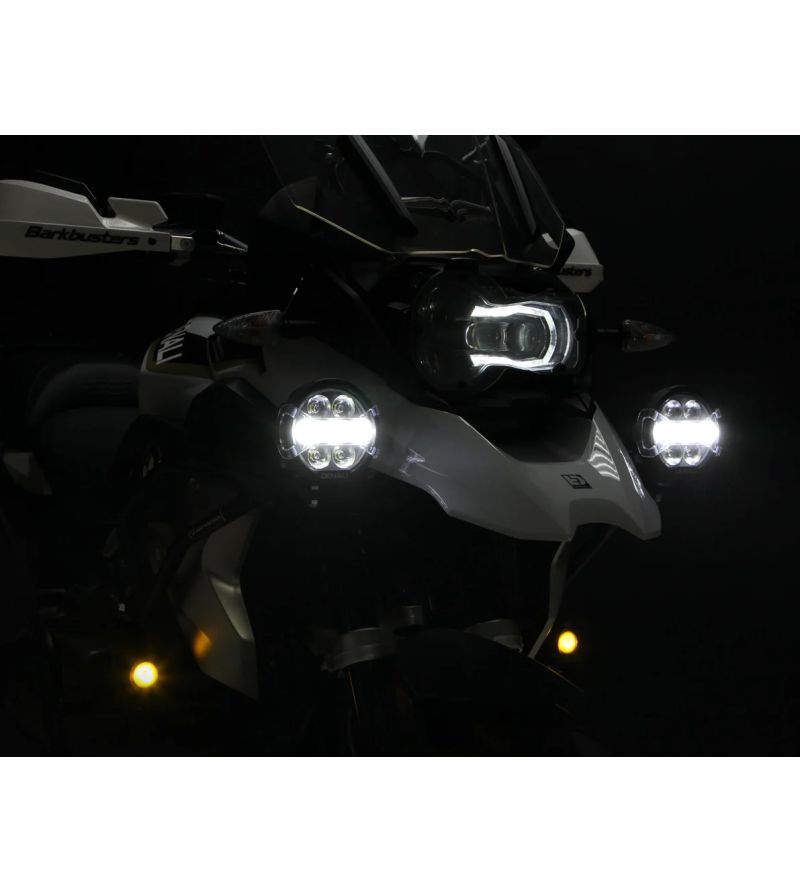

Dual-Beam Technology - Independent control (and dimming) of center flood beam, outer spot beam, or all-on hybrid beam

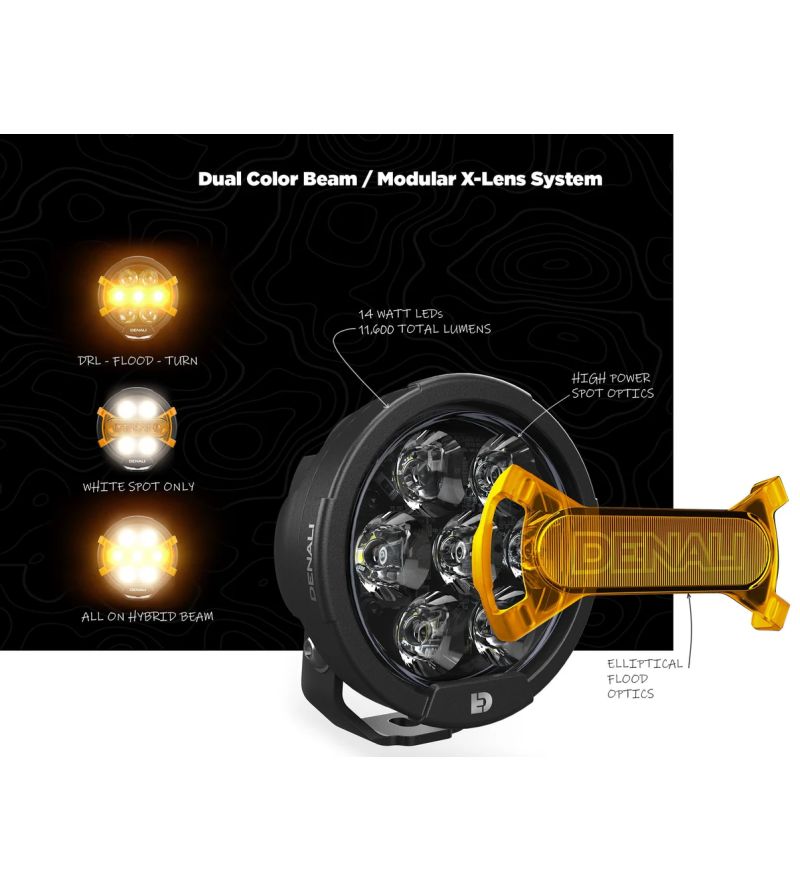

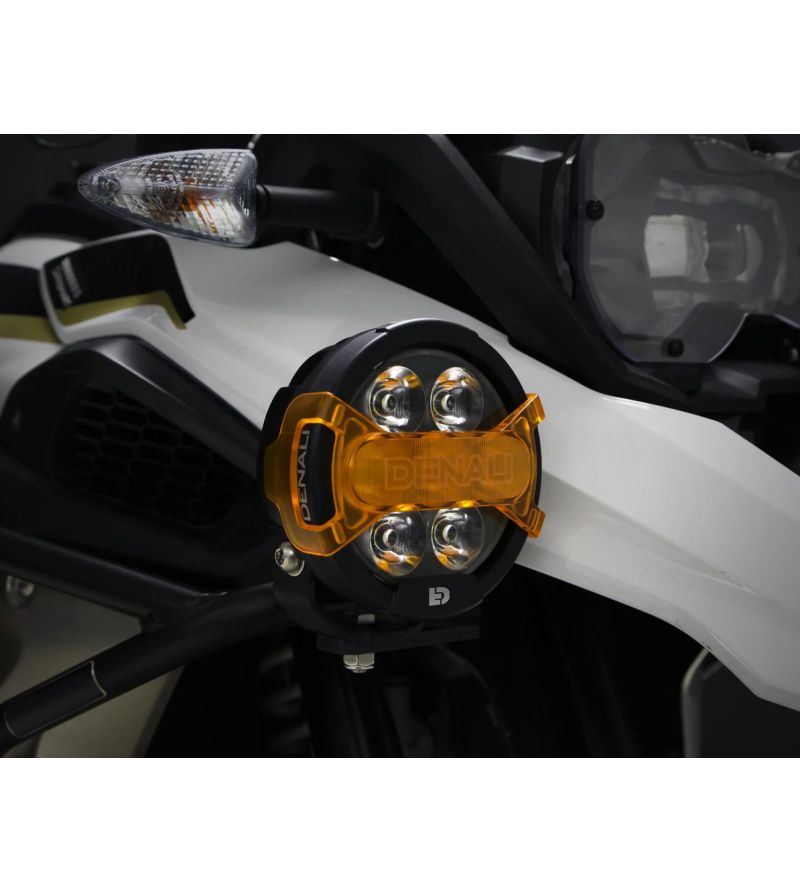

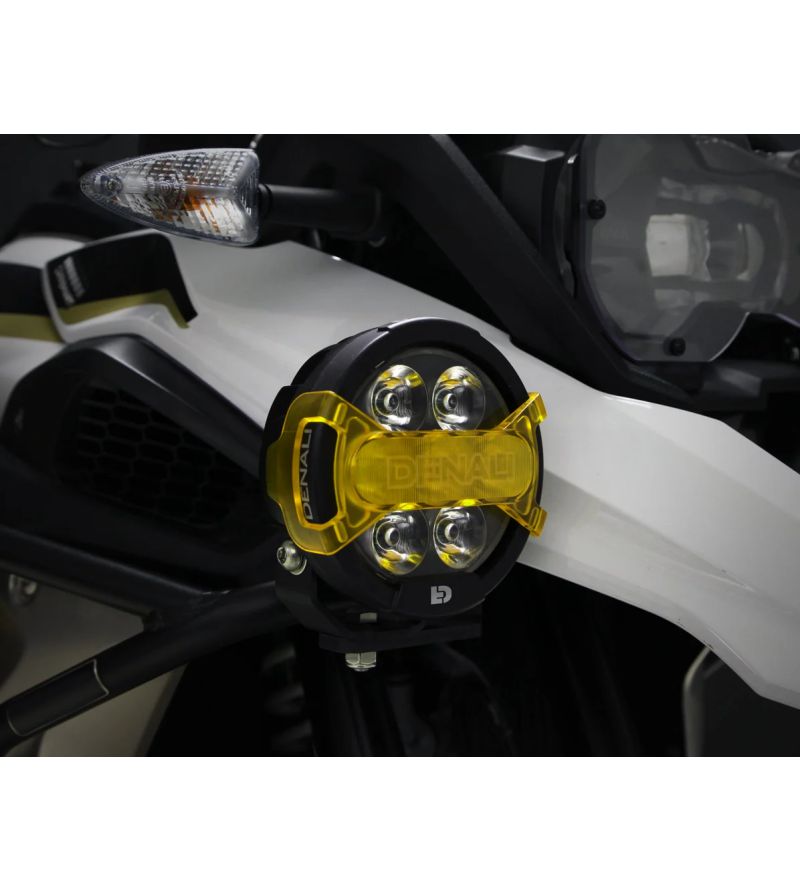

Modular Snap-On X-Lens - Enables customizable beam shape and color on-the-fly. Interchange able center flood beam color in white, amber, or selective yellow
DRL Boost Mode - Drive the center LEDs as a low intensity DRL, or dial up the power to generate a massive high-intensity flood beam

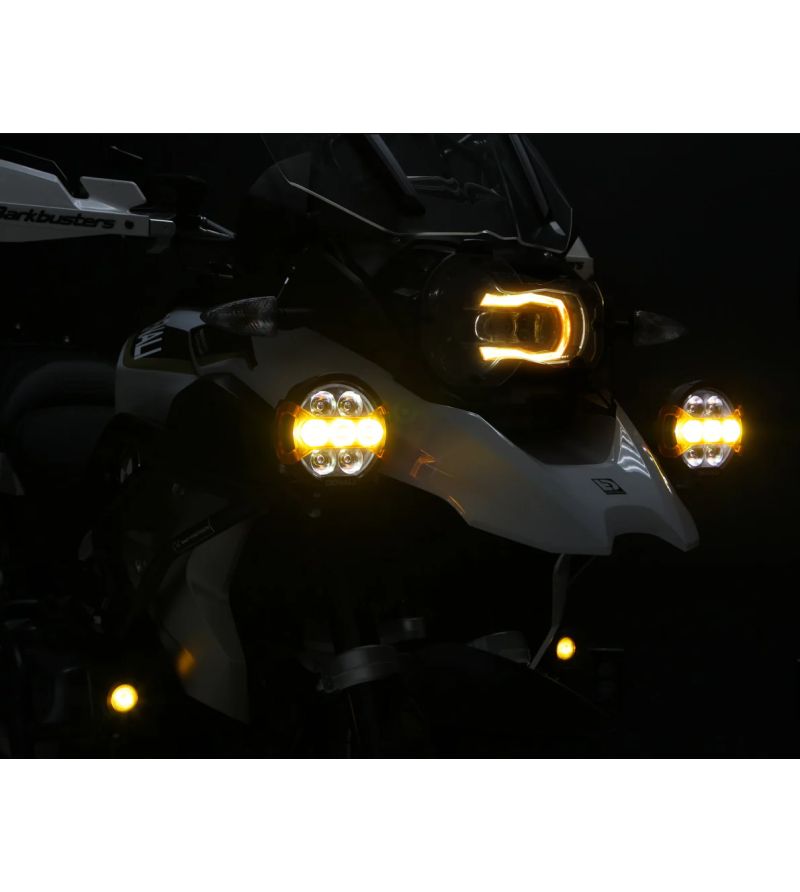

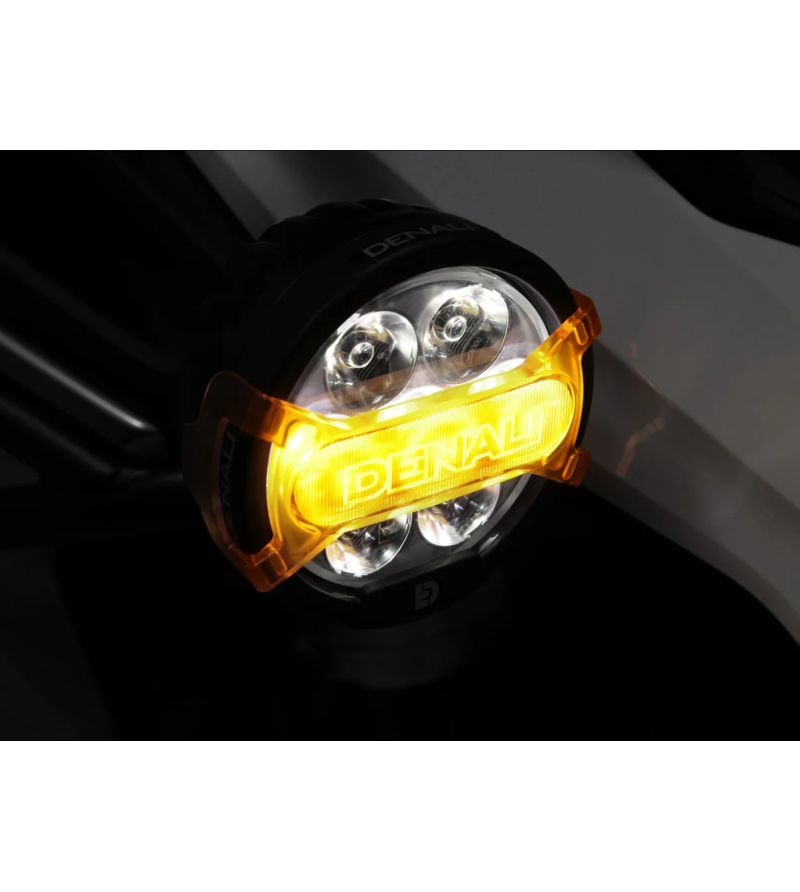

Integrated Turn Signal Mode - Run the center flood optics as an amber DRL or flood light that will flash in sync with the vehicle turn signals
CANsmart & DialDim Compatible - Control both circuits on a single DialDim switch or unlock over 20 features & settings using the CANsmart accessory manager

D7 PRO Specs (Single Pod)
LED's: (7x) 14 Watt Cree XML3
Power Draw: 98 Watts / 8 Amps
Raw Lumens: 11,900
Spot Beam Distance: 1250 Feet (380 Meters)
Flood Beam Width: 250 Feet (75 Meters)
DataDim™ Compatible: Yes
Operating Voltage: 9-32 VDC
Pod Size: 4.4" Round x 2.9" Deep
Pod Weight: 1.8 lbs
IP68 & 69K Waterproof, Submersible, & High-pressure Spray
E Mark Approved Spot Lens (ECE R112 Driving Beam)

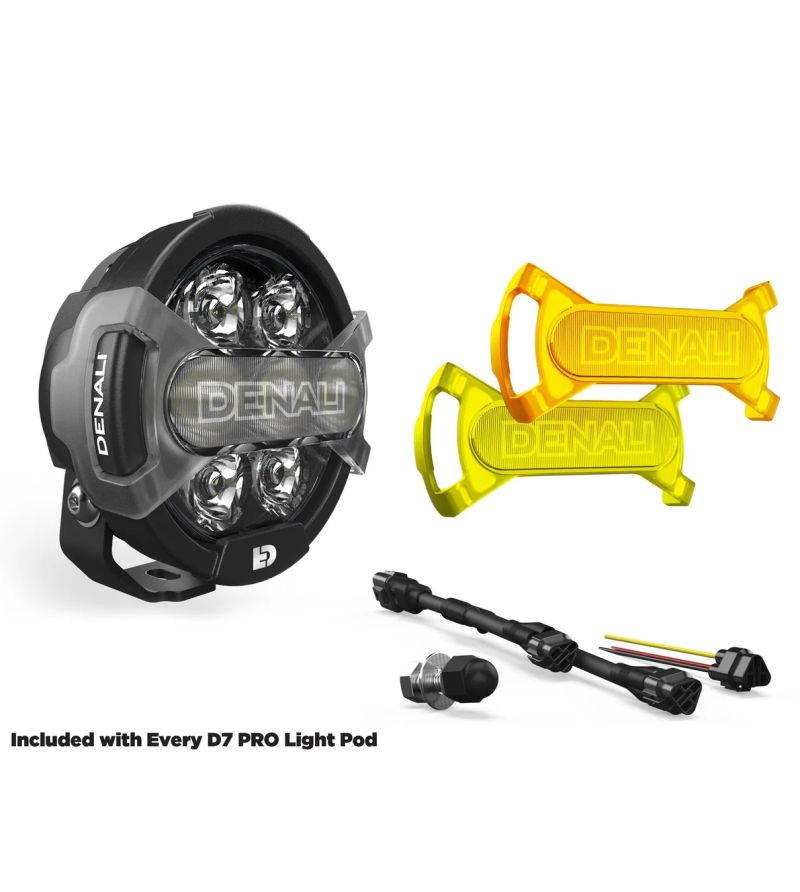

D7 PRO Pod - What’s Included?
(1x) D7 PRO Light Pod (w/ mounting hardware)

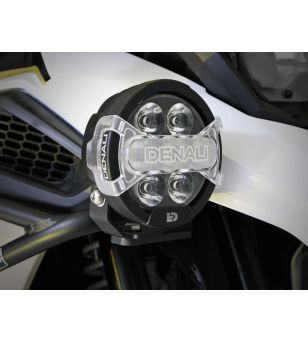

(3x) X-Lenses (Clear, Amber, & Selective Yellow)
(1x) 2-into-1 Single-Circuit Wiring Adapter

DNL.D7P.050

Data sheet

Accessory
Lighting
Producttype
Driving light
Product serie
D7
Serial model
Pro
Feature
Modular X-Lens System
Series
Lights & Styling
Size ( Ø / ↔ )
2) Medium
Shape
Round
Diameter (mm)
43
114
Width (mm)
114
Height (mm)
121
Depth (mm)
74
Beam type
Driving Fog Combo
Light type
LED
Lighting - Type
Driving Light
Light color
White
E-mark
yes
Glass color
Clear
Chrome / RVS
no
Product color
black
IP rating
IP68
IP69K
Mount
Normal
Lumen
11900
Voltage
12V
18V
24V
30V
Watts
98W
LEDs per lamp
7
Wattage per LED
14W
Wiring included
Yes
Switch
incl switch
Cover included
Yes
Sales unit
Single item
Standard Delivery time
4-7 business days
prodcat1
H
Shipping Size
S

Specific References
