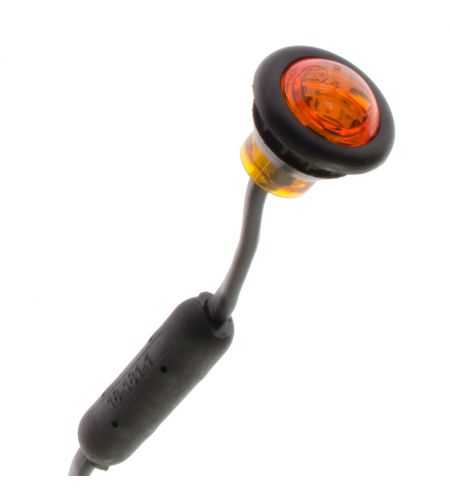

Markerlight LED Round Amber - Amber glass

Markerlight LED Round Amber - Amber glass

Clear glass or colored glass position light (select design) for E-marked cutout for each position: xenon white (02 A), orange (00 SM1), red (02 R1). No metal, so no rust and at the same time IP68 rated, which guarantees very high reliability in terms of how waterproof the product is.

2 different gaskets included: one for flat mounting and one for pipe mounting. Chrome edge is available as an accessory under art. No. 360019.

Specifications
Waterproof, rustproof and shockproof
Voltage: 12V and 24V
One LED / diode per lamp
Requires drill holes of 18 mm when mounting with rubber ring (can be mounted without rubber ring, but must be glued)
E-marked - xenon white (02 A), orange (00 SM1), red (02 R1)
2 x Gaskets (Flat / Tube Mount)

Sizes
Diameter: 28 mm
Depth: 25 mm
Height: 7 mm
Cable: 0.2 m

Cable color:
Black - Plus
White - Earth

Available as:
Orange, clear glass (item no. 360013)
Orange, colored glass (item no. 360023)
Red, clear glass (item no. 360012)
Red, colored glass (item no. 360022)
Xenon white, clear glass (item no. 360011)
