Driving light - Ledson - Pollux - 9'' - Position light White/Amber - Driving

€239.95 (tax incl.)

€198.31 (tax excl.)

  • Reference: 33491236
  • Producttype: Driving light
  • Diameter (mm): 218
  • Dimensions (mm): 218 (w) x 235 (h) x 69 (d)
  • E-mark: yes
  • Position Light Color: White/Amber
  • Beam type: Driving
  • Sales unit: Single item
  • Standard Delivery time: 1-3 business days
x
...Continue

Driving Beam Pattern

Quantity

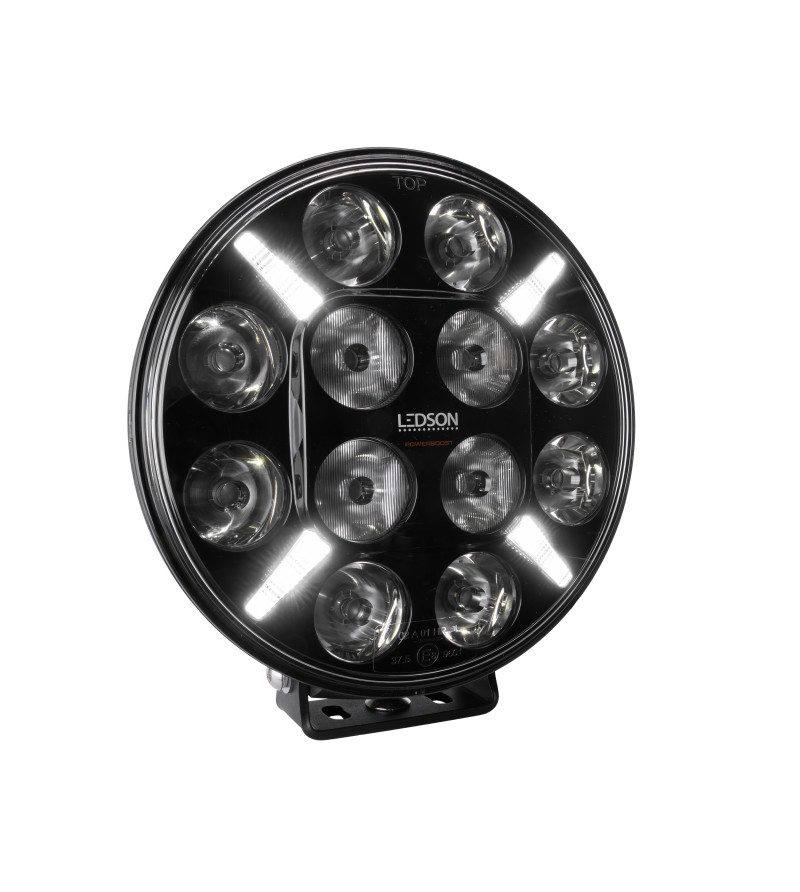

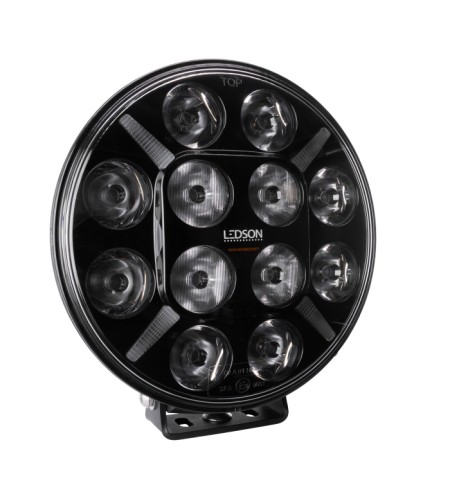

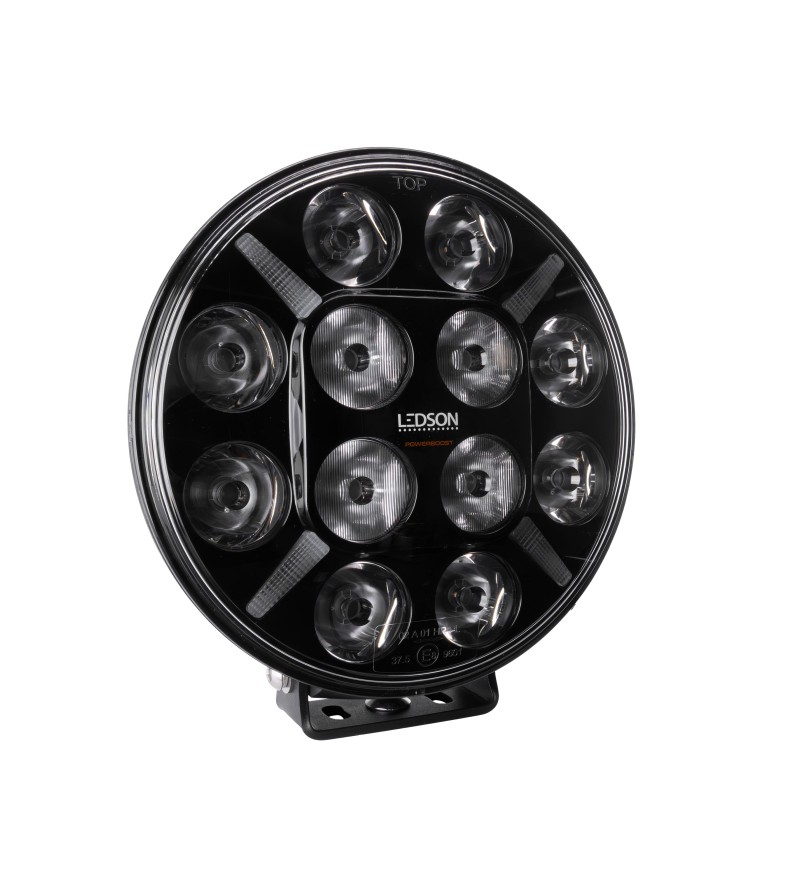

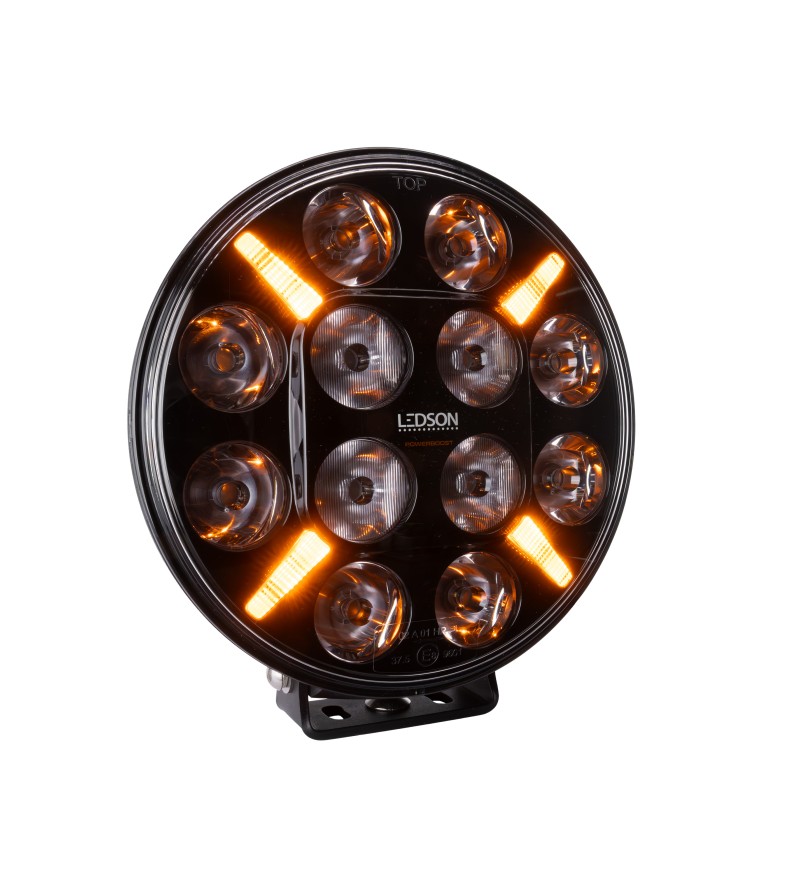

Ledson Pollux9+ Gen 3 LED Driving Light

What's Included:

  • Ledson Pollux9+ Generation 3 LED driving light

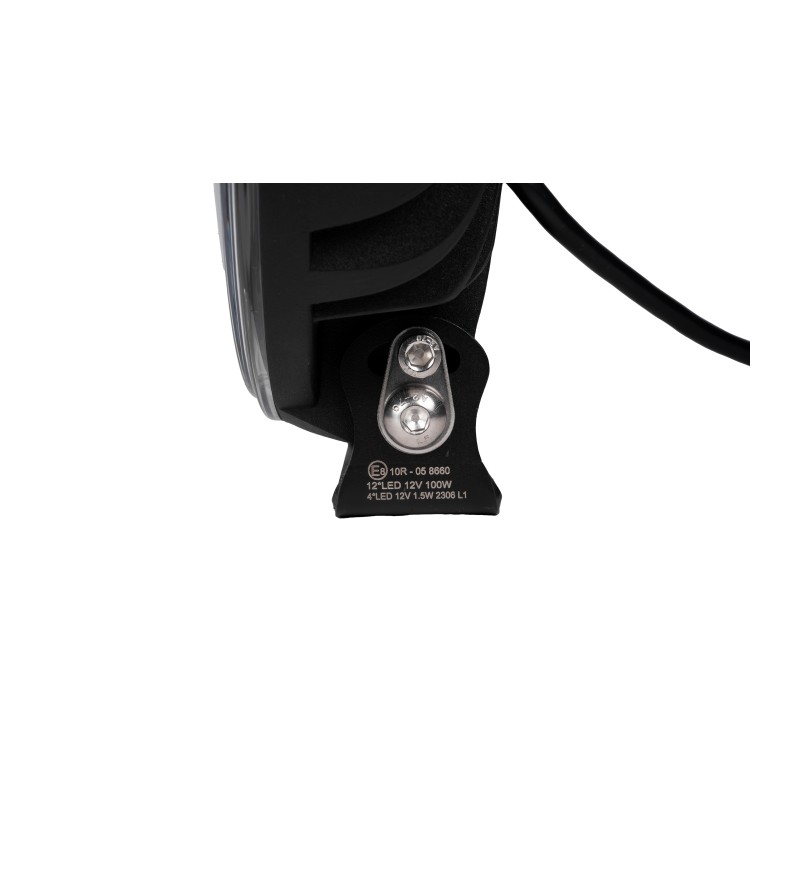

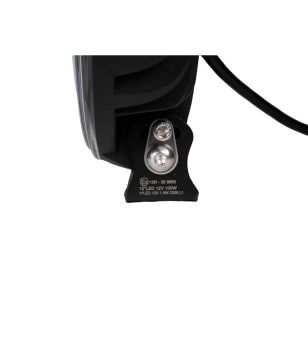

  • Bolts and screws to attach the light with either one or two mounting points
  • DT connector (4-pin)
  • Installation instructions

LEDSON Pollux9+ Generation 3: More powerful and smarter than ever

With the Pollux9+ Generation 3, you enhance your driving experience with the latest technology from Ledson in an auxiliary light filled with features. With an impressive 120W power output and the groundbreaking feature of pulse-controlled Powerboost, this third generation of Pollux9+ offers increased flexibility and improved brightness when needed most.

Pollux9+ Generation 3 provides outstanding brightness and range to ensure superior visibility and safety in all driving conditions. With its robust design, the Pollux9+ Generation 3 is engineered to withstand tough conditions and is ready to deliver superior performance for years to come.

Technical Data:

  • 120W (12 x 10W LED)
  • Nominal power 92.4 W
  • IP68 & IP69K (water/dustproof)
  • DT connector (4-pin) included

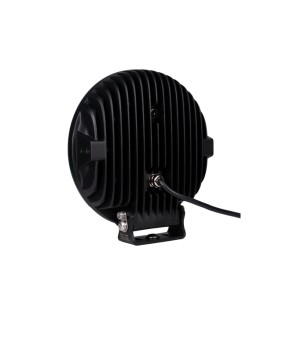

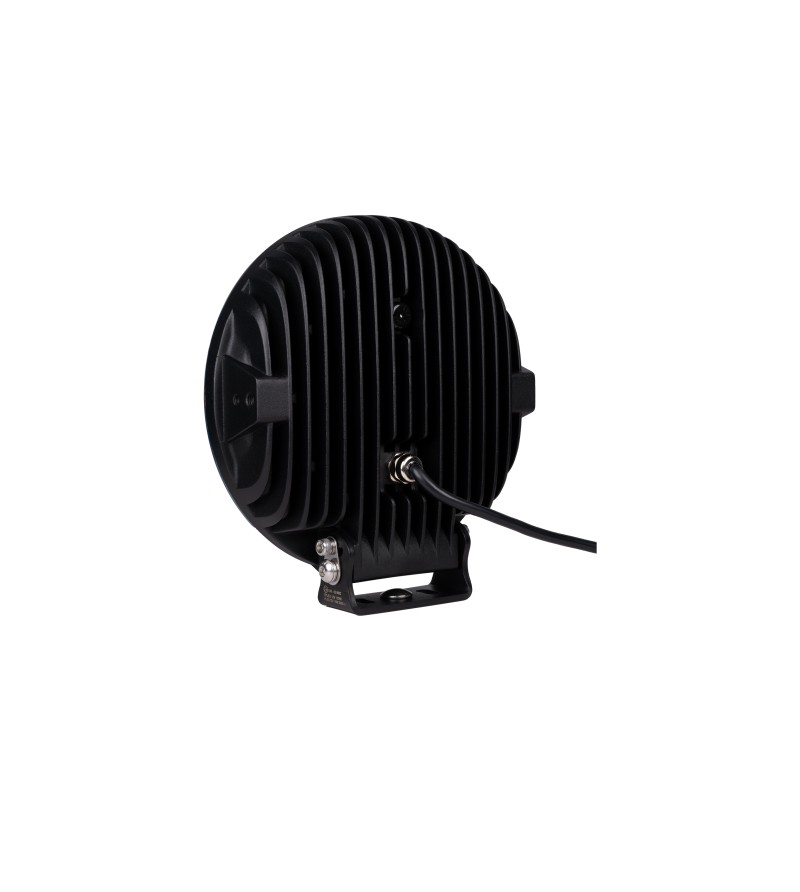

  • Electronic heat management
  • Voltage 9-36 V, Load 3.2 A @ 12 V and 1.6 A @ 24 V
  • Powerboost 9.8 A @ 12 V and 4.6 A @ 24 V

Features:

  • E-marked (ref. 37.5 for Driving Beam, ref. 50 for Spot Beam), ECE R112 / R10 / R7 (white position light) - Learn more about E-marks here
  • Equipped with pulse-controlled Powerboost
  • EMC secured (does not interfere with radio signals)

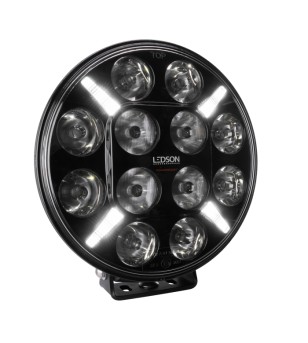

  • With position light (4 pcs LED) yellow-orange or xenon white (connect the color you prefer)
  • "Driving beam" light pattern (33491236) or "Spot Beam" light pattern (33491237)
  • Driving Beam Range: 407 m (1 lux), Powerboost: 659 m (1 lux)
  • Spot Beam Range: 493 m (1 lux), Powerboost: 805 m (1 lux)
  • 4200 lumens (theoretical), 3500 lumens (actual)
  • Powerboost 13000 lumens (theoretical), 10500 lumens (actual)
  • Color temperature 5000K (Neutral White)
  • TIR optical system (Total Inner Reflection)
  • Pressure equalization membrane
33491236 7323230050250

Data sheet

Accessory
Lighting
Producttype
Driving light
Product serie
Pollux
Series
Lights & Styling
Size ( Ø / ↔ )
3) Large
Shape
Round
Diameter (mm)
218
Width (mm)
218
Height (mm)
235
Depth (mm)
69
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Light color
White
Position light
Position light
Color of position light
Amber
White
E-mark
yes
ECE approval
R10
R112
Chrome / RVS
no
Housing color
black
Housing material
Aluminum
IP rating
IP68
IP69K
Mount
Normal
Lumen

Voltage
12V
18V
24V
30V
36V
LEDs per lamp
12
Wattage per LED
10W
number of pins
4 pins
Connector
Deutsch DT
Cable Length (cm)
65
Sales unit
Single item
Standard Delivery time
1-3 business days
prodcat1
M
Shipping Size
S

Specific References
