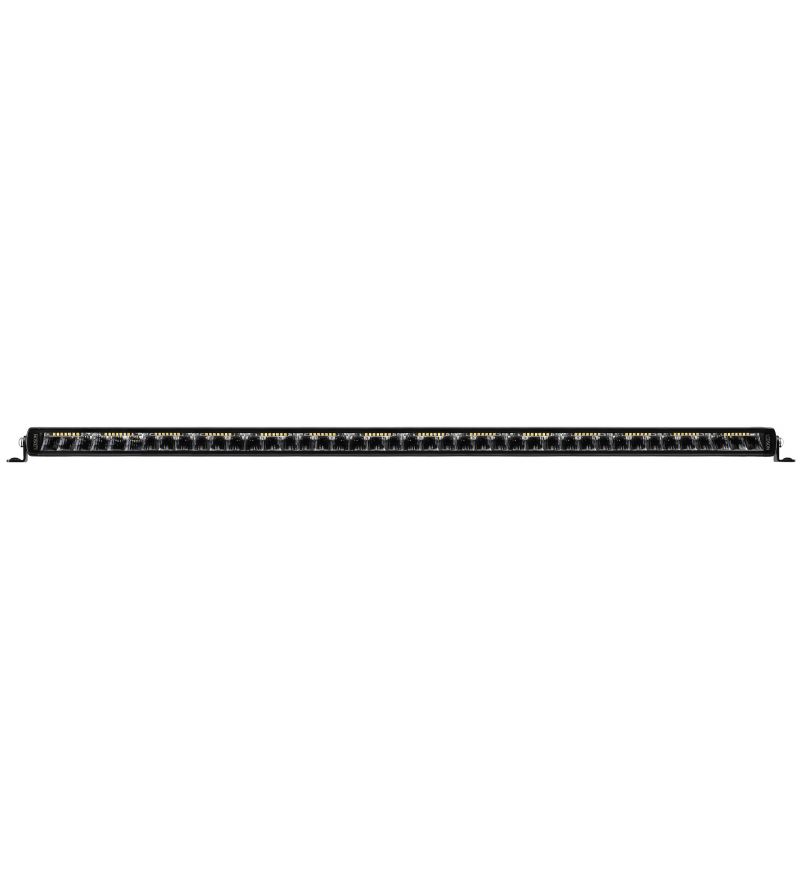

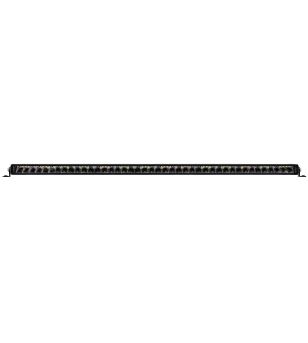

LEDSON Phoenix+ LED bar 40" with beacon - 33305429

LED Light bar - Ledson - Phoenix - 40'' - smoke - Position light White/Amber - 1 flash pattern - Driving

€519.95 (tax incl.)

€429.71 (tax excl.)

  • Reference: 33305429
  • Producttype: LED Light bar
  • Dimensions (mm): 1005 (w) x 40 (h) x 54 (d)
  • E-mark: yes
  • Position Light Color: White/Amber
  • Strobe function: 1 flash pattern
  • Strobe Approval: R65
  • Beam type: Driving
  • Sales unit: Single item
  • Standard Delivery time: 4-7 business days
x
...Continue

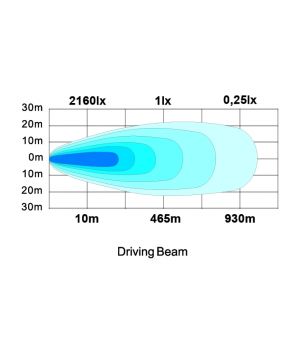

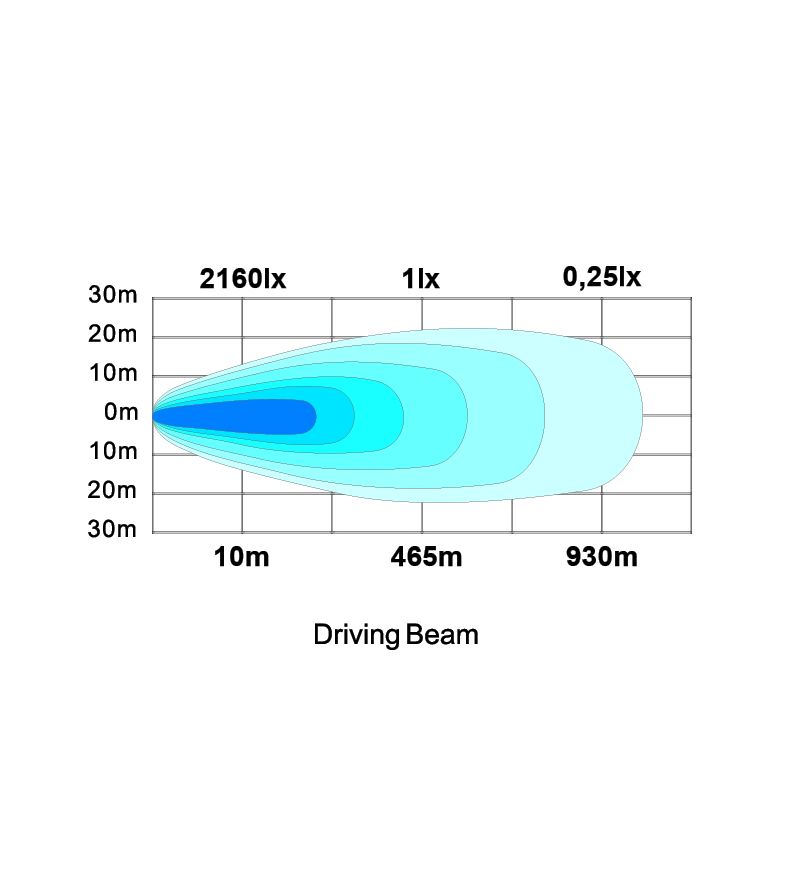

Driving Beam Pattern

Quantity

LEDSON Phoenix+ LED bar 40" with flash

The Phoenix series offers true multifunctionality with additional lighting and warning lights in one! Now you don't have to mount both additional lamps and flashlights, save space and get a simplified installation.

Phoenix+ is available in three different sizes (20", 32" and 40") and therefore fits everything from transport vehicles to trucks and excavators - to meet your needs. All lengths are E-approved as additional lighting according to ECE R112 and have approved flashlights (ECE R65). Phoenix+ are also equipped with xenon white or yellow/orange position lights, which can be switched on.

You get great power in the high beams and a safer job on the road!

Characteristics:
Image high beam light
E-marked ECE R112 (ref. 50)
ECE R65 / R7 / R10 (EMC classified)
Range: 465 m (1 lux)
Lumen: 17640 lm (theoretical), 6217 lm (actual)
Color temperature 5700K (cold white)
Flashlight: Orange (ECE R65)
Position light: Xenon white alt. yellow orange

Technical data:
210 W (42 x OSRAM CSHP LED)
IP68/69K: resistant to hot water under pressure
Aluminum housing and polycarbonate lens
4-pin DT connector (included)
Voltage: 10-30V

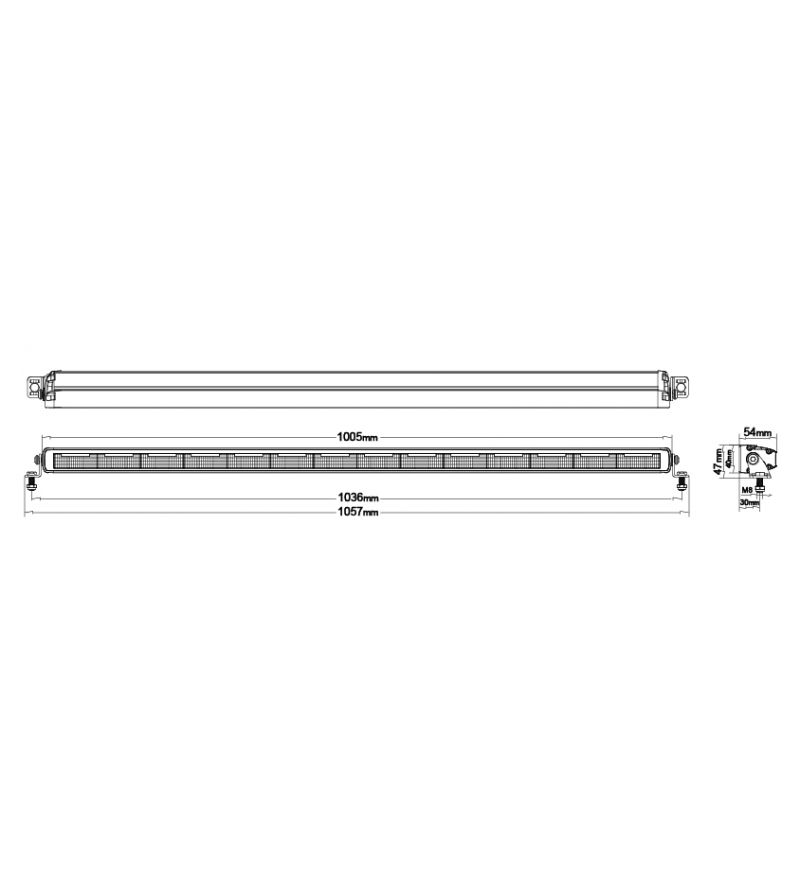

Dimensions & weight (excl. brackets):
Width: 1005mm
Height: 40mm
Depth: 54 mm (excl. bracket)
Weight: 2600 grams

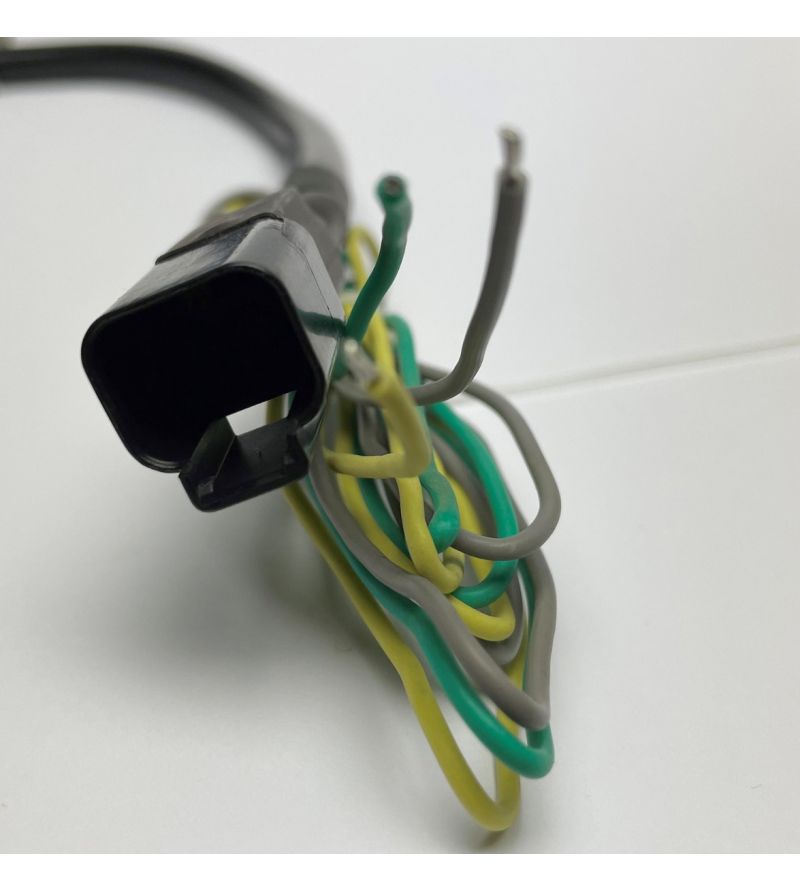

Cable colors:
Green: Flash function
Gray: White position light
Yellow: Orange position light

NOTE: The DT connector should not be cut as this increases the risk of moisture damage and will void the warranty. DT connector (male) with hinge supplied with the product.

33305429 7323230035356

Data sheet

Accessory
Lighting
Producttype
LED Light bar
Product serie
Phoenix
Series
Lights & Styling
Size ( Ø / ↔ )
3) Large
Shape
Ledbar
Width (mm)
1005
Height (mm)
40
Depth (mm)
54
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Signal light
Light color
White
Position light
Position light
Color of position light
Amber
White
Signal lights
Flash light
Strobe function
1 flash pattern
Color temperature
5700K
Reference number per unit
50
E-mark
yes
ECE approval
R10
R65
Glass color
smoke
Chrome / RVS
no
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
IP rating
IP68
IP69K
Mount
Normal
Lumen
17640
Light distance (m) at 1 lux
465
Light distance (m) at 0.25 lux
930
Voltage
12V
18V
24V
Watts
165W
LEDs per lamp
42
Wattage per LED
5W
number of pins
2 pins
Connector
Deutsch DT
Wiring included
No
Switch
without switch
Vehicle brand
Universal
Sales unit
Single item
Standard Delivery time
4-7 business days
