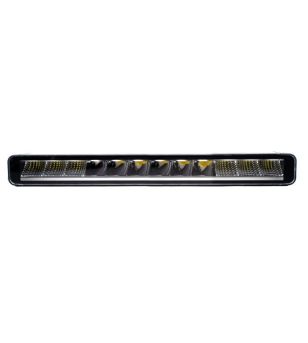

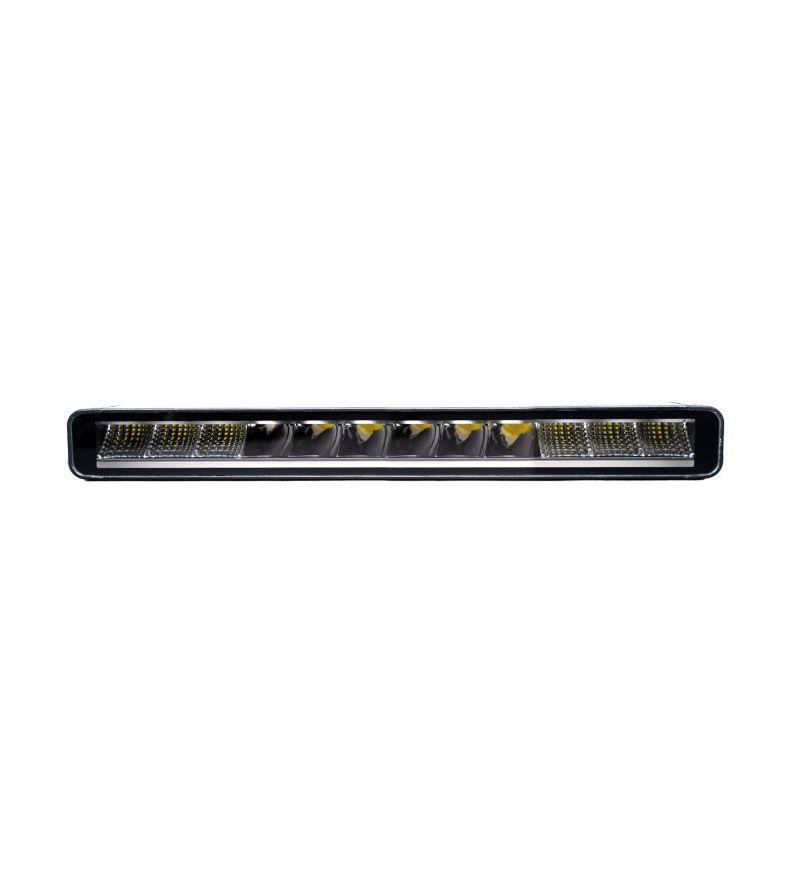

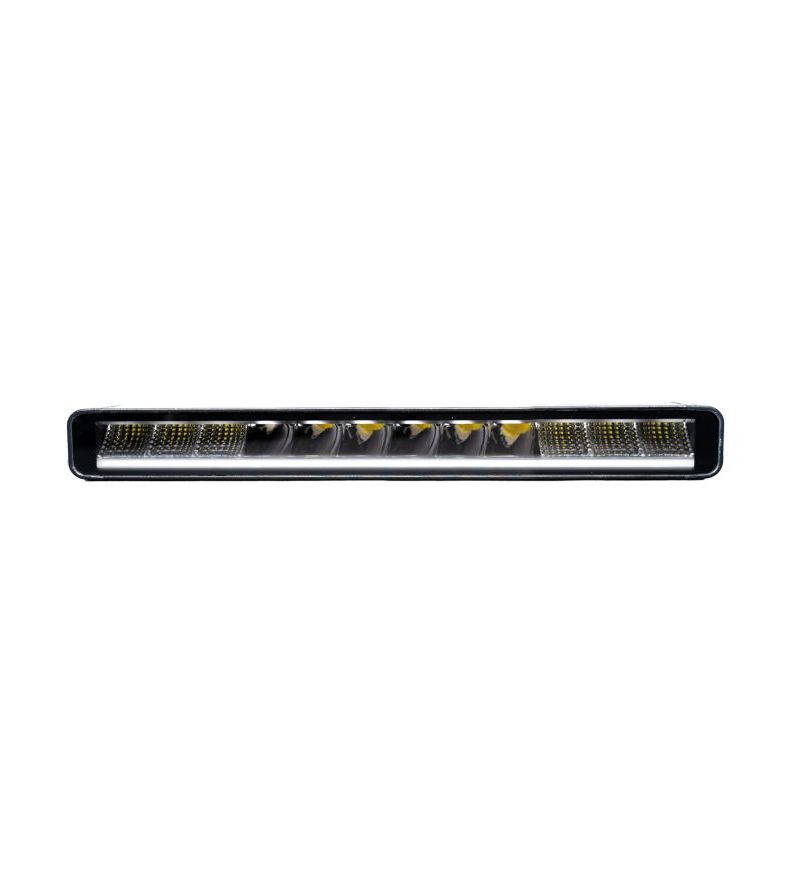

LEDSON Orbix+ LED bar 14" 60W white/amber position light
Ledson 33501255
LEDSON Orbix+ LED bar 14" 60W white/amber position light
Lights & Styling - Let it shine
Size (mm): 367(w) x 42(h) x 58(d)
E-approved
Single item
1-3 business days
Driving (45°)
Drive safe, please take care of local rules for lights and accessories
Lighting zone 3: Driving / Combo
LEDSON Orbix+ LED bar 14" 60W white/amber position light
Included:
- Orbix+ 14" single row LED ramp
- Laterally mounted legs
- Sliding brackets (standing/hanging)
- Bolts and screws to fix the ramp to the correct surface
- DT connector
- Installation instructions
It's the details that make it - and this detail is a real eye-catcher! The Orbix 14" from Ledson is equipped with a modern dynamic position light.

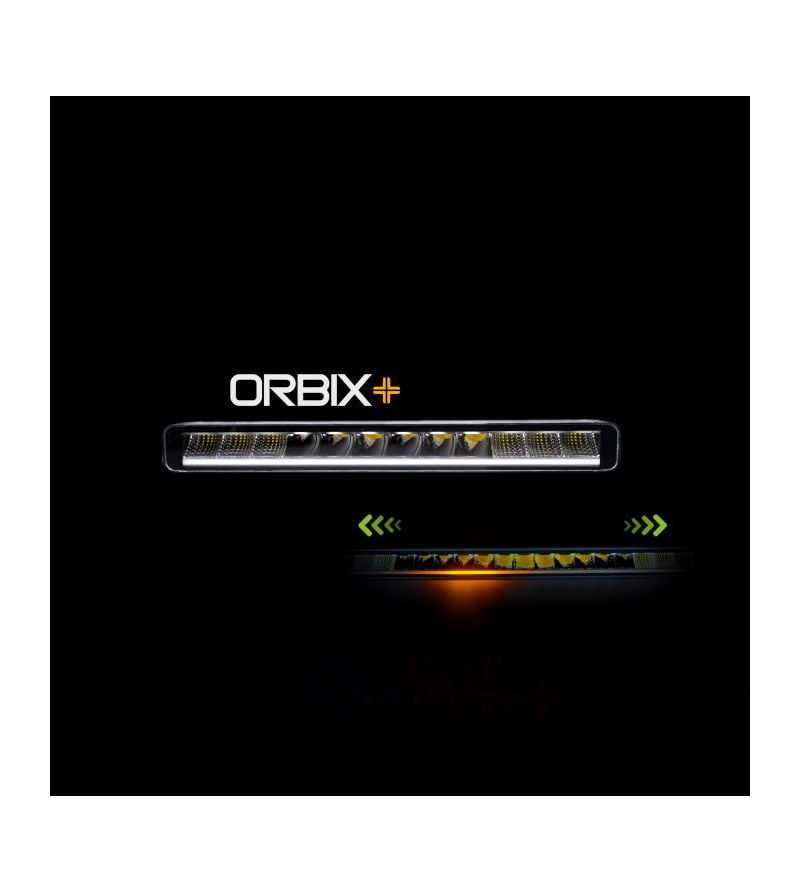

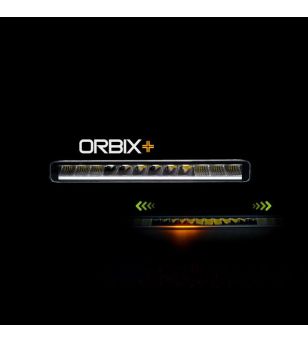

The Orbix+ position light illuminates with a unique smooth motion that directs the light from one side of the driveway to the other before lighting up. A dynamic range that will make you stand out from the crowd and take the look of your vehicle to a whole new level.
The ramp is E-marked to ECE R149 and features a Drive light pattern that optimally enhances your vehicle's existing high beam to reach both longer and wider. You can of course choose to have your position light in modern cool white or a rawer yellow-orange.
A high IP69K rating and aluminum housing with polycarbonate lens means that Orbix+ gives you a safer ride and better looks, of course with Ledson's unbeatable 36 month warranty.
Light image high beam (Drive)
The Driving Beam's reflectors are all computer generated and manufactured to provide a similar light image to the combo. It mimics and enhances the car's existing headlights and lights.
What else is needed?
DT Relay Kit: We highly recommend using our DT relay with original socket to connect the LED ramp to the vehicle. You then have the option to choose between operating the ramp with a button or connecting it to the high beam (the ramp will then turn on and off automatically along with the high beam switching on and off, which is what most people prefer). There is therefore a fuse between the parking light and the battery to prevent possible damage to the battery and other equipment. Detailed installation instructions are supplied with the DT relay.
Mounting on the vehicle: Can be mounted directly on the vehicle (drill in the right place) or more easily and stylishly using a license plate holder or pipe bracket.
Characteristics:

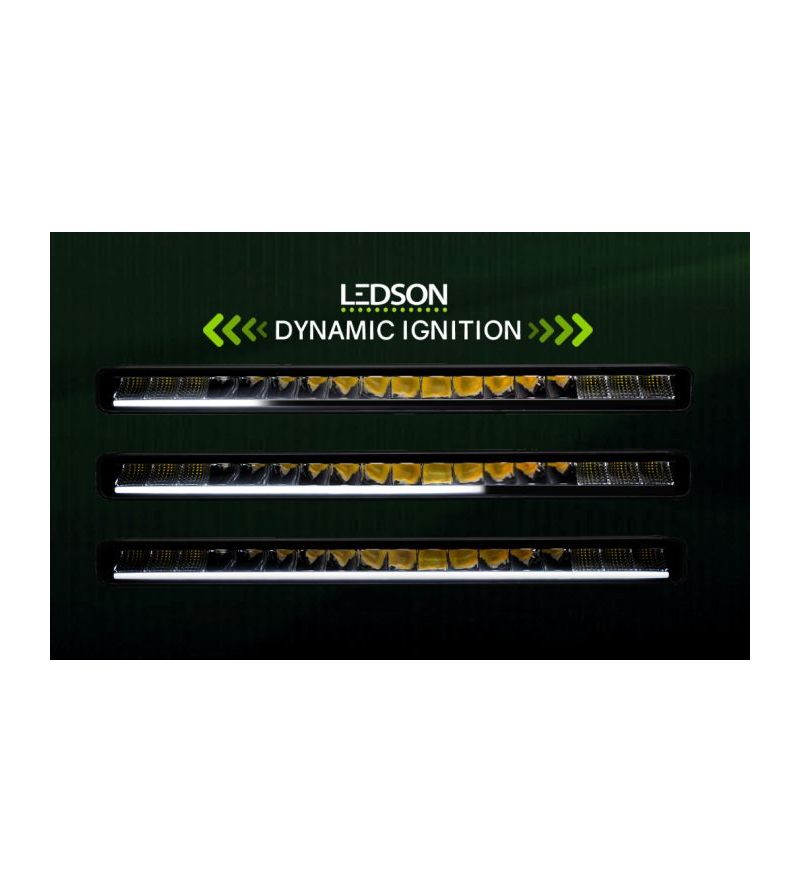

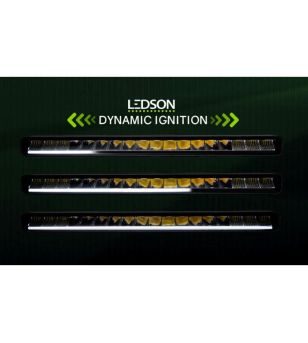

Position light with dynamic ignition, which means it starts with an effective movement pattern

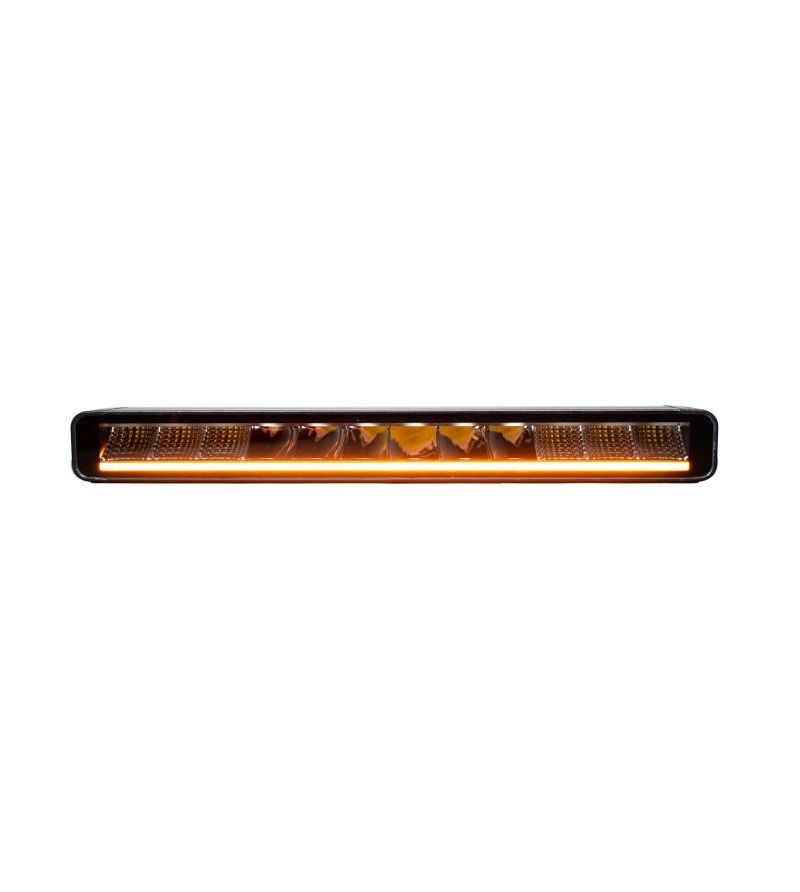

Selectable position light in xenon white or yellow/orange
High beam light pattern (wide and elongated)
E-marked ECE R149
ECE R10 (EMC protected)
Range: 300 m (1 lux)
5040 lumens (theoretical), 4500 lumens (actual)
Color temperature 5700K (cool white)
Dual mounting options (rear mounted sliding brackets and side mounted legs)
Technical data:
60 W (12 x 5 W LEDs)
Voltage: 10-32V
IP69K (water/dust proof)
Aluminum housing and polycarbonate lens
DT connector (included)
Dimensions & weight (excl. brackets):
Width: 367mm
Height: 42mm
Depth: 58mm
Weight: 1.45 kg
NOTE: Do not cut the DT connector as this increases the risk of moisture damage and will void the warranty. ATP connector (male) with connection included with the product.
Data sheet
- Color of position light
- Geel/Amber & White (Dual)
- Very suitable for
- Camper
Car
Truck
Van - Lighting - Type
- Driving Light
- Series
- Lights & Styling
- E-mark
- yes
- ECE R10
- Approved
- Accessory
- Lighting
- Sales unit
- Single item
- 12 Volt
- yes
- 24 Volt
- yes
- Size ( Ø / ↔ )
- e) LEDbar 8"-15"
- Width (mm)
- 367
- Depth (mm)
- 58
- Height (mm)
- 42
- Weight (kg)
- 1.45
- Lumen
- 5040
- Beam type
- Driving (45°)
- Lighting zone 3: Driving / Combo
- 3
- Light distance (m) at 1 lux
- 300
- Light color
- white/xenon white
- Kelvin
- 5700
- IP rating
- IP69K
- Color of glass
- Blank
- Housing color
- black
- Housing material
- Aluminum
- Lamp rim color
- black
- Lamp rim material
- Aluminum
- Chrome / RVS
- no
- Wiring included
- No
- Shape
- Ledbar short
- Mount
- Normal
- Position light
- yes
- Voltage
- 12 & 24 Volt
- Watts
- 60W
- Wattage per LED
- 5W
- LEDs per lamp
- 12
- Light type
- LED
- 4WD/Offroad
- Yes
- Car / SUV / Van
- Yes
- Agriculture
- Yes
- Truck
- Yes
- Winter Rally
- Yes
- Brand
- Universal
- Standard Delivery time
- 1-3 business days
- Electric Device
- yes
- ECE R149
- approved
Specific References
- EAN13
- 7323230034304
