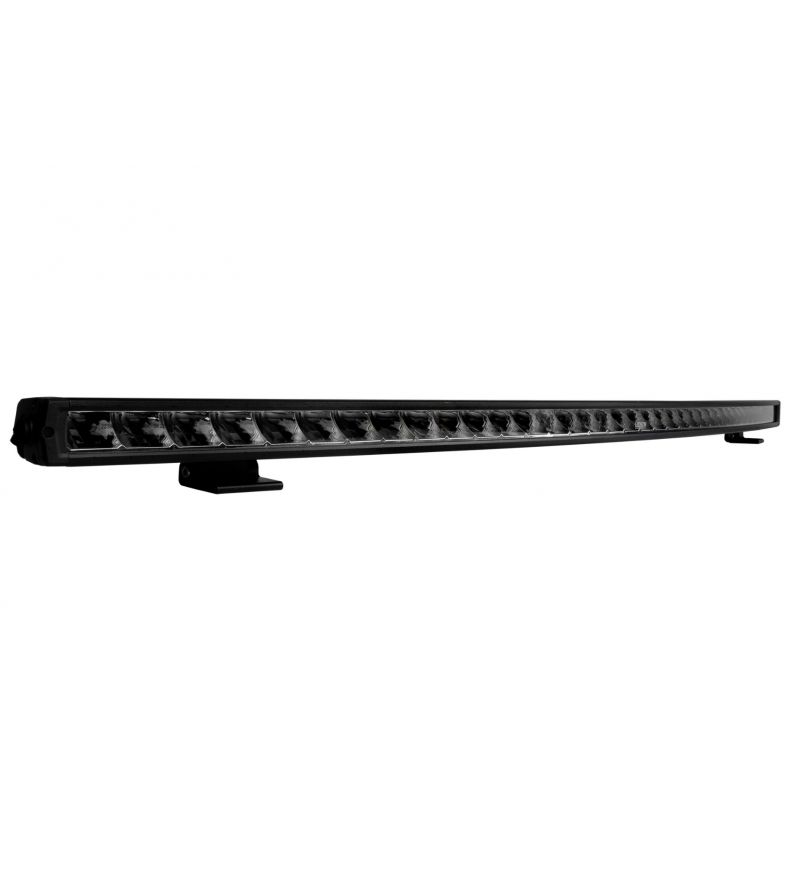

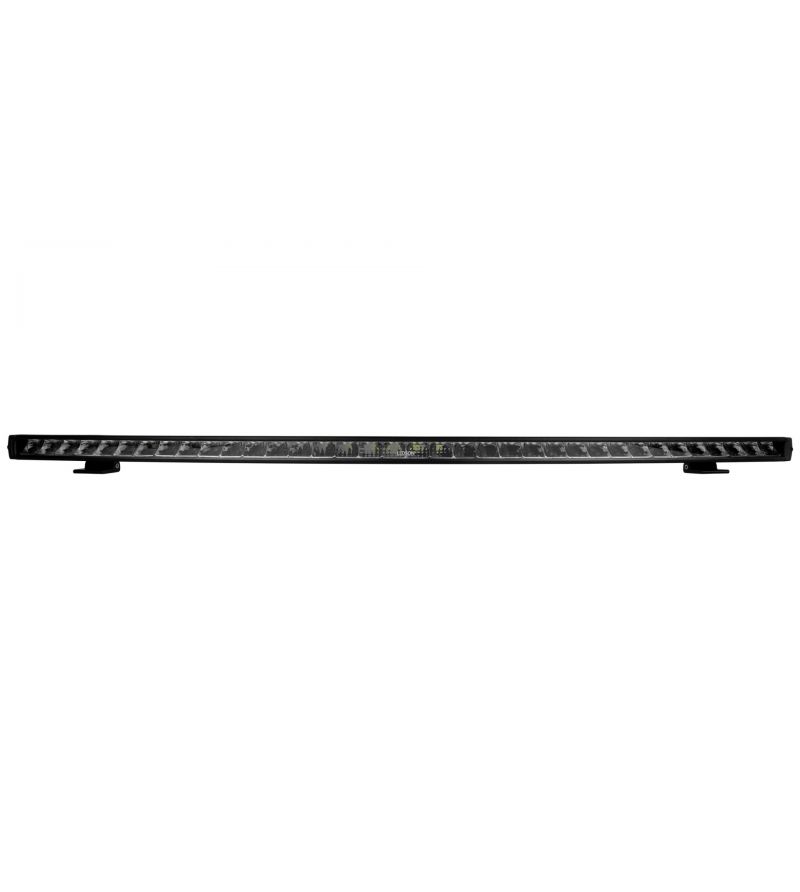

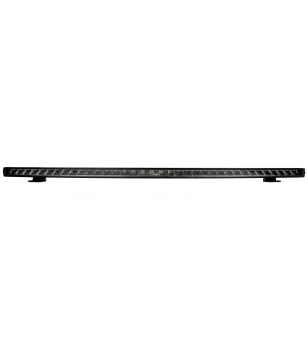

LEDSON Nova C 50" LED bar 266W Curved - 33497362
  • LEDSON Nova C 50" LED bar 266W Curved - 33497362
  • LEDSON Nova C 50" LED bar 266W Curved - 33497362
  • LEDSON Nova C 50" LED bar 266W Curved - 33497362
  • LEDSON Nova C 50" LED bar 266W Curved - 33497362
LEDSON Nova C 50" LED bar 266W Curved - 33497362 LEDSON Nova C 50" LED bar 266W Curved - 33497362 LEDSON Nova C 50" LED bar 266W Curved - 33497362 LEDSON Nova C 50" LED bar 266W Curved - 33497362
LEDSON Nova C 50" LED bar 266W Curved - 33497362

LED Light bar - Ledson - Nova - 50'' - smoke - curved - Driving Spot Combo

€399.50 (tax incl.)

€330.17 (tax excl.)

  • Reference: 33497362
  • Producttype: LED Light bar
  • Dimensions (mm): 1274 (w) x 40 (h) x 58 (d)
  • E-mark: yes
  • Beam type: Driving Spot Combo
  • Sales unit: Single item
  • Standard Delivery time: 4-7 business days
x
...Continue

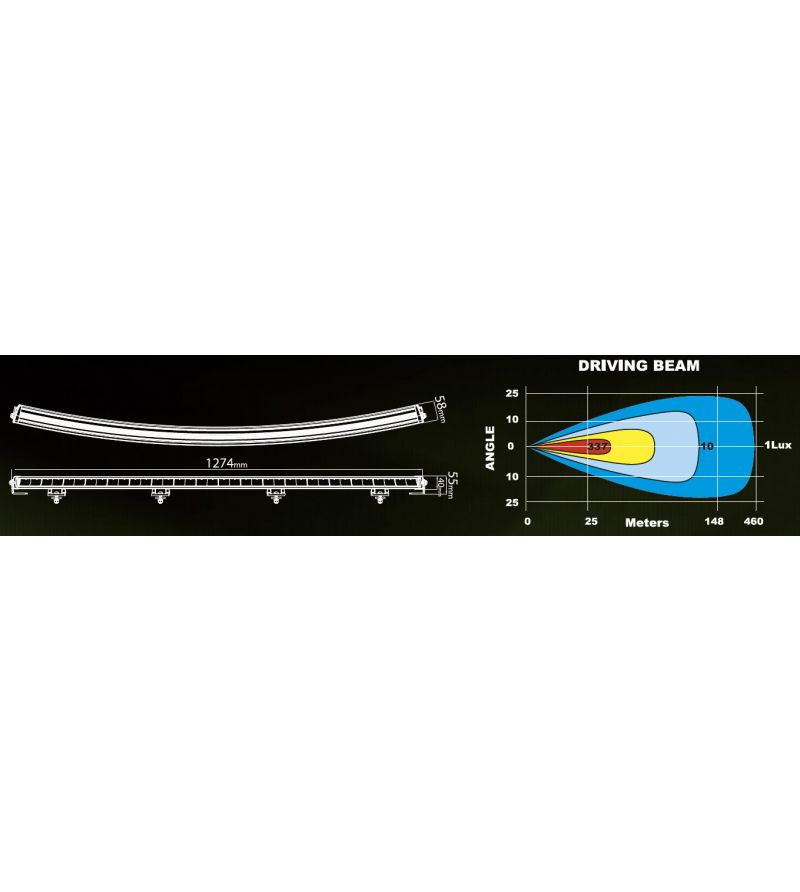

Driving-Spot Beam Pattern

Quantity

Nova C 50" LED Ramp (curved, Driving Beam)

A curved LED bar often looks better mounted on the vehicle, as many cars have a slightly curved front,

Driving Beam 'imitates' the normal light image of the vehicle. So you get a similar light scatter to the low beam and high beam of your existing vehicle, but amplified.

Characteristics:
Curved design to suit cars with a curved front
Driving Beam light image (wide and elongated)
E-marked ECE R112 (ref.50)
ECE R10 (EMC certified)
22200 lumens (theoretical), 18800 lumens (actual)
Color temperature 6000K (cold white)
Range 460 (1 lux) with 50 m width (10 lux)

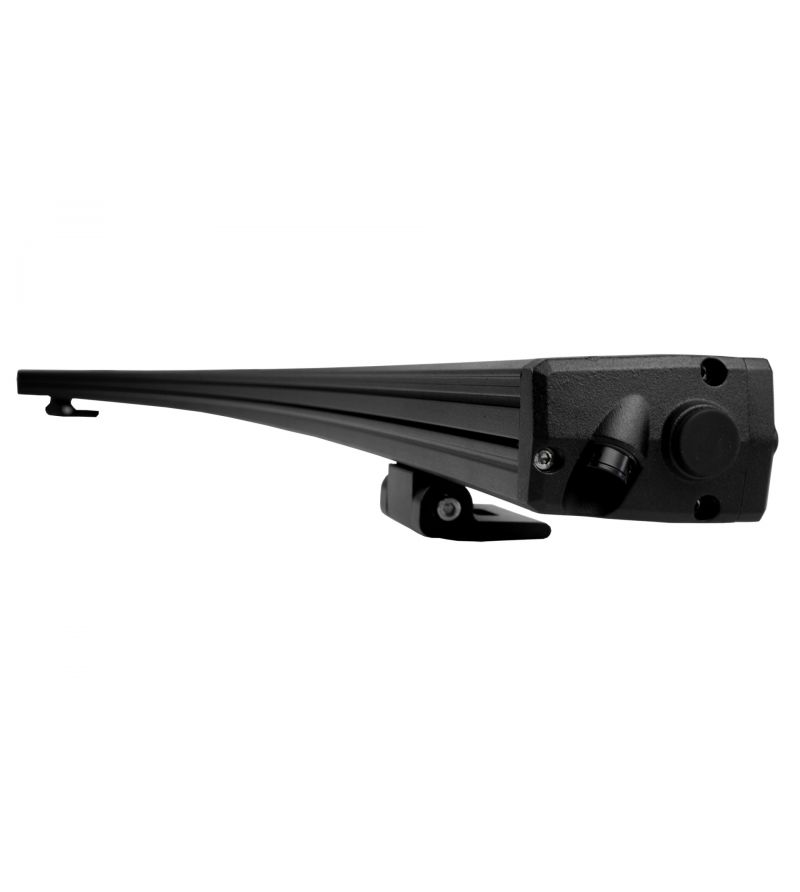

Dual mounting options

Technical data:
252W (36 x 7 W LED)
IP68 (waterproof/dustproof)
IP69K: withstands hot water under pressure
Aluminum housing and polycarbonate lens
ATP connector (included)

Included:
Nova C 50" LED bar
Side mounted legs
Sliding supports
Bolts and screws to fix the LED bar to a suitable surface
ATP contact
Installation instructions

Sizes:
Width: 1274mm
Height: 40mm
Depth: 58mm
NOTE: The ATP connector should not be cut as this increases the risk of moisture damage and will void the warranty. ATP connector (male) with joint supplied with the product.

More information
Color  6000K
Voltage  9-36 V
Delivered  Piece
Light source LED
E-mark  ECE R10, ECE R112
Light image  High beam
Number of contacts  1 x ATP connector

33497362 7323230037381

Data sheet

Accessory
Lighting
Producttype
LED Light bar
Product serie
Nova
Feature
curved
Series
Lights & Styling
Size ( Ø / ↔ )
3) Large
Shape
Ledbar
Width (mm)
1274
Height (mm)
40
Depth (mm)
58
Beam type
Driving Spot Combo
Light type
LED
Lighting - Type
Driving Light
Light color
White
Position light
No position light
Color temperature
6000K
Reference number per unit
50
E-mark
yes
ECE approval
R112
Glass color
smoke
Chrome / RVS
no
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
IP rating
IP69K
Mount
Normal
Lumen
18800
Light distance (m) at 1 lux
460
Voltage
12V
18V
24V
30V
36V
Watts
266W
LEDs per lamp
36
Wattage per LED
7W
Connector
DTP/ATP
Deutsch DT
Wiring included
No
Vehicle brand
Universal
Sales unit
Single item
Standard Delivery time
4-7 business days
prodcat1
M
Shipping Size
M

Specific References
