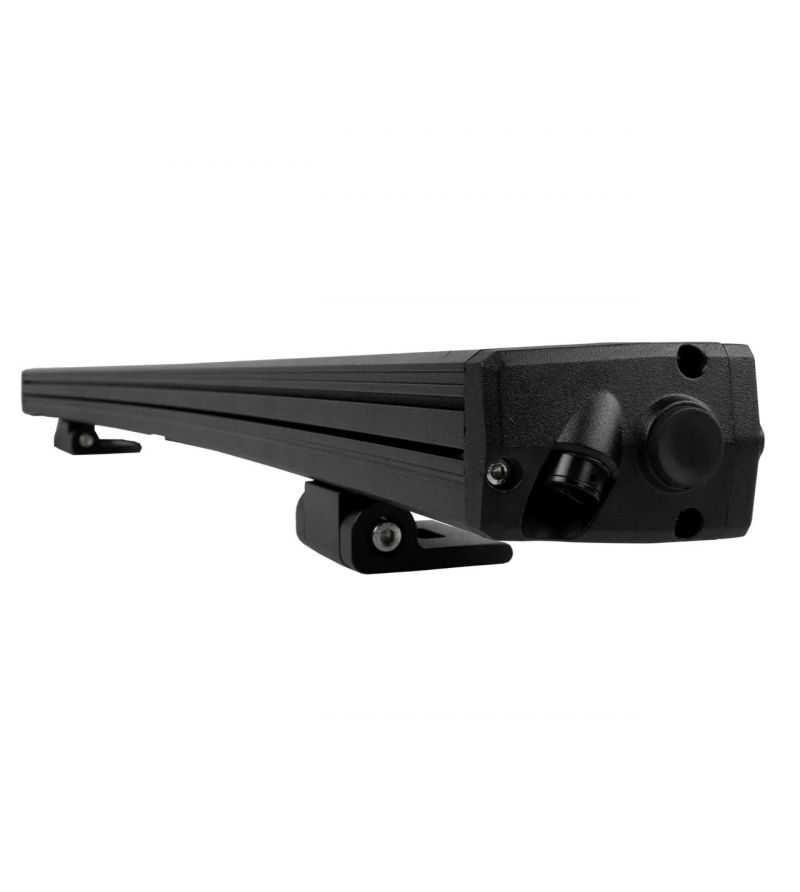

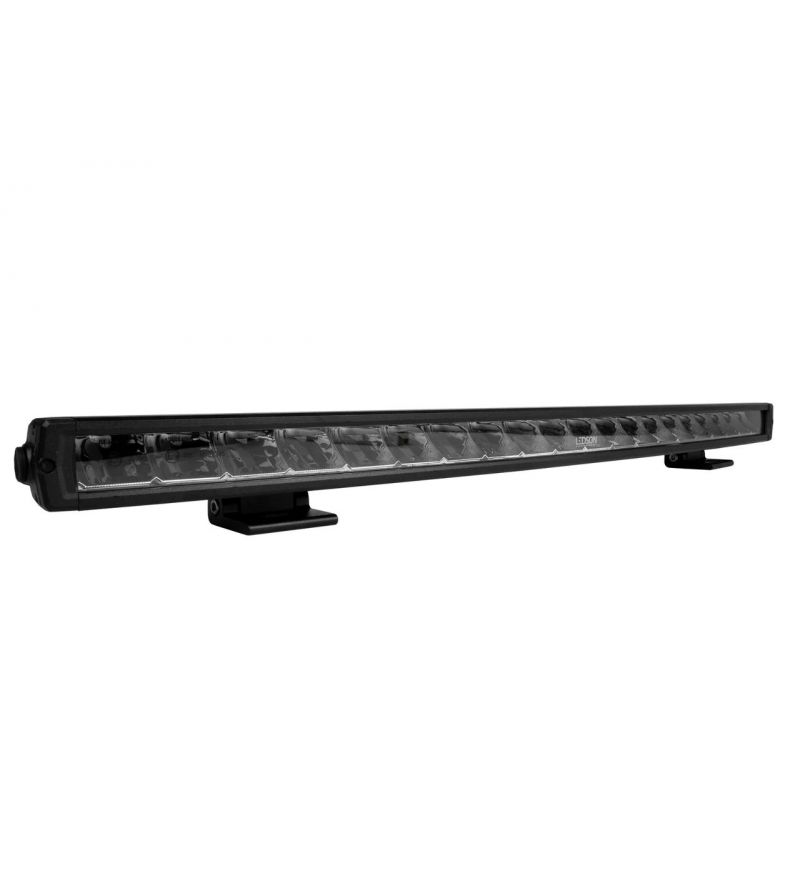

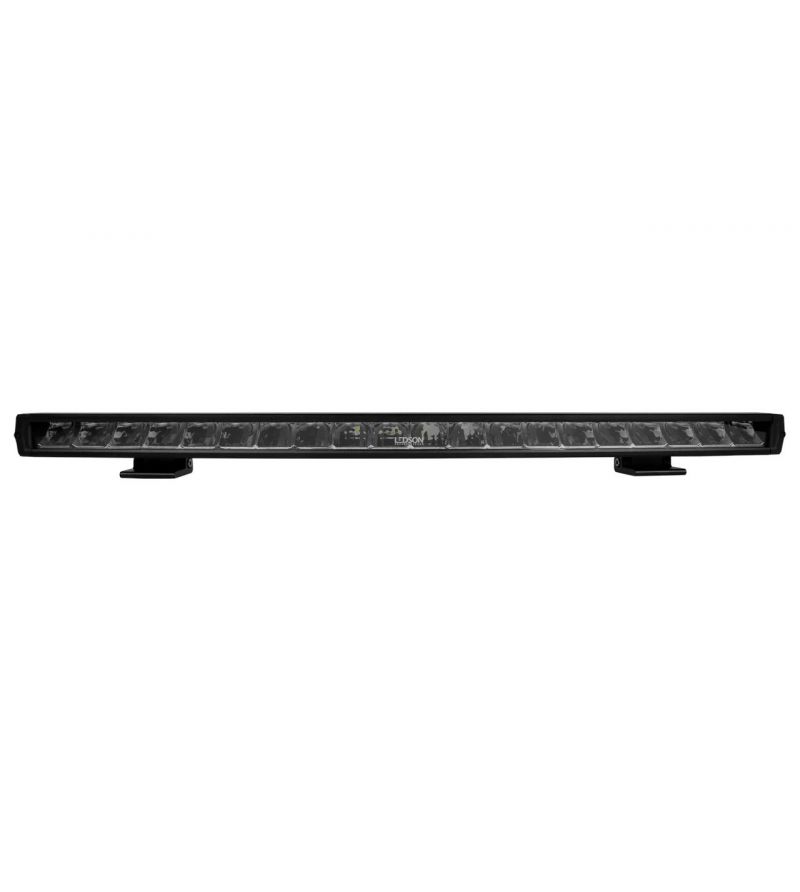

LEDSON Nova C 30" LED bar 140W Curved

€251.20
Tax included

Ledson 33497202
Nova C 30" LED Ramp (curved, Driving Beam)
Lights & Styling - Let it shine
Dimensions Size (mm): 728(w) x 40(h) x 53(d)
E-Approval E-approved
Sales unitSingle item
Delivery1-3 business days
BeamHybrid (25°/10°)

Drive safe, please take care of local rules for lights and accessories

Lighting zone 3: Driving / Combo

Light zones

Quantity

Nova C 30" LED Ramp (curved, Driving Beam)

A curved LED bar often looks better mounted on the vehicle, as many cars have a slightly curved front,

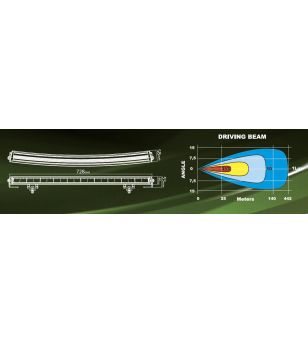

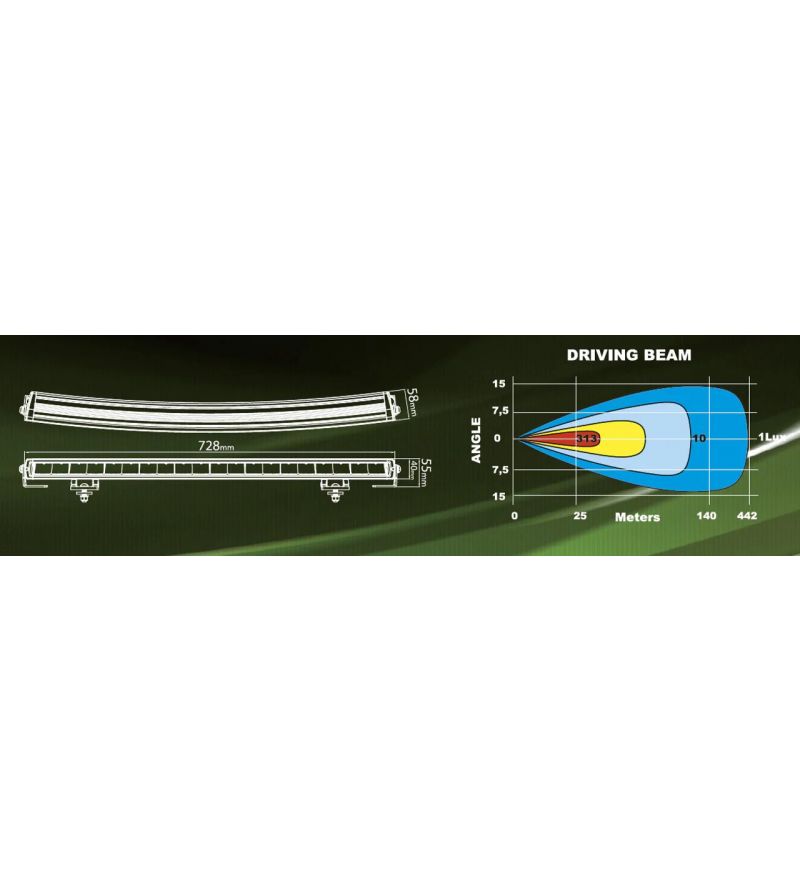

Driving Beam 'imitates' the normal light image of the vehicle. So you get a similar light scatter to the low beam and high beam of your existing vehicle, but amplified.

Characteristics:
Curved design to suit cars with a curved front
Driving Beam light image (wide and elongated)
E-marked ECE R112 (ref.45)
ECE R10 (EMC certified)
12500 lumens (theoretical), 10500 lumens (actual)
Color temperature 6000K (cold white)
Range 442 m (1 lux)
Dual mounting options

Technical data:
140W (20 x 7W LED)
IP68 (waterproof/dustproof)
IP69K: withstands hot water under pressure
Aluminum housing and polycarbonate lens
DT connector (included)

Included:
Nova C 30" LED LED bar
Side mounted legs
Sliding supports
Bolts and screws to fix the LED bar to a suitable surface
DT contact person
Installation instructions

Sizes:
Width: 728mm
Height: 40mm
Depth: 58mm

33497202 7323230037367

Data sheet

Very suitable for
Car
Van
Lighting - Type
Driving Light
Series
Lights & Styling
E-mark
yes
ECE R10
Approved
ECE R112
Approved
Accessory
Lighting
Sales unit
Single item
12 Volt
yes
24 Volt
yes
Size ( Ø / ↔ )
g) LEDbar 26"-35"
Width (mm)
728
Depth (mm)
53
Height (mm)
40
Lumen
10500
Beam type
Hybrid (25°/10°)
Lighting zone 3: Driving / Combo
3
Light distance (m) at 1 lux
450
Light color
white/xenon white
Kelvin
6000
IP rating
IP69K
Color of glass
smoke
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
Chrome / RVS
no
Wiring included
No
Shape
Ledbar long
Mount
Normal
Reference number per unit
45
Position light
no
Voltage
9-36 Volt
Watts
140W
Wattage per LED
7W
LEDs per lamp
20
Light type
LED
4WD/Offroad
Yes
Car / SUV / Van
Yes
Agriculture
Yes
Truck
Yes
Heavy Industries
Yes
Brand
Universal
Standard Delivery time
1-3 business days
Electric Device
yes
