LED Light bar - Ledson - Juno - 14'' - smoke - Driving Spot Combo
  • LED Light bar - Ledson - Juno - 14'' - smoke - Driving Spot Combo
  • LED Light bar - Ledson - Juno - 14'' - smoke - Driving Spot Combo
  • LED Light bar - Ledson - Juno - 14'' - smoke - Driving Spot Combo
LED Light bar - Ledson - Juno - 14'' - smoke - Driving Spot Combo

LED Light bar - Ledson - Juno - 14'' - smoke - Driving Spot Combo

€129.95 (tax incl.)

€107.40 (tax excl.)

  • Reference: 33501259
  • Producttype: LED Light bar
  • Dimensions (mm): 358 (w) x 33 (h) x 68 (d)
  • E-mark: yes
  • Beam type: Driving Spot Combo
  • Sales unit: Single item
  • Standard Delivery time: 4-7 business days
x
...Continue

Driving-Spot Beam Pattern

Quantity

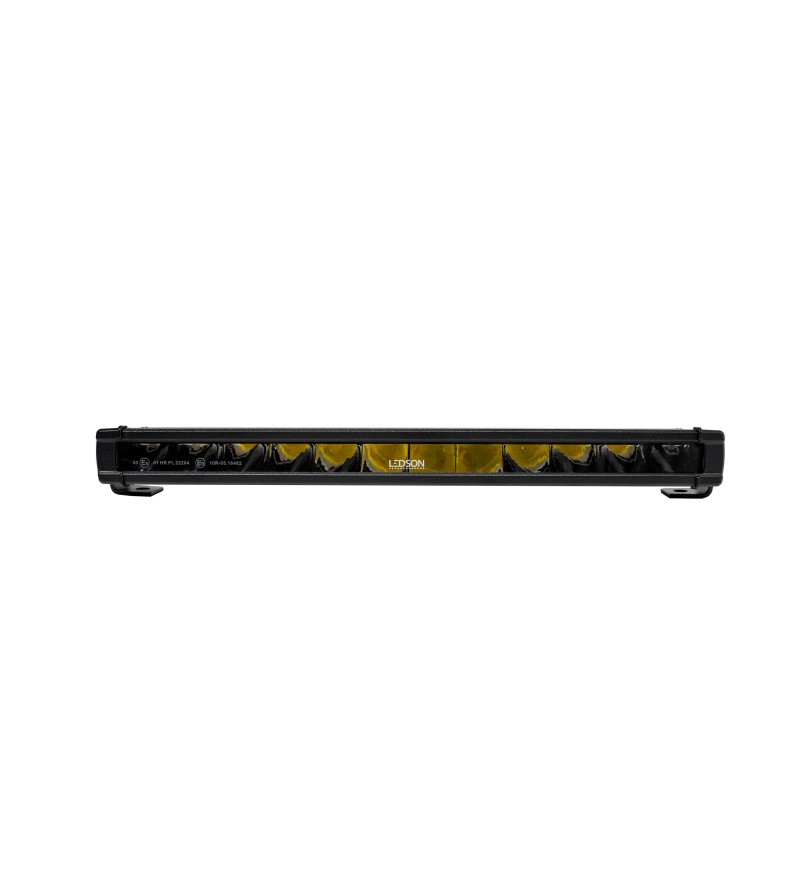

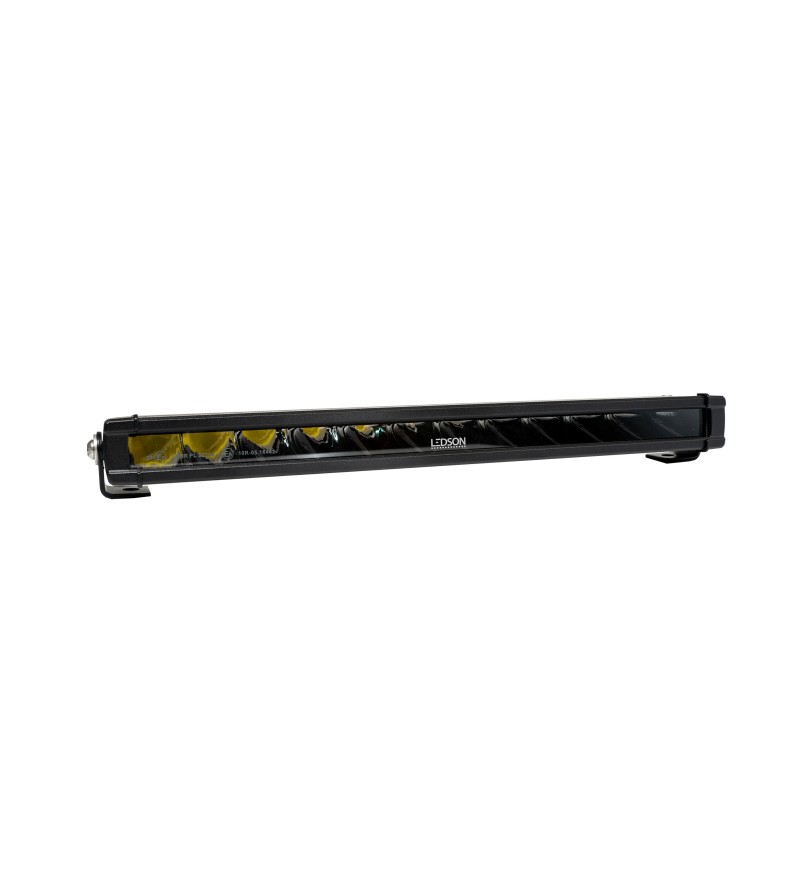

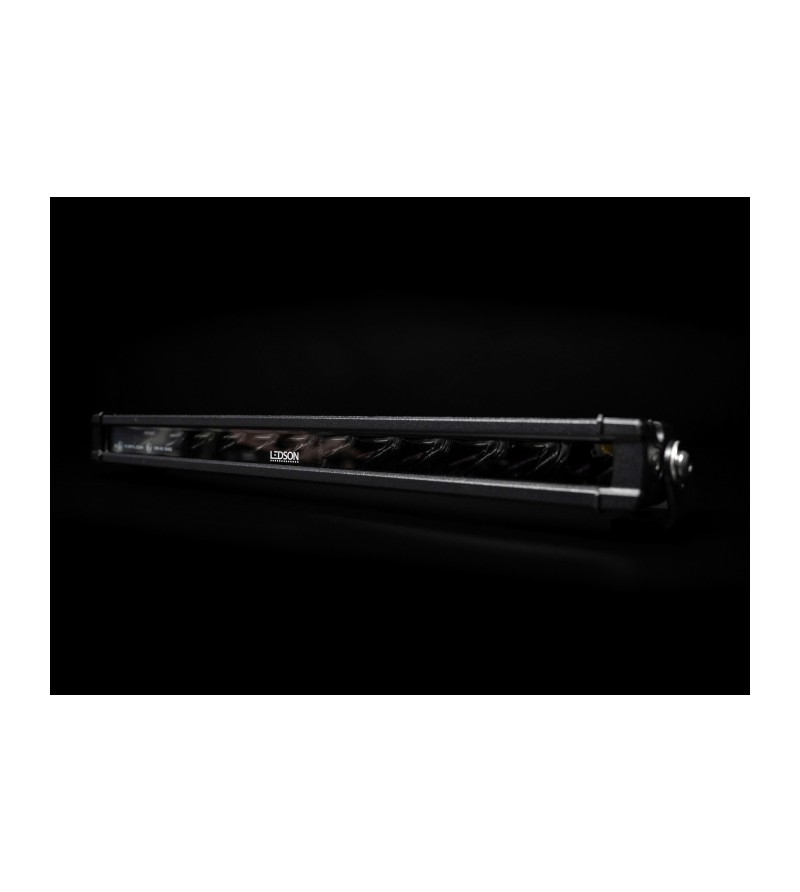

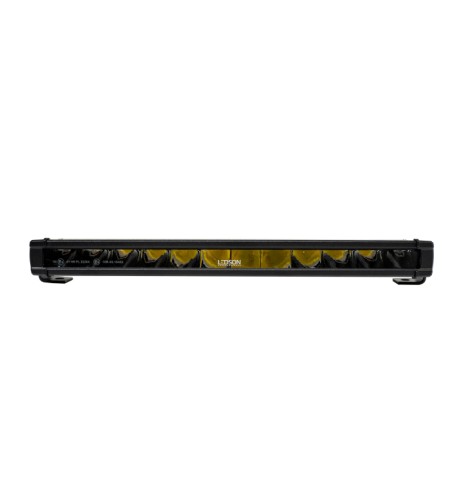

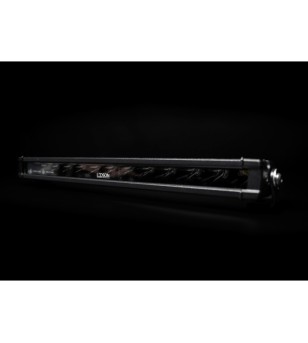

Ledson Juno 14" LED bar 60W (Driving Beam)

What's included:

  • 1x Lamp
  • Matching connector
  • Installation manual

Juno LED bar 14

The low construction height makes this bar from Ledson one of the most easily placed LED bars on the market! From a distance, it is barely visible, but the closer you get, the more its distinctly aggressive and modern design becomes visible. This is an articulated bar for those who want the latest and thinnest, adding attractive value to the vehicle. The light bar is E-approved as auxiliary light according to ECE R112.

This is the second smallest of the bars in the Juno series, with a width of 14 inches (approximately 36 cm).

Features and Technical Specifications

  • E-marked ECE R112
  • EMC-secured ECE R10
  • ”Driving beam” light pattern (wide and oblong)
  • 5040 lumens (actual 3186)
  • Color temperature 5700K (cold white)
  • Range 610 m (0.25 lux), 340 m (1 lux)
  • Dual mounting options
  • 60 W (12 x 5 W OSRAM LED)
  • IP67 (water/dustproof)
  • Aluminum housing with polycarbonate lens
  • DT connector 2-pin (included)
  • Voltage: 10-48 V
  • 4.8A at 12V and 2.08A at 24V
33501259 7323230045195

Data sheet

Accessory
Lighting
Producttype
LED Light bar
Product serie
Juno
Series
Lights & Styling
Size ( Ø / ↔ )
2) Medium
Shape
Ledbar
Width (mm)
358
Height (mm)
33
Depth (mm)
68
Beam type
Driving Spot Combo
Light type
LED
Lighting - Type
Driving Light
Light color
White
Position light
No position light
Color temperature
5700K
E-mark
yes
ECE approval
R10
Glass color
smoke
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
IP rating
IP67
Mount
Normal
Lumen
11250
Light distance (m) at 1 lux
340
Light distance (m) at 0.25 lux
610
Voltage
12V
18V
24V
Watts
60W
LEDs per lamp
12
Wattage per LED
5W
number of pins
2 pins
Connector
Deutsch DT
Wiring included
No
Vehicle brand
Universal
Sales unit
Single item
Standard Delivery time
4-7 business days
prodcat1
M
Shipping Size
S

Specific References
