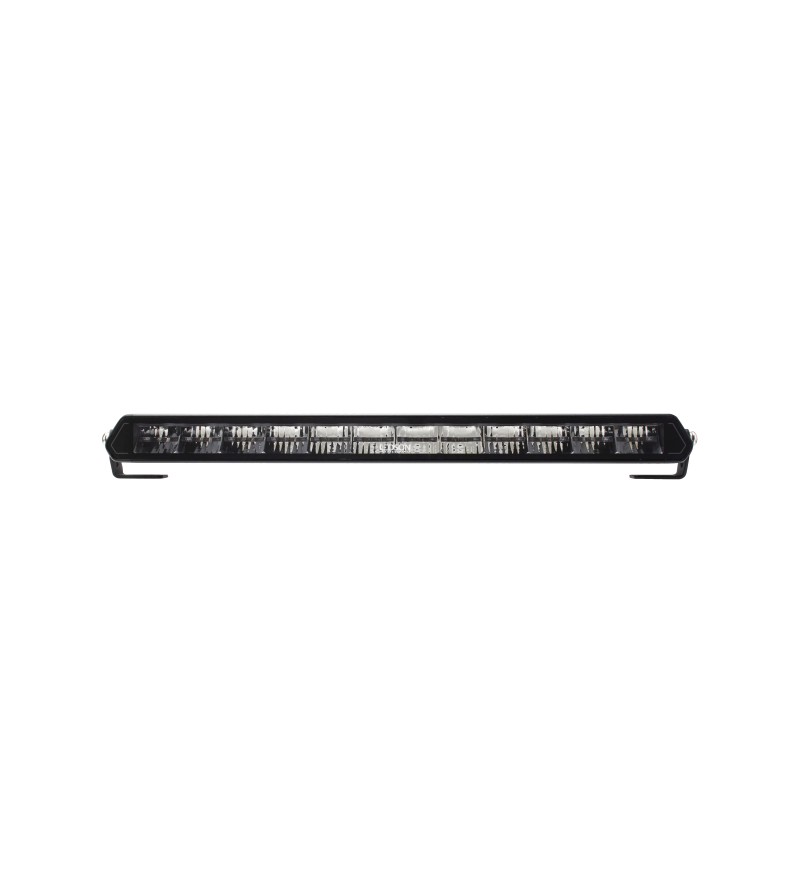

LED Light bar - Ledson - Epix 20+ - 20'' - Position light White/Amber - Driving - Pack

€364.95 (tax incl.)

€301.61 (tax excl.)

  • Reference: 1360253
  • Producttype: LED Light bar
  • Dimensions (mm): 510 (w) x 43 (h) x 61 (d)
  • E-mark: yes
  • Position Light Color: White/Amber
  • Beam type: Driving
  • Sales unit: Pack
  • Standard Delivery time: 4-7 business days
x
...Continue

Driving Beam Pattern

Quantity

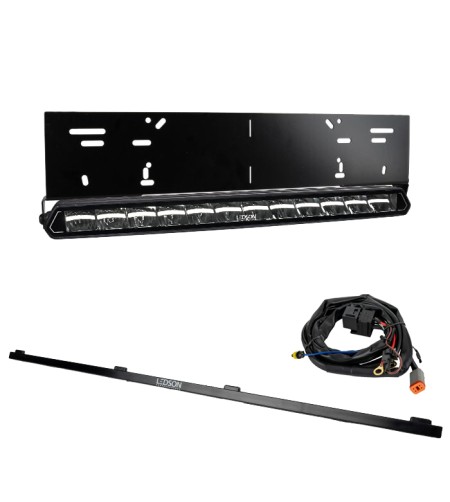

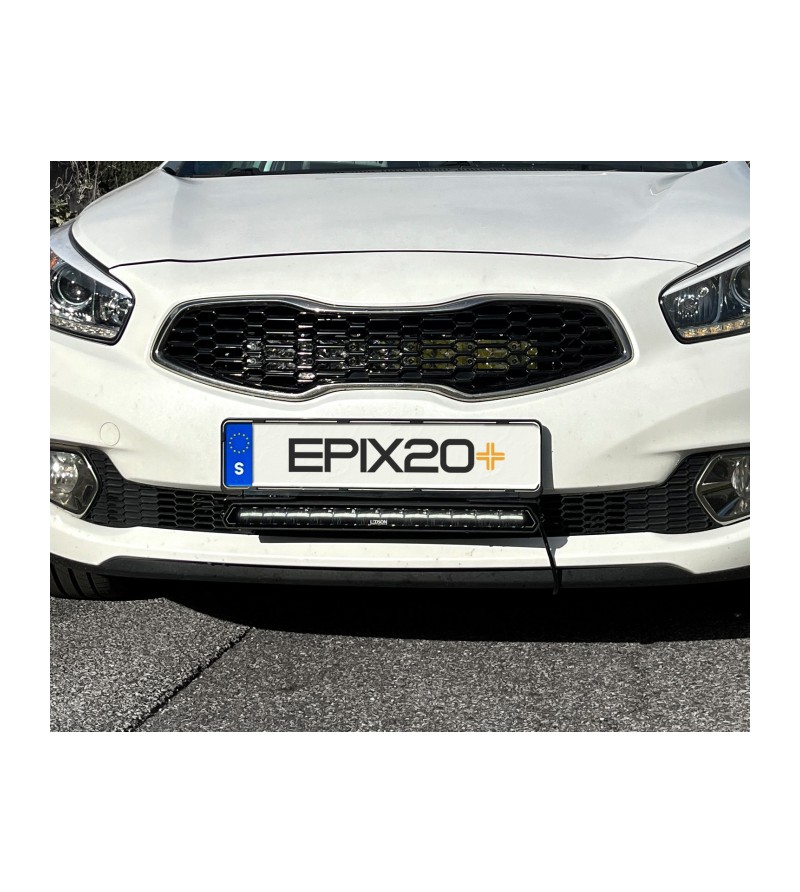

Ledson Epix20+ LED Bar Kit

What's Included:

Maximum Performance and Safety

The dynamic ignition of the position lights gives the bar an effective start-up. Everything you need and want in a LED bar can be found in the Epix+. We have maximized performance in an E-approved mode, with the option for Powerboost when you choose "off-road". Approved R65 strobe lights ensure your visibility while working on the road and keep you safe in all weather conditions and times of the day. Self-developed smart mounts provide easy installation almost anywhere on the vehicle, however you want it.

Features and Technical Specifications:

  • Position light with unique dynamic ignition, integrated into the reflector
  • Selectable position light in xenon white or yellow/orange
  • Driving Beam light pattern (wide and elongated)
  • E-marked R112, R7, R10 (EMC approved)
  • Range: 458 m (1 lux), Powerboost: 530 m (1 lux)
  • 15,500 lumens (theoretical), 11,800 lumens (actual)
  • Color temperature 5000K (xenon white)
  • 180W (12 x 15 W LEDs)
  • Voltage: 9-36V
  • IP69K (water/dustproof)
  • Aluminum housing and polycarbonate lens
  • Side-reflecting optics
  • Pressure equalization membrane
  • Electronic heat management
  • DT connector (included)
1360253 7323230047861

Data sheet

Accessory
Lighting
Producttype
LED Light bar
Product serie
Epix
Serial model
20+
Series
Lights & Styling
Size ( Ø / ↔ )
2) Medium
Shape
Ledbar
Width (mm)
510
Height (mm)
43
Depth (mm)
61
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Light color
White
Position light
Position light
Color of position light
Amber
White
Signal lights
Flash light
E-mark
yes
ECE approval
R10
R112
Chrome / RVS
no
Housing color
black
Housing material
Aluminum
IP rating
IP69K
Mount
Normal
Lumen
Theoretisch: 15.500
Werkelijk: 11.800
Light distance (m) at 1 lux
Range: 458 Powerboost: 530
Voltage
12V
18V
24V
30V
36V
LEDs per lamp
12
Wattage per LED
15W
Connector
Deutsch DT
Sales unit
Pack
Standard Delivery time
4-7 business days
