Ledson Epix 30+ LED bar package for Volvo FH - 1360264

Grille kit - Ledson - Epix 30+ - Volvo - FH

€489.95 (tax incl.)

€404.92 (tax excl.)

  • Reference: 1360264
  • Producttype: Grille kit
  • Dimensions (mm): 740 (w) x 43 (h) x 61 (d)
  • E-mark: yes
  • Light Color: White
  • Position Light Color: White/Amber
  • Sales unit: Pack
  • Standard Delivery time: 4-7 business days
x
...Continue

Model
Quantity

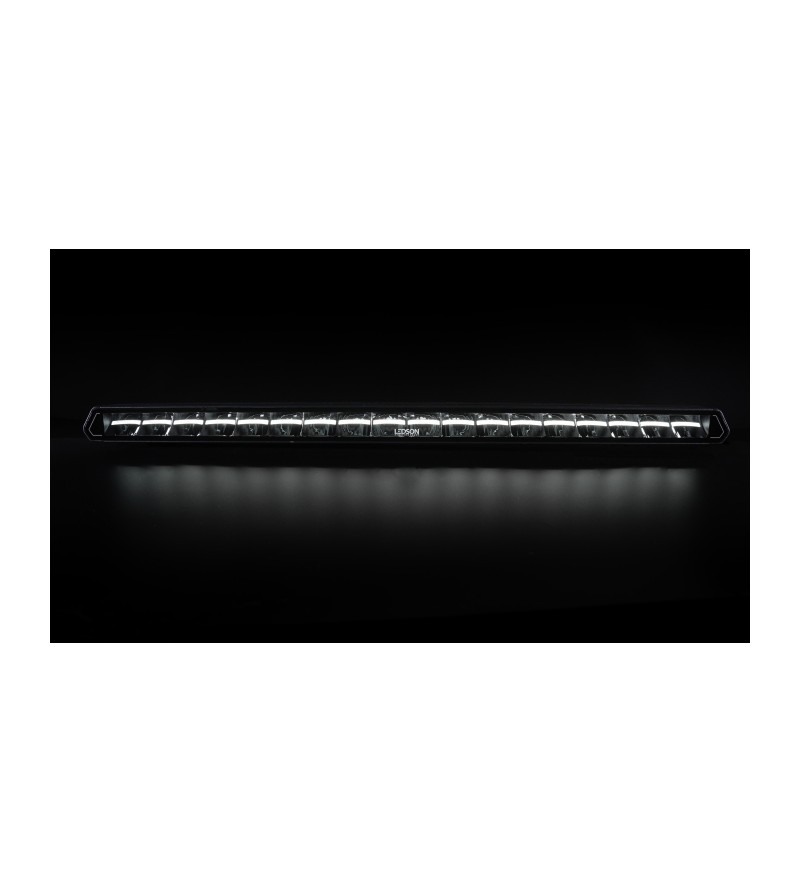

Ledson Epix 30+ LED Bar Package for Volvo FH

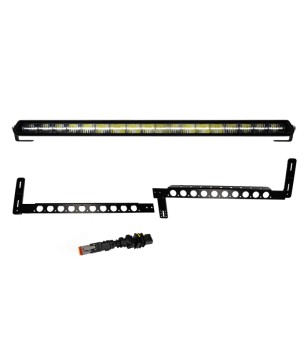

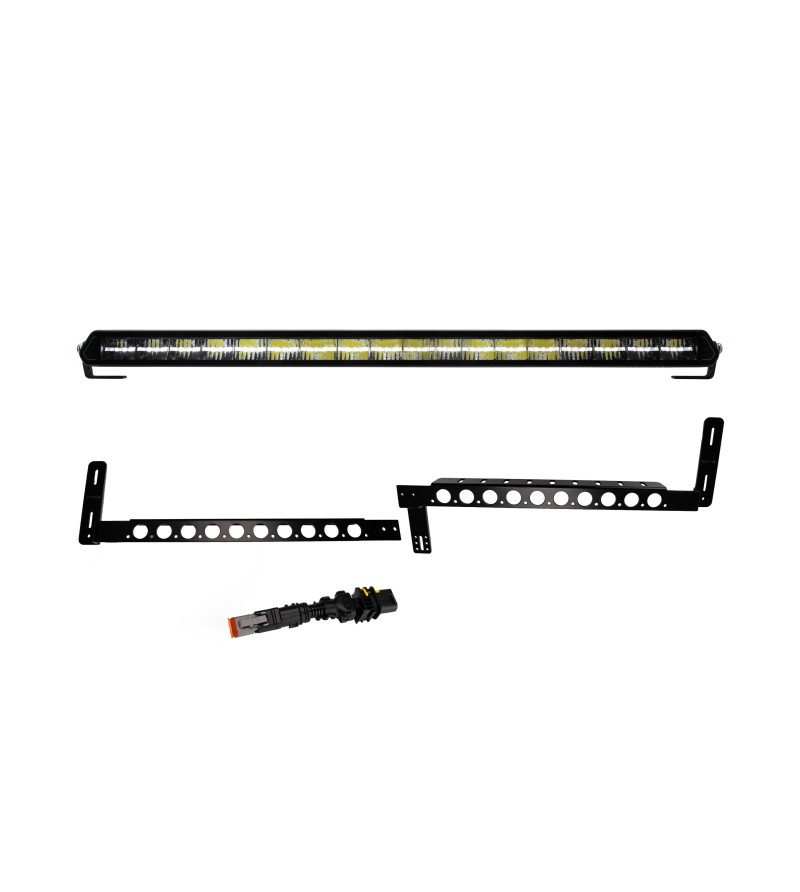

What's included:

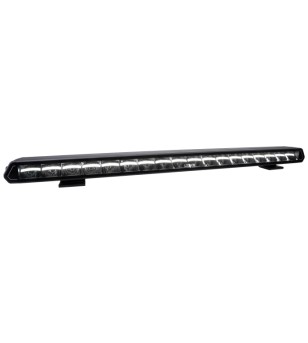

  • Ledson Epix 30+ LED Bar 30" 270W Powerboost / Ledson Epix 30+ Strobe LED Bar 30" 270W Powerboost

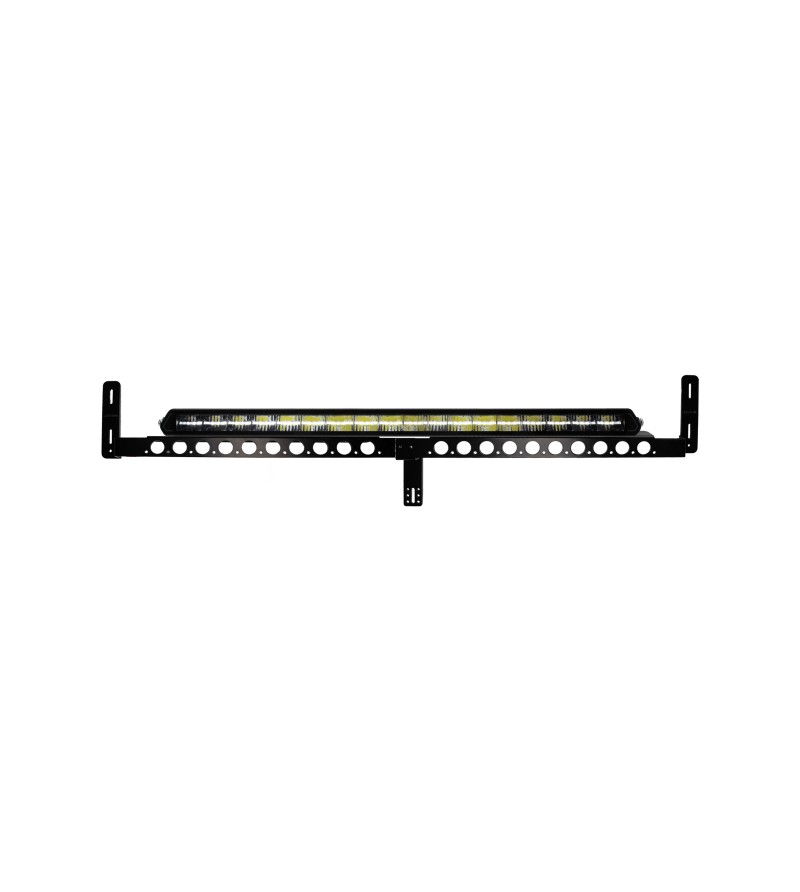

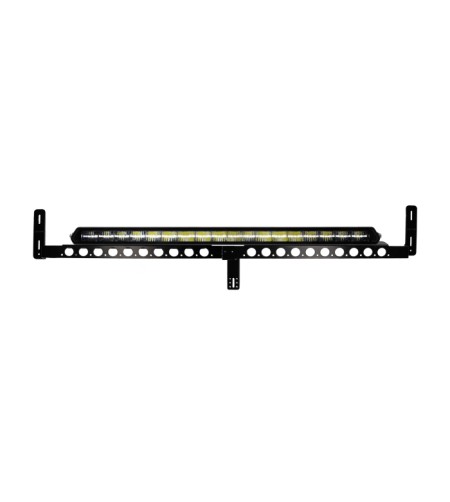

  • Installation kit with all necessary components for a simple and quick installation, including installation instructions
  • Adapter cable with Volvo connector

Discover the Unique Design Details of the Ledson Light Bar

The design of the light bar is uniquely developed by Ledson and perfectly matches today’s most modern trucks, taking your vehicle to the next level. The dynamic position light is activated with a powerful movement that neatly guides the light from one side of the bar to the other before fully illuminating. The position light is integrated into the reflector, a completely unique feature that makes you stand out just a little more.

Features and Technical Data:

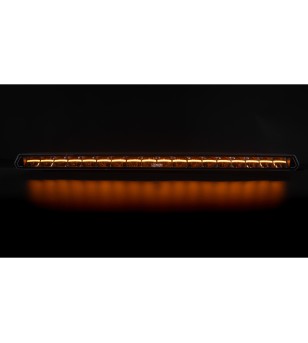

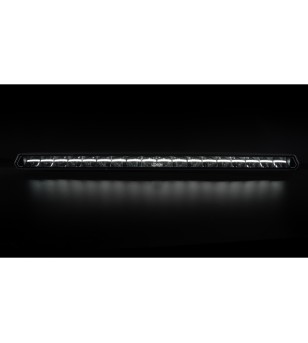

  • Position light with unique dynamic ignition, integrated in the reflector

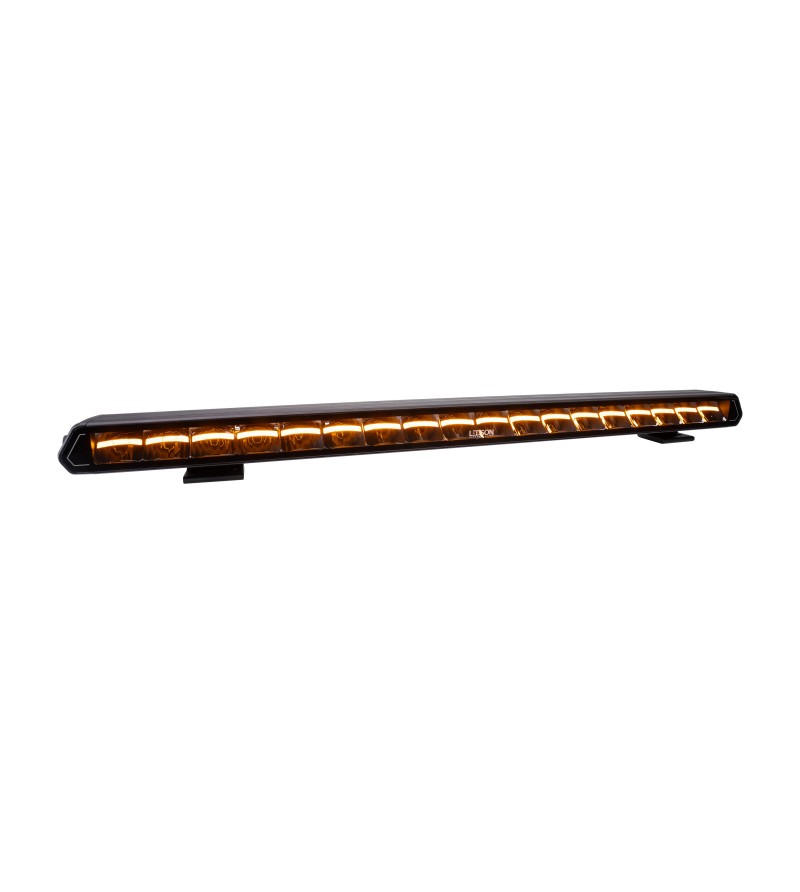

  • Selectable position light in xenon white or yellow/orange
  • Driving Beam light pattern (wide and oblong)
  • E-marked R112, R7, R10 (EMC rated)
  • Range: 458 m (1 lux), Powerboost: 672 m (1 lux)
  • 23,200 lumens (theoretical), 16,300 lumens (actual)
  • Color temperature 5000K (Neutral White)
  • 270 W (18 x 15 W LEDs)
  • Voltage: 9-36V
  • IP69K (water/dustproof)
  • Aluminum housing and polycarbonate lens
  • Side reflective optics
  • Pressure equalization membrane
  • Electronic heat management
  • Supplied connectors: 1 x DTP connector 2 pole (LED bar high beam) and 1 x DT connector 2 pole (LED bar position light)
1360264 7323230044426

Data sheet

Accessory
Lighting
Producttype
Grille kit
Product serie
Epix
Serial model
30+
Series
Lights & Styling
Size ( Ø / ↔ )
2) Medium
Shape
Ledbar
Width (mm)
740
Height (mm)
43
Depth (mm)
61
Light type
LED
Lighting - Type
Driving Light
Light color
White
Position light
Position light
Color of position light
Amber
White
E-mark
yes
ECE approval
R10
Glass color
Clear
Chrome / RVS
no
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
IP rating
IP69K
Mount
Normal
Lumen
16300-23200
Light distance (m) at 1 lux
Range: 458 m (1 lux), Powerboost: 672 m (1 lux)
Voltage
12V
18V
24V
Watts
270W
Wattage per LED
15W
Wiring included
No
Vehicle brand
Volvo
Model
FH
Sales unit
Pack
Standard Delivery time
4-7 business days
vehicle type
truck
prodcat1
M

Specific References

EAN13
7323230044426
UPC
1
