Work light - Ledson - Epix 14+ - Work Strobe - 14'' - Position light Red/Amber - 10 Flash patterns - Work / Scene

€241.95 (tax incl.)

€199.96 (tax excl.)

  • Reference: 334915084
  • Producttype: Work light
  • Dimensions (mm): 357 (w) x 43 (h) x 61 (d)
  • E-mark: yes
  • Position Light Color: Red/Amber
  • Strobe function: 10 Flash patterns
  • Strobe Approval: R65
  • Beam type: Work / Scene
  • Sales unit: Single item
  • Standard Delivery time: 1-3 business days
x
...Continue

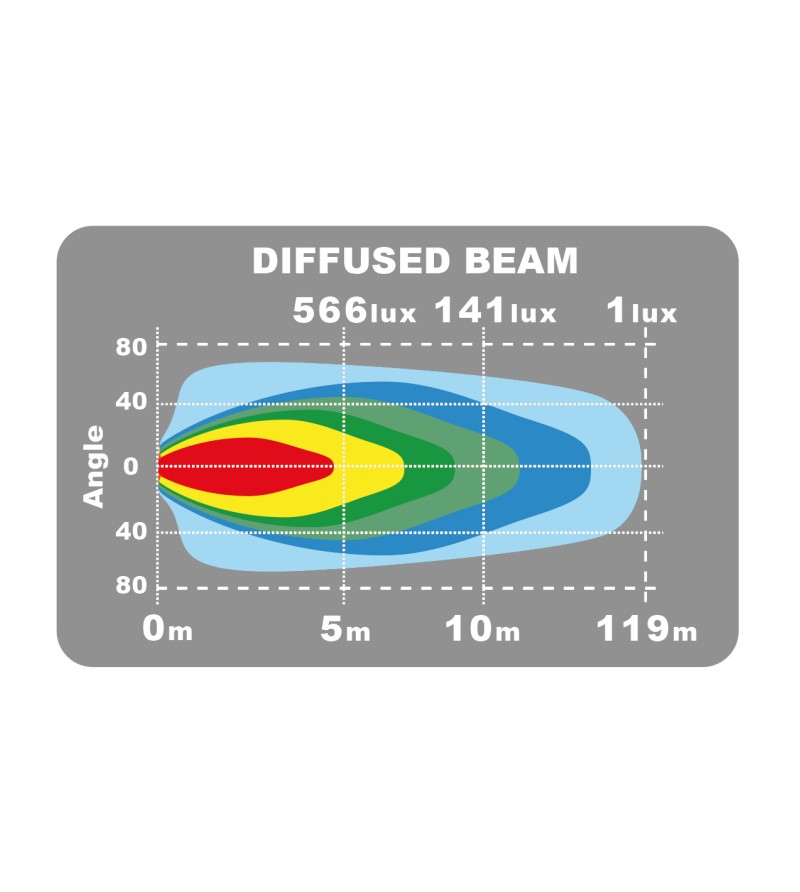

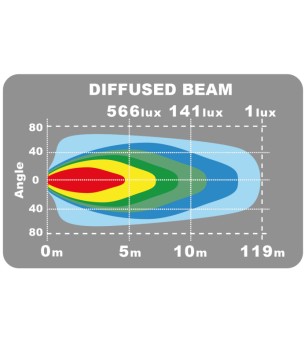

Work-Scene Beam Pattern

Must-have accessories

Wiring Kit

Wiring kit - Ledson - 1 lamp - 6 pins - Deutsch DT - 12V

Wiring kit - Ledson - 1 lamp - 6 pins - Deutsch DT - 12V

€47.95
Quantity

Ledson Epix 14+ Work Light

What is delivered:
Ledson Epix 14+ Work Light
Bolts and screws to attach the beam to the correct surface
Assembly details
DT cable 6-pin

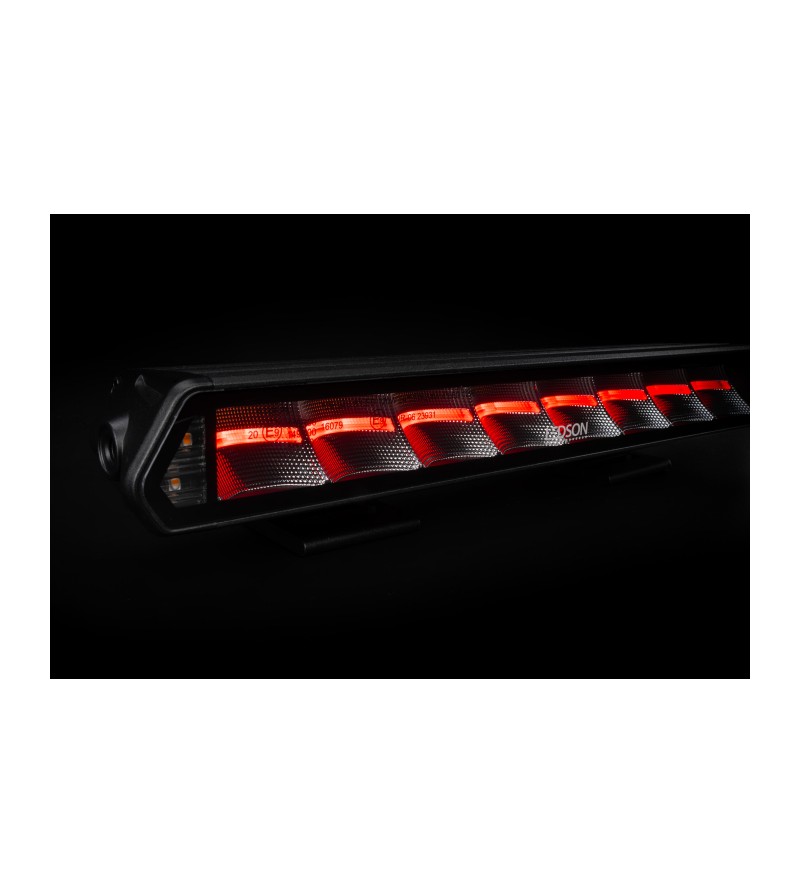

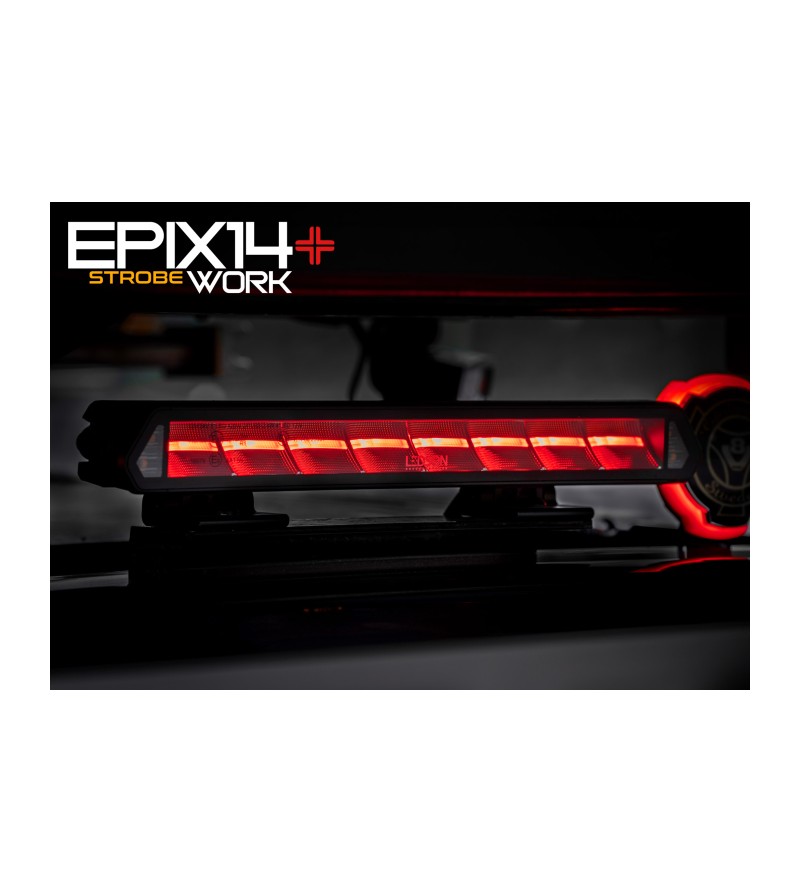

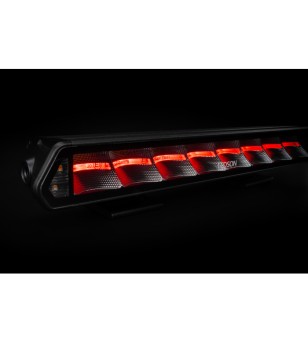

Position lights

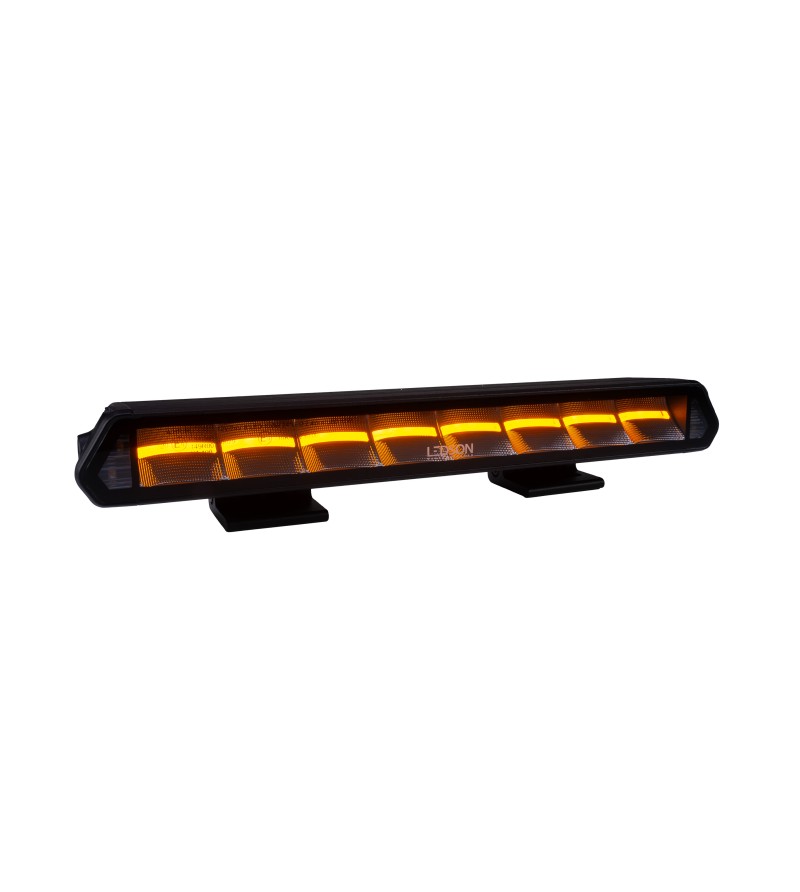

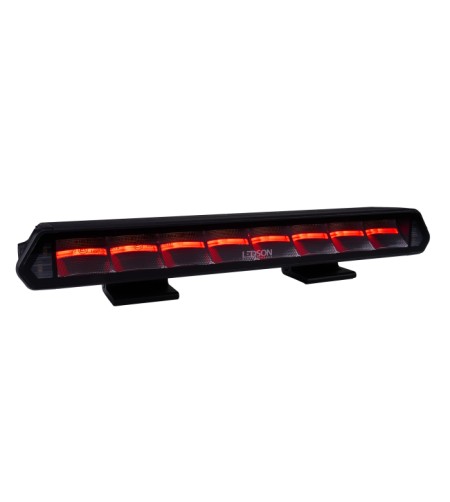

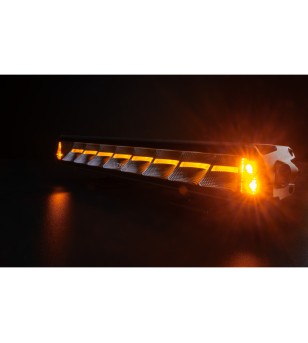

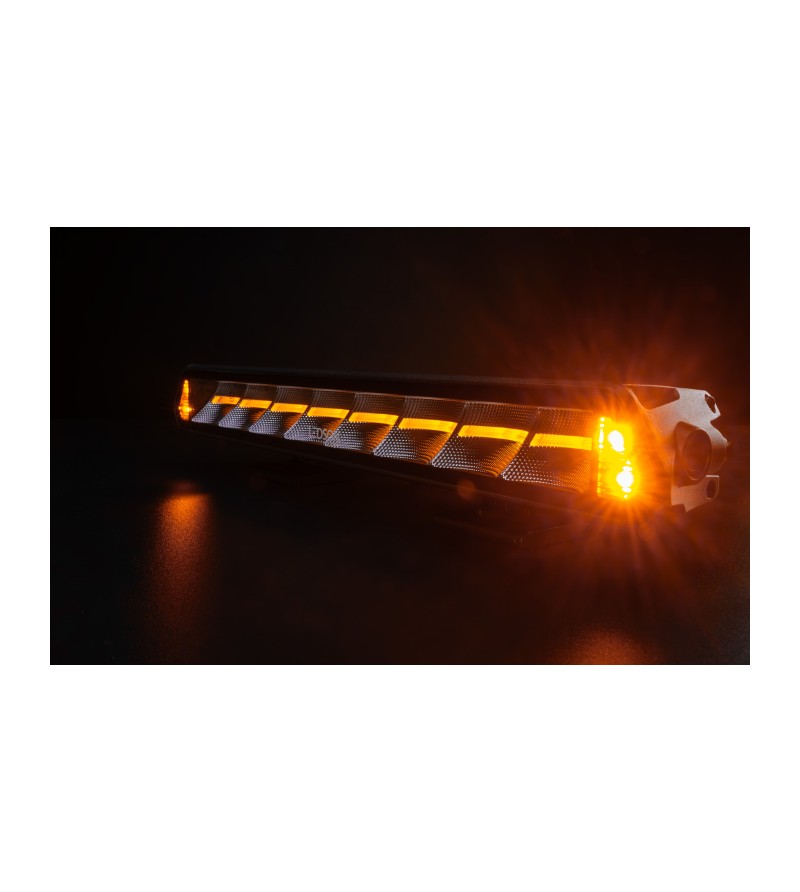

The bar is equipped with specially designed reflectors from the Epix series with dynamic ignition of the position lights. The color of the position lights can also be chosen between yellow/orange and red, which is also approved for road use.

Strobe lights
The Epix14+ Work Strobe is equipped with 10 different strobe patterns, one of which is ECE R65 approved. By simply linking two units together you can achieve both synchronous and asynchronous flash patterns between them. Use your Epix14+ Work Strobe LED light bar as a work light or reversing light (not R23 approved); the strobe turns off when activated and then resumes the previously selected flash pattern when you turn the work light off again.

Features and technical data:
- Position light with unique dynamic ignition, integrated in the reflector
- Selectable position light in red or yellow/orange
- 120° wide light pattern
- Range: 119 m (1 lux)
- 9'800 lumens (theoretical), 7'300 lumens (actual)
- Color temperature 5000K (Neutral White)
- 120 W (8 x 15 W LEDs)
- Voltage: 9-36V
- IP69K (water/dustproof)
- Aluminum housing and polycarbonate lens
- Side reflective optics
- Pressure equalization membrane
- Electronic heat management
- DT connector (included)
- 7.1A at 12V (3.6A in eco mode) and 3.5A at 24V (1.7A in eco mode)
- E-marked ECE R148 (R1, SM1), R65 and R10 (EMC approved)

Flash Patterns:
- Single flash sync: 2.2 Hz
- Single flash asynchronous: 2.2 Hz (when using 2 LED bars)
- Triple flash synchronization: 1.1 Hz
- Triple flash asynchronous: 1.1 Hz (when using 2 LED bars)
- Quad flash synchronization: 1.25 Hz
- Quadruple flash asynchronous: 1.25 Hz (when using 2 LED bars)
- Combination of one long and five short synchronization: 0.83 Hz
- Combination of one long and five short asynchronous: 0.83 Hz (when using 2 LED bars)
- Burst sync: 10 Hz
- Burst asynchronous: 10 Hz (when using 2 LED bars)

334915084 7323230050328

Data sheet

Accessory
Lighting
Producttype
Work light
Product serie
Epix
Serial model
14+
Version
Work Strobe
Series
Ledson Signal
Size ( Ø / ↔ )
2) Medium
Shape
Ledbar
Width (mm)
357
Height (mm)
43
Depth (mm)
61
Beam type
Work / Scene
Light type
LED
Lighting - Type
Reverse light
Signal light
Work light
Light color
White
Position light
Position light
Color of position light
Amber
Red
Signal lights
Flash light
Strobe function
10 Flash patterns
E-mark
yes
ECE approval
R23
R65
Glass color
Clear
Chrome / RVS
no
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
IP rating
IP69K
Light distance (m) at 1 lux
49
Voltage
12V
18V
24V
30V
36V
Watts
120W
LEDs per lamp
8
Wattage per LED
15W
number of pins
6 pins
Connector
Deutsch DT
Vehicle brand
Universal
Sales unit
Single item
Standard Delivery time
1-3 business days
prodcat1
M
Shipping Size
S
