  • LED Light bar - Ledson - Epix 14+ - Strobe - 14'' - Position light White/Amber - 10 Flash patterns - Driving
Ledson Epix 14+ Strobe with dynamic DRL - 334915089 Ledson Epix 14+ Strobe with dynamic DRL - 334915089 Ledson Epix 14+ Strobe with dynamic DRL - 334915089
Ledson Epix 14+ Strobe with dynamic DRL - 334915089

LED Light bar - Ledson - Epix 14+ - Strobe - 14'' - Position light White/Amber - 10 Flash patterns - Driving

€241.95 (tax incl.)

€199.96 (tax excl.)

  • Reference: 334915089
  • Producttype: LED Light bar
  • Diameter (mm): 218

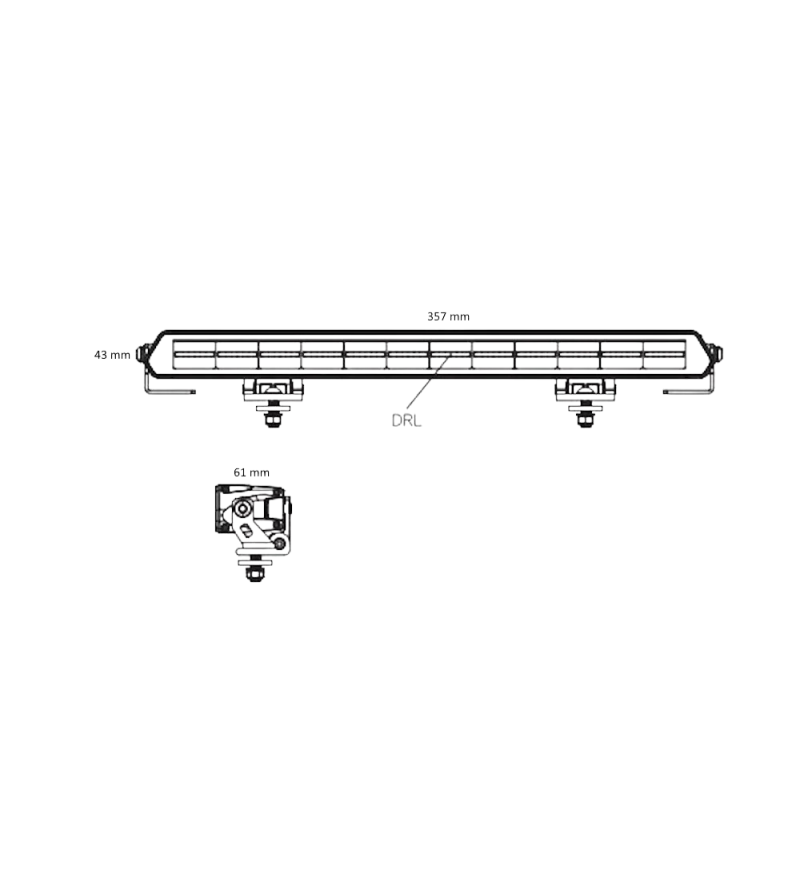

  • Dimensions (mm): 357 (w) x 43 (h) x 61 (d)
  • E-mark: yes
  • Position Light Color: White/Amber
  • Strobe function: 10 Flash patterns
  • Beam type: Driving
  • Sales unit: Single item
  • Standard Delivery time: 1-3 business days
x
...Continue

Driving Beam Pattern

Must-have accessories

Wiring Kit

Wiring kit - Ledson - 1 lamp - 6 pins - Deutsch DT - 12V

Wiring kit - Ledson - 1 lamp - 6 pins - Deutsch DT - 12V

€47.95
Quantity

Ledson - Epix 14+

What is Included:

  • Epix14+ Powerboost 14" LED bar
  • Mounting brackets
  • DT 4-pin cable
  • Installation manual

The LED bar for your vehicle!

The dynamic ignition of the position lights ensures an effective startup of the bar. Everything you need and want in an LED bar can be found with Epix+. We have maximized performance in an E-approved mode, with the option for Powerboost when you choose to go "off-road." Approved R65 strobe lights ensure visibility while working on the road and keep you safe in all weather conditions and at any time of day. Self-developed smart mounting brackets make installation easy, no matter where you want it on the vehicle.

Specifications:

  • Position light with unique dynamic ignition, integrated into the reflector

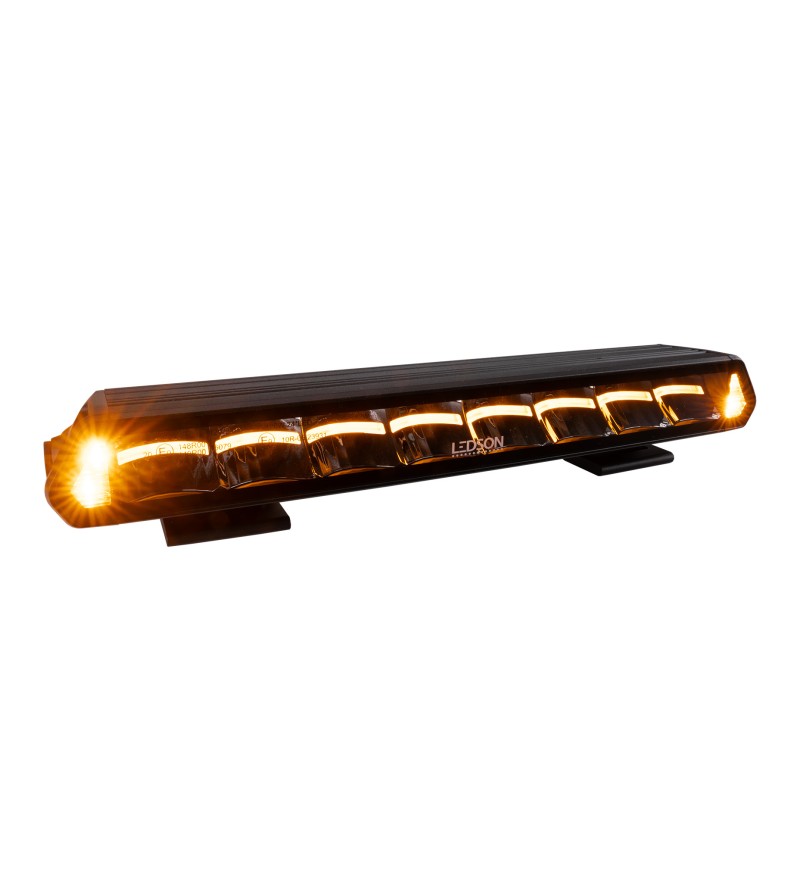

  • Selectable position light in xenon white or yellow/orange
  • Driving light pattern (wide and elongated)
  • E-approved R112, R7, R10 (EMC classified)
  • Range: 328 m (1 lux), Powerboost: 459 m (1 lux)
  • 9,800 lumens (theoretical), 7,300 lumens (actual)
  • Color temperature 5000K (neutral white)
  • 120 W (8 x 15 W LEDs)
  • Voltage: 9-36V
  • IP69K (water and dustproof)
  • Aluminum housing and polycarbonate lens
  • Side-reflecting optics
  • Pressure equalizing membrane
  • Electronic heat management
  • DT connector (included)

Flash Patterns:

  • Single flash synchronization: 2.2 Hz
  • Single flash asynchronous: 2.2 Hz
  • Triple flash synchronization: 1.1 Hz
  • Triple flash asynchronous: 1.1 Hz
  • Quad flash synchronization: 1.25 Hz
  • Quad flash asynchronous: 1.25 Hz
  • Combination of one long and five short synchronization: 0.83 Hz
  • Combination of one long and five short asynchronous: 0.83 Hz
  • Burst flash synchronization: 10 Hz
  • Burst flash asynchronous: 10 Hz

WARNING: The DT connector must not be cut, as this increases the risk of moisture damage and voids the warranty.

334915089 7323230047427

Data sheet

Accessory
Lighting
Producttype
LED Light bar
Product serie
Epix
Serial model
14+
Version
Strobe
Series
Lights & Styling
Size ( Ø / ↔ )
2) Medium
Shape
Ledbar
Diameter (mm)
218
Width (mm)
357
Height (mm)
43
Depth (mm)
61
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Signal light
Light color
White
Position light
Position light
Color of position light
Amber
White
Signal lights
Flash light
Strobe function
10 Flash patterns
E-mark
yes
ECE approval
R10
R112
Chrome / RVS
no
Housing color
black
Housing material
Aluminum
IP rating
IP68
Mount
Normal
Lumen
9600
12000
Light distance (m) at 1 lux
425
Light distance (m) at 0.25 lux
850
Voltage
12V
18V
24V
30V
36V
LEDs per lamp
12
Wattage per LED
10W
number of pins
6 pins
Connector
Deutsch DT
Sales unit
Single item
Standard Delivery time
1-3 business days
prodcat1
M
Prodcat2
AB
Shipping Size
S
