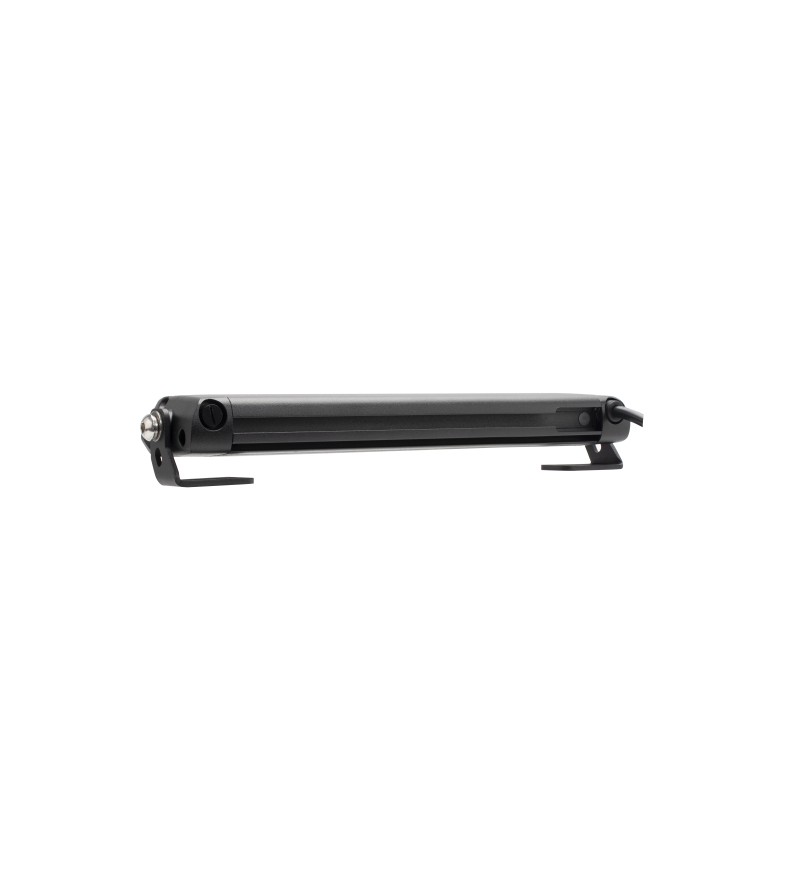

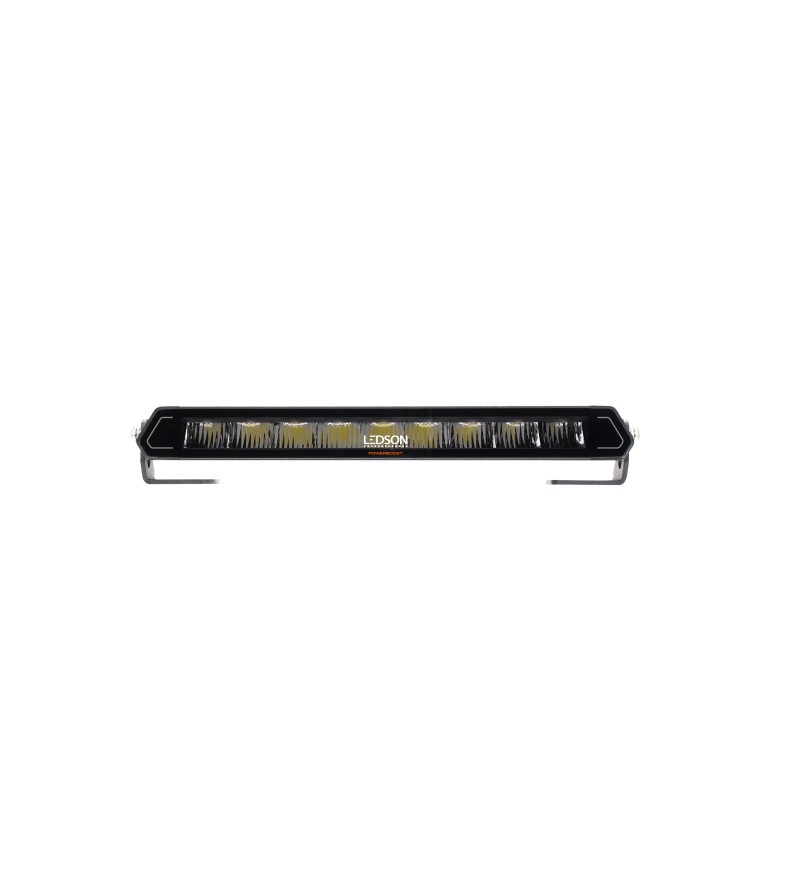

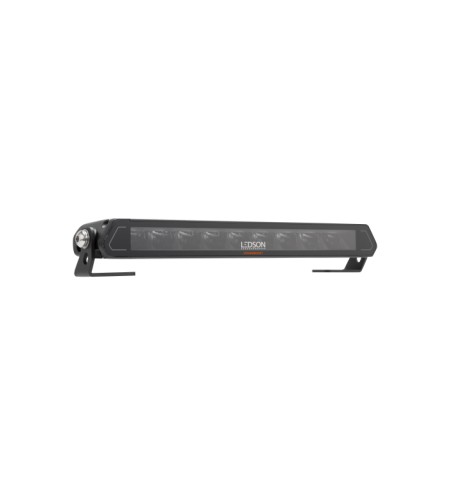

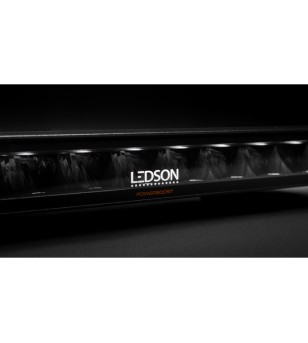

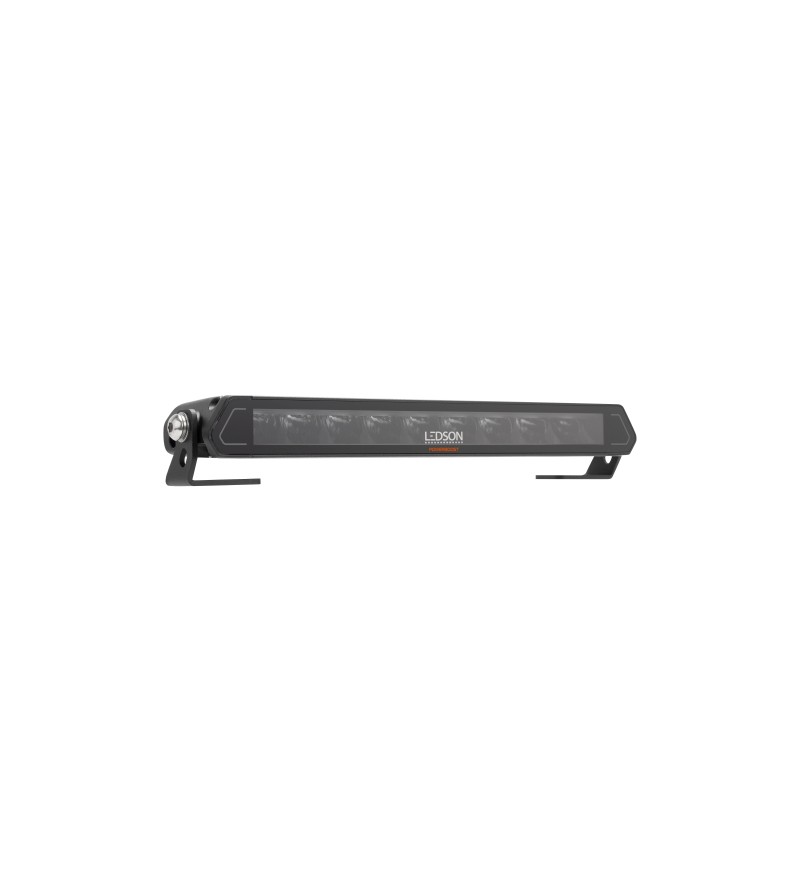

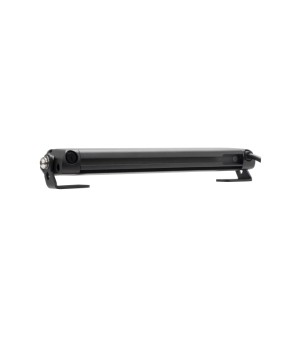

LED Light bar - Ledson - Epix 11 - Slim - 11'' - Powerboost - Driving

€124.95 (tax incl.)

€103.26 (tax excl.)

  • Reference: 334906089
  • Producttype: LED Light bar
  • Dimensions (mm): 296 (w) x 33 (h) x 59 (d)
  • E-mark: yes
  • Beam type: Driving
  • Sales unit: Single item
  • Standard Delivery time: 4-7 business days
x
...Continue

Driving Beam Pattern

Quantity

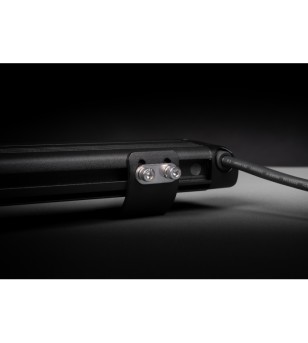

Ledson Epix 11 Slim LED Bar 11" 54W Powerboost

What is included:

  • Ledson Epix 11 Slim LED Bar 11" 54W Powerboost
  • Bolts and screws

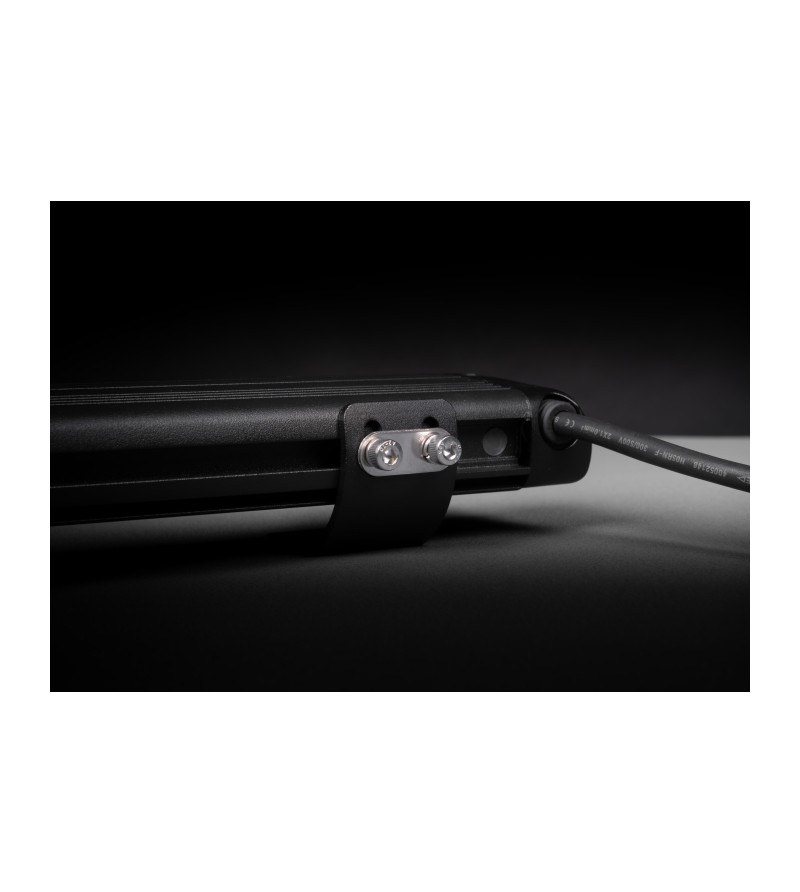

  • Smart mounting materials
  • DT cable 2-pin
  • Installation instructions

Epix11 Slim: The New Generation Slim Light Bar

A new generation of the Epix family, this model comes in a slimmer and more compact design. Meet the Epix11 Slim, a light bar in a streamlined design, but with the same impressive power and style.

The Epix11 Slim is precisely engineered to meet the demands of modern vehicles, and thanks to its compact size, it is perfect for those who demand performance without compromising on aesthetics. With a power of 108W, the Epix11 Slim is ready to illuminate the road ahead with impressive brightness.

Features and technical specifications:

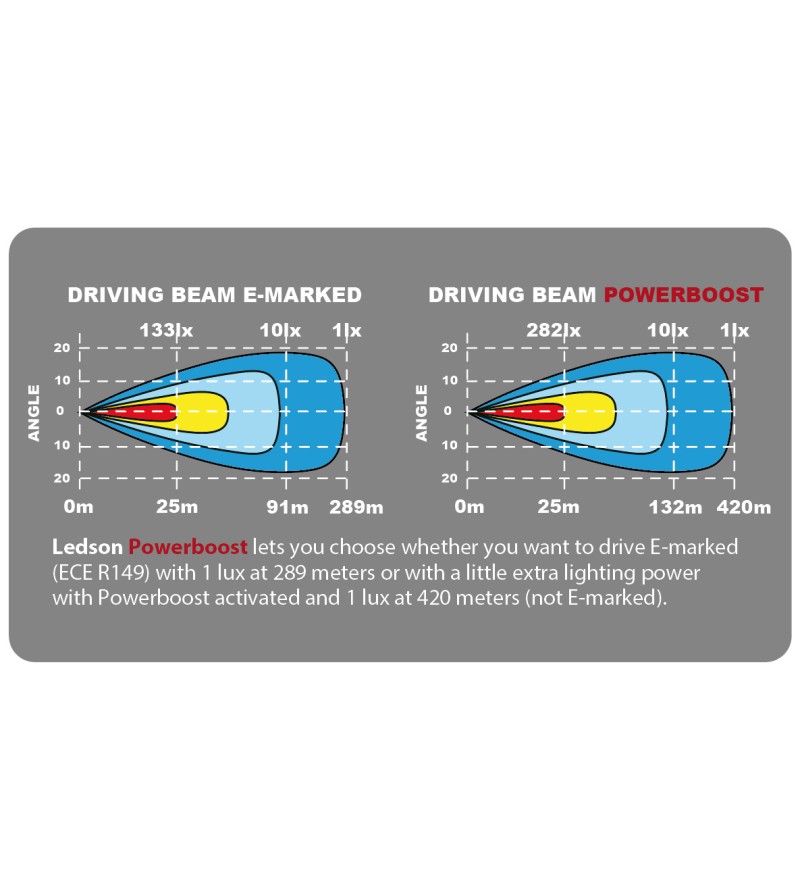

  • Light pattern: Driving Beam (wide and elongated)
  • E-marked R148, R149 (ref. no. 20), R10 (EMC approved)
  • Range: 289 m (1 lux), Powerboost: 420 m (1 lux)
  • 4,900 lumens (theoretical), 3,800 lumens (actual)
  • Color temperature: 5000K (neutral white)
  • 54 W (9 x 6 W LEDs)
  • Voltage: 9-36V
  • IP69K (water/dustproof)
  • Aluminum housing and polycarbonate lens
  • Side-reflecting optics
  • Pressure equalization membrane
  • Electronic thermal management
  • DT connector (included)
334906089 7323230049391

Data sheet

Accessory
Lighting
Producttype
LED Light bar
Product serie
Epix
Serial model
11
Feature
Powerboost
Version
Slim
Series
Lights & Styling
Size ( Ø / ↔ )
2) Medium
Shape
Ledbar
Width (mm)
296
Height (mm)
33
Depth (mm)
59
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Light color
White
Position light
No position light
E-mark
yes
ECE approval
R10
R149
Chrome / RVS
no
Housing color
black
Housing material
Aluminum
IP rating
IP69K
Mount
Normal
Lumen
Reality: 3.800
Theoretically: 4.900
Light distance (m) at 1 lux
Range: 289 m (1 lux), Powerboost: 420 m (1 lux)
Voltage
12V
18V
24V
30V
36V
LEDs per lamp
9
Wattage per LED
6W
number of pins
2 pins
Connector
Deutsch DT
Sales unit
Single item
Standard Delivery time
4-7 business days
prodcat1
M
Shipping Size
S

Specific References
