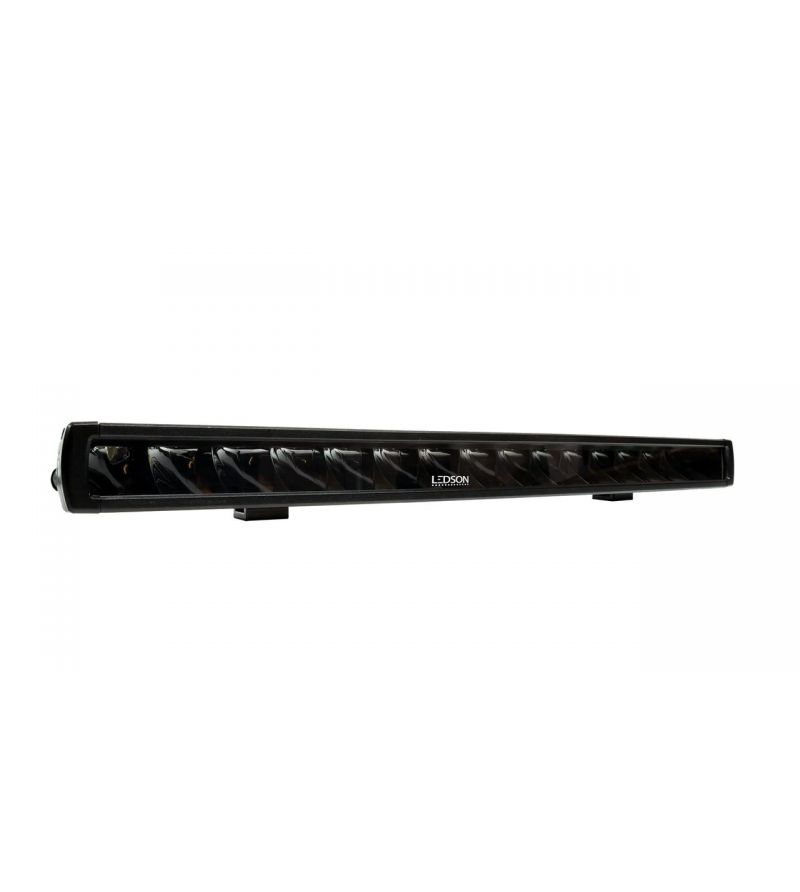

LEDSON Apollo C LED bar 21" 105W Curved

€194.90
Tax included

Ledson 33501572
Apollo C LED LED bar with curved design
Lights & Styling - Let it shine
Dimensions Size (mm): 535(w) x 46(h) x 70(d)
E-Approval E-approved
Sales unitSingle item
Delivery1-3 business days
BeamHybrid (25°/10°)

Drive safe, please take care of local rules for lights and accessories

Lighting zone 3: Driving / Combo

Light zones

Quantity

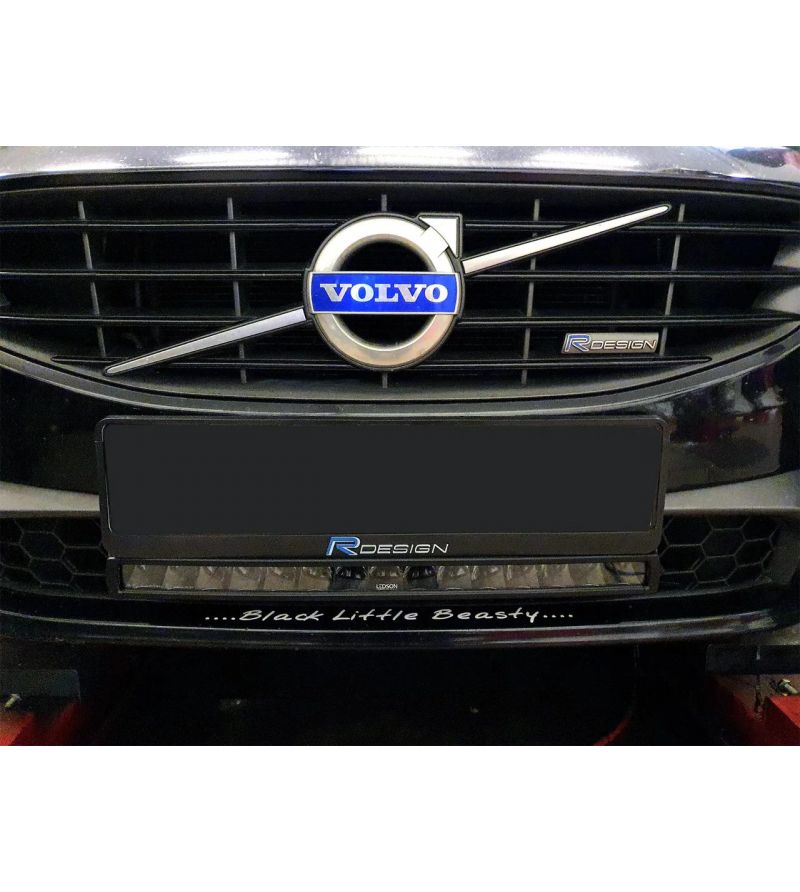

Apollo C LED bar with curved design

Apollo C provides solid light (1 lux brightness at a distance of 480 meters) and has a raw and modern design that fits nicely in the car! Add E-marking (R112 / R10), IP68 / IP69K (very good protection against water and weather), dual mounting options, electronic thermal management, pressure equalization membrane... Apollo C will not leave anyone disappointed in the dark.

Characteristics:

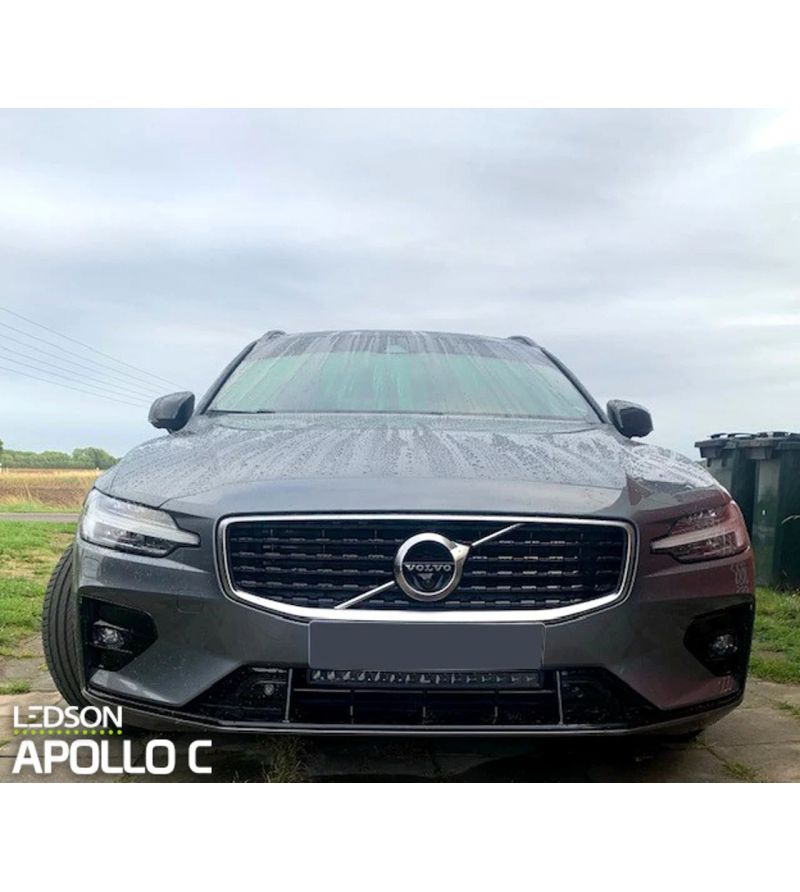

Curved design to suit cars with a curved front
Driving Beam light image (wide and elongated)
E-marked (E9, ref. 45), ECE R112 / R10
CISPR25 Class 3 (EMC rated)
6669 lumens (theoretical), 3928 lumens (actual)
Color temperature 6000K (cold white)
Range 750 m (0.25 lux), 480 m (1 lux)
Dual mounting options

Technical data:
105W (15 x 7W Cree LED)
IP68 (waterproof/dustproof)
IP69K: withstands hot water under pressure
Aluminum housing and polycarbonate lens
Side reflective optics
Electronic heat management
6.63 A at 12 V and 3.61 A at 24 V
DT connector (included)
Pressure equalization membrane

Included:
Apollo C LED ramp
Side mounted legs
Sliding brackets (standing / hanging)
Bolts and screws to fix the LED bar to a suitable surface
DT contact person
Installation instructions

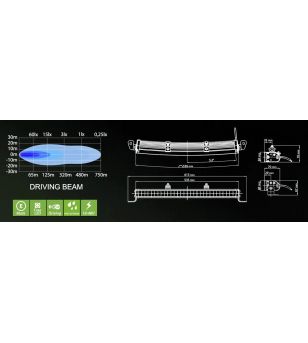

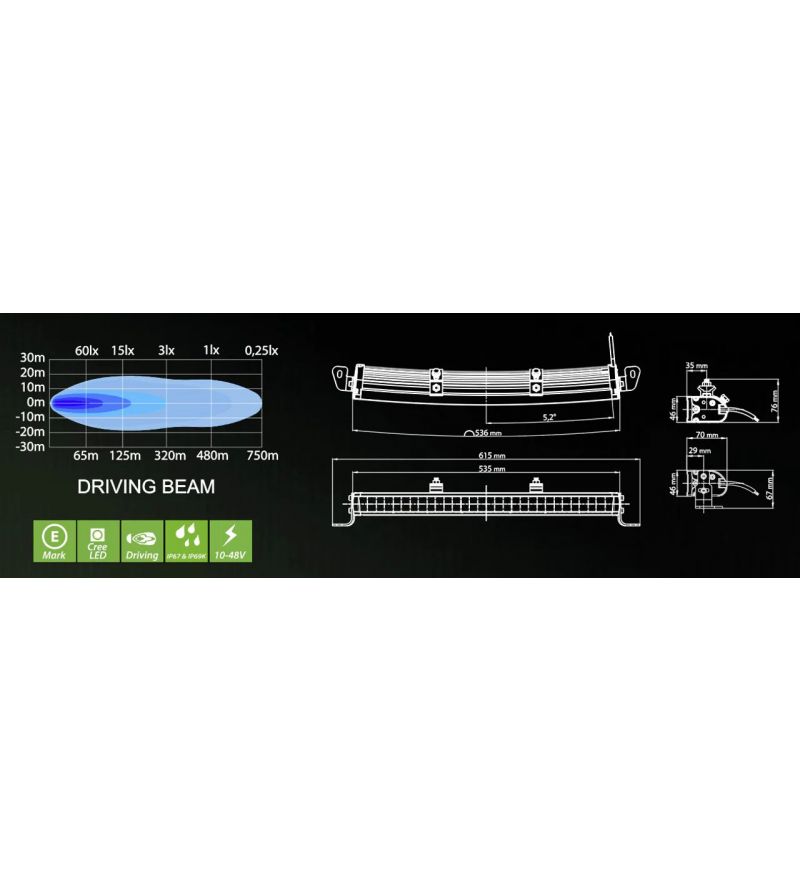

Dimensions and weight:
Width: 535mm
Height: 46mm
Depth: 70 mm
Depth of curved recess: 7 mm (5.2 degrees)
Weight: 1.56kg
NOTE: The DT connector should not be cut as this increases the risk of moisture damage and will void the warranty. DT connector (male) with joint supplied with the product.

More information
Property  Value
Color  6000K
Voltage  10-48 V
Delivered  Piece
Light source LED
Number of diodes – 15 pcs
E-mark  ECE R112
Equipped with High beam

33501572 7323230035363

Data sheet

Very suitable for
Car
Van
Lighting - Type
Driving Light
Series
Lights & Styling
E-mark
yes
ECE R10
Approved
ECE R112
Approved
Accessory
Lighting
Sales unit
Single item
12 Volt
yes
24 Volt
yes
Size ( Ø / ↔ )
f) LEDbar 16"-25"
Width (mm)
535
Depth (mm)
70
Height (mm)
46
Lumen
3900
13500
Beam type
Hybrid (25°/10°)
Lighting zone 3: Driving / Combo
3
Light distance (m) at 0.25 lux
750
Light distance (m) at 1 lux
480
Light color
white/xenon white
Kelvin
6000
IP rating
IP69K
Color of glass
smoke
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
Chrome / RVS
no
Wiring included
No
Shape
Ledbar short
Mount
Normal
Reference number per unit
45
Position light
no
Voltage
12 & 24 Volt
Watts
105W
Wattage per LED
7W
LEDs per lamp
15
Light type
LED
4WD/Offroad
Yes
Car / SUV / Van
Yes
Agriculture
Yes
Truck
Yes
Heavy Industries
Yes
Brand
Universal
Standard Delivery time
1-3 business days
Electric Device
yes
