Daytime running lights - Ledson - Reflector lamp - 24V - Set - Scania - S series - 2016+

LED Reflector Lamp Scania R/S 2016+ xenon white

✓ Additional position light for Scania LED headlights (2016+)

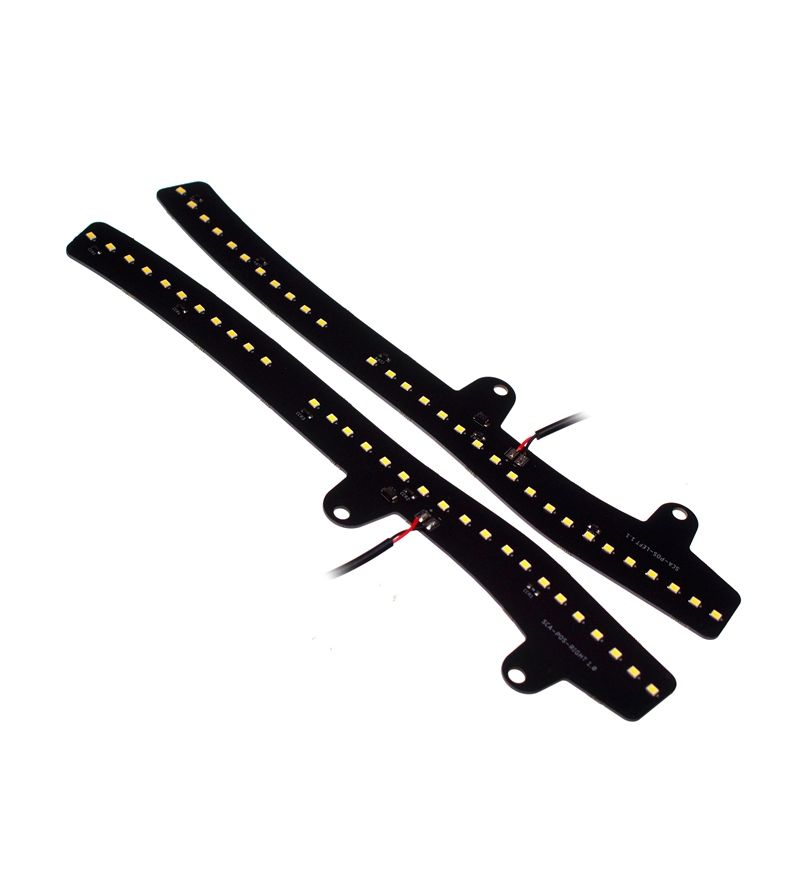

✓ 30 LEDs illuminate the (otherwise dark) reflector of the lamp
✓ Xenon white light

Specially developed light sources that fit Scania +2016 with LED headlights. The 30 powerful diodes on each light source illuminate the entire reflector of the lamp, which gives a very unique effect in an otherwise dark lamp. Available with xenon white and yellow light.

The light sources are a perfect addition to all Scania headlights, whether you have plain white, warm white or yellow light.

Installation is very simple and the only permanent change required is a single hole that can be easily re-sealed. The circuit board is mounted in the lantern and secured with two existing screws.

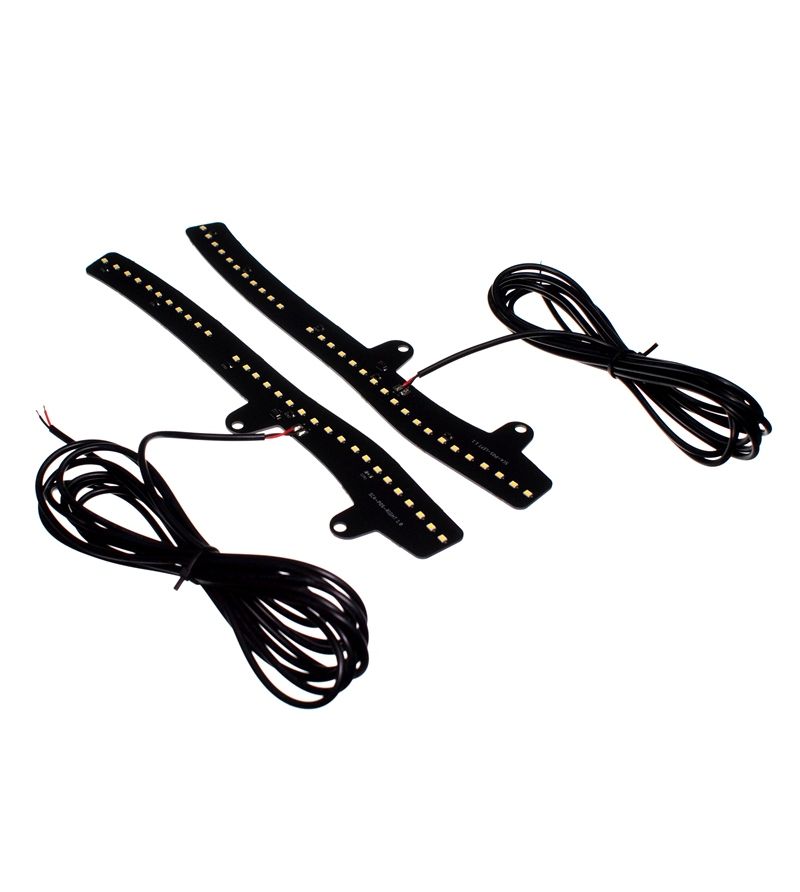

Each circuit board contains a 3 meter long wiring that is then connected to the existing position light / side marker according to your wishes.

Mounting

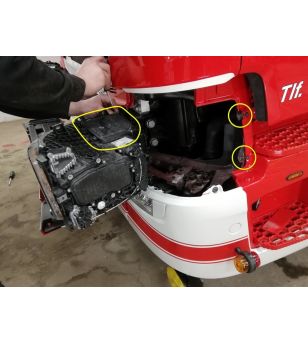

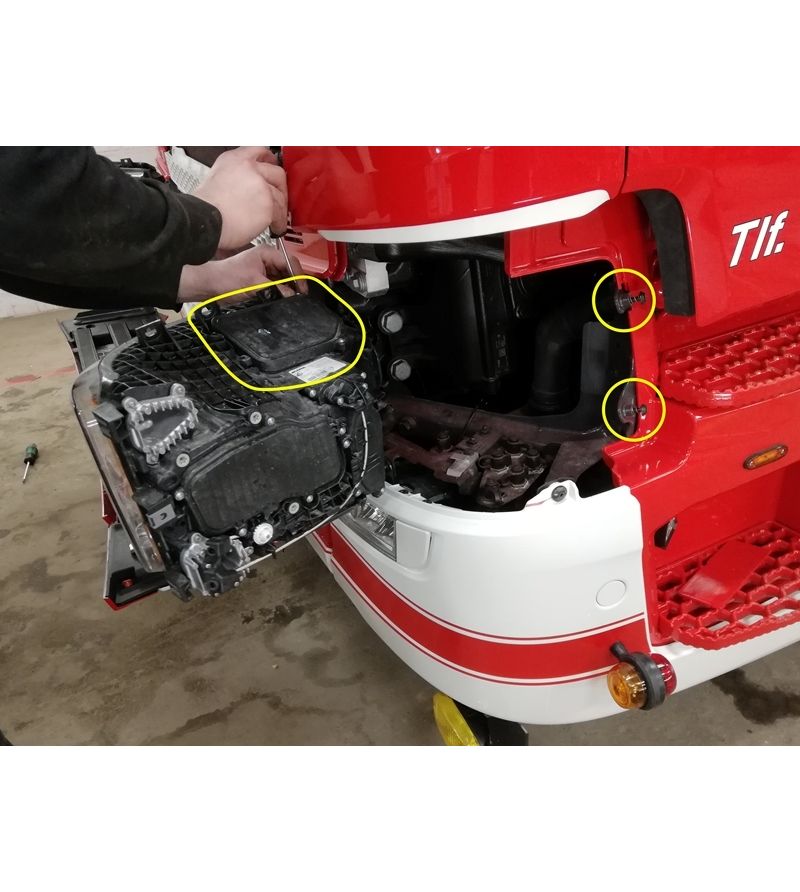

The lantern is attached with 2 screws closest to the door. These are released so you can remove the headlight from the front of the truck.

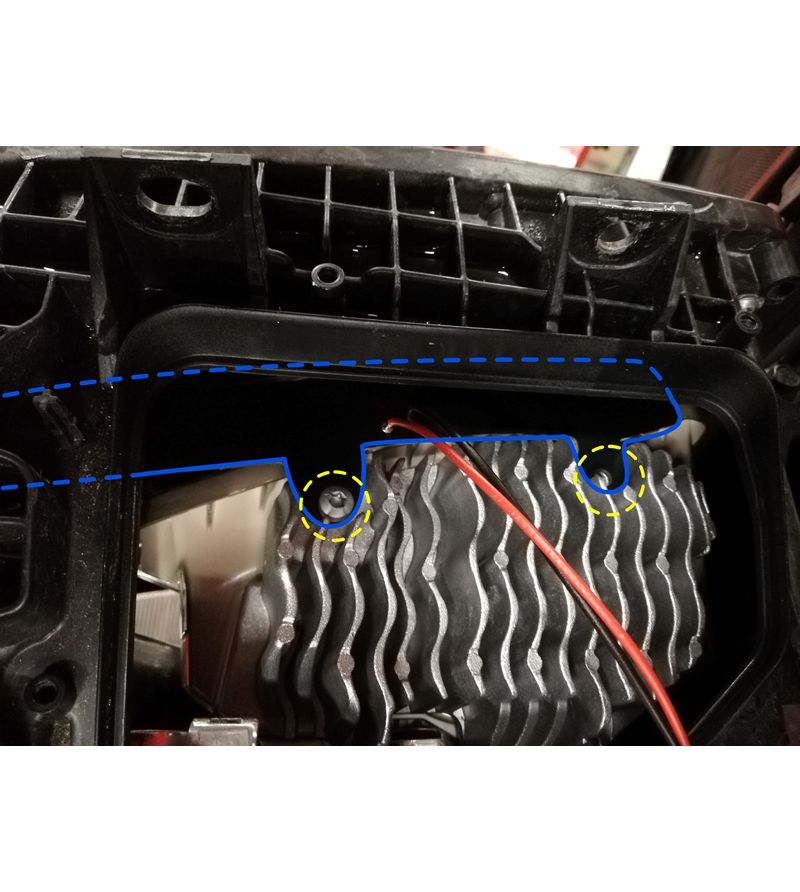

Under the hood is a large aluminum heat sink. Loosen the two front screws. Then carefully insert the circuit board into the lantern (see the blue dotted line in the gallery for how it should sit) and secure it with the two screws you just loosened. It is important that this fits properly and is not visible in the reflector when you look into the headlight from the front.

To get the wiring out, a hole is drilled in the plastic cover which can then be sealed with silicone or the like.

Two PG7 screws are supplied that fit into a 12.5mm hole.
