LED Light bar - Ledson - Epix 40+ - Strobe - 41" - Powerboost - Position light White/Amber - 10 Flash patterns - Driving

€484.95 (tax incl.)

€400.79 (tax excl.)

  • Reference: 334915249
  • Producttype: LED Light bar
  • Dimensions (mm): 1047 (w) x 43 (h) x 61 (d)
  • E-mark: yes
  • Position Light Color: White/Amber
  • Strobe function: 10 Flash patterns
  • Strobe Approval: R65
  • Beam type: Driving
  • Sales unit: Single item
  • Standard Delivery time: 1-3 business days
x
...Continue

Driving Beam Pattern

Quantity

Treat yourself to the best. Epix40+ Prime Strobe stands out from the crowd with this modern design developed by Ledson. Approved R65 warning lights ensure your visibility and the unique position light is fully integrated into the reflector.

The dynamic ignition of the position lights gives the bar an effective start. Everything you need and want in an LED bar can be found with the Epix40+ Prime Strobe. We have maximized performance in an E-approved mode, with the option for Powerboost if you choose to go off-road. Approved R65 strobe lights ensure your visibility while working on the road and keep you safe in all weather conditions and at any time of the day. Smart, in-house developed mounts ensure easy installation almost anywhere on the vehicle, however you want.

Epix40+ Prime Strobe is for you if you want a futuristic experience

The design of the bar has been uniquely developed by Ledson and is in harmony with today's most modern cars, elevating your vehicle to the next level. The dynamic position light turns on with a powerful movement that neatly guides the light from one side of the bar to the other before it fully illuminates. The position light is integrated into the reflector, a completely unique feature that makes you stand out that little bit more.

Powerboost: how much light do you want?

As if this is not enough to look forward to, you also have the option to use Powerboost. Simply tighten or loosen the screw on the back of the LED bar to switch between E-mark mode or the “off-road” Powerboost mode, for moments when you need maximum brightness on the road ahead.

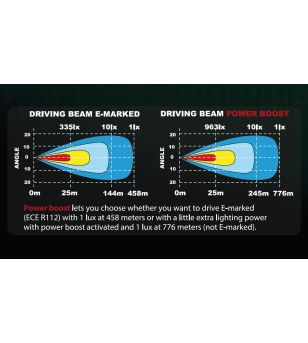

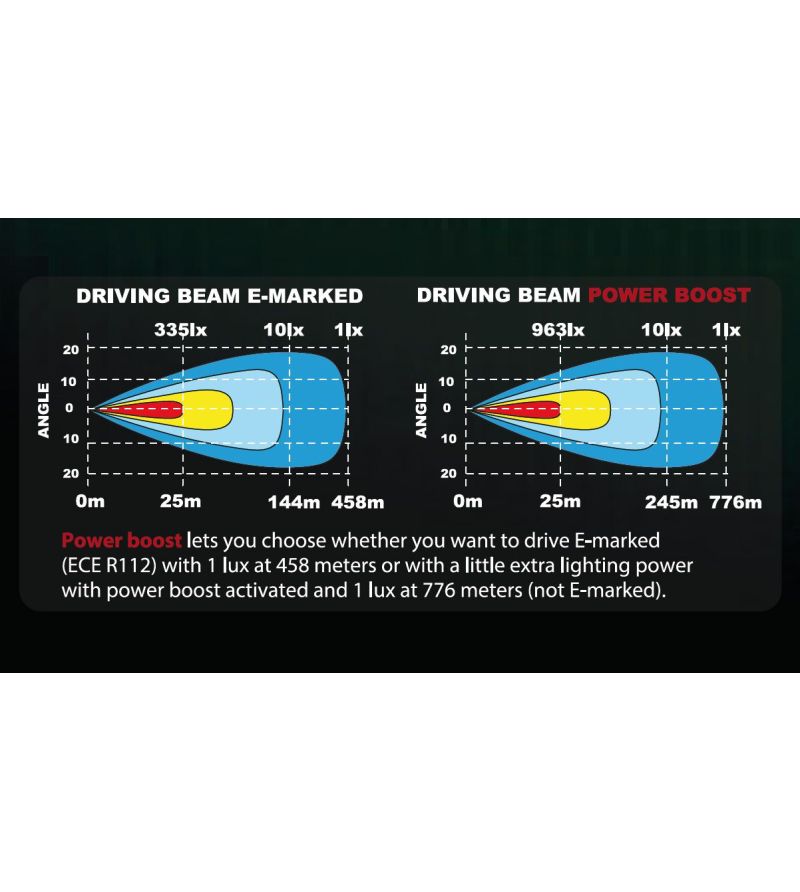

Driving Beam light pattern

Driving Beam reflectors are all computer-generated and manufactured to give a similar light image to a combo. It imitates and improves the car's existing headlight and light pattern.

What else is needed?

  • DT/DTP relay harness: We strongly recommend using our Connect harness with 2-pin DTP and 4-pin DT. Ledson Connect ensures a super-easy connection and can be interconnected if you want to easily expand with extra lights or beams in the future.

Features and technical data:

  • R65 approved strobe lights with 10 different strobe patterns
  • Position light with unique dynamic ignition, integrated in the reflector
  • Selectable position light in xenon white or yellow/orange
  • Driving Beam light pattern (wide and elongated)
  • E-mark R112, R7, R65, R10 (EMC approved)
  • Range: 458 m (1 lux), Power boost: 776 m (1 lux)
  • 33,000 lumens (theoretical), 23,000 lumens (actual)
  • Color temperature 5000K (xenon white)
  • 390 W (26 x 15 W LEDs)
  • Voltage: 9-36V
  • IP69K (water/dust proof)
  • Aluminum housing and polycarbonate lens
  • Side-reflecting optics
  • Pressure equalization membrane
  • Electronic heat management
  • 1 x DTP connector 2-pin (LED bar high beam) and 1 x DT connector 4-pin (LED bar position light and strobe light)

Included:

  • Epix40+ Prime Strobe 40” LED bar with Powerboost
  • Bolts and screws to attach the bar to the correct surface
  • Smart mounting details
  • DTP connector (2-pin) and DT connector (4-pin)

Dimensions & weight (excl. mounting):

  • Width: 1047 mm
  • Height: 43 mm
  • Depth: 61 mm


Flash patterns:

  1. Single flash synchronous: 2.2HZ
  2. Single flash asynchronous: 2.2HZ
  3. Triple flash synchronous: 1.1HZ
  4. Triple flash asynchronous: 1.1HZ
  5. Quadruple flash synchronization: 1.25HZ
  6. Quadruple asynchronous flash: 1.25HZ
  7. Combination of one long and five short synchronization: 0.83HZ
  8. Combination of one long and five short asynchronous: 0.83HZ
  9. Burst flash synchronization: 10HZ
  10. Flash flash asynchronous: 10HZ

NOTE: The DT connector should not be cut because this increases the risk of moisture damage and voids the warranty.

334915249 7323230047441

Data sheet

Accessory
Lighting
Producttype
LED Light bar
Product serie
Epix
Serial model
40+
Feature
Powerboost
Version
Strobe
Series
Lights & Styling
Size ( Ø / ↔ )
3) Large
Shape
Ledbar
Width (mm)
1047
Height (mm)
43
Depth (mm)
61
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Signal light
Light color
White
Position light
Position light
Color of position light
Amber
White
Strobe function
10 Flash patterns
E-mark
yes
ECE approval
R7
R10
R65
R112
Glass color
Clear
Chrome / RVS
no
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
IP rating
IP69K
Mount
Normal
Lumen
33000
Actual Lumens
23000
Light distance (m) at 1 lux
776
Voltage
12V
18V
24V
Watts
390W
LEDs per lamp
26
Wattage per LED
15W
Connector
2 pins DTP + 4 pins DT
Wiring included
No
Vehicle brand
Universal
Sales unit
Single item
Standard Delivery time
1-3 business days
prodcat1
M
Prodcat2
AB
Shipping Size
M
