Flashlight HideAway Amber E65 E-marked

Flash lamp HideAway Orange R65 E-approved LED

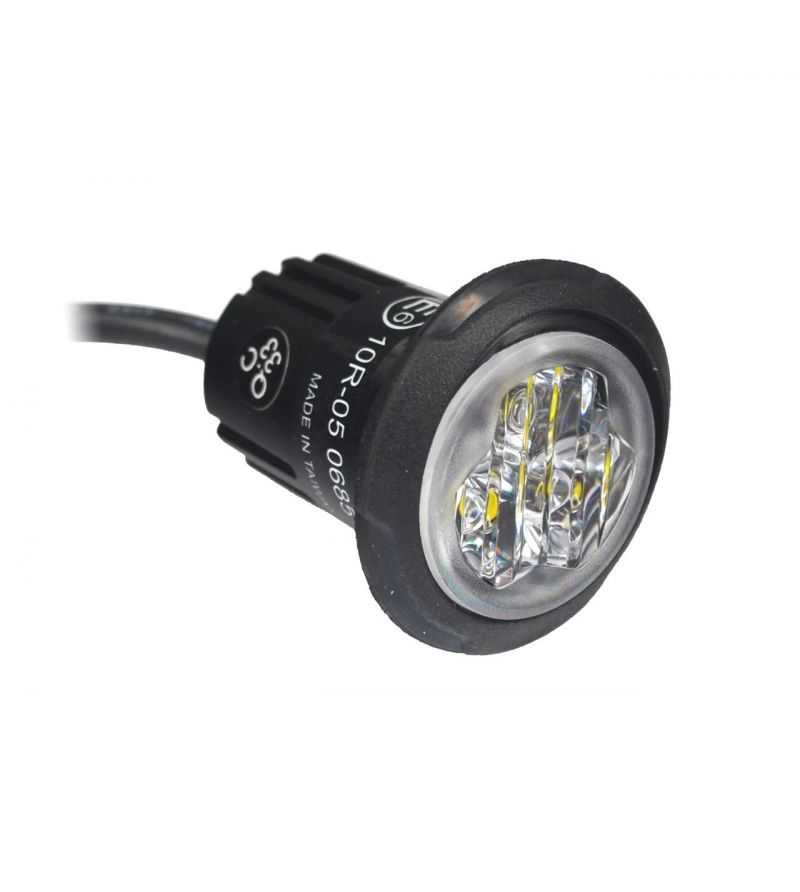

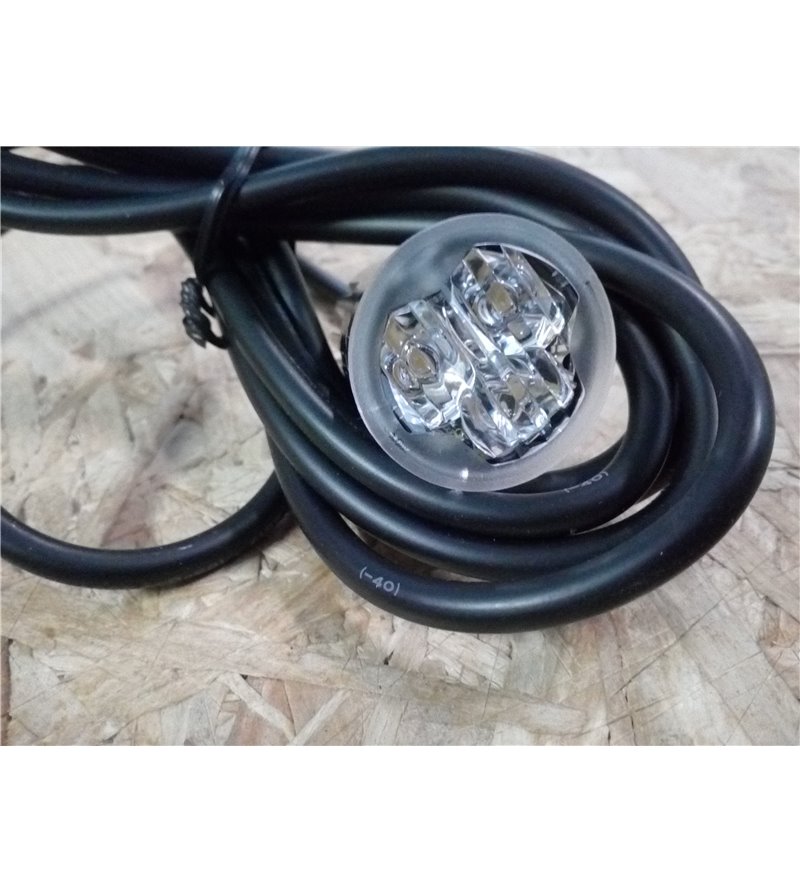

Compact "Hide-Away" LED flash/flash light. Despite its size, it provides an extremely strong and bright light. The lamp is R65 approved and can therefore be used on public roads, highways, etc. Cable length of 2 meters!

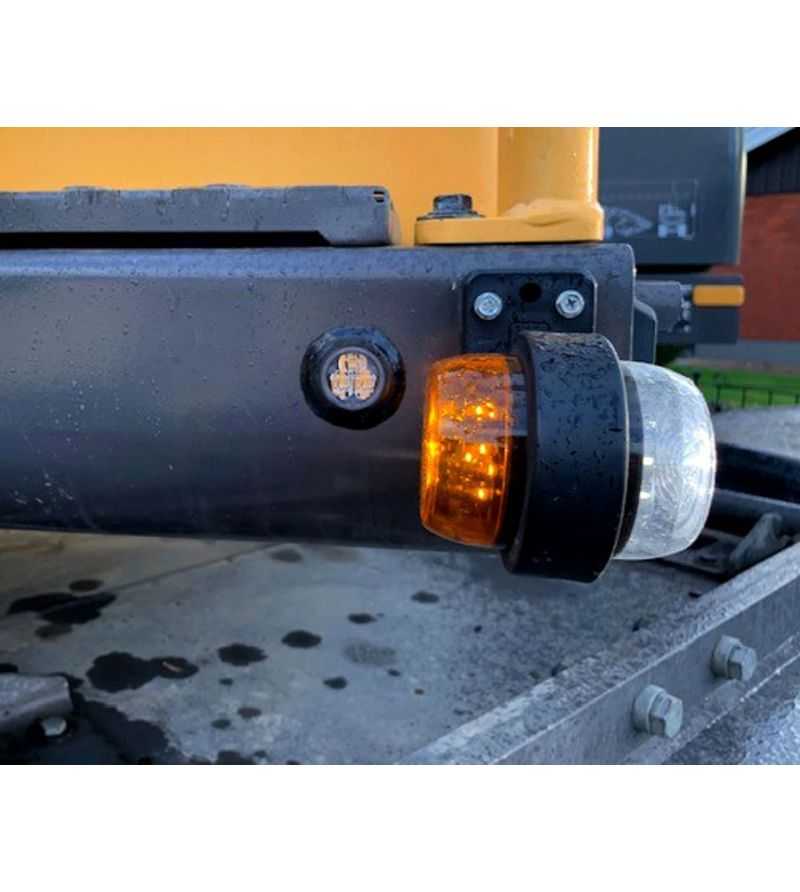

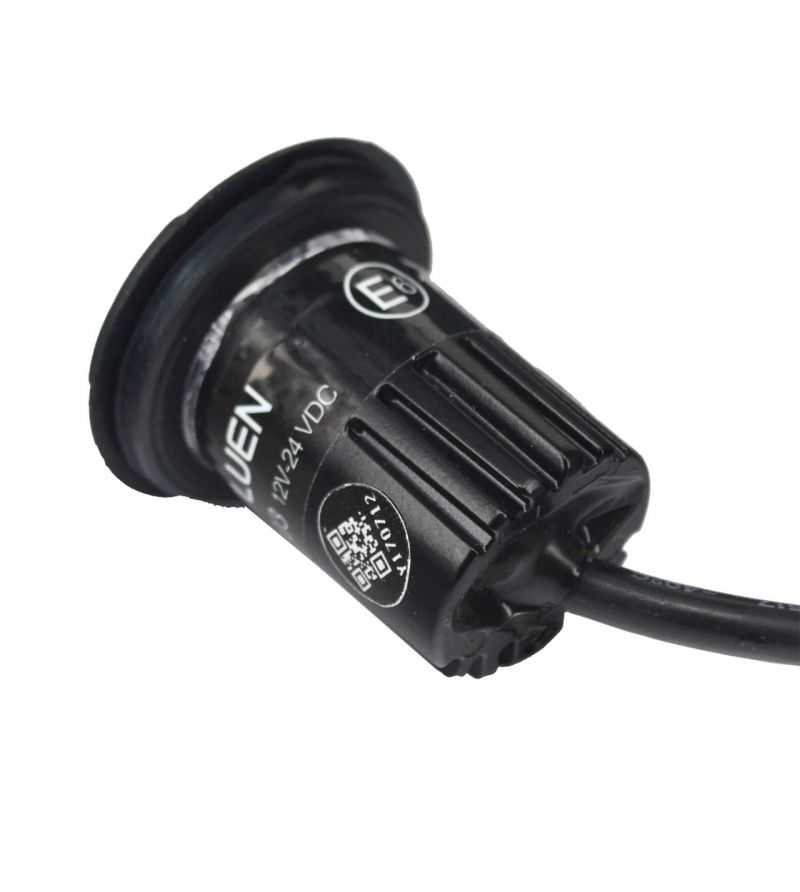

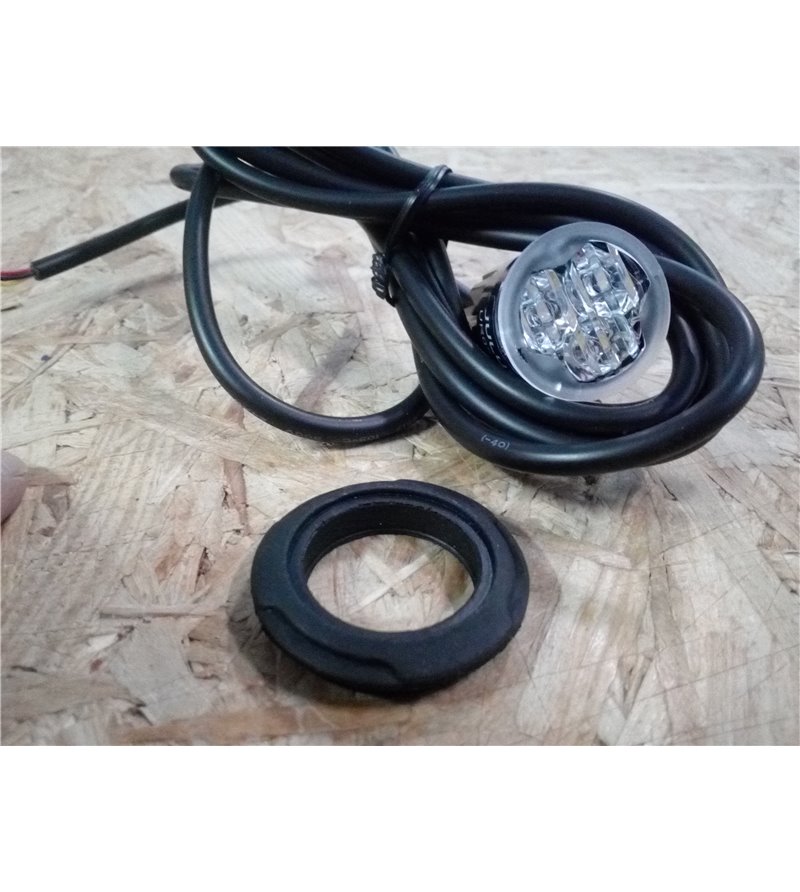

The strobe lamp is mounted in a 25.4 mm (1 inch) hole using the supplied rubber gasket. The rubber seal is first pressed into the hole, after which the lamp is pressed and clicked into place. The installation depth is 40 mm.

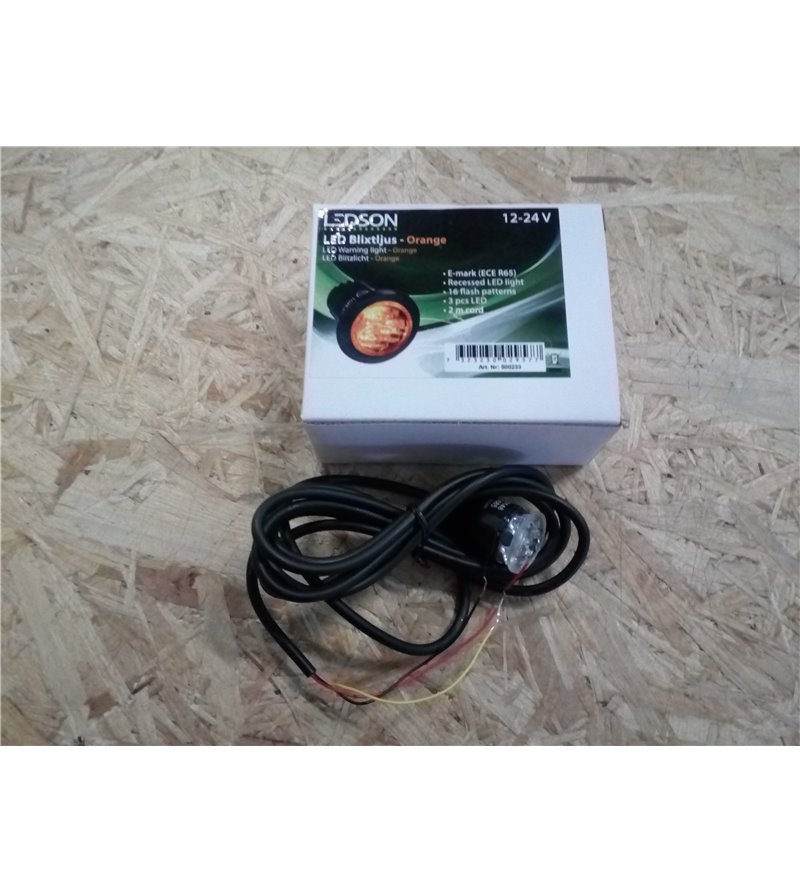

Detailed manual with accompanying installation instructions included

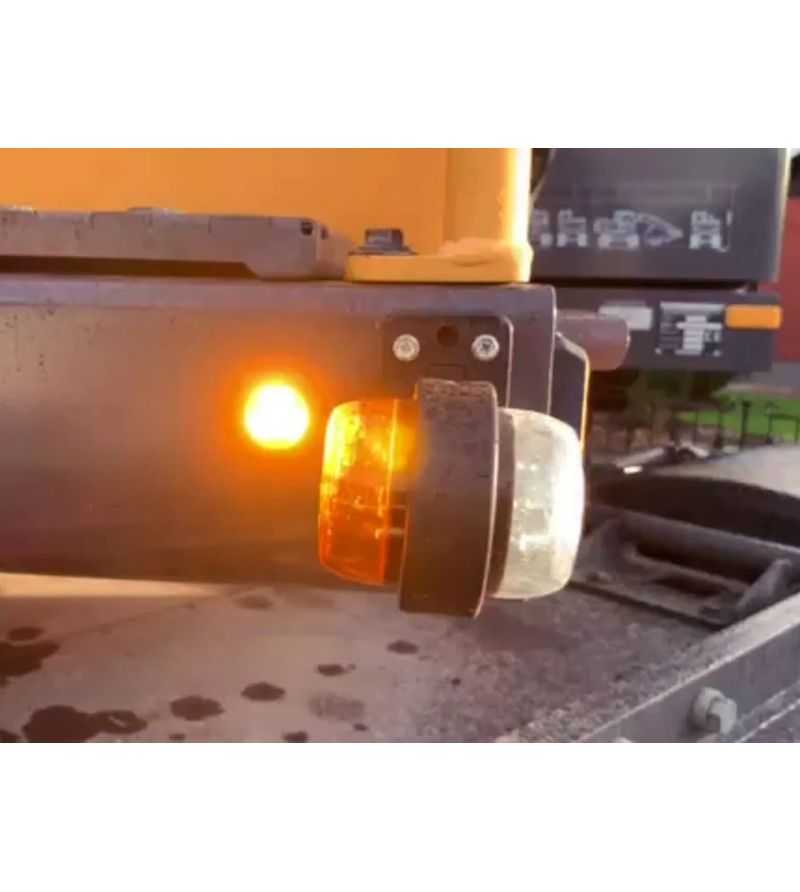

The lamp has 16 different flash patterns and the lamps can be divided into 2 different groups so that they flash alternately (e.g. right / left or top / bottom).

To link
The lamps are easy to connect like normal lamps, with red and black on the plus and minus respectively:
Red = Plus (12V-24V)
Black = negative / earth
Yellow = sync, flash pattern and grouping
Flashing pattern
When the yellow cable is connected plus, the light goes to the next flashing pattern. Three quick pulses on plus sets the pattern to 1.

Group
When you connect both red and yellow with plus at the same time, the grouping setting begins. The light will flash once or twice to indicate the grouping setting. You can change the group by connecting the yellow wire to positive. As soon as you turn off the light, it remembers that setting.

Sizes
Diameter (top): 35 mm
Hole size diameter: 25.4mm
Total length: 39mm
Installation depth: 40 mm
Cable length: 2 meters
