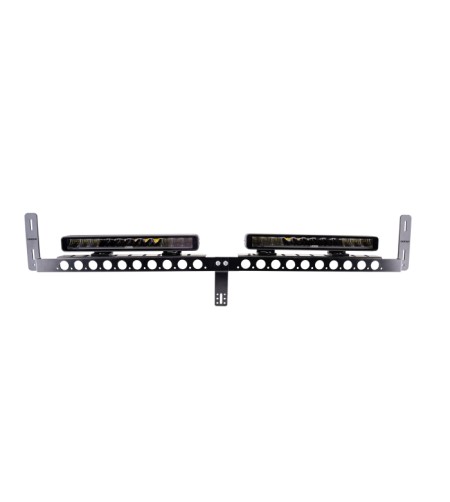

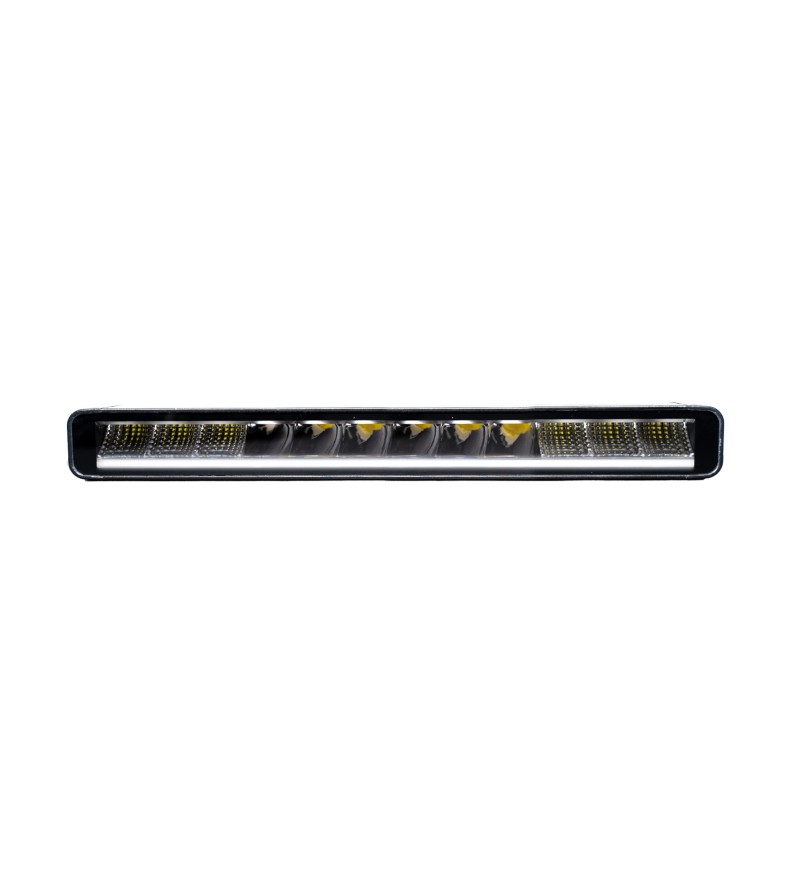

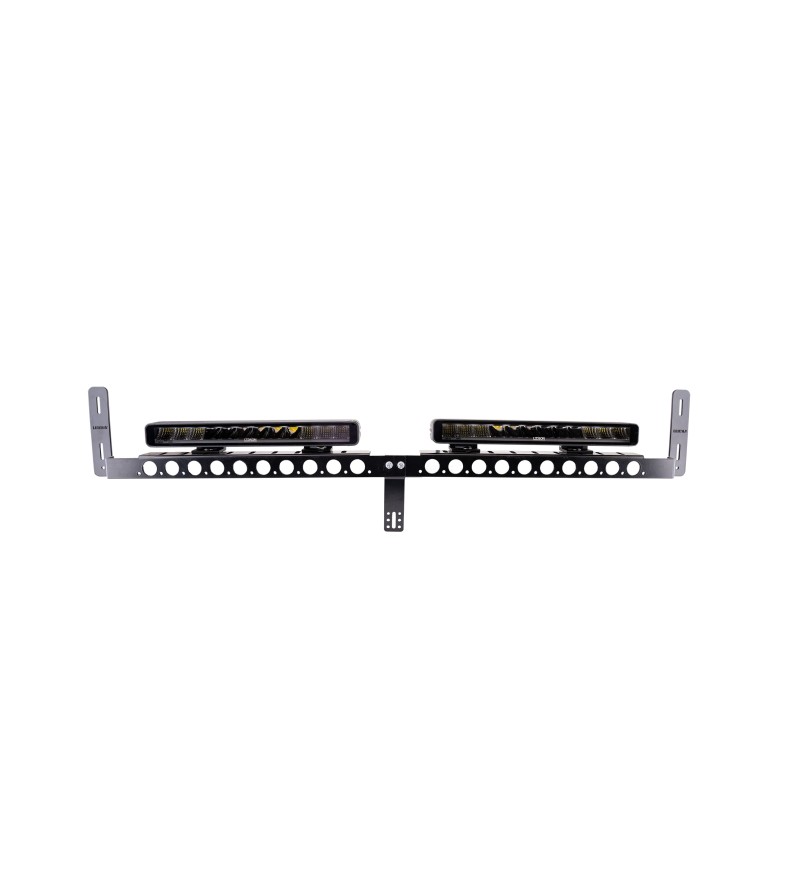

2x Ledson Orbix+ 14" LED bar package for Volvo FH 14-20 - 1360091
  • 2x Ledson Orbix+ 14" LED bar package for Volvo FH 14-20 - 1360091
  • 2x Ledson Orbix+ 14" LED bar package for Volvo FH 14-20 - 1360091
  • 2x Ledson Orbix+ 14" LED bar package for Volvo FH 14-20 - 1360091
2x Ledson Orbix+ 14" LED bar package for Volvo FH 14-20 - 1360091 2x Ledson Orbix+ 14" LED bar package for Volvo FH 14-20 - 1360091 2x Ledson Orbix+ 14" LED bar package for Volvo FH 14-20 - 1360091
2x Ledson Orbix+ 14" LED bar package for Volvo FH 14-20 - 1360091

Grille kit - Ledson - Orbix 14+ - Volvo - FH

€509.95 (tax incl.)

€421.45 (tax excl.)

  • Reference: 1360091
  • Producttype: Grille kit
  • Dimensions (mm): 367 (w) x 42 (h) x 58 (d)
  • E-mark: yes
  • Light Color: White
  • Position Light Color: White/Amber
  • Beam type: Driving
  • Sales unit: Pack
  • Standard Delivery time: 4-7 business days
x
...Continue

Driving Beam Pattern

Quantity

2x Ledson Orbix+ 14" LED bar package for Volvo FH 14-20

What’s included:

  • 2x Ledson Orbix+ 14" LED bar package for Volvo FH 14-20
  • Installation kit with all necessary components for an easy and quick setup, including installation instructions
  • Adapter cable with Volvo connector (3-pin Volvo to 2-pin DT)
  • DT splitter (1 male to 2 female connections)
  • DT extension male/female (40 cm)

Features and technical specifications:

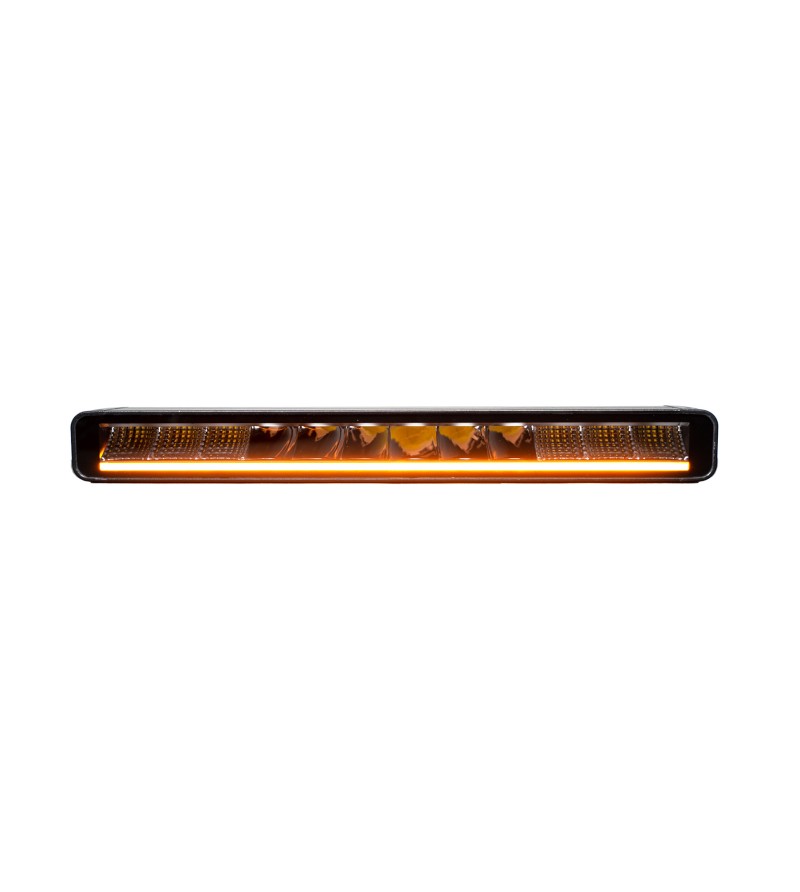

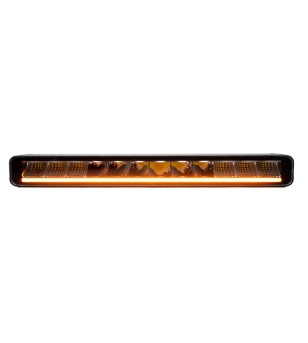

  • Position light with dynamic ignition, which means it lights up with a motion pattern
  • Selectable position light, white or amber
  • E-marked ECE R149/R10
  • “Driving beam” light pattern (wide and elongated)
  • Range: 300 m at 1 lux
  • 5040 lumen (raw), 4500 lumen (effective)
  • Color temperature: 5700K (cool white)
  • Two mounting options
  • 60 W (12 x 5 W LED)
  • Voltage: 10-32V
  • IP69K (water/dust-tight)
  • Aluminum casing and polycarbonate lens
  • DT connector (included)
1360091 7323230048165

Data sheet

Accessory
Lighting
Producttype
Grille kit
Product serie
Orbix
Serial model
14+
Series
Lights & Styling
Size ( Ø / ↔ )
2) Medium
Shape
Ledbar
Width (mm)
367
Height (mm)
42
Depth (mm)
58
Weight (kg)
1.45
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Light color
White
Position light
Position light
Color of position light
Amber
White
Color temperature
5700K
E-mark
yes
ECE approval
R10
R149
Glass color
Clear
Chrome / RVS
no
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
IP rating
IP69K
Mount
Normal
Lumen
5040
Light distance (m) at 1 lux
300
Voltage
12V
18V
24V
Watts
60W
LEDs per lamp
12
Wattage per LED
5W
Wiring included
No
Vehicle brand
Volvo
Model
FH
Sales unit
Pack
Standard Delivery time
4-7 business days
vehicle type
truck
prodcat1
M
