Grille kit - Lazer - Linear 6 - Subaru - Outback - 2020-2022

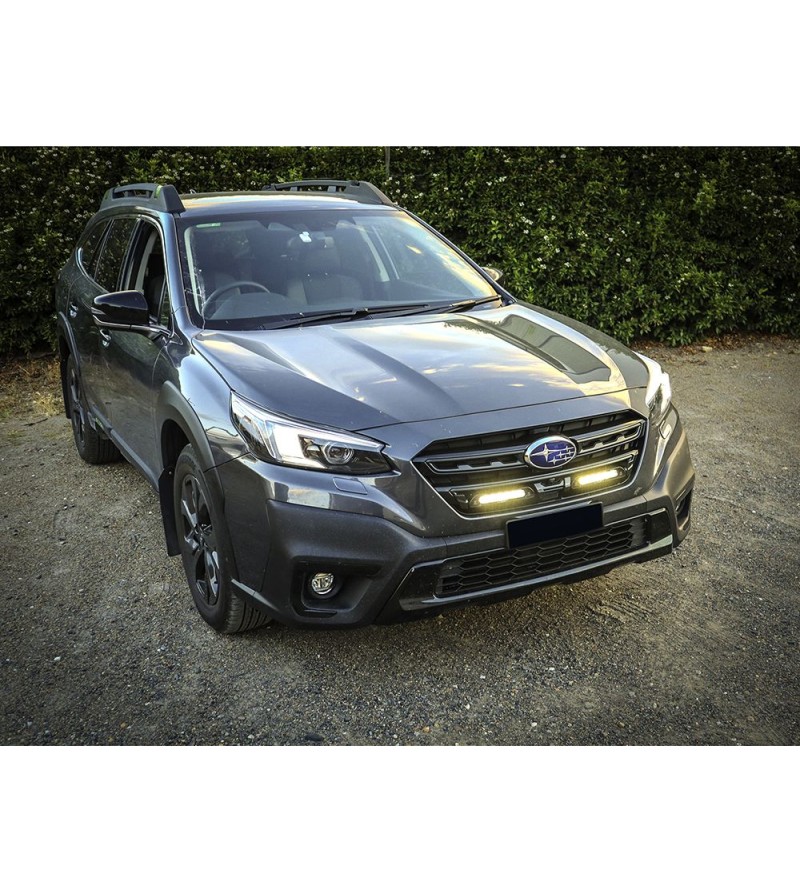

Subaru Outback (2020+) Grille Kit

What is included:

• 1x Grille Mounting Kit (Including cutting guides)
• 2x Linear-6 LED lamps
• 1x Wiring set for two lamps
• 1x Installation instructions

For an additional OE quality floodlight installation, the Lazer Grille Integration Kits include custom mounting brackets that allow Lazer High Performance LED Spotlights to be quickly and easily mounted in the front grille of the most popular road cars, pickup trucks and light commercial vehicles . vehicles. Designed to blend seamlessly into each vehicle's original styling, the resulting lighting setup remains fully robust and secure, with added protection against theft.

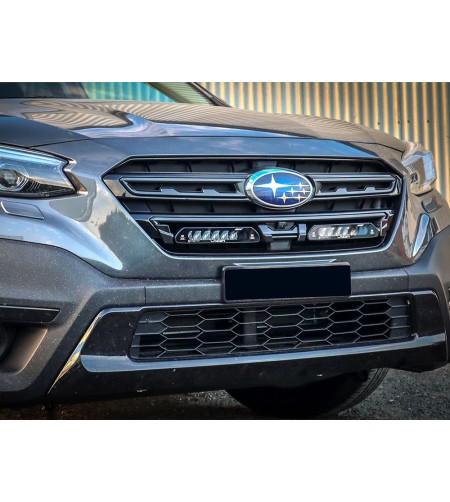

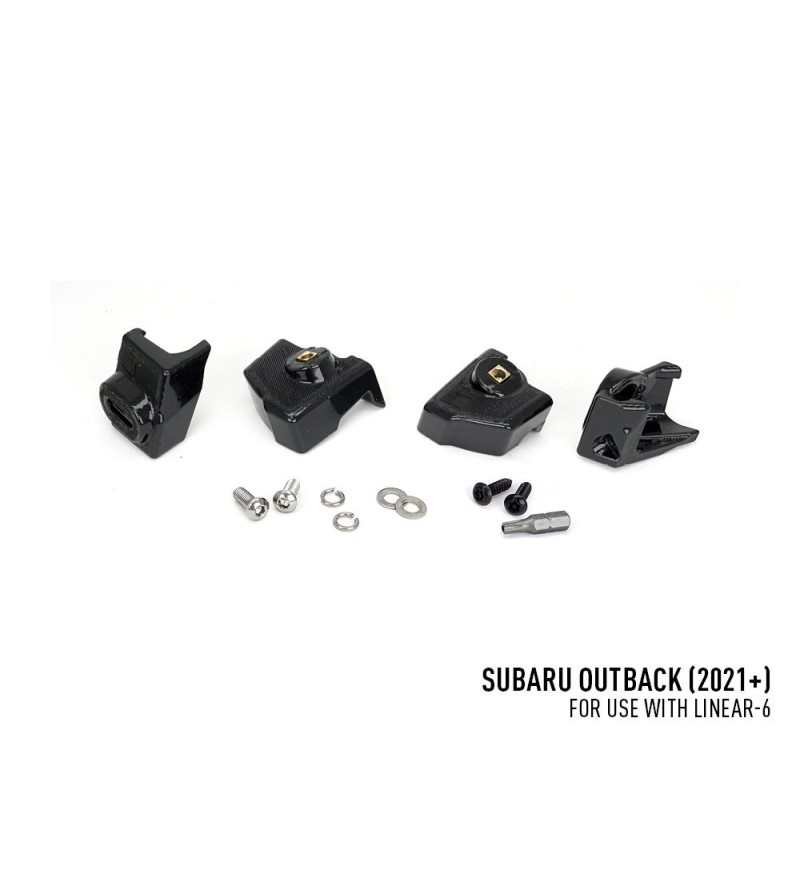

Designed for vehicles from 2020 onwards, the Subaru Outback kit includes a pair of Linear-6 High Performance LED driving lights, plus a wiring kit, in addition to 4x brackets precision engineered to fit perfectly into the vehicle's standard center grille. Made from ASA material, known for its excellent strength and UV stability, the brackets are completely weather and chemical resistant to ensure your installation remains in good condition year after year.

Supplied along with the mounting brackets is a set of cutting guides designed to ease installation and ensure a perfect fit every time.

The Subaru Outback (2020+) Grille Integration Kit has been carefully designed and optimized for use with Linear-6 High Performance LED spotlights. Our warranty does not cover grille mounts fitted to non-Lazer Lamps products.

Product Features:
Custom vehicle integration kit for installation of Lazer LED Spotlight
Tailored for Subaru Outback (2020+)
Designed for use with Linear-6 High Performance LED spotlights (standard or elite)
The kit also includes custom mounting brackets and a wiring kit for two lights
Brackets made of high strength, UV stable, ASA material
Fully street legal
5 years warranty
Made in Great Britain



PAY ATTENTION! The Subaru Outback (2020+) Grille Kit can be ordered with 2x the Linear-6 Elite and 2x the Linear-6 Standard version.
Below are the technical specifications of the (1) Elite version and the (2) Standard version.

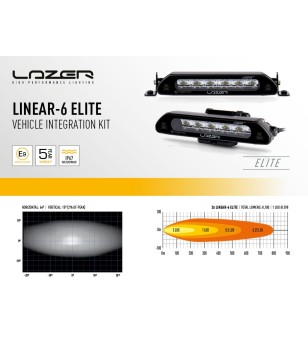

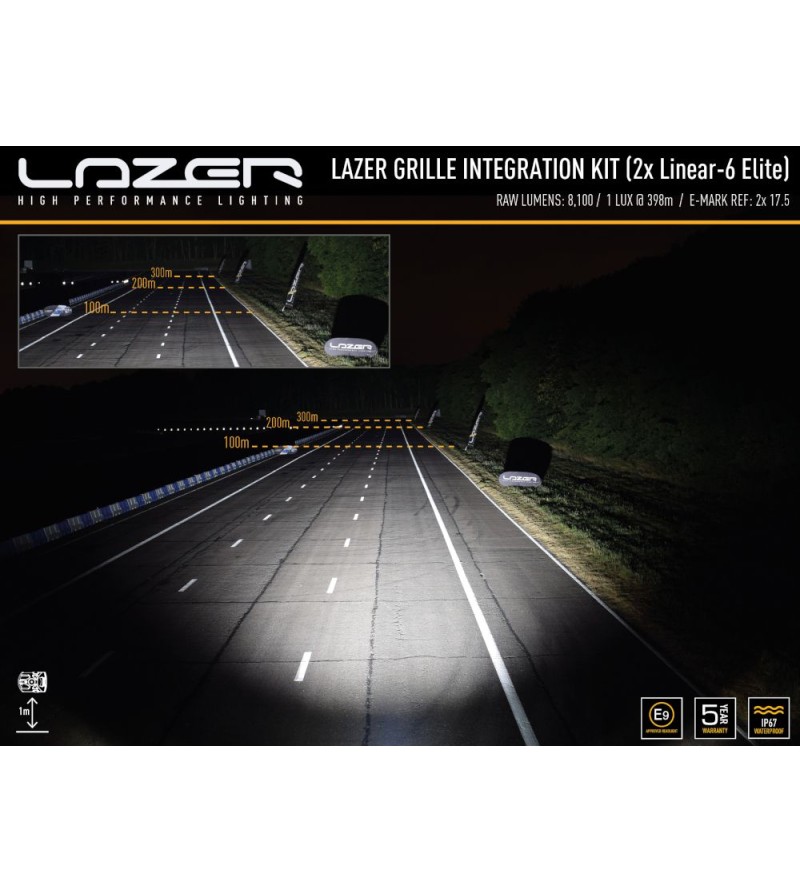

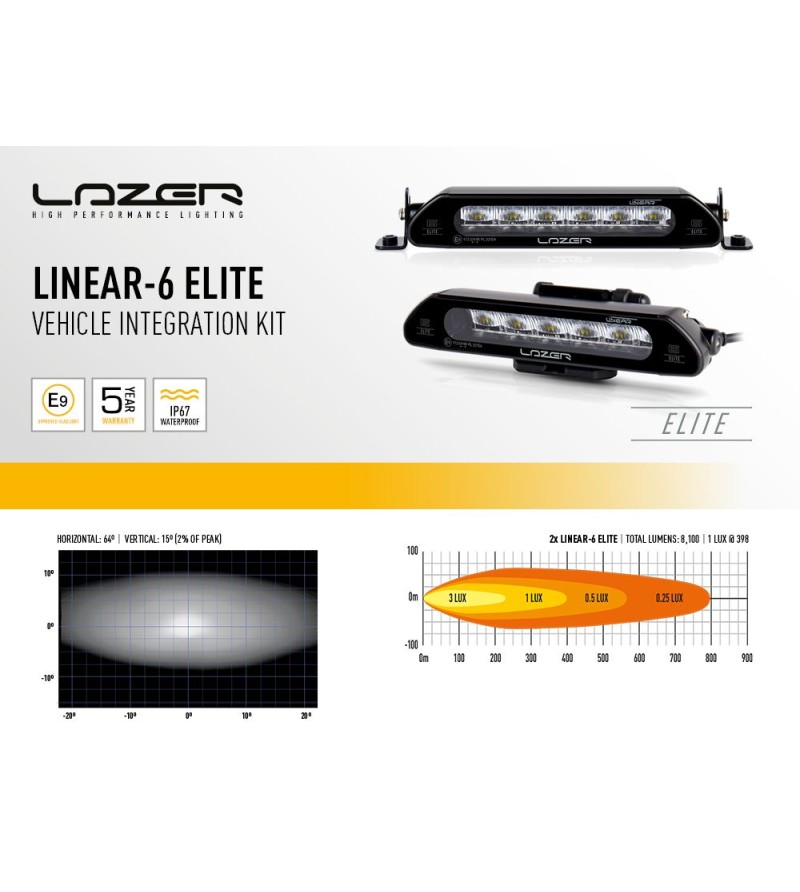

1. Technical specifications for the 2x Linear-6 Elite
Voltage range (DC): 10-32V
LED lifespan: 50,000 hours
Weight: 800 grams

High beam function
Total luminous flux: 8100 Lm
Total Driver 'FOV' Flux†: 5767 Lm
Color Temperature: 5000K
Number of LEDs: 2 x 12
Power consumption: 84 watts
Power consumption: 5.8 Amps

Certification
Main beam: ECE R112
ECE Reference: 2 x 37.5

Photometric data
Horizontal beam angle: 64°
0.25 lx Line: 796 meters
0.5 lx Line: 563 meters
1 lx Line: 398 meters
3 lx Line: 230 meters

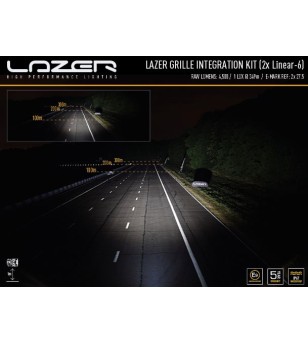

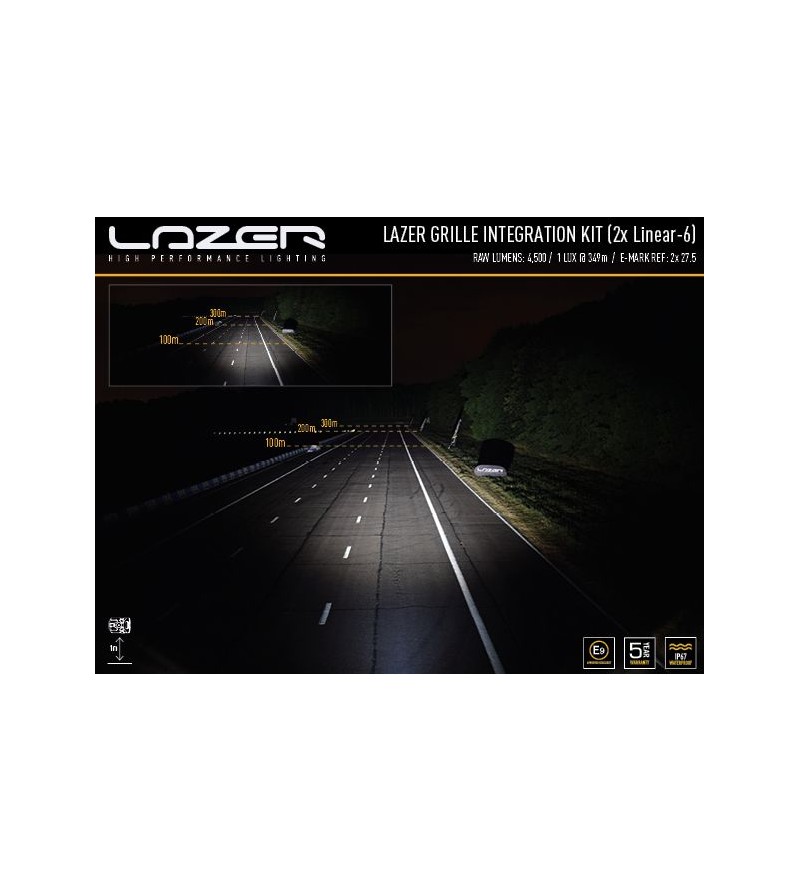

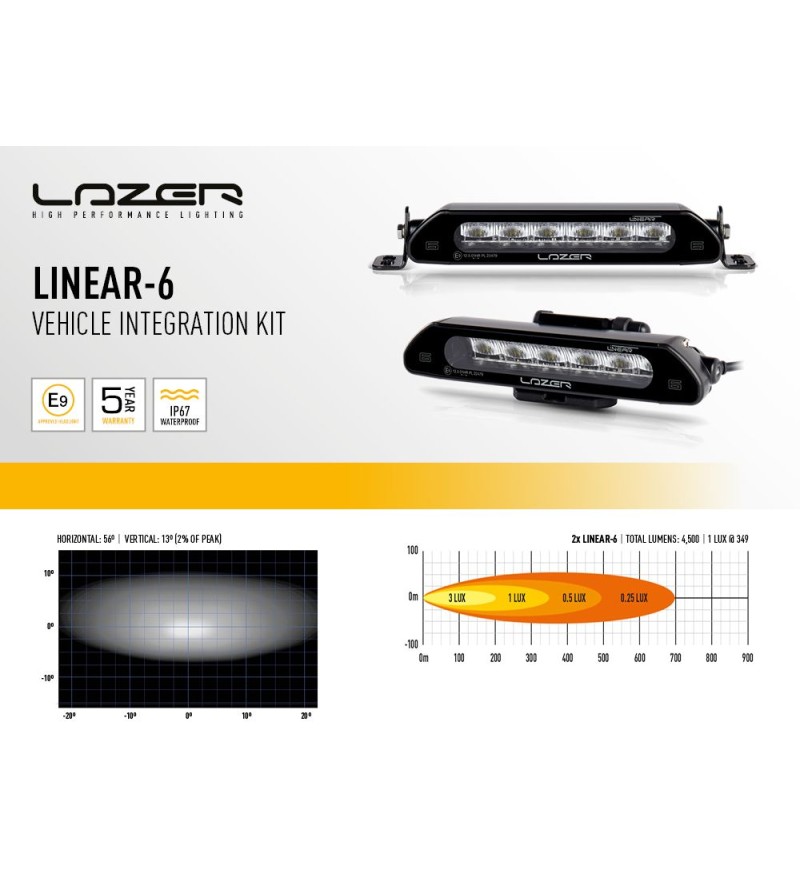

2. Technical specifications for the 2x Linear-6 Standard
Voltage range (DC): 10-32V
LED lifespan: 50,000 hours
Weight: 800 grams

High beam function
Total luminous flux: 4500 Lm
Total Driver 'FOV' Flux†: 3204 Lm
Color Temperature: 5000K
Number of LEDs: 2 x 6
Power consumption: 42 watts
Power consumption: 2.92 Amps

Certification
Main beam: ECE R112
ECE Reference: 35 x2
Position light (white only): ECE R7

Photometric data
Horizontal beam angle: 19°
0.25 lx Line: 1225 meters
0.5 lx Line: 866 meters
1 lx Line: 612 meters
3 lx Line: 354 meters

† Driver FOV flux is a measure of effective lumens considering the amount of light in a driver's 'field of view', defined as an area +/- 45o left/right and +/- 10o up/down.
