Lazer Utility 80 (Gen2) ADR - 00U80-HD-B

Work light - Lazer - Utility 80 - HD - 4'' - Work / Scene

€259.95 (tax incl.)

€214.83 (tax excl.)

  • Reference: 00U80-HD-B
  • Producttype: Work light

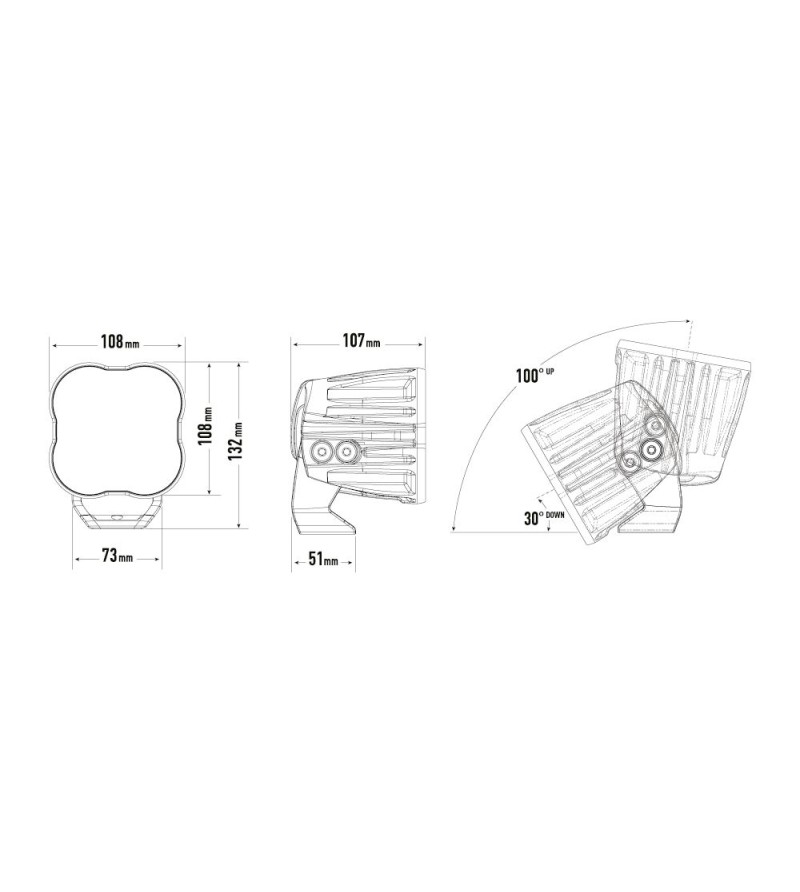

  • Dimensions (mm): 108 (w) x 108 (h) x 107 (d)
  • E-mark: yes
  • Beam type: Work / Scene
  • Sales unit: Single item
  • Standard Delivery time: 1-3 business days
The Lazer Utility 80 HD is a powerful LED work lamp that delivers nearly 9,000 lumens. Robust and waterproof, it is perfect for demanding environments such as construction and agriculture. Reliability and optimal visibility for every job.
...Continue

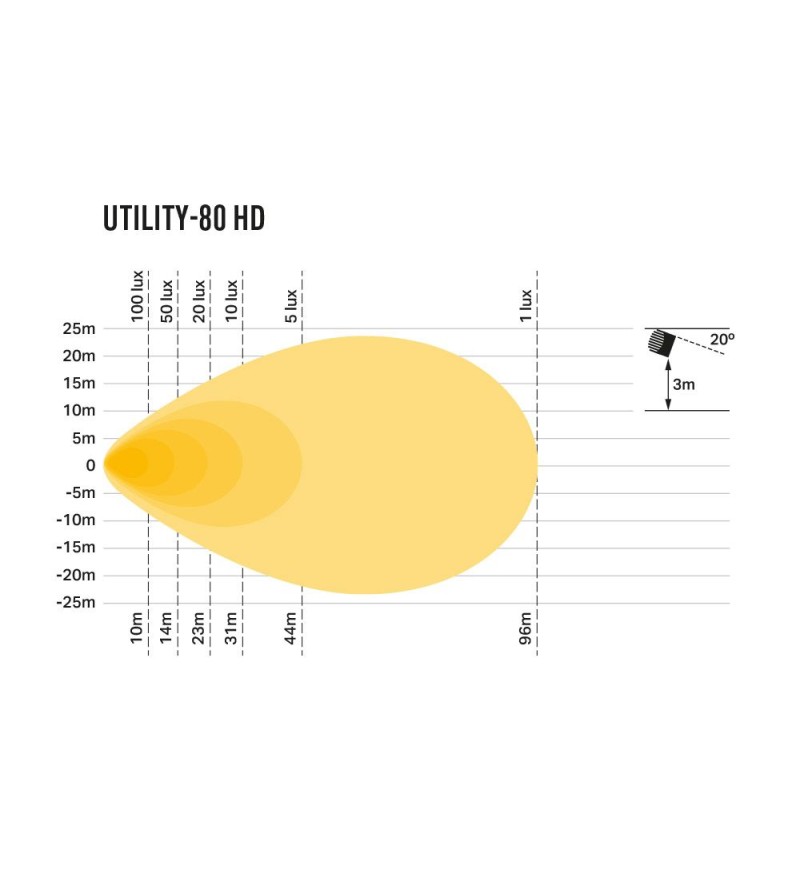

Work-Scene Beam Pattern

Quantity

Lazer Utility-80 HD

What is supplied:

  • 1x Utility-80 HD LED work lamp
  • 1x mounting bracket
  • 1x Male connector

A new addition to the Utility Series product range in 2023, the Utility-80 HD (Heavy-Duty) builds on our reputation for high performance LED work light solutions. The product is specifically designed and engineered for the rigorous demands of industrial applications including: mining, construction, forestry, and agriculture.

Comprising 4x premium-bin 20W LEDs, the Utility-80 HD emits 8,940 raw lumens harnessed through the ultra-reflective, vacuum-metallised optics redesigned for this product to give even better distribution of light over a greater area. For customers looking for flexibility and easy control over the intensity of light, a version of the product with a variable brightness function is available, providing the machine operator the option to increase or decrease the lamps brightness at the touch of a button. For the corresponding cable set, click here.

The colour of light for both variants of 80 HD is set at 5000K, carefully selected to improve safety through maximising definition of objects and hazards ahead, while reducing fatigue that can come from using products with a higher colour temperature. For the corresponding covers see here.

Lighting performance aside, what truly sets the lamps apart is the robust construction and build quality. Like all Lazer products, the light benefits from an electronic thermal management system, CAE optimised heatsink, polycarbonate lens with hardcoat, and advanced electronic design. An upgraded die-cast mounting bracket, repositioned and concealed goretex breather membrane, plus re-engineered LED/optical arrangement only serves to increase the product’s robustness and suitability to the harshest environments. Testimony to the products build quality, the lamp comes with a 5 year functional warranty.

00U80-HD-B 5060404997561

Data sheet

Accessory
Lighting
Producttype
Work light
Product serie
Utility
Serial model
80
Version
HD
Series
Lazer Utility
Size ( Ø / ↔ )
2) Medium
Shape
Led Pod
Width (mm)
108
Height (mm)
108
Depth (mm)
107
Beam type
Work / Scene
Light type
LED
Lighting - Type
Work light
Light color
White
Position light
No position light
Color temperature
5000K
E-mark
yes
ECE approval
R10
Glass color
Clear
Chrome / RVS
no
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
IP rating
IP69K
Voltage
12V
18V
24V
30V
LEDs per lamp
4
Connector
Deutsch DT
Sales unit
Single item
Standard Delivery time
1-3 business days
prodcat1
H
Shipping Size
S

Specific References
