Lazer Triple-R 1250 Gen2 with position light - 00R12-G2-B

LED Light bar - Lazer - Triple-R 1250 - 23 - Position light White/Amber - Driving

€674.95 (tax incl.)

€557.81 (tax excl.)

  • Reference: 00R12-G2-B
  • Producttype: LED Light bar
  • Dimensions (mm): 590 (w) x 73 (h) x 105 (d)
  • E-mark: yes
  • Position Light Color: White/Amber
  • Beam type: Driving
  • Sales unit: Single item
  • Standard Delivery time: 1-3 business days

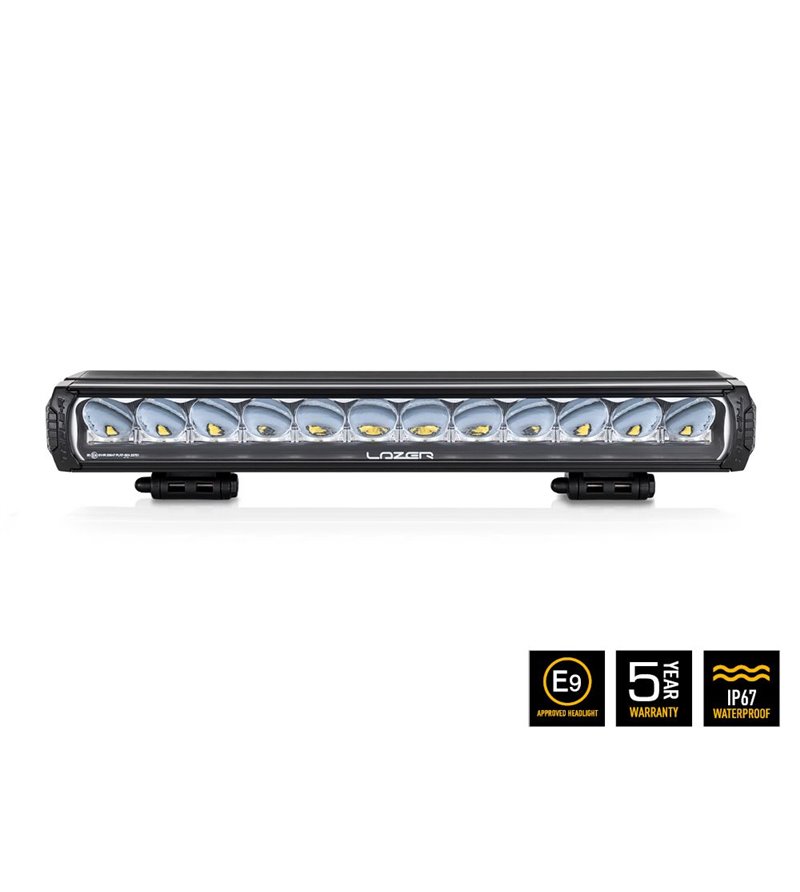

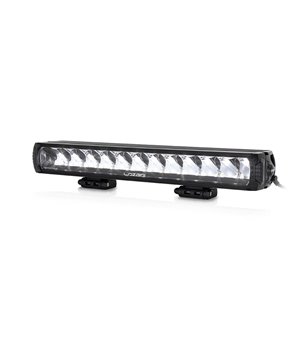

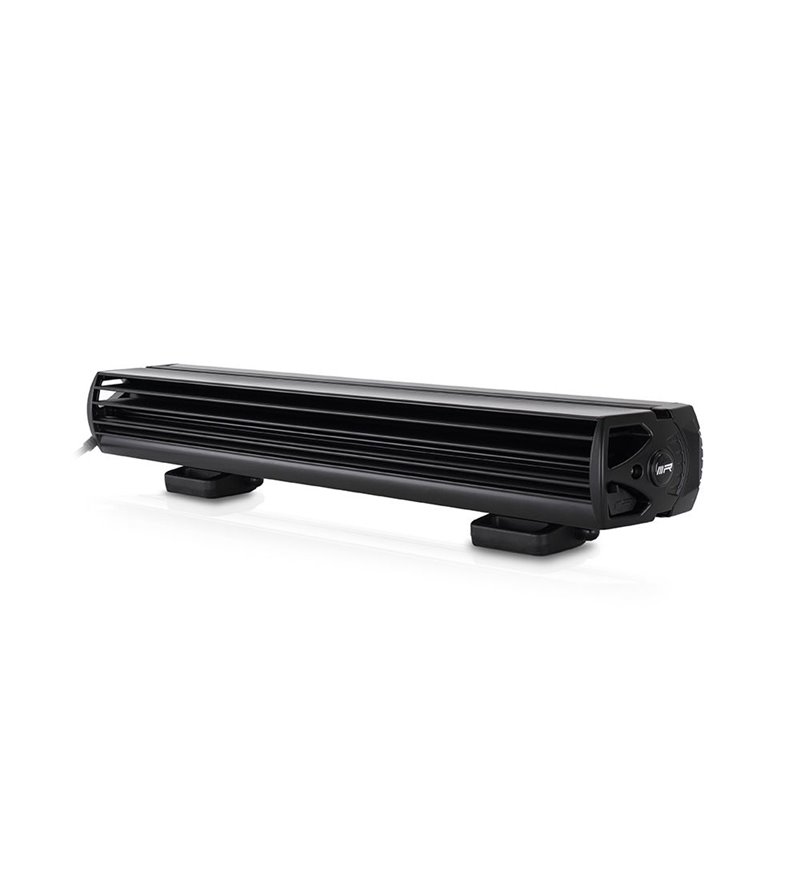

The Lazer Triple-R 1250 Gen2 is a powerful 23" LED light bar with white/amber position lights. It provides bright illumination and enhances visibility, making it ideal for any drive in all conditions.
...Continue

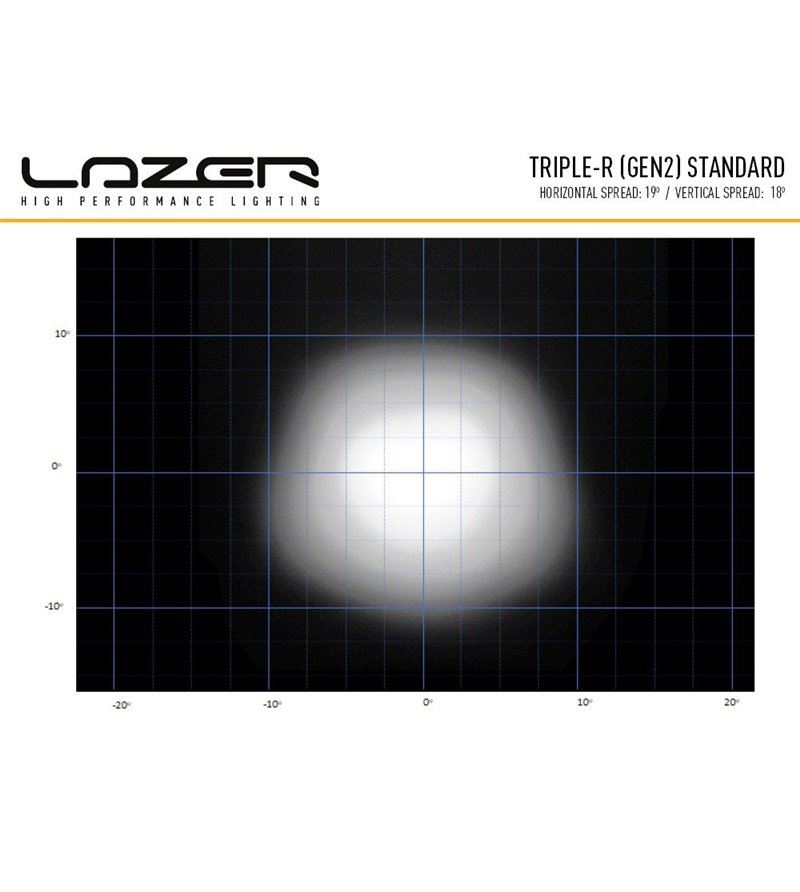

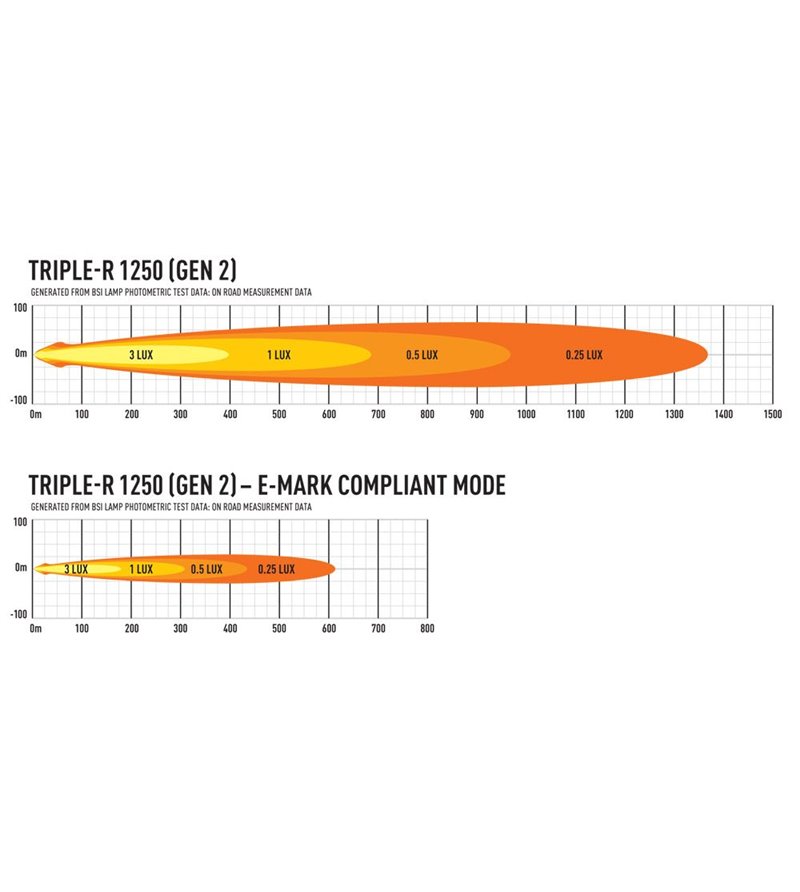

Driving Beam Pattern

Quantity

Lazer Triple-R 1250 Gen2 with position light

What is included:

  • x1 Triple-R 1250 LED Lamp
  • x2 Centre Mount (1114k)
  • Male connector and installation instructions

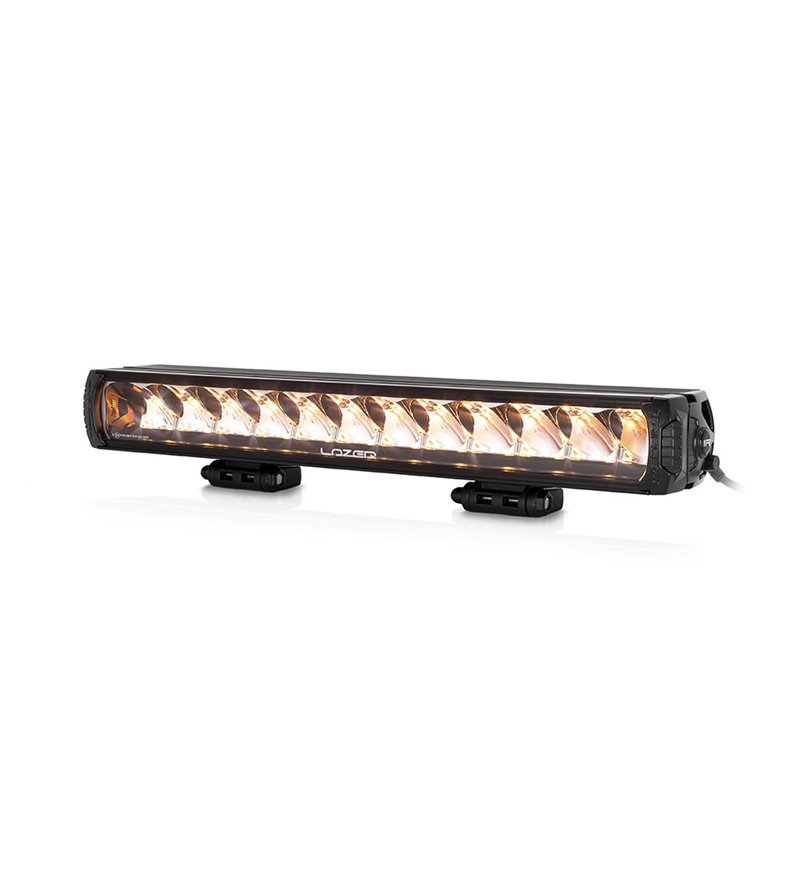

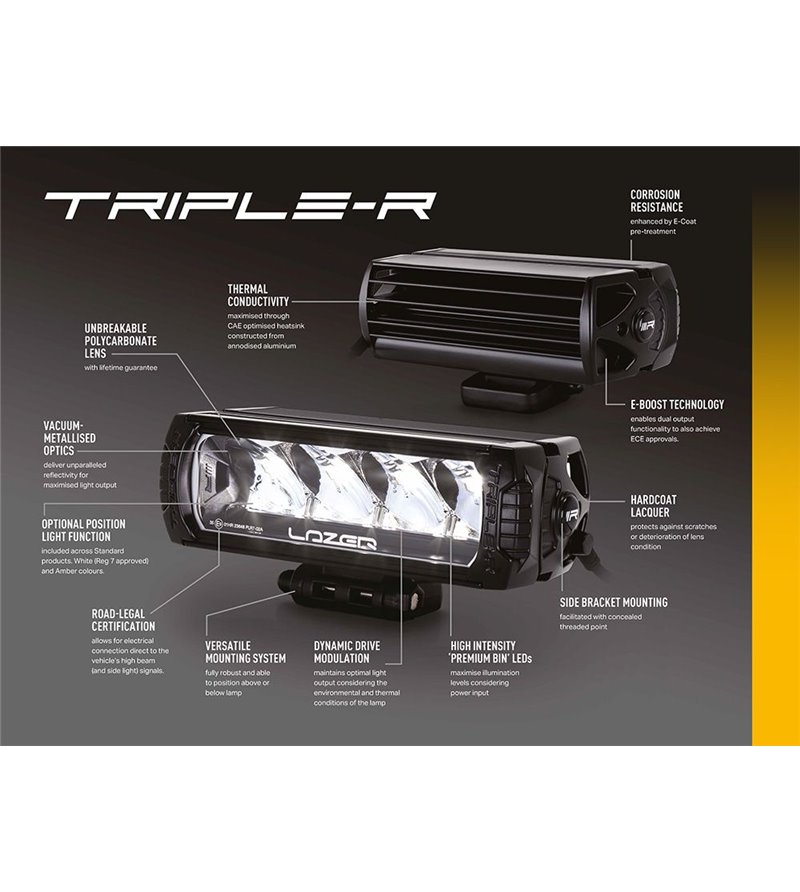

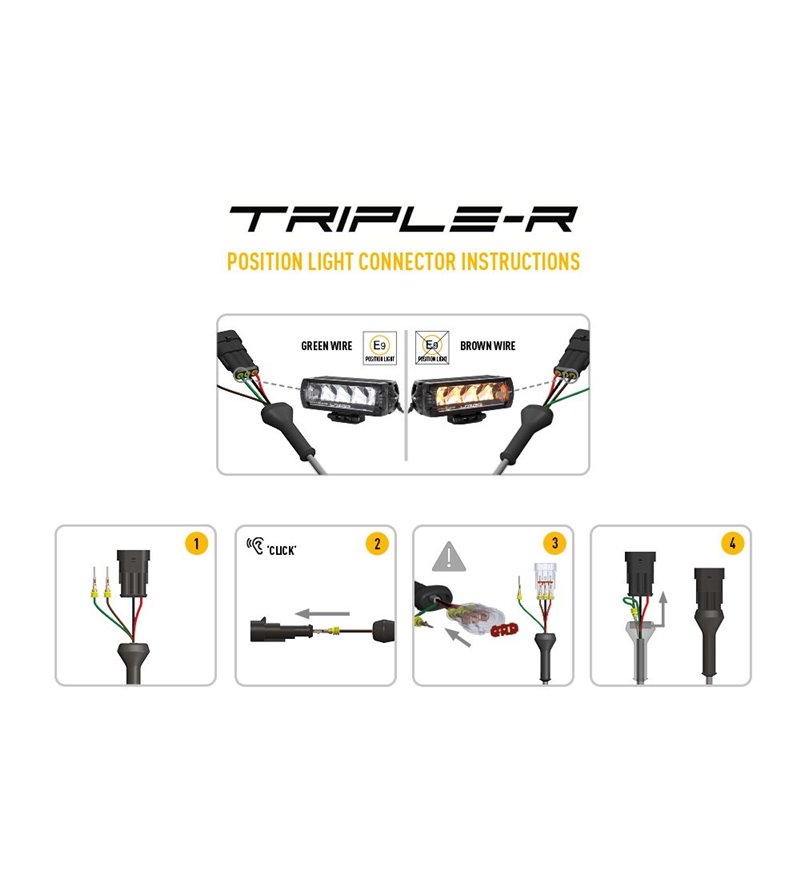

The iconic Triple-R range is upgraded for 2020/21. Boasting the very latest high efficiency LED technology, the Triple-R 1250 is a high-performance driving light that delivers a spot beam pattern well suited to both road and off-road applications. Subtle styling updates have resulted in a clean contemporary design, with a more aggressive edge, to match the aesthetic design prevalent on modern vehicles. With the possibility to connect a white or amber position light function, the styling and safety benefits of the 2nd generation Triple-R 1250 are enhanced even further. The Triple-R 1250 comes with the option to connect an integrated position/side light function, for when the requirement is for a light installation that gets noticed as much during the day as at night. There is the possibility to connect white or amber coloured position lights, simply by inserting the corresponding wire into the lamp connector at the point of installation, or leave both disconnected to have your Triple-R 1250 act as a high beam driving light only.

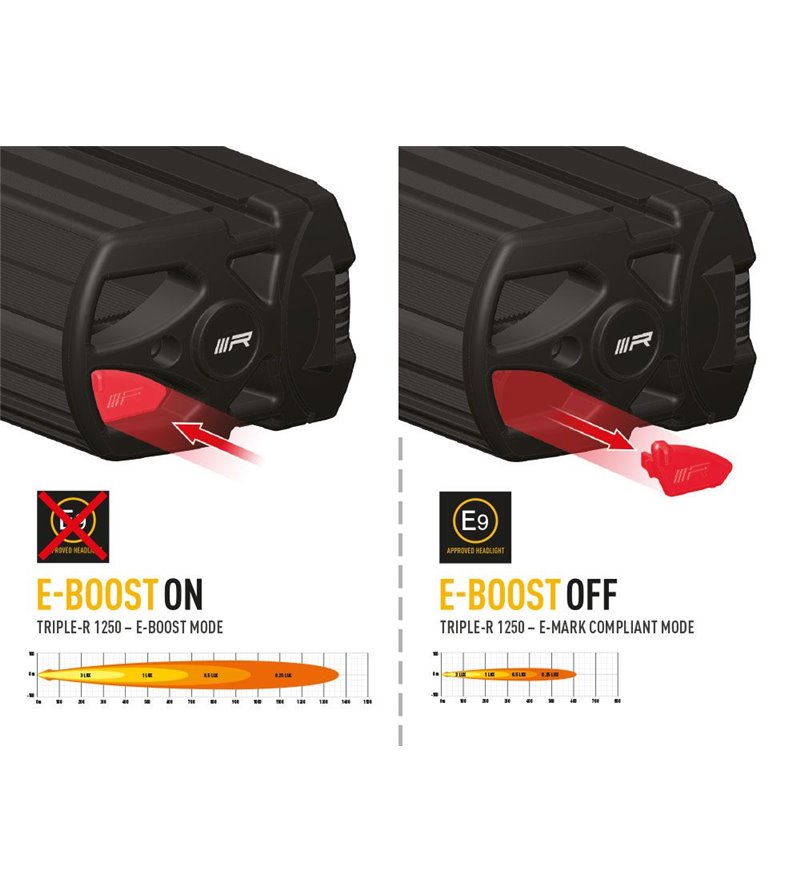

The position light function (white only) is approved to ECE regulation 7, to operate in parallel with your standard vehicle lights. Through the adoption of dual-output ‘E-Boost’ technology, the lamp achieves approval to ECE Regulation 112, allowing the lamp to be connected directly to your vehicle’s standard high beam driving lights (where UNECE regulations are recognised). Operating at 100% the light output is beyond the permissible limit of the regulations, so removing the supplied Boost Cap from the back of the lamp reduces the light output to be within the allowable limit.

00R12-G2-B 5060404993921

Data sheet

Accessory
Lighting
Producttype
LED Light bar
Product serie
Triple-R
Serial model
1250
Series
Lazer Triple-R
Size ( Ø / ↔ )
2) Medium
Shape
Ledbar
Width (mm)
590
Height (mm)
73
Depth (mm)
105
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Light color
White
Position light
Position light
Color of position light
Amber
White
Color temperature
5000K
Reference number per unit
20
E-mark
yes
ECE approval
R112
Glass color
Clear
Chrome / RVS
no
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
IP rating
IP67K
Lumen
13860

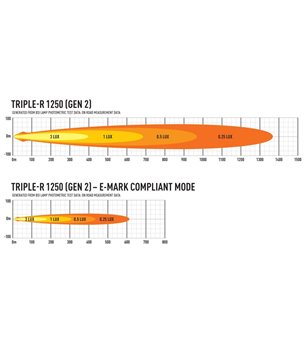

Light distance (m) at 1 lux
750
Light distance (m) at 0.25 lux
1500
Voltage
12V
18V
24V
30V
Watts
125W
LEDs per lamp
12
Wattage per LED
11W
number of pins
3 pins
Connector
Superseal
Sales unit
Single item
Standard Delivery time
1-3 business days
