Lazer Sentinel Chrome - with position light - 0S9-PL-CHR-SM

Driving light - Lazer - Sentinel 9 - 9'' - Chrome - Position light White/Amber - Driving

€479.95 (tax incl.)

€396.65 (tax excl.)

  • Reference: 0S9-PL-CHR-SM
  • Producttype: Driving light
  • Diameter (mm): 225

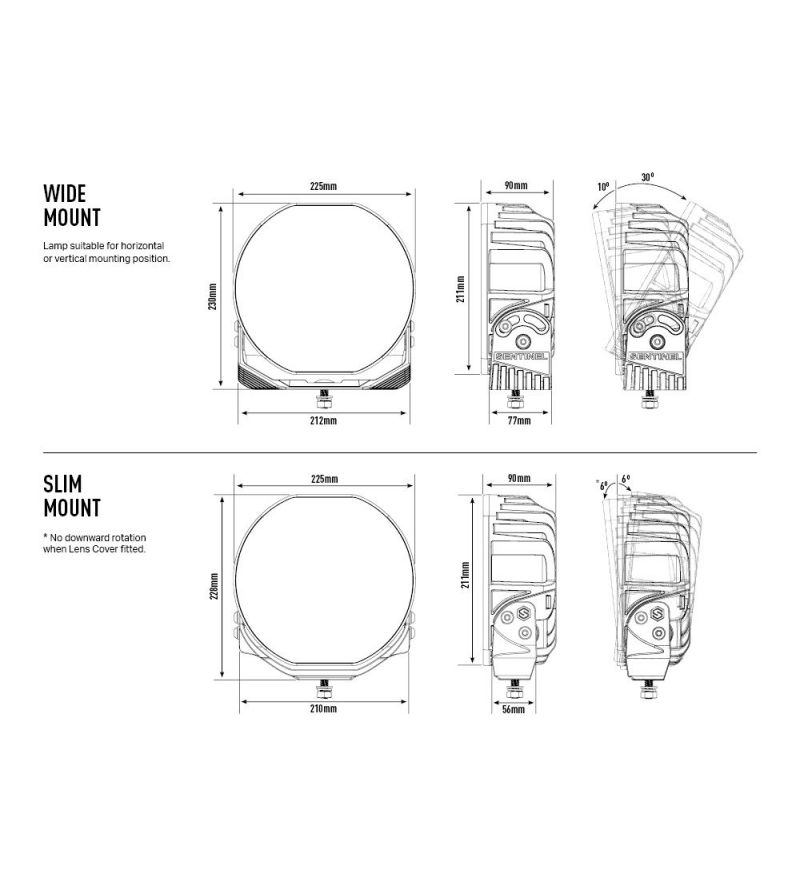

  • Dimensions (mm): 225 (w) x 211 (h) x 90 (d)
  • E-mark: yes
  • Version: Chrome

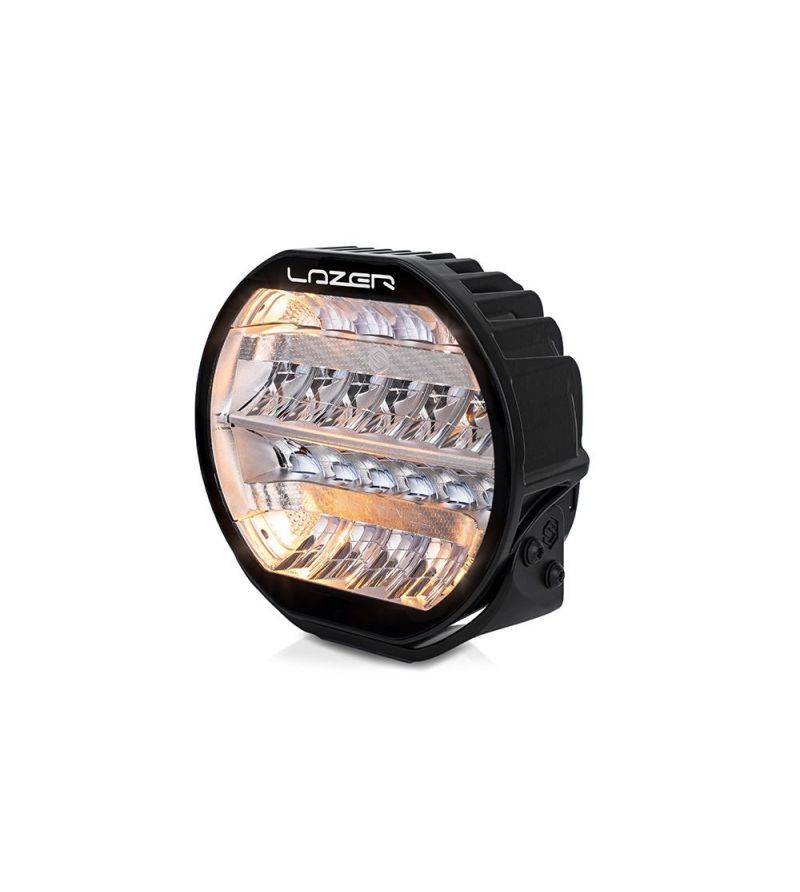

  • Position Light Color: White/Amber
  • Beam type: Driving
  • Sales unit: Single item
  • Standard Delivery time: 1-3 business days

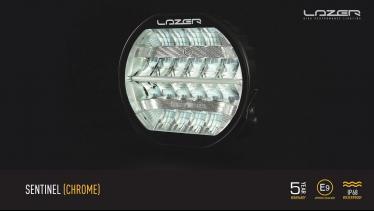

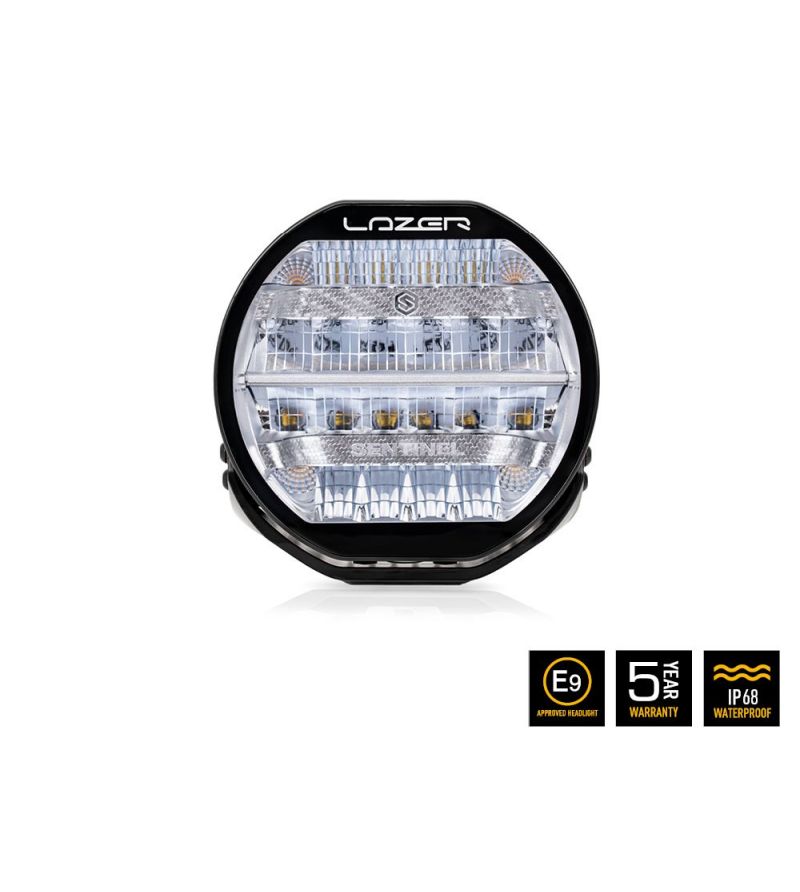

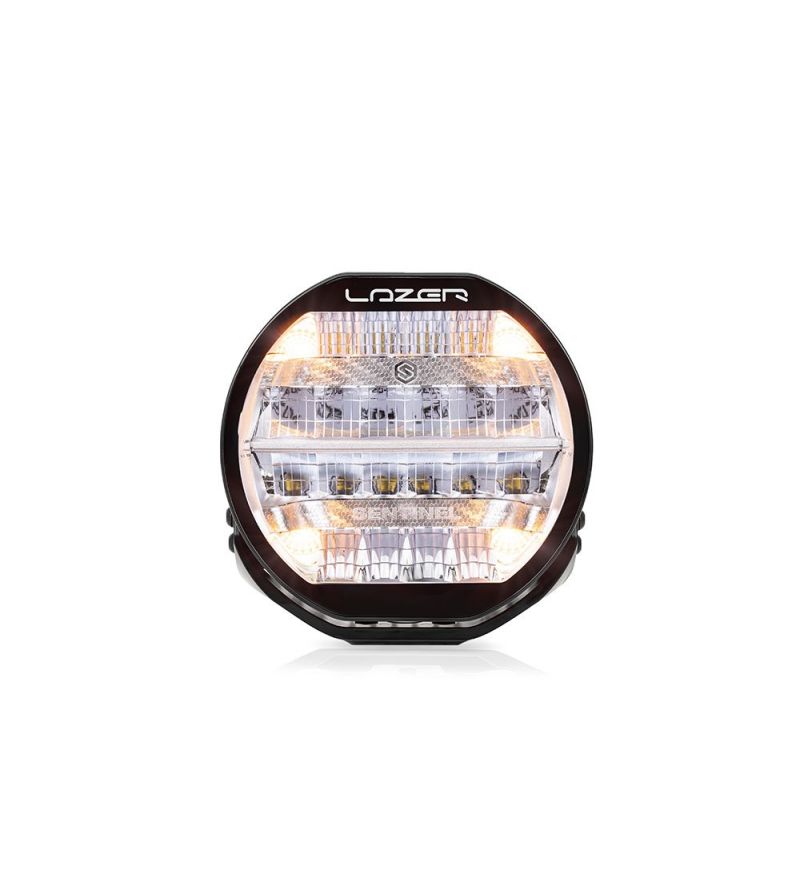

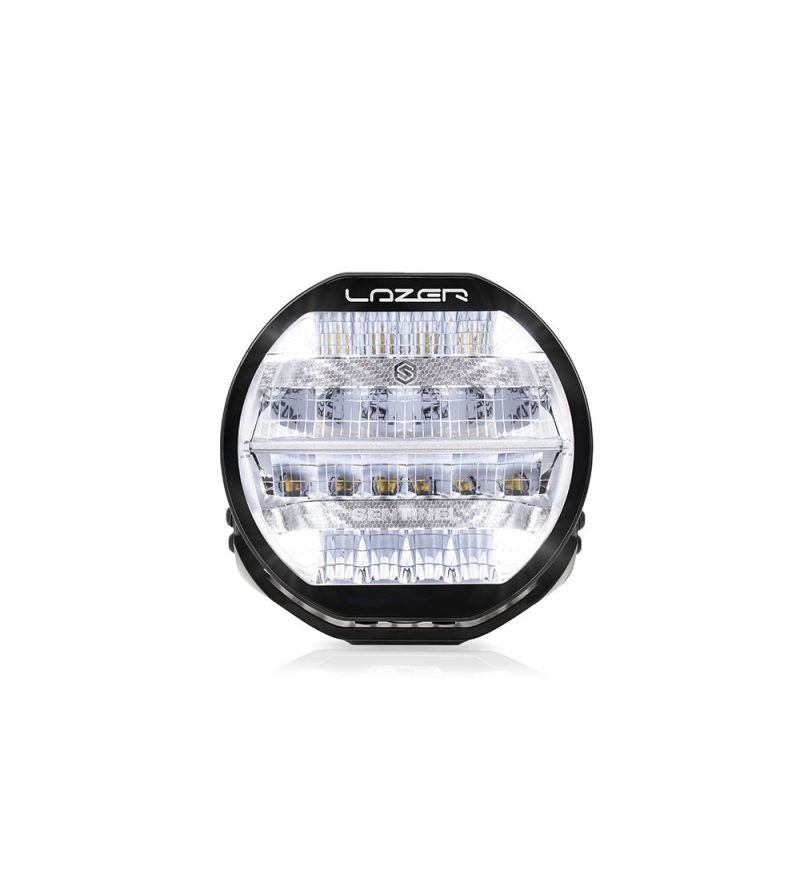

The Lazer Sentinel 9 - Chrome is a powerful spotlight that combines style and functionality. With its striking chrome finish and excellent lighting, it offers safety and confidence, perfect for any journey, regardless of the conditions.
...Continue

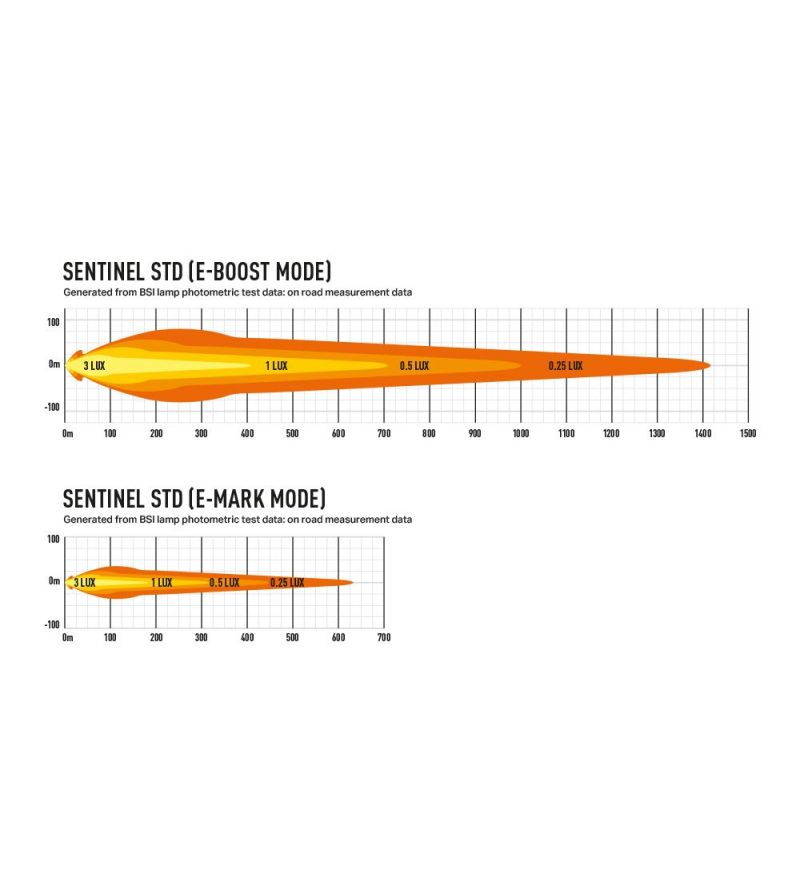

Driving Beam Pattern

Quantity

Lazer Sentinel Chrome with position light

What is supplied:

  • x1 Sentinel (Chrome) LED Lamp
  • x1 'Slim' Mount Kit (1141k)

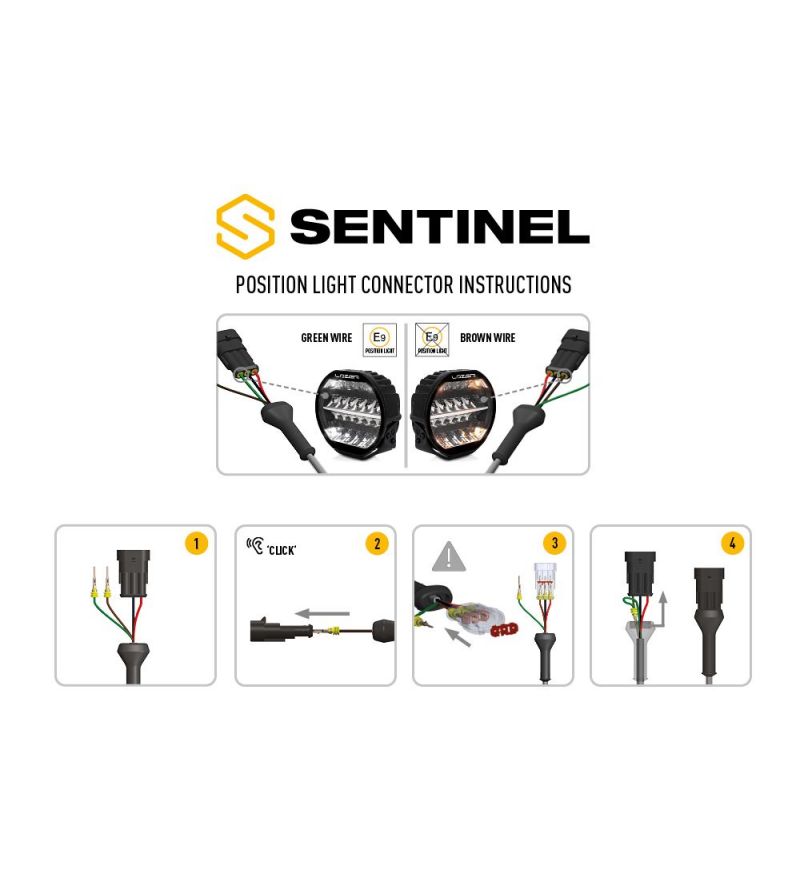

  • Male connector and Installation instructions

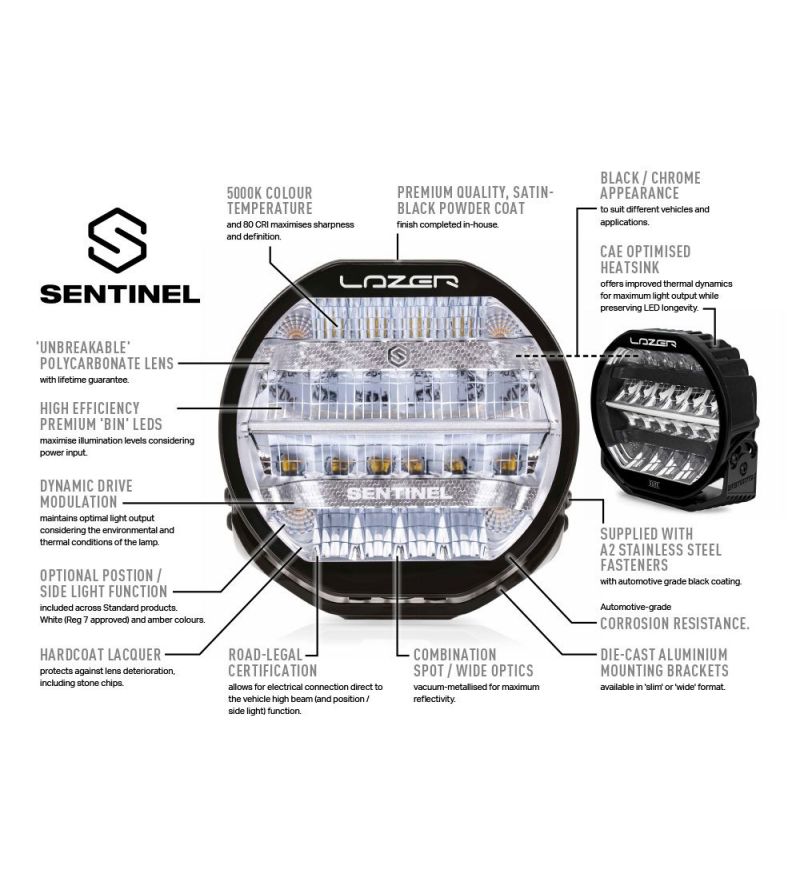

New for 2021, the Sentinel Series are 9-inch round lamps that combine distinctive high-end product design with superior lighting performance and build quality emblematic of the Lazer Lamps name. Available in Standard or Elite classes, the former contains 20 powerful LEDs and is available with a black or chrome finish in the lamp. The Elite product, in comparison, is only available in the black appearance, but with a combination of 32 high-power LEDs, it represents the very best lighting performance expected from a product with the 'Elite' label.

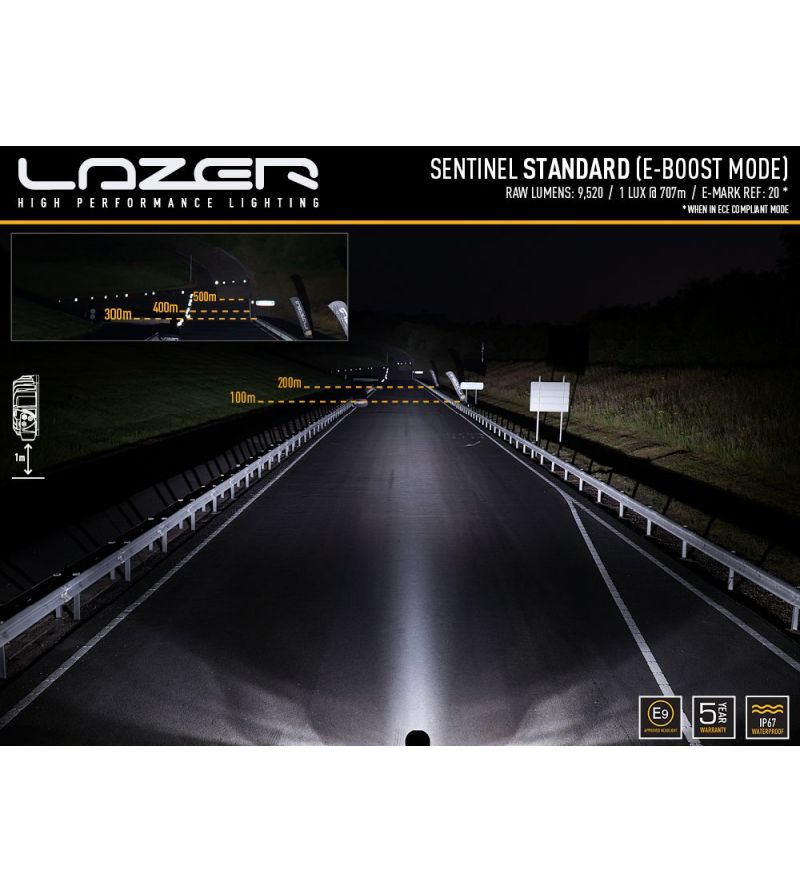

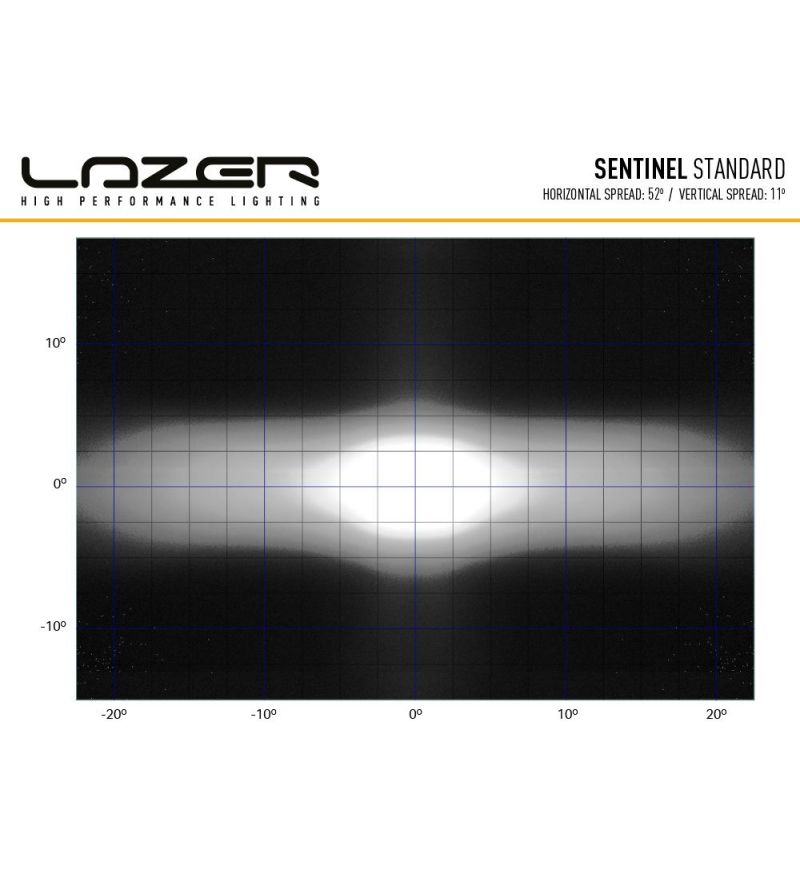

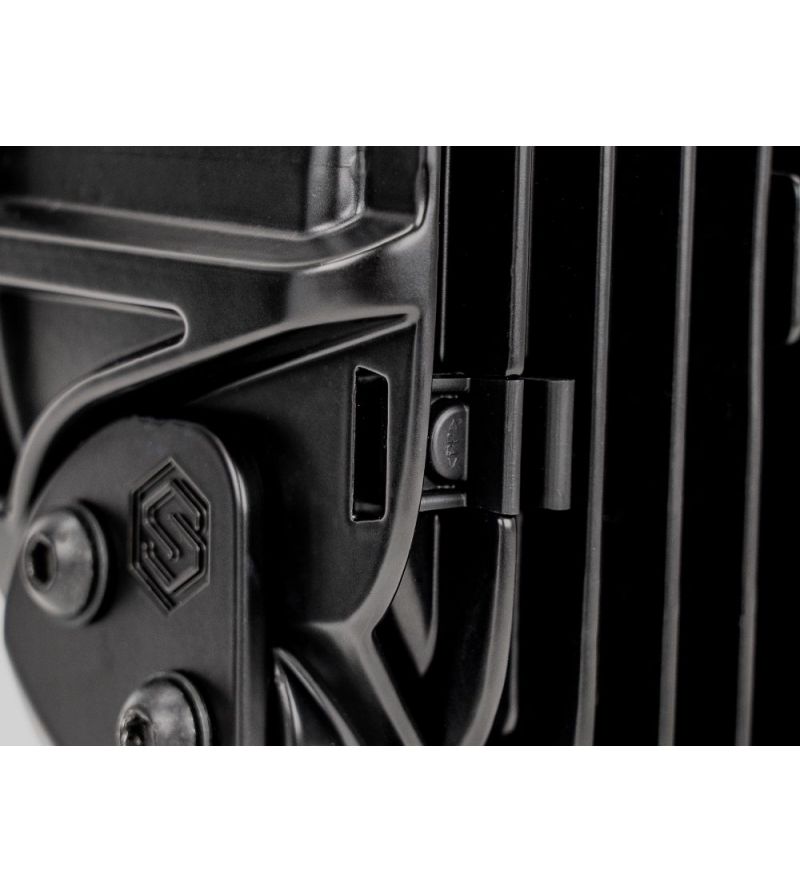

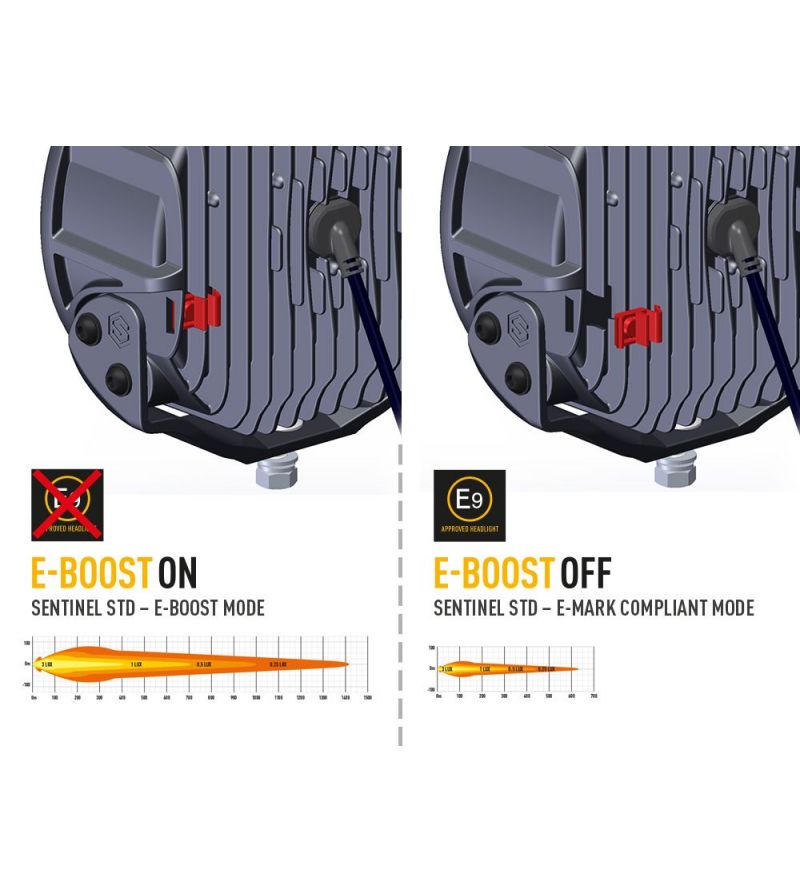

Both Sentinel Black and Chrome lamps, in the 'Standard' range, produce the same lighting performance. The lamps emit 9,529 raw lumens and deliver 1 lux up to more than 700 m; Impressive in itself, but given the 52 degree horizontal beam angle, this is a product designed to provide maximum visibility for all types of road and off-road use. Like all Lazer products, the color temperature is pleasing to the eye at a pleasing 5000K, while maximizing the sharpness and definition of future objects. The lamp has been approved by the UN/ECE according to Regulation 112 as a high beam driving lamp, thanks to the application of Lazer's E-Boost dual output technology; at 100% operation the light output is outside the permitted limit of the ECE regulations, so removing the supplied Boost Cap from the back of the lamp ensures that the light output remains within the permitted limit.

0S9-PL-CHR-SM 5060404996229

Data sheet

Accessory
Lighting
Producttype
Driving light
Product serie
Sentinel
Serial model
9
Series
Lazer Sentinel
Size ( Ø / ↔ )
3) Large
Shape
Round
Diameter (mm)
225
Width (mm)
225
Height (mm)
211
Depth (mm)
90
Weight (kg)
2.5
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Light color
White
Position light
Position light
Color of position light
Amber
White
Color temperature
5000K
Reference number per unit
20
E-mark
yes
ECE approval
R10
R112
Glass color
Clear
Chrome / RVS
no
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
Color
Chrome
IP rating
IP67K
Lumen
9500
Light distance (m) at 1 lux
707
Light distance (m) at 0.25 lux
1414
Voltage
12V
18V
24V
30V
LEDs per lamp
20
number of pins
3 pins
Connector
Superseal
Sales unit
Single item
Standard Delivery time
1-3 business days
prodcat1
H
Shipping Size
S

Specific References
