LED Light bar - Lazer - Carbon 6 - 12'' - Gen3 - Spot

LED Light bar - Lazer - Carbon 6 - 12'' - Gen3 - Spot

€594.95 (tax incl.)

€491.69 (tax excl.)

  • Reference: 00C6-SPOT-G3
  • Producttype: LED Light bar
  • Dimensions (mm): 315 (w) x 63 (h) x 100 (d)
  • E-mark: yes
  • Beam type: Spot
  • Sales unit: Single item
  • Standard Delivery time: 1-3 business days
The Lazer Carbon 6 Spot (Gen 3) is a powerful LED light bar that brightens every ride. With its sleek design and bright light, it ensures optimal visibility for adventurous journeys in any terrain.
...Continue

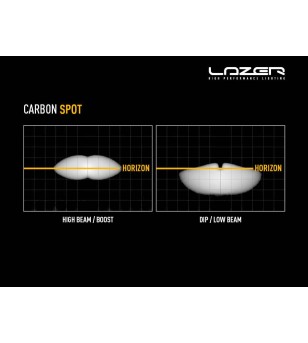

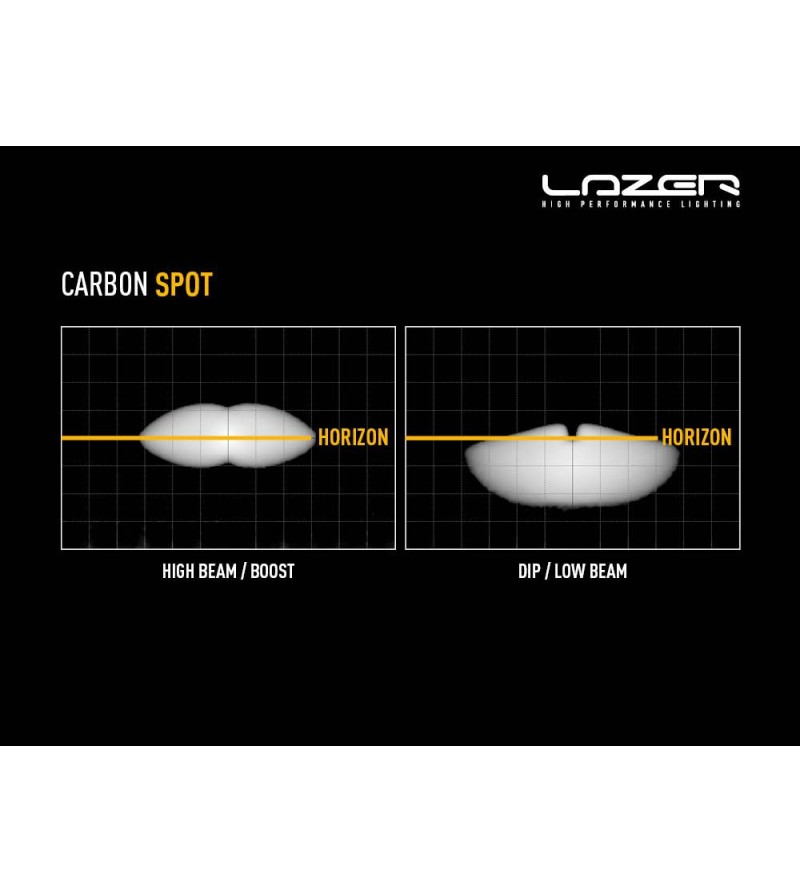

Spot Beam Pattern

Quantity

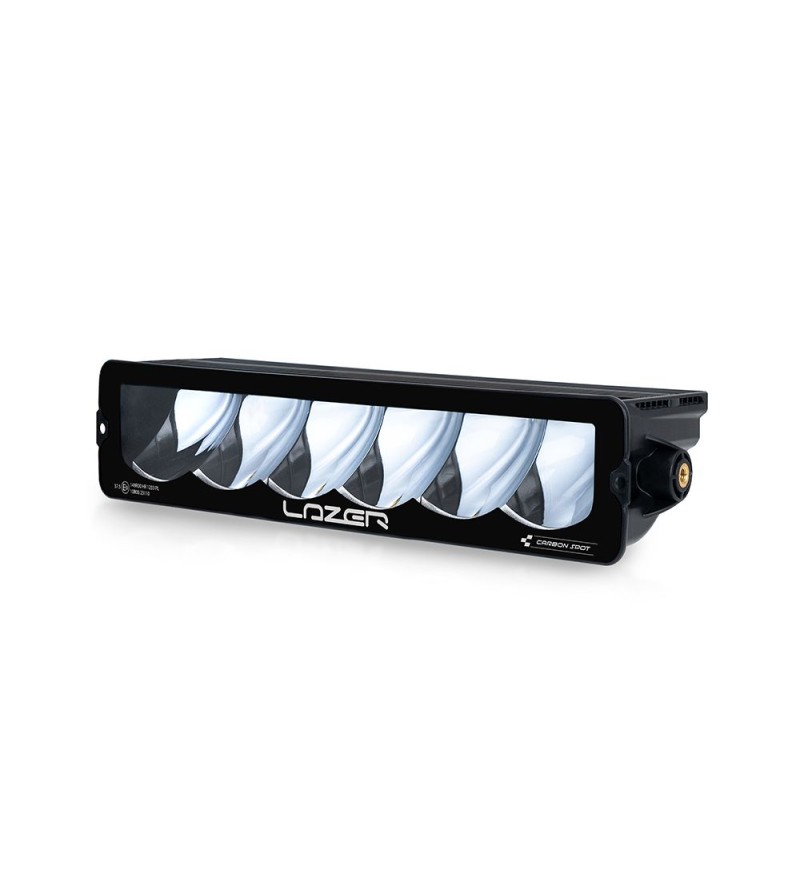

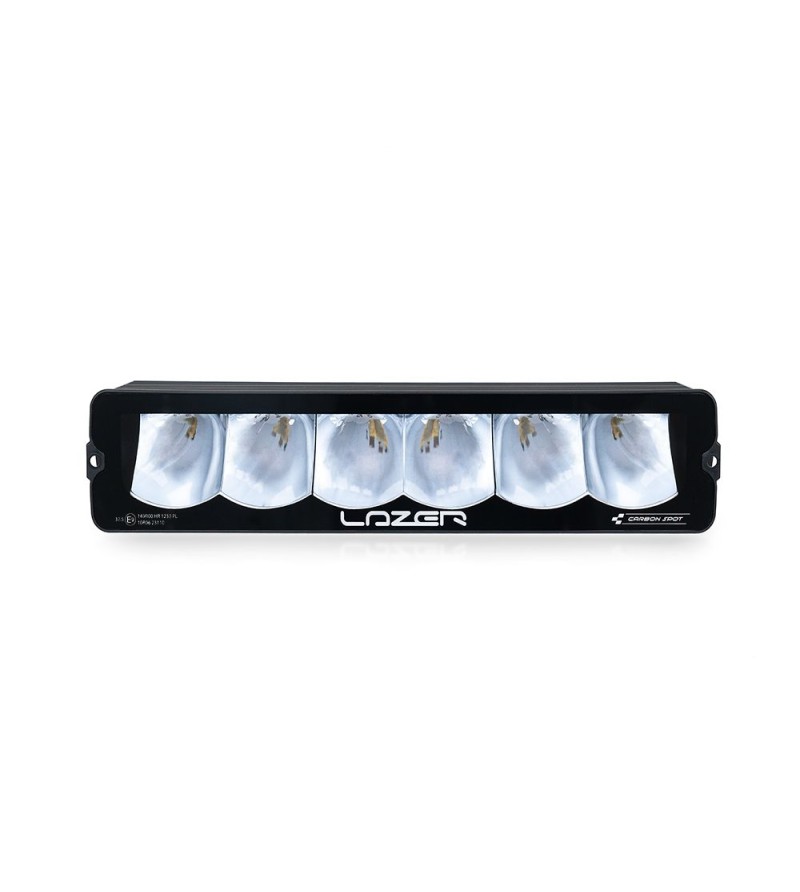

Lazer Carbon-6 Spot (Gen3)

What is delivered:

  • 1x Lazer Carbon-6 Spot (Gen3)

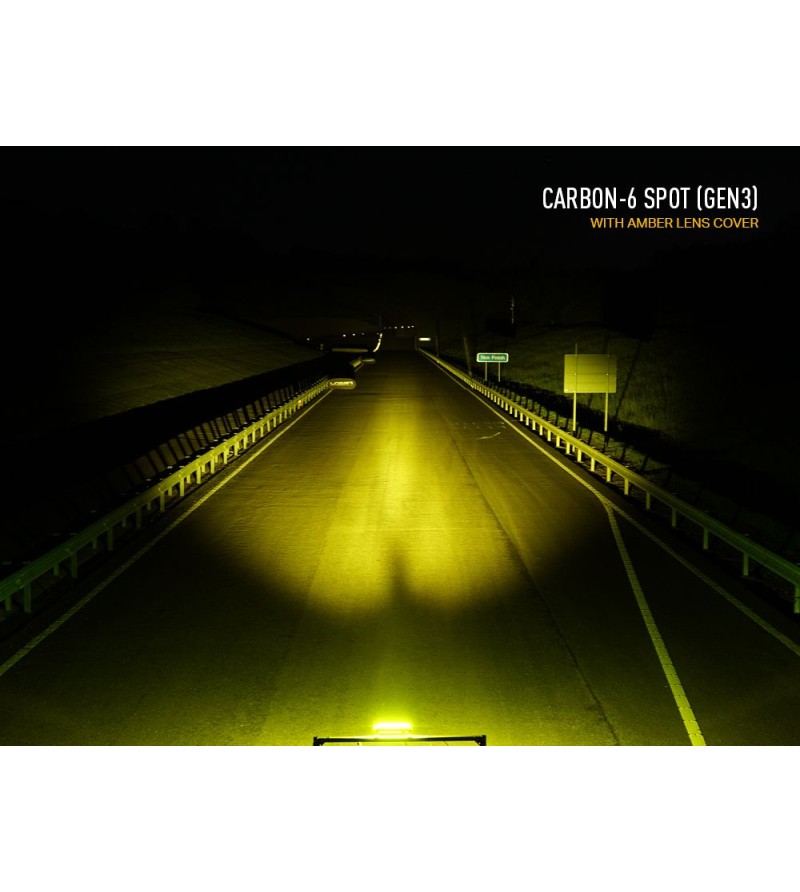

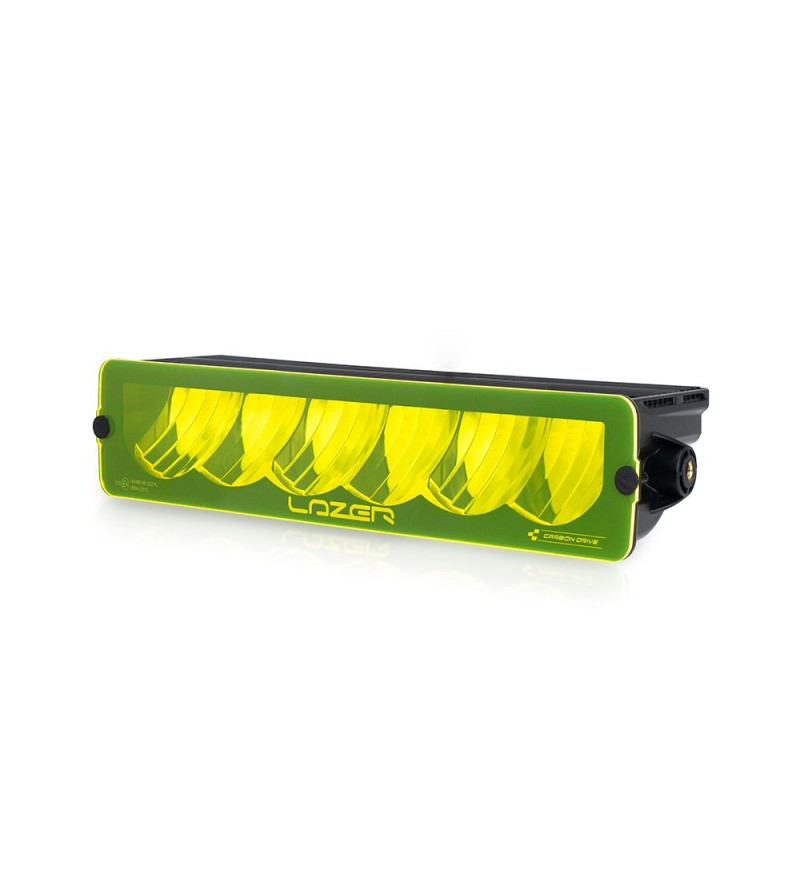

  • 1x Amber Lens Cover

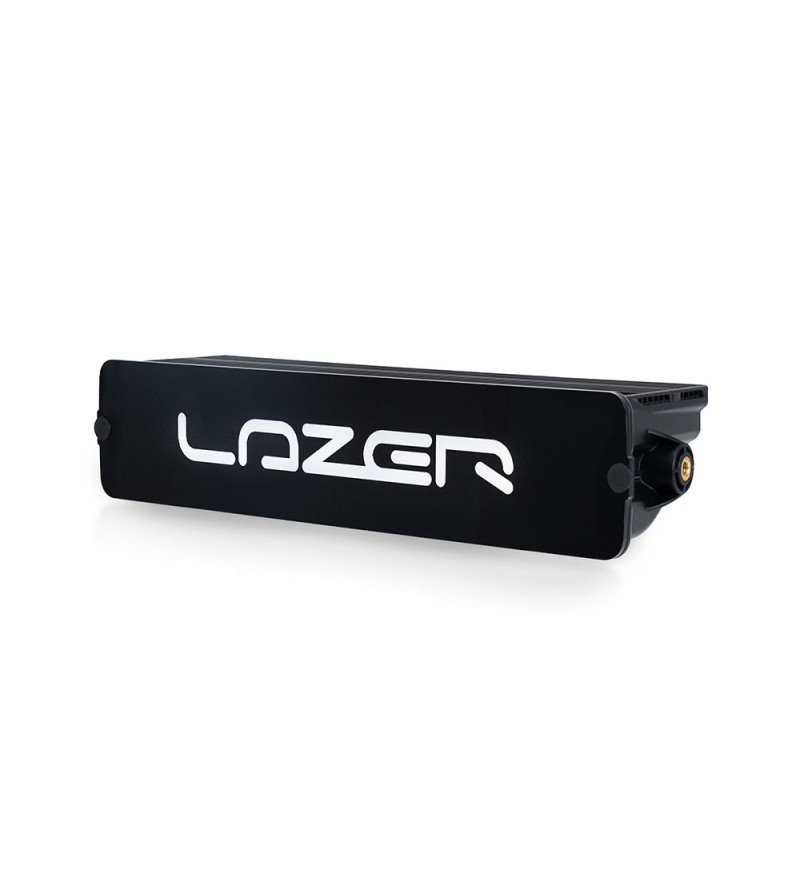

  • 1x Black Lens Cover
  • 1x Installation Manual

Carbon Series

Now in its 3rd generation, the Carbon Series LED driving lights represent years of continuous development and testing at the highest level of professional rally, circuit, and off-road motorsport. The redesign and reengineering of the products result in more light, less weight, greater functionality, and easier installation.

Technical Specifications and Features:

  • Voltage Range (DC): 10-32V
  • LED Life: 50,000 hours
  • Weight: 450 gr

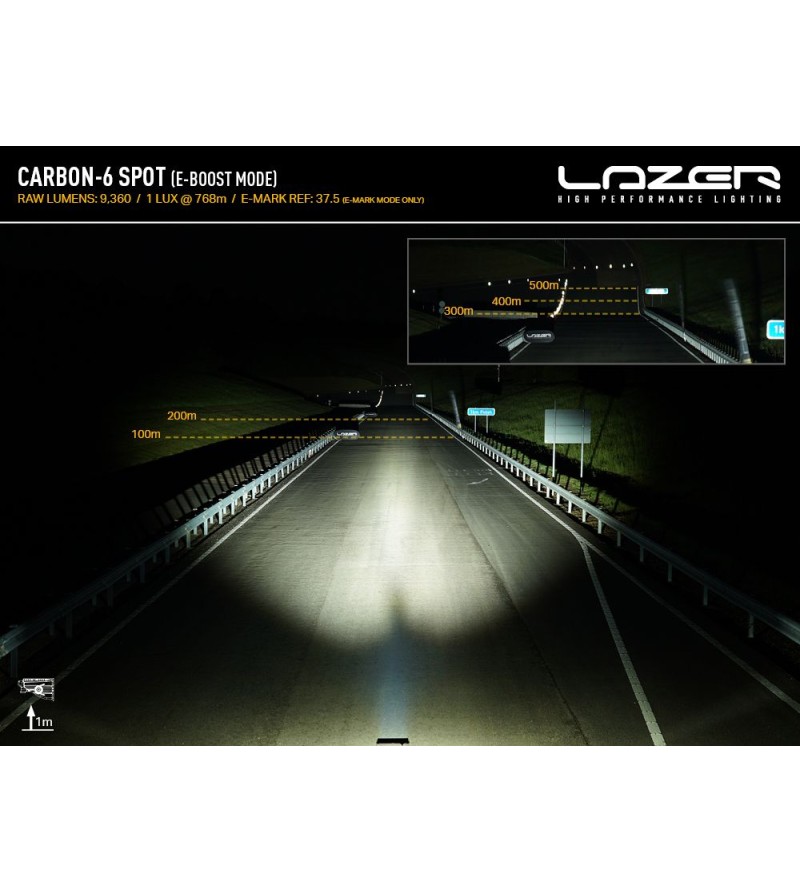

  • Total Luminous Flux: 2340 / 9360
  • Total Driver 'FOV' Flux †: 1380 / 5520
  • Colour Temperature: 5000K
  • Number of High Output LEDs: 36
  • Power Consumption: 85W
  • Current Draw (at 14.4V): 5.9A
  • High Beam: (boost) N/A/ ECE R149
  • E-Mark Ref: (boost) N/A/ 37.5

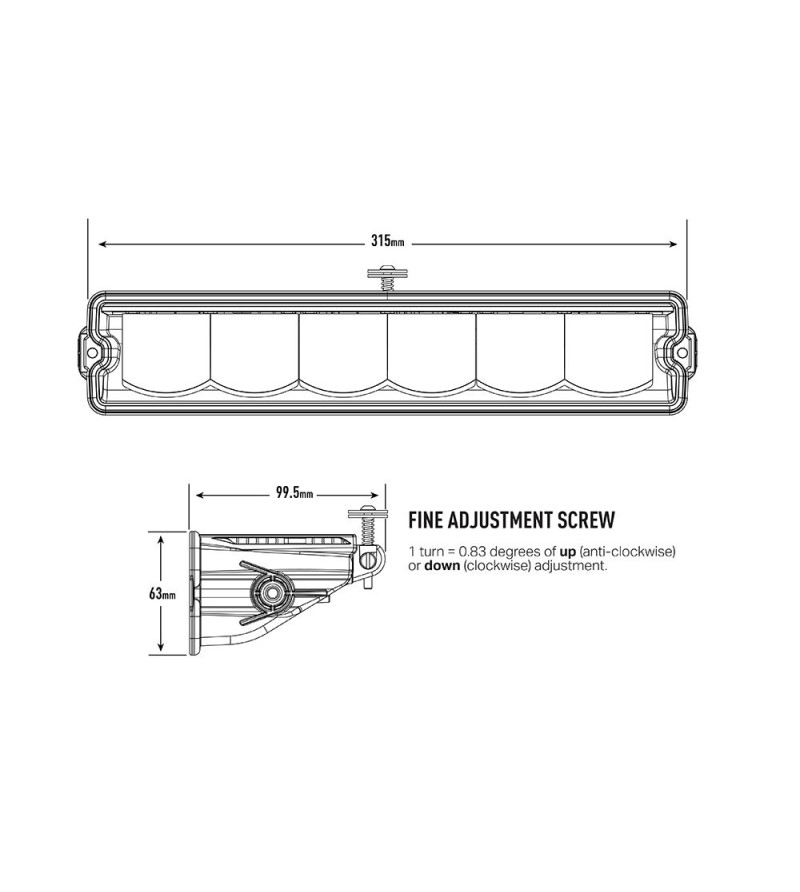

  • Width: 315 mm
  • Depth: 99 mm
  • Height: 63 mm

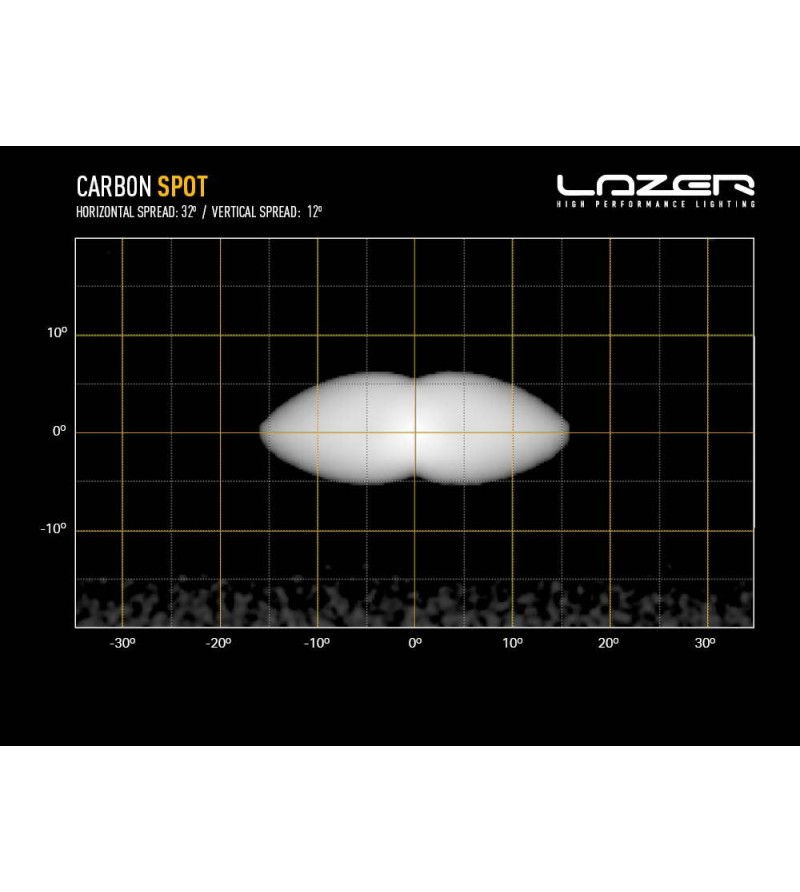

  • Horizontal Beam Angle: 32°

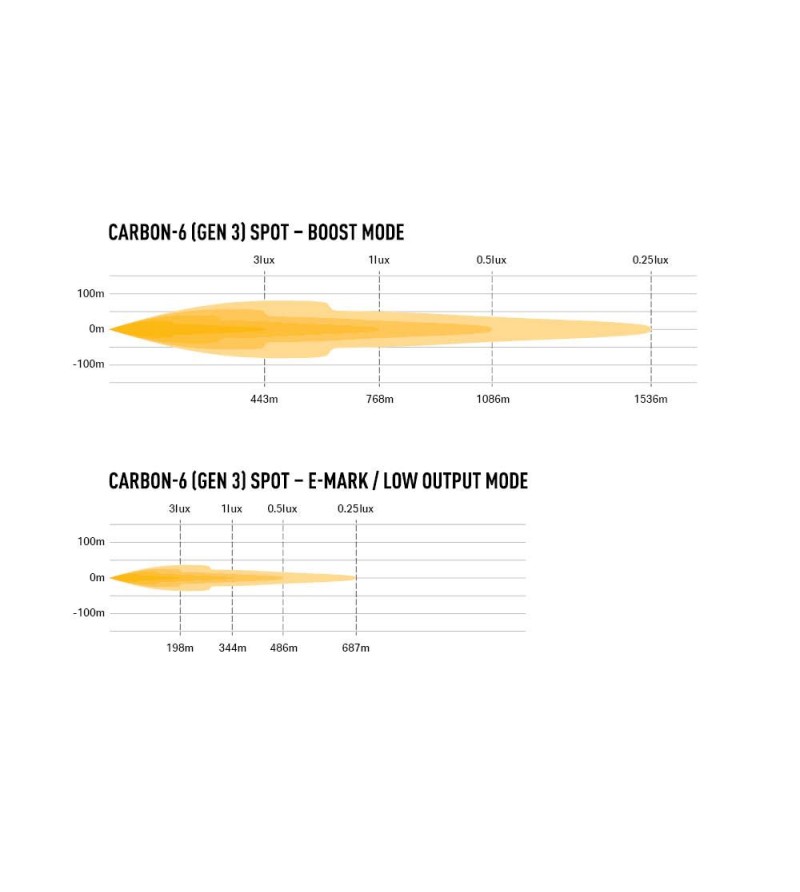

  • 0.25 lux Line: 687m / 1536m
  • 0.5 lux Line: 486m / 1086m
  • 1 lux Line: 344m / 768m
  • 3 lux Line: 198m / 443m
00C6-SPOT-G3 5060404996588

Data sheet

Accessory
Lighting
Producttype
LED Light bar
Product serie
Carbon
Serial model
6
Feature
Gen3
Series
Lazer Carbon
Shape
Ledbar
Width (mm)
315
Height (mm)
63
Depth (mm)
100
Weight (kg)
0.450
Beam type
Spot
Light type
LED
Lighting - Type
Driving Light
Light color
White
Color temperature
5000K
E-mark
yes
Glass color
Clear
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
IP rating
IP68
Lumen
Normal: 2340 / Power: 9360
Light distance (m) at 1 lux
Normal: 344m / Power: 768m
Light distance (m) at 0.25 lux
Normal: 687m / Power: 1536m
Voltage
12V
18V
24V
30V
number of pins
4 pins
Connector

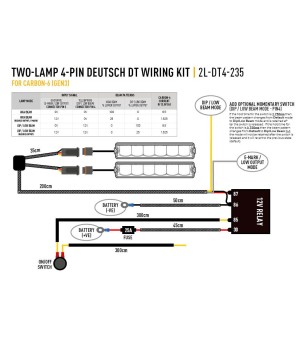

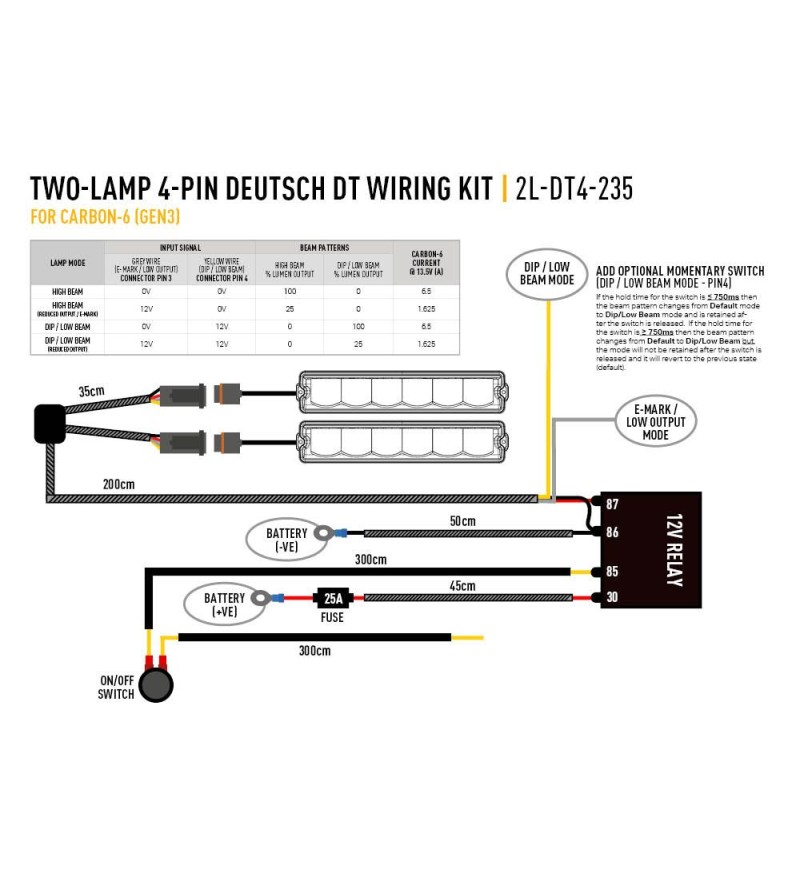

Deutsch DT
Sales unit
Single item
Standard Delivery time
1-3 business days
