LED Light bar - Lazer - Carbon 6 - 12'' - Gen3 - Driving

LED Light bar - Lazer - Carbon 6 - 12'' - Gen3 - Driving

€594.95 (tax incl.)

€491.69 (tax excl.)

  • Reference: 00C6-DRIVE-G3
  • Producttype: LED Light bar

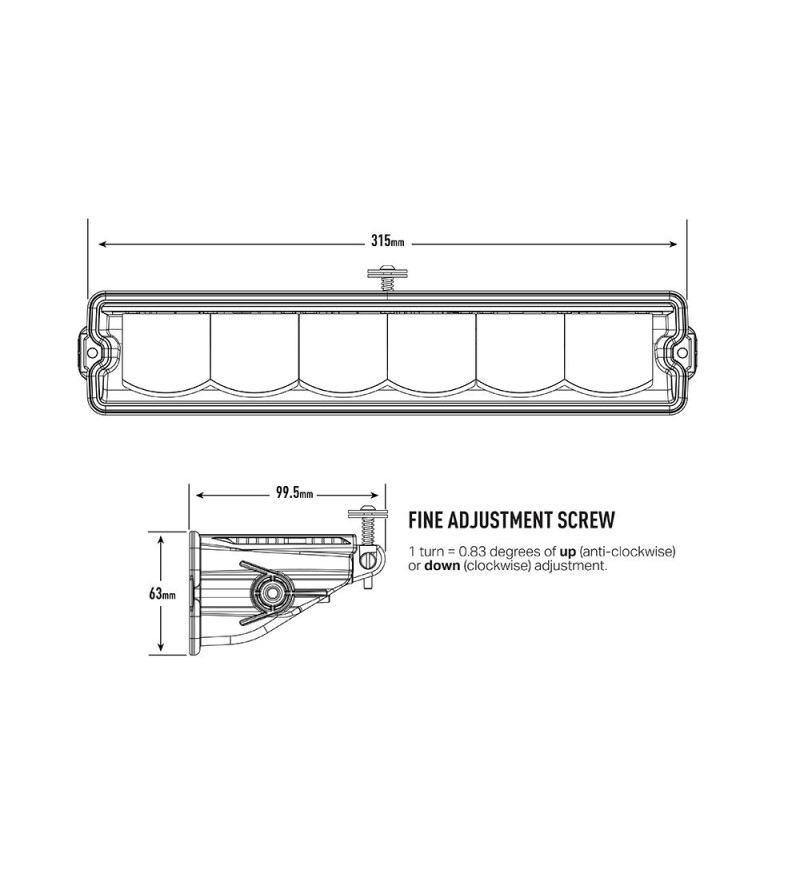

  • Dimensions (mm): 315 (w) x 63 (h) x 100 (d)
  • E-mark: yes
  • Beam type: Driving
  • Sales unit: Single item
  • Standard Delivery time: 1-3 business days
The Lazer Carbon 6 Driving (Gen 3) is a powerful LED light bar that brightens every ride. With its modern design and bright beams, it provides optimal visibility for adventurous journeys in any environment.
...Continue

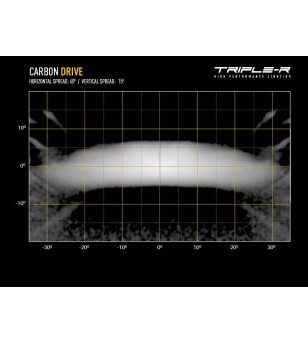

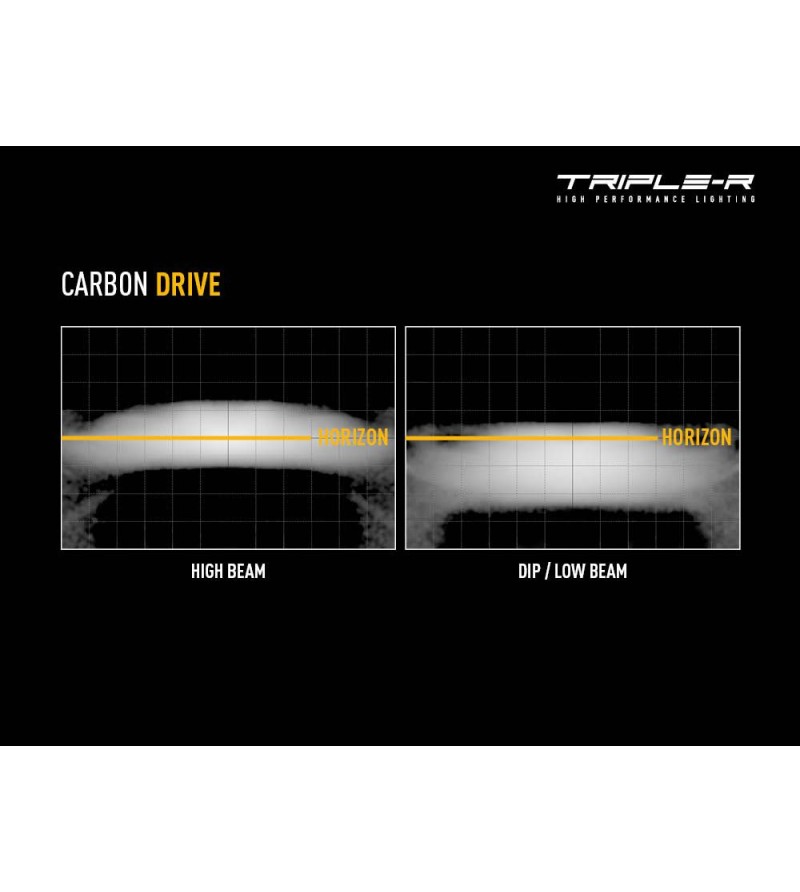

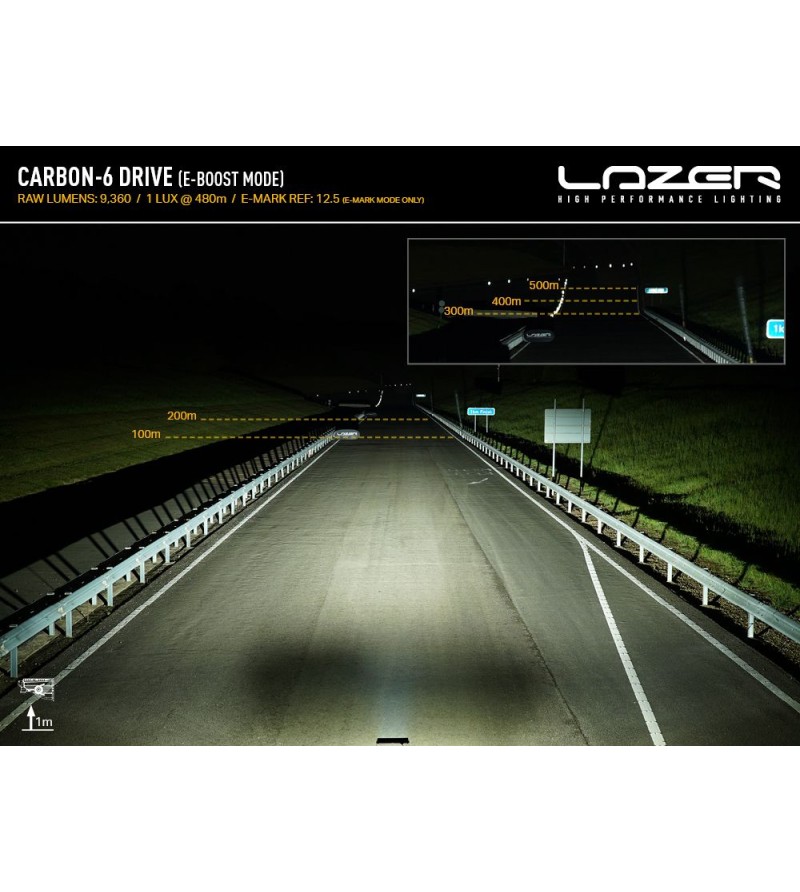

Driving Beam Pattern

Quantity

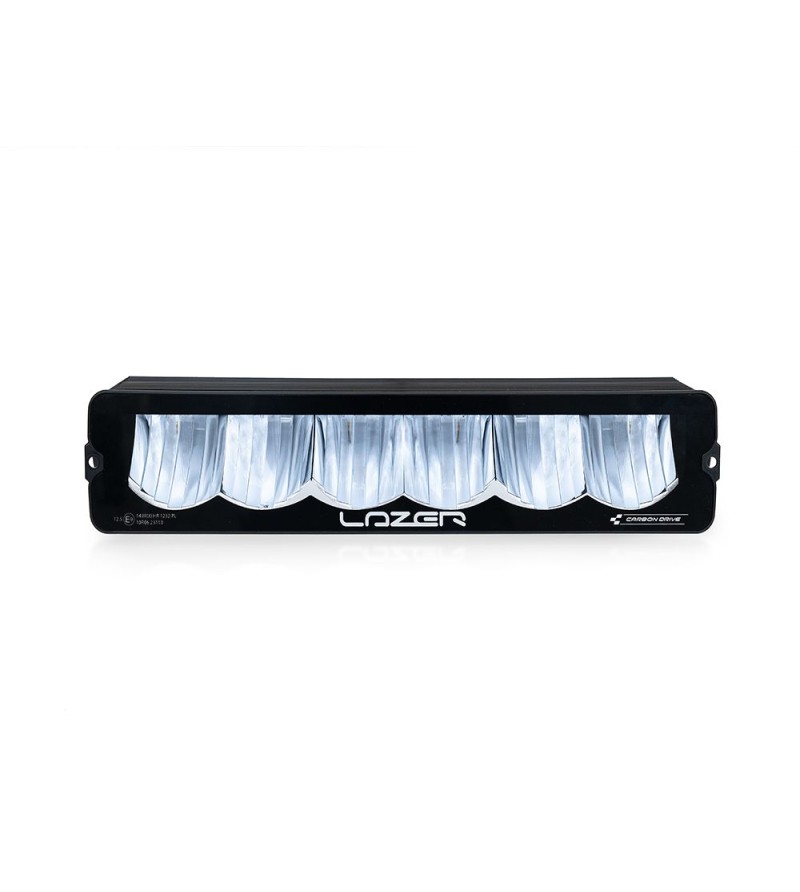

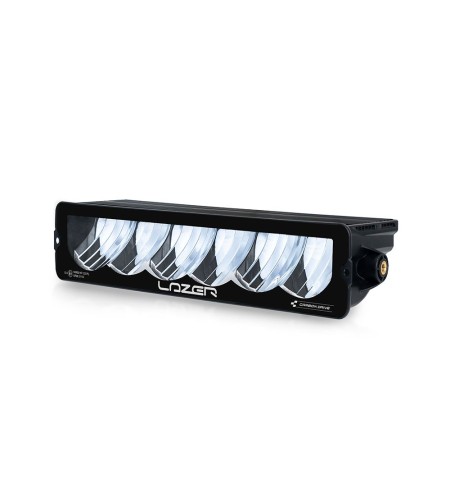

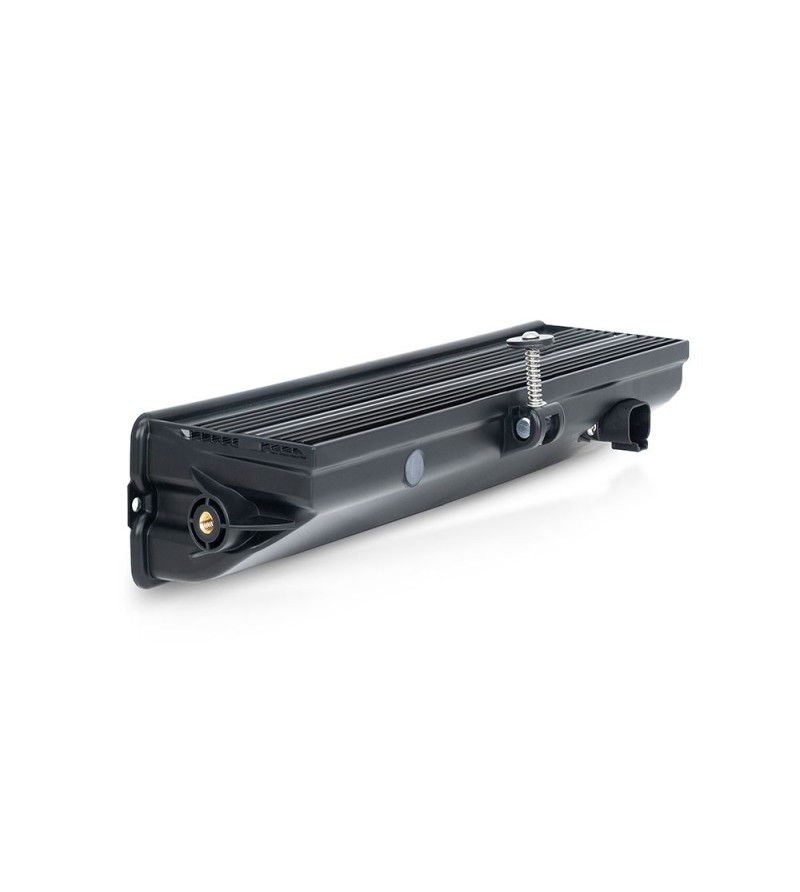

Lazer Carbon-6 Drive (Gen3)

What's included:

  • 1x Lazer Carbon-6 Drive (Gen3)

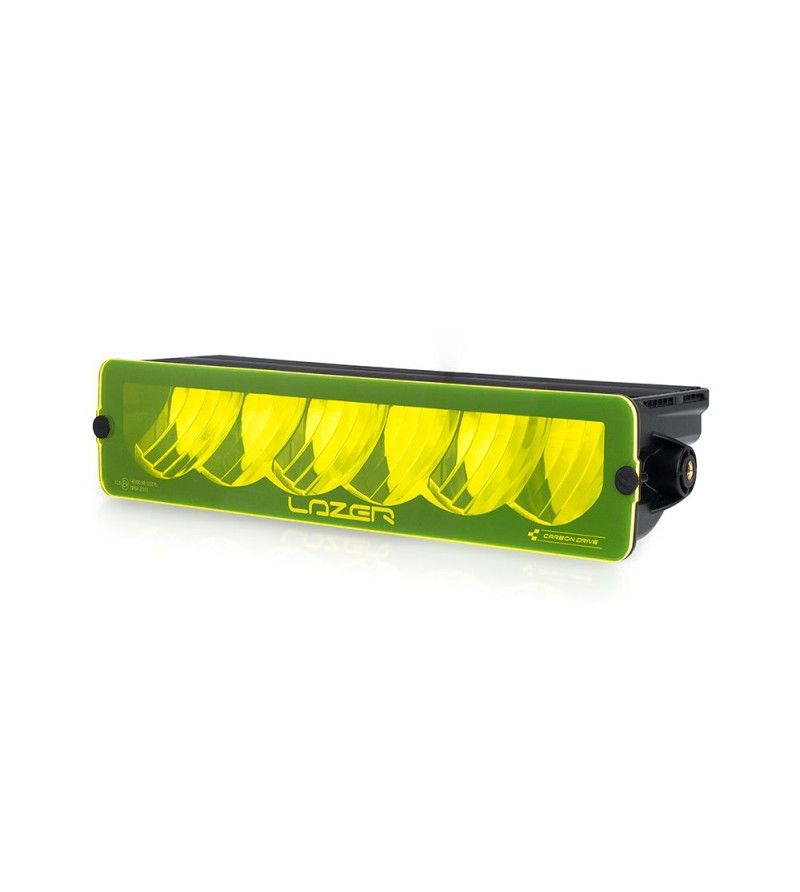

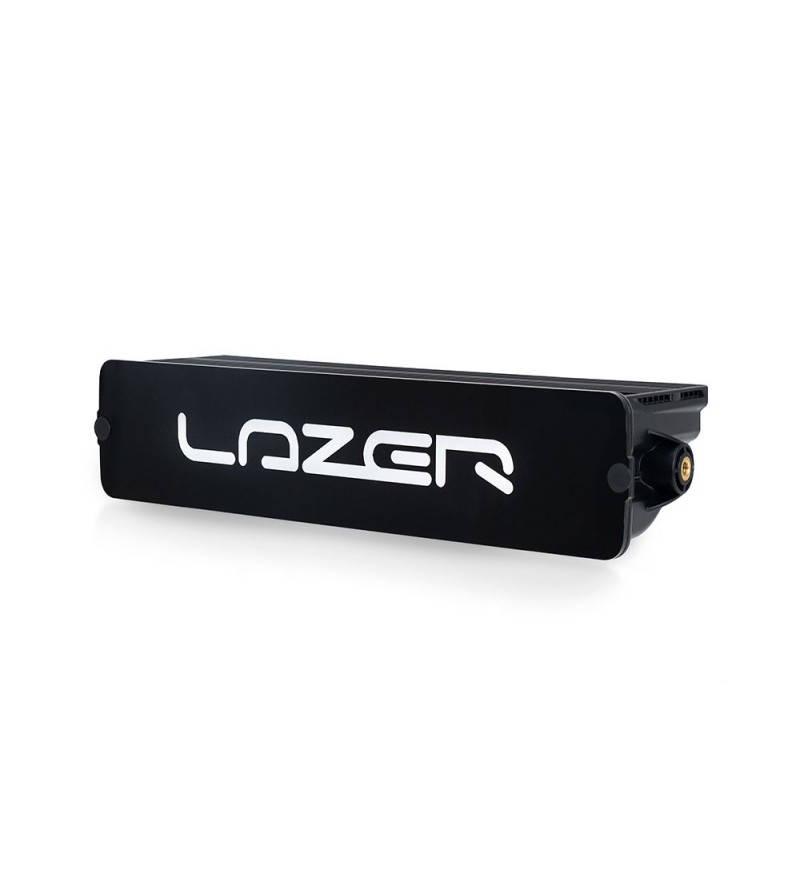

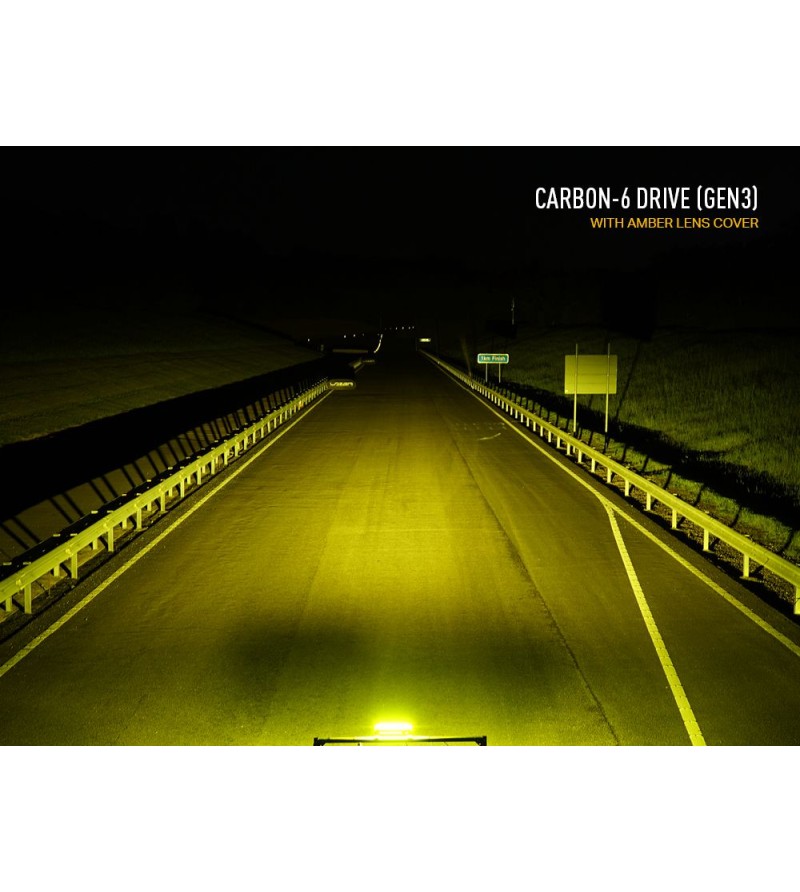

  • 1x Amber Lens Cover
  • 1x Black Lens Cover
  • 1x Installation Manual

Carbon Series

Now in its 3rd generation, the Carbon Series LED driving lights represent years of continued development and testing at the very highest levels of professional rally, track, and off-road motorsport. The re-design and re-engineering of the products deliver more light, less weight, greater functionality, and ease of fitment.

Technical specifications and features:

  • Voltage Range (DC): 10-32V
  • LED Life: 50,000 hours
  • Weight: 450 g
  • Total Luminous Flux: 2340 / 9360 Lm
  • Total Driver 'FOV' Flux †: 1380 / 5520 Lm
  • Color Temperature: 5000K
  • Number of High Output LEDs: 36
  • Power Consumption: 85W
  • Current Draw (at 14.4V): 5.9A
  • High Beam: (boost)N/A / ECE R149
  • E-Mark Ref: (boost)N/A / 12.5
  • Width: 315 mm
  • Depth: 99 mm
  • Height: 63 mm

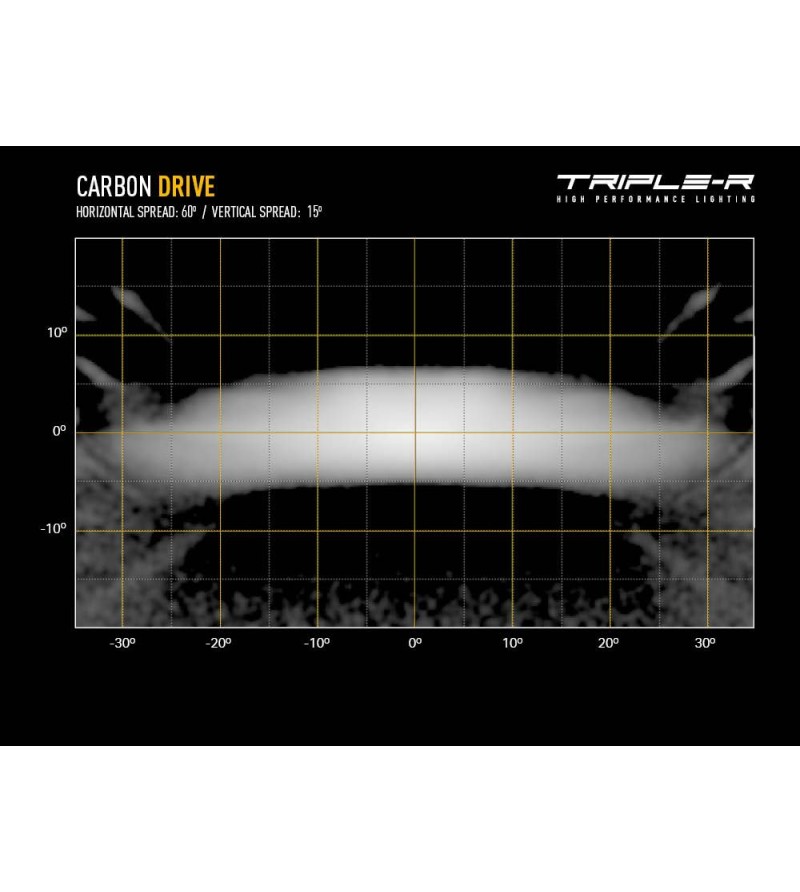

  • Horizontal Beam Angle: 60°

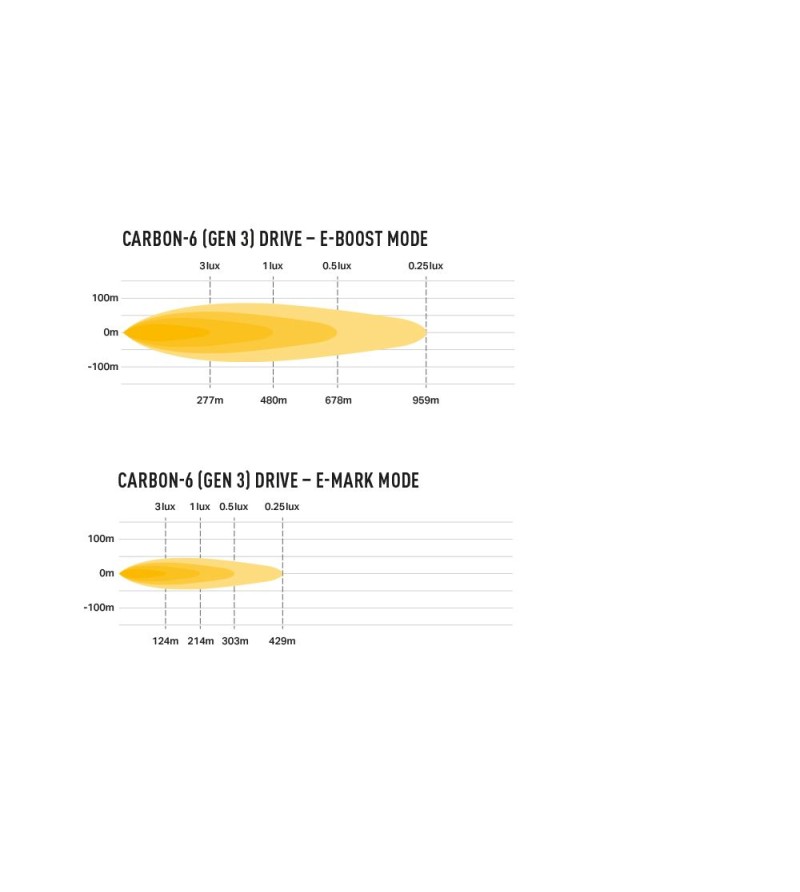

  • 0.25 lux Line: 429 m / 959 m
  • 0.5 lux Line: 303 m / 678 m
  • 1 lux Line: 214 m / 480 m
  • 3 lux Line: 124 m / 288 m
00C6-DRIVE-G3 5060404996595

Data sheet

Accessory
Lighting
Producttype
LED Light bar
Product serie
Carbon
Serial model
6
Feature
Gen3
Series
Lazer Carbon
Shape
Ledbar
Width (mm)
315
Height (mm)
63
Depth (mm)
100
Weight (kg)
0.450
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Light color
White
Color temperature
5000K
E-mark
yes
Glass color
Clear
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
IP rating
IP68
Lumen
Normal: 2340 / Power: 9360
Light distance (m) at 1 lux
Normal: 214m / Power: 480m
Light distance (m) at 0.25 lux
Normal: 429m / Power: 959m
Voltage
12V
18V
24V
30V
number of pins
4 pins

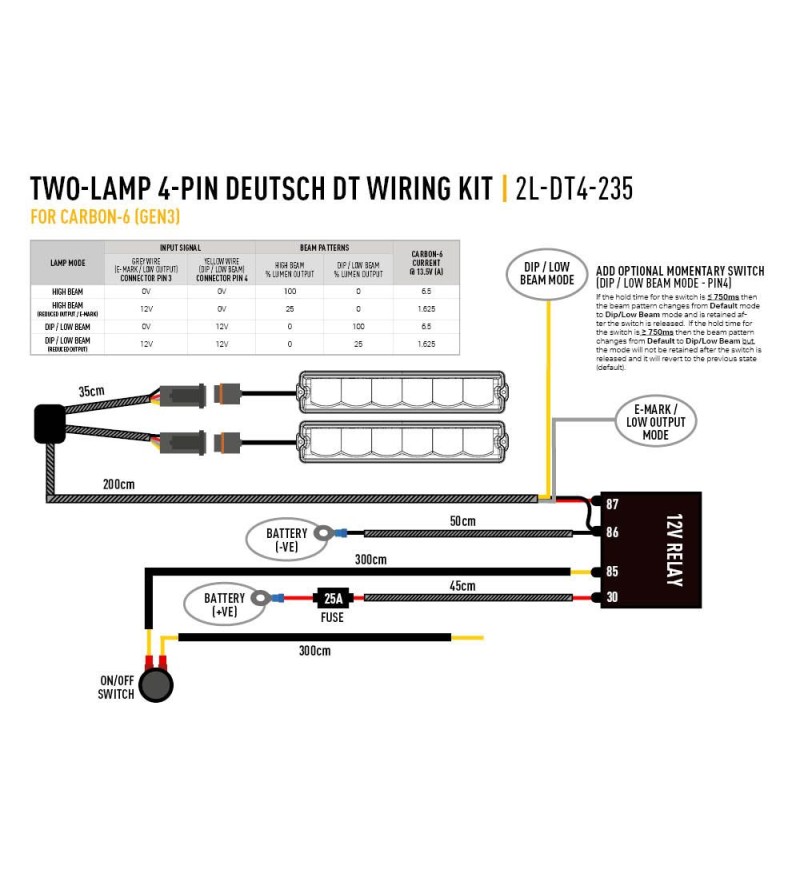

Connector
Deutsch DT
Sales unit
Single item
Standard Delivery time
1-3 business days
prodcat1
H
Shipping Size
S

Specific References
