LED Light bar - Lazer - Carbon 4 - 8'' - Gen3 - Spot
  • LED Light bar - Lazer - Carbon 4 - 8'' - Gen3 - Spot
  • LED Light bar - Lazer - Carbon 4 - 8'' - Gen3 - Spot
  • LED Light bar - Lazer - Carbon 4 - 8'' - Gen3 - Spot
  • LED Light bar - Lazer - Carbon 4 - 8'' - Gen3 - Spot
  • LED Light bar - Lazer - Carbon 4 - 8'' - Gen3 - Spot
  • LED Light bar - Lazer - Carbon 4 - 8'' - Gen3 - Spot
  • LED Light bar - Lazer - Carbon 4 - 8'' - Gen3 - Spot
  • LED Light bar - Lazer - Carbon 4 - 8'' - Gen3 - Spot
LED Light bar - Lazer - Carbon 4 - 8'' - Gen3 - Spot

LED Light bar - Lazer - Carbon 4 - 8'' - Gen3 - Spot

€459.95 (tax incl.)

€380.12 (tax excl.)

  • Reference: 00C4-SPOT-G3-SFIX
  • Producttype: LED Light bar
  • Dimensions (mm): 206 (w) x 63 (h) x 100 (d)
  • E-mark: yes
  • Beam type: Spot
  • Sales unit: Single item
  • Standard Delivery time: 1-3 business days
The Lazer Carbon 4 Spot (Gen 3) is a powerful LED light bar that brightens every ride. With its sleek design and bright light, it offers optimal visibility for adventurous journeys in challenging conditions.
...Continue

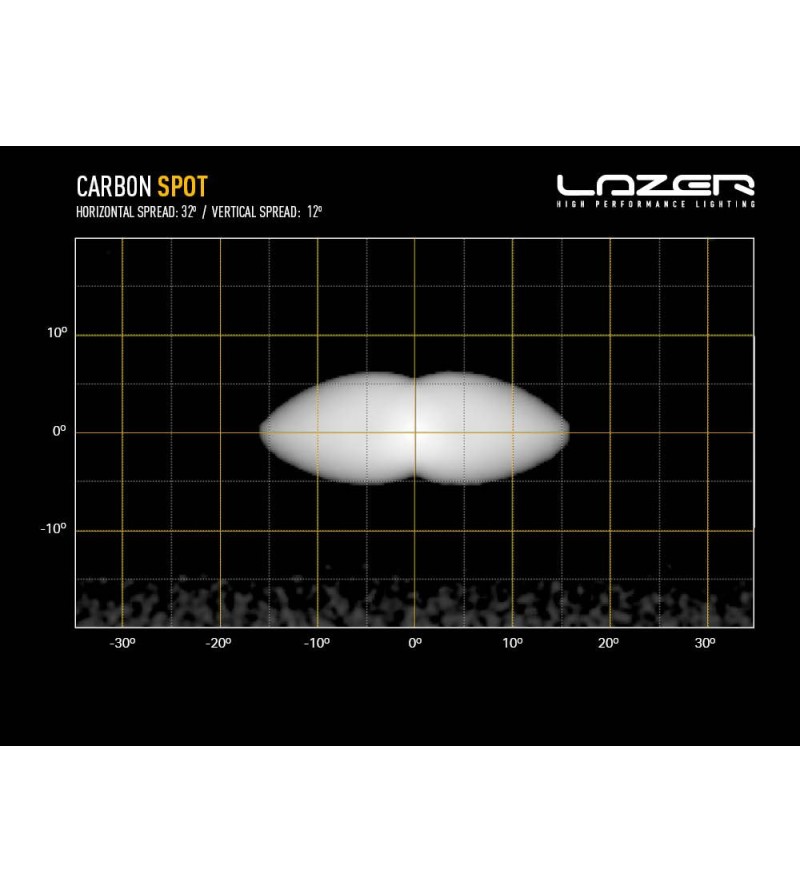

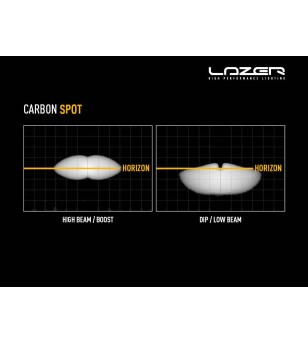

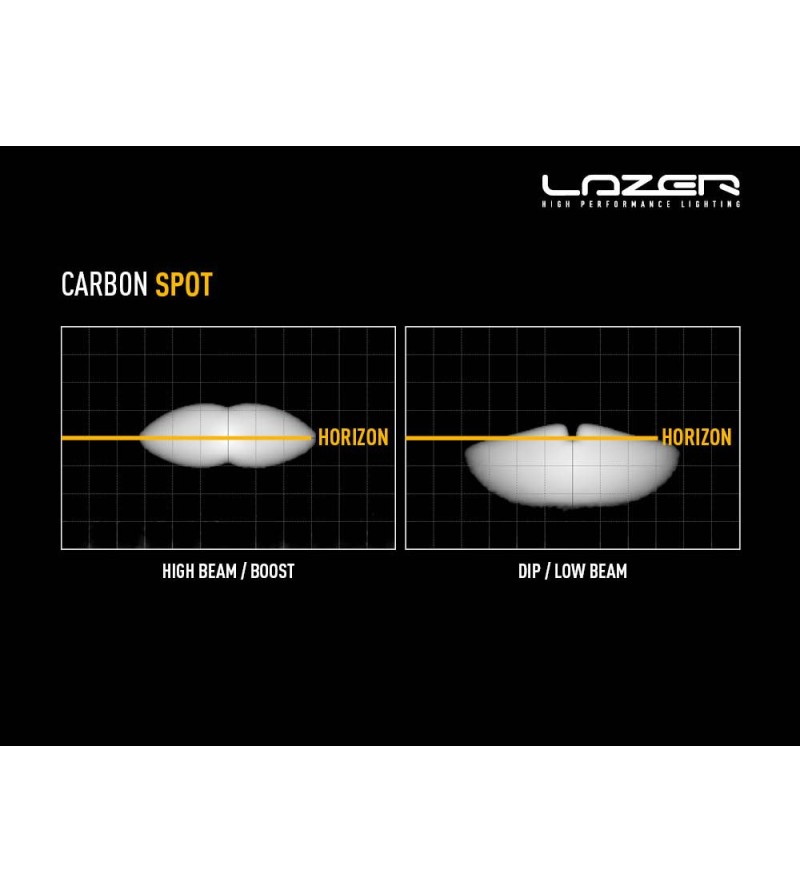

Spot Beam Pattern

Quantity

Lazer Carbon-4 Spot (Gen3)

What's included:

  • 1x Lazer Carbon-4 Spot (Gen3)
  • 1x Installation Manual

Carbon Series

Now in its 3rd generation, the Carbon Series LED driving lights represent years of continued development and testing at the very highest levels of professional rally, track, and off-road motorsport. The re-design and re-engineering of the products deliver more light, less weight, greater functionality, and ease of fitment.

Technical specifications and features:

  • Voltage Range (DC): 10-32V
  • LED Life: 50,000 hours
  • IP Rating: IP68
  • Weight: 355 g
  • Total Luminous Flux: 1384 / 6240 Lm
  • Total Driver 'FOV' Flux †: 919 / 3679 Lm
  • Color Temperature: 5000K
  • Number of High Output LEDs: 24 LEDs
  • Power Consumption: 14 W / 56 W
  • Peak Current Draw (11V): 1 A / 3.9 A
  • Current Draw (14.4V): 1.3 A / 5.25 A

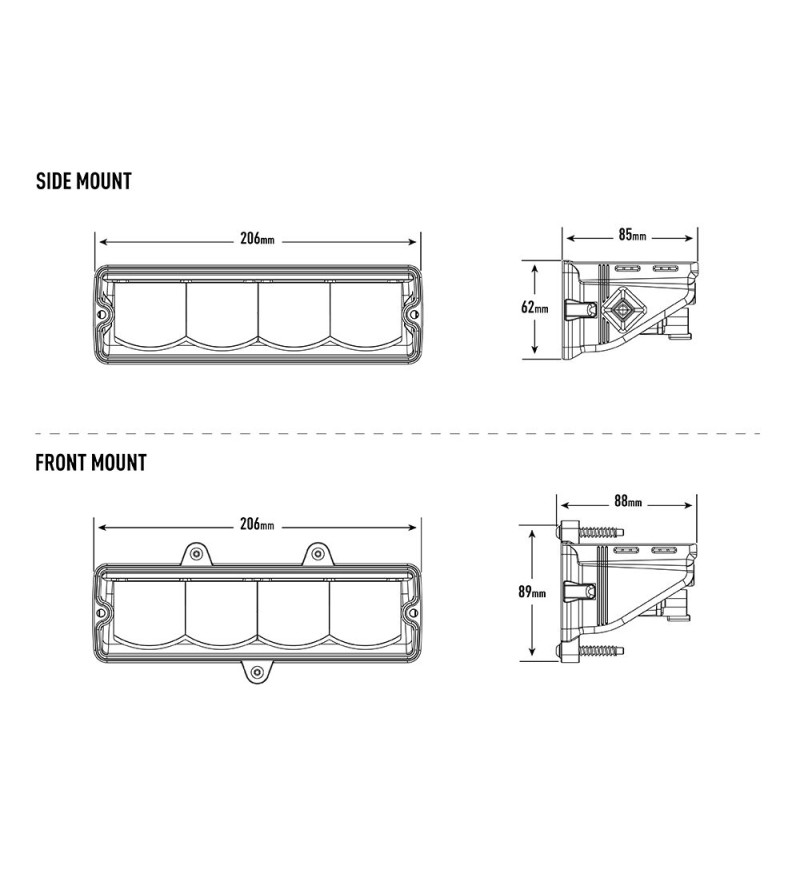

  • Width: 206 mm
  • Depth: 85 mm
  • Height: 62 mm
  • Horizontal Beam Angle: 32°

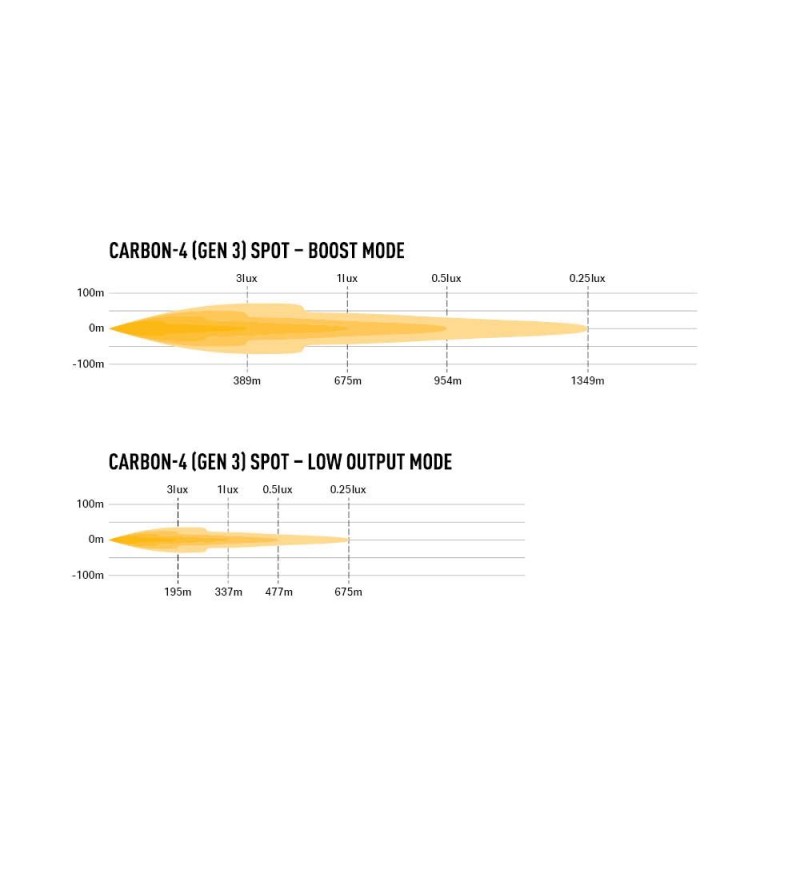

  • 0.25 lux Line: 675 m / 1349 m
  • 0.5 lux Line: 477 m / 954 m
  • 1 lux Line: 337 m / 675 m
  • 3 lux Line: 195 m / 389 m
00C4-SPOT-G3-SFIX 5061003761423

Data sheet

Accessory
Lighting
Producttype
LED Light bar
Product serie
Carbon
Serial model
4
Feature
Gen3
Series
Lazer Carbon
Shape
Ledbar
Width (mm)
206
Height (mm)
63
Depth (mm)
100
Weight (kg)
0.355
Beam type
Spot
Light type
LED
Lighting - Type
Driving Light
Light color
White
Color temperature
5000K
E-mark
yes
Glass color
Clear
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
IP rating
IP68
Lumen
6240
Light distance (m) at 1 lux
Normal: 337 / Power: 675
Light distance (m) at 0.25 lux
Normal: 675 / Power: 1349
Voltage
12V
18V
24V
30V
number of pins
4 pins
Connector
Deutsch DT
Sales unit
Single item
Standard Delivery time
1-3 business days
prodcat1
H
Shipping Size
S
