LED Light bar - Lazer - Carbon 4 - 8'' - Gen3 - Driving
  • LED Light bar - Lazer - Carbon 4 - 8'' - Gen3 - Driving
  • LED Light bar - Lazer - Carbon 4 - 8'' - Gen3 - Driving
  • LED Light bar - Lazer - Carbon 4 - 8'' - Gen3 - Driving
  • LED Light bar - Lazer - Carbon 4 - 8'' - Gen3 - Driving
  • LED Light bar - Lazer - Carbon 4 - 8'' - Gen3 - Driving
  • LED Light bar - Lazer - Carbon 4 - 8'' - Gen3 - Driving
  • LED Light bar - Lazer - Carbon 4 - 8'' - Gen3 - Driving
  • LED Light bar - Lazer - Carbon 4 - 8'' - Gen3 - Driving
LED Light bar - Lazer - Carbon 4 - 8'' - Gen3 - Driving

LED Light bar - Lazer - Carbon 4 - 8'' - Gen3 - Driving

€459.95 (tax incl.)

€380.12 (tax excl.)

  • Reference: 00C4-DRIVE-G3-SFIX
  • Producttype: LED Light bar
  • Dimensions (mm): 206 (w) x 63 (h) x 100 (d)
  • E-mark: yes
  • Beam type: Driving
  • Sales unit: Single item
  • Standard Delivery time: 1-3 business days
The Lazer Carbon 4 Drive (Gen 3) is an innovative LED light bar that illuminates every ride. With its futuristic design and powerful brightness, it's perfect for adventure, off-road, and rally
...Continue

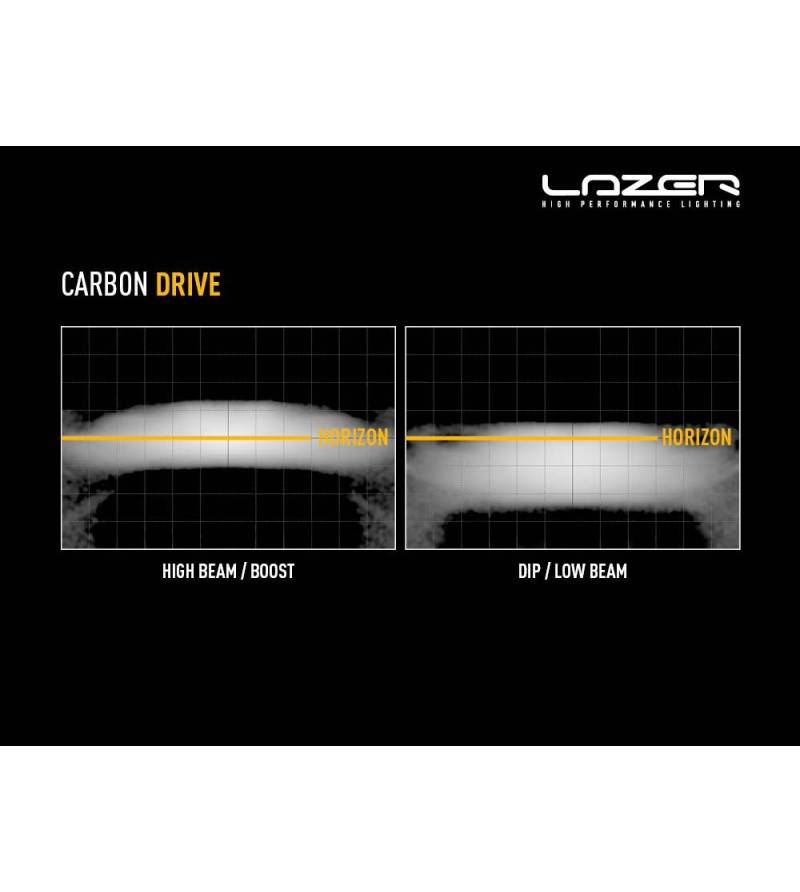

Driving Beam Pattern

Quantity

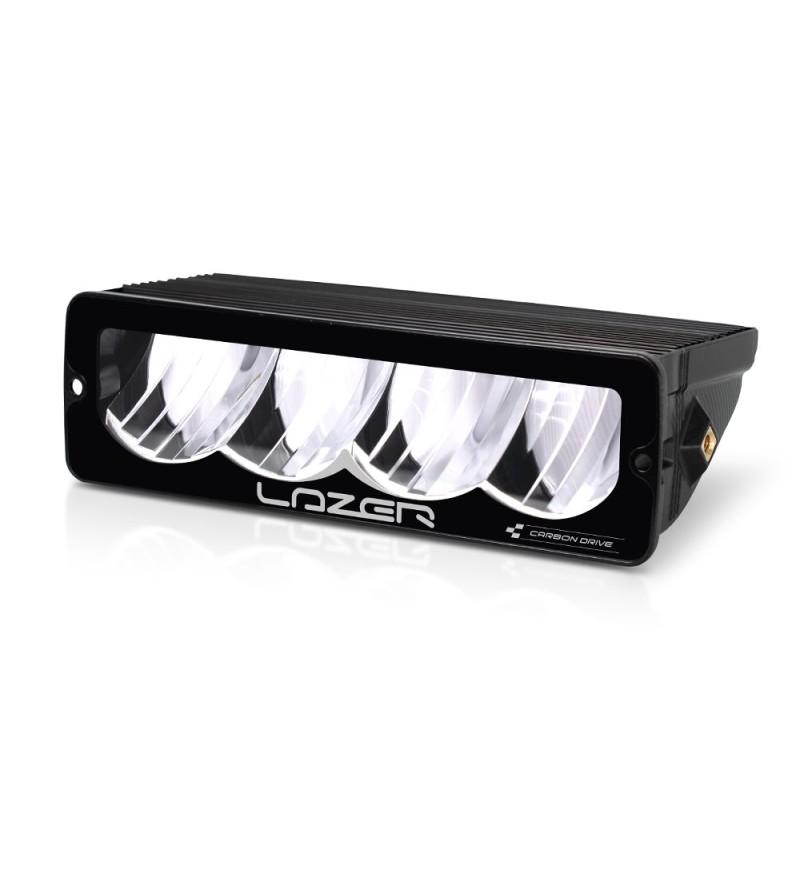

Lazer Carbon-4 Drive (Gen3)

What's included:

  • 1x Carbon-4 Drive (Gen3)
  • 1x Installation Manual

Carbon Series

Now in its 3rd generation, the Carbon Series LED driving lights represent years of continued development and testing at the very highest levels of professional rally, track, and off-road motorsport. The re-design and re-engineering of the products deliver more light, less weight, greater functionality, and ease of fitment.

Technical specifications and features:

  • Voltage Range (DC): 10-32V
  • LED Life: 50,000 hours
  • IP Rating: IP68
  • Weight: 355 g
  • Total Luminous Flux: 1384 / 6240 Lm
  • Total Driver 'FOV' Flux †: 918 / 3673 Lm
  • Color Temperature: 5000K
  • Number of High Output LEDs: 24 LEDs
  • Power Consumption: 14 W / 56 W
  • Peak Current Draw (11V): 1 A / 3.9 A
  • Current Draw (14.4V): 1.3 A / 5.25 A

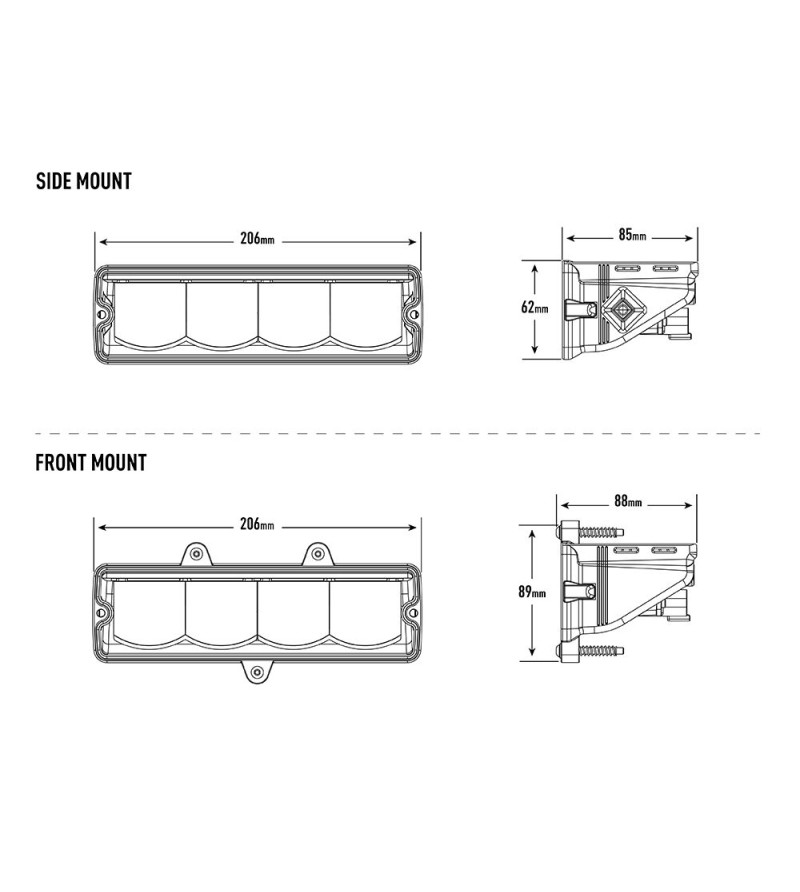

  • Width: 206 mm
  • Depth: 85 mm
  • Height: 62 mm

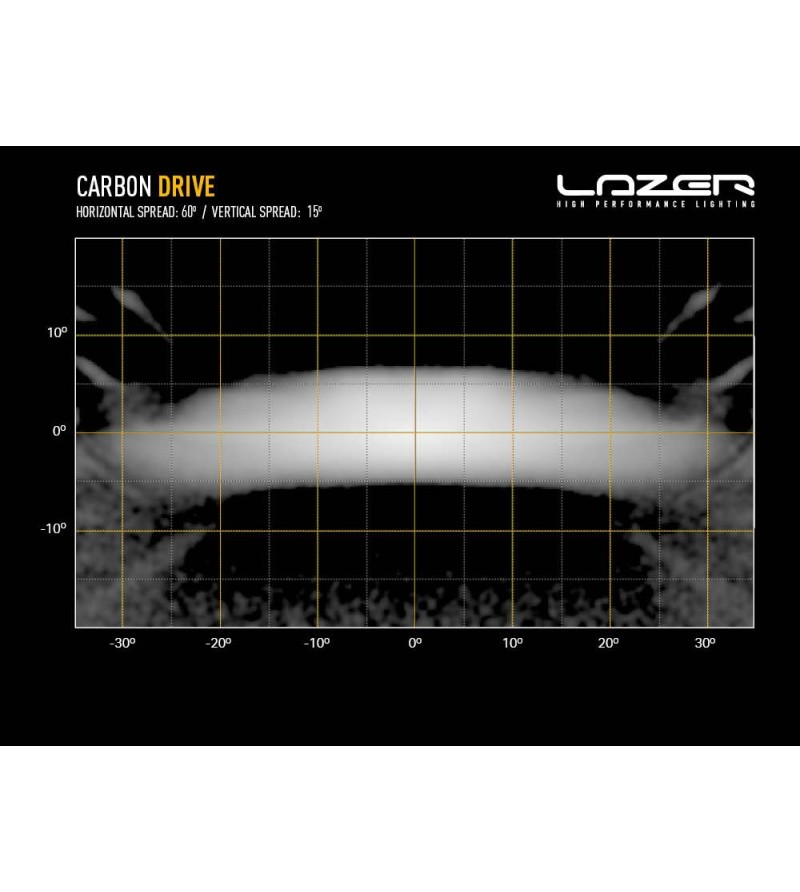

  • Horizontal Beam Angle: 60°

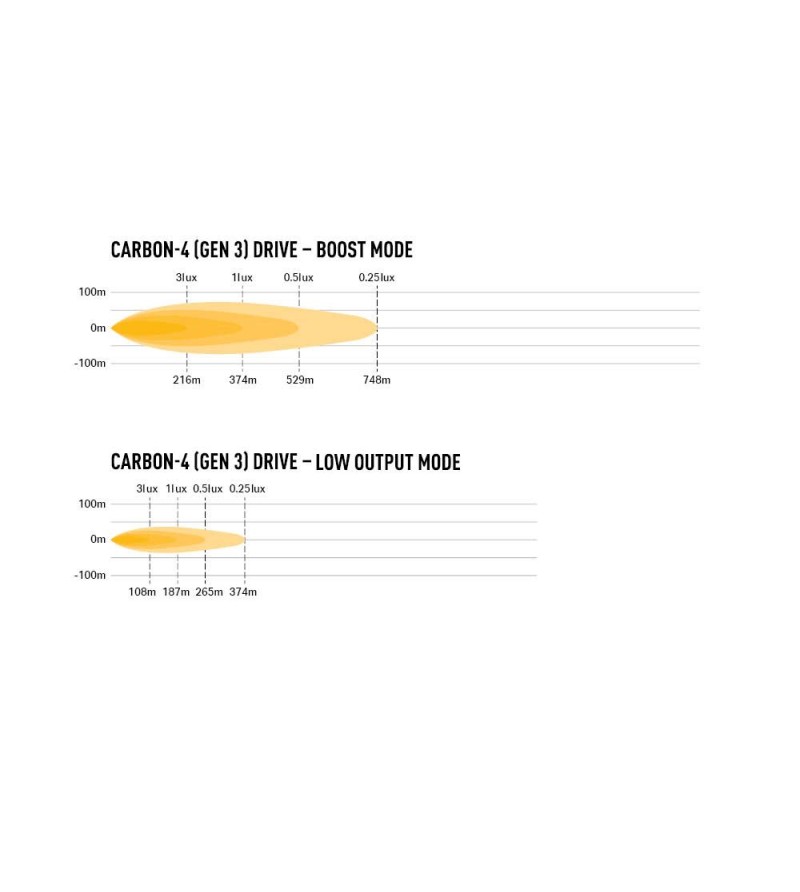

  • 0.25 lux Line: 374 m / 748 m
  • 0.5 lux Line: 265 m / 529 m
  • 1 lux Line: 187 m / 374 m
  • 3 lux Line: 108 m / 216 m
00C4-DRIVE-G3-SFIX 5061003761447

Data sheet

Accessory
Lighting
Producttype
LED Light bar
Product serie
Carbon
Serial model
4
Feature
Gen3
Series
Lazer Carbon
Shape
Ledbar
Width (mm)
206
Height (mm)
63
Depth (mm)
100
Weight (kg)
0.355
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Light color
White
Color temperature
5000K
E-mark
yes
Glass color
Clear
Housing color
black
Housing material
Aluminum
Lamp rim color
black
Lamp rim material
Aluminum
IP rating
IP68
Lumen
6240
Light distance (m) at 1 lux
Normal: 187 / Power: 374
Light distance (m) at 0.25 lux
Normal: 374 / Power: 748
Voltage
12V
18V
24V
30V

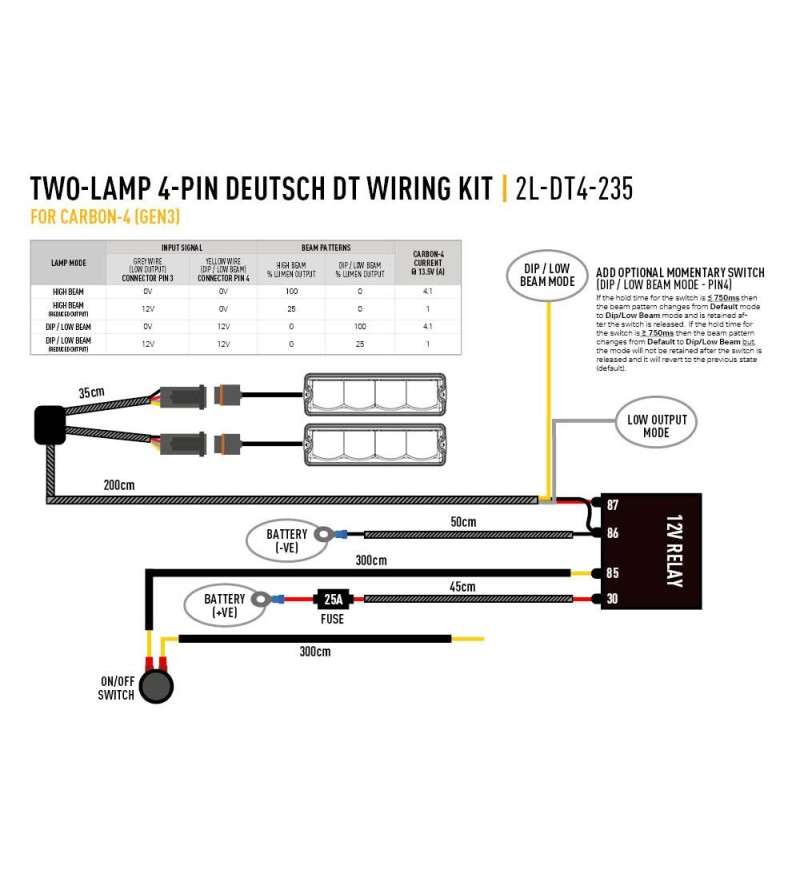

number of pins
4 pins
Connector
Deutsch DT
Sales unit
Single item
Standard Delivery time
1-3 business days
prodcat1
H
Shipping Size
S
