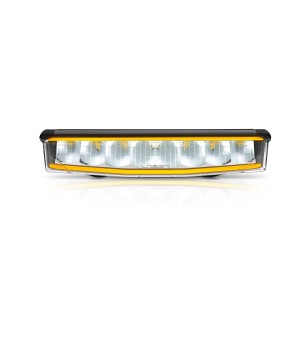

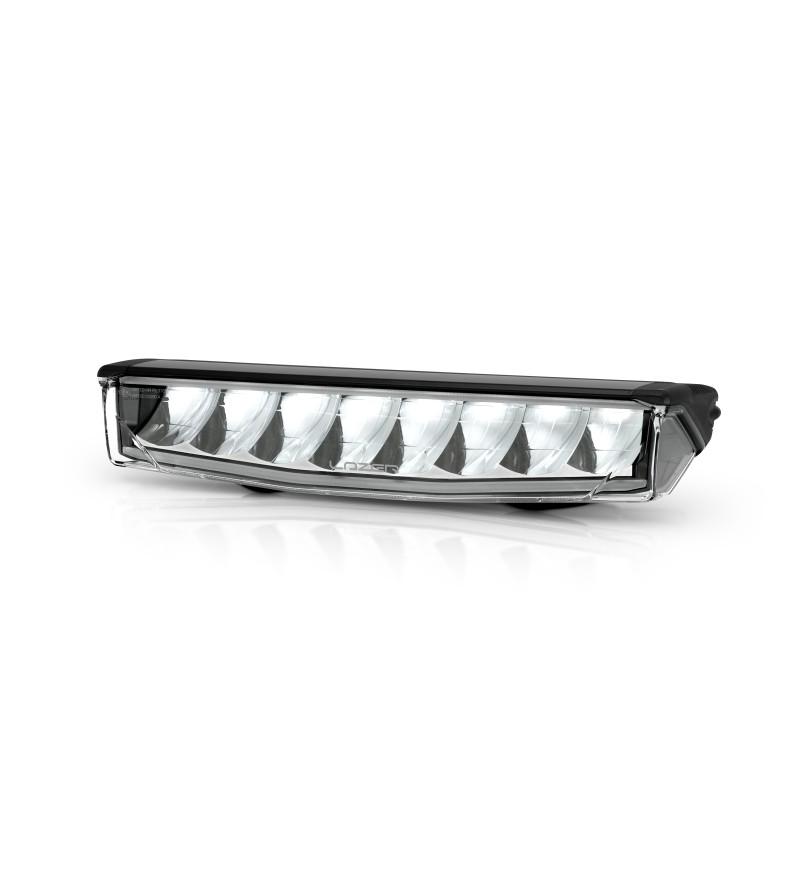

LED Light bar - Lazer - Air 90 - 16" - Position light White/Amber - Driving

LED Light bar - Lazer - Air 90 - 16" - Position light White/Amber - Driving

€469.95 (tax incl.)

€388.39 (tax excl.)

  • Reference: 0A90-B
  • Producttype: LED Light bar

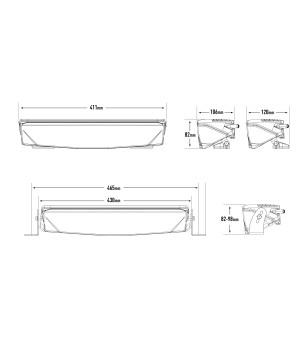

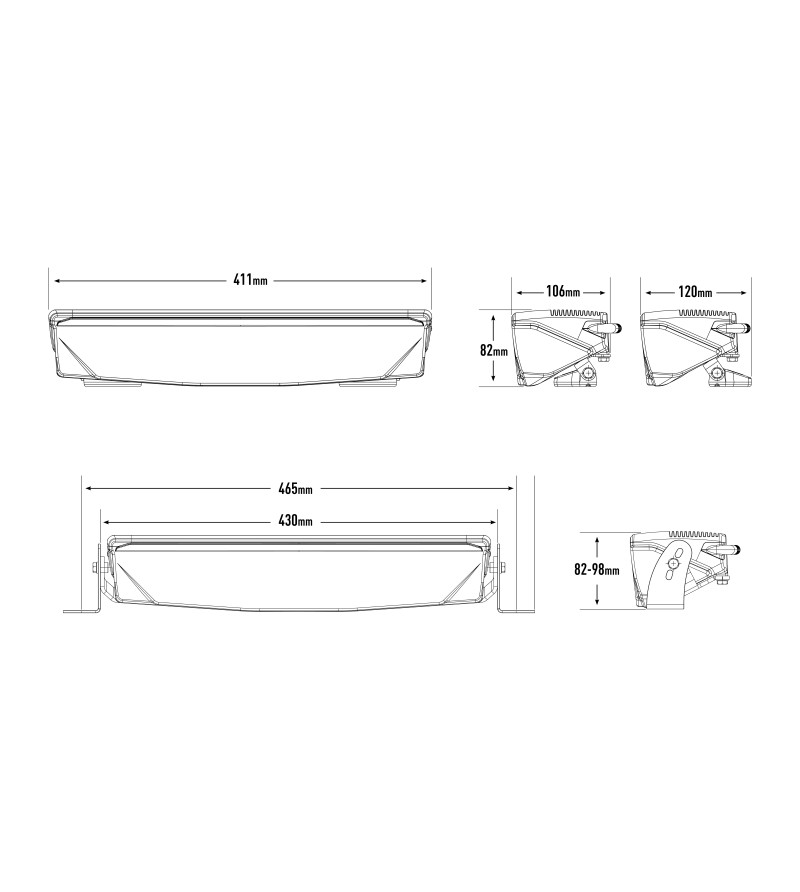

  • Dimensions (mm): 411 (w) x 82 (h) x 106 (d)
  • E-mark: yes

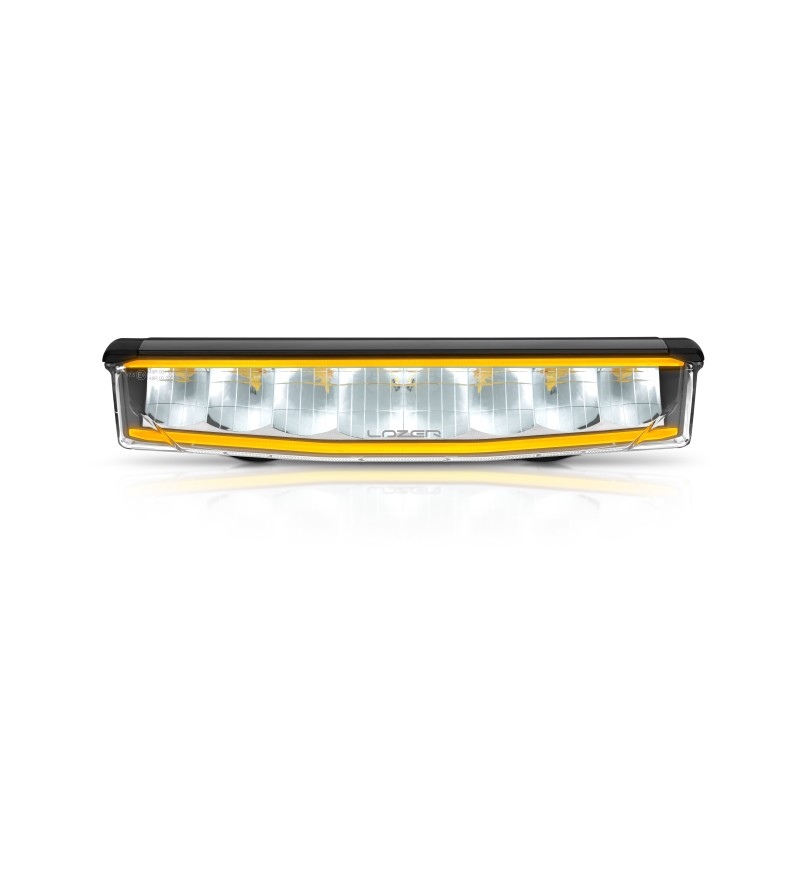

  • Position Light Color: White/Amber
  • Beam type: Driving
  • Sales unit: Single item

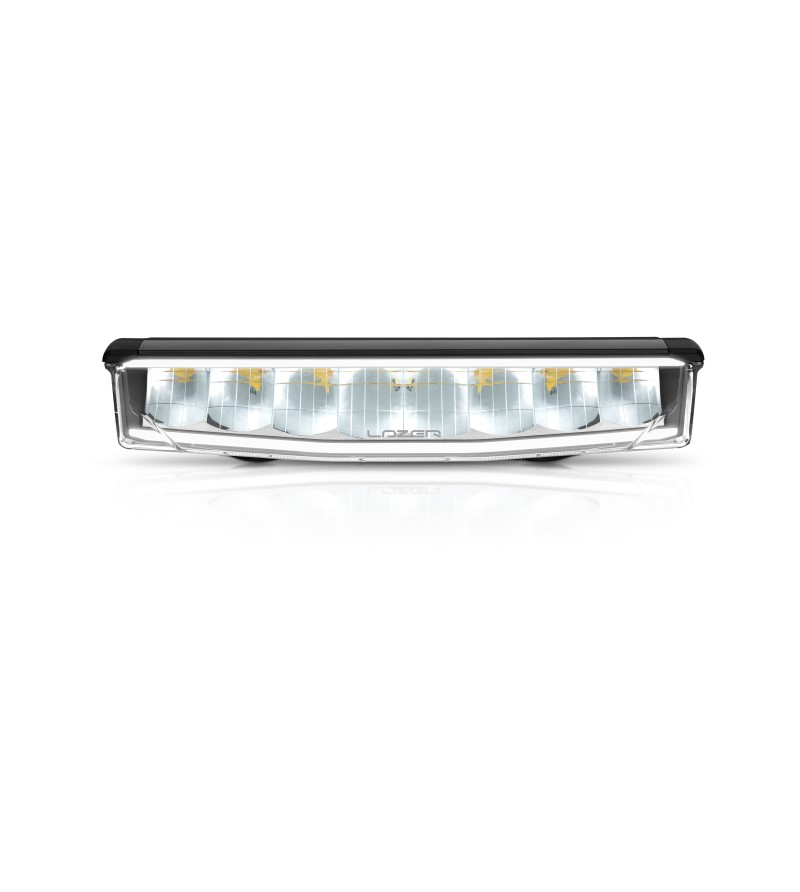

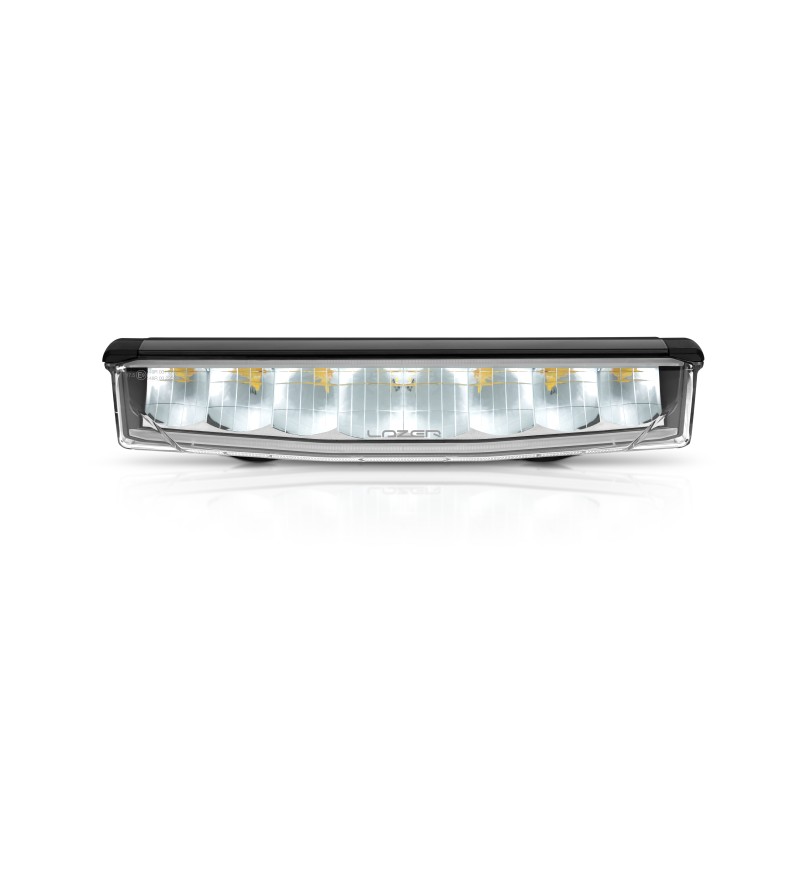

The Lazer Air 90 LED bar, 16 inches long, provides powerful lighting with white and amber position lights. This stylish and robust bar is perfect for any ride, enhancing your vehicle's visibility and modern appearance. Illuminate the road safely.
...Continue

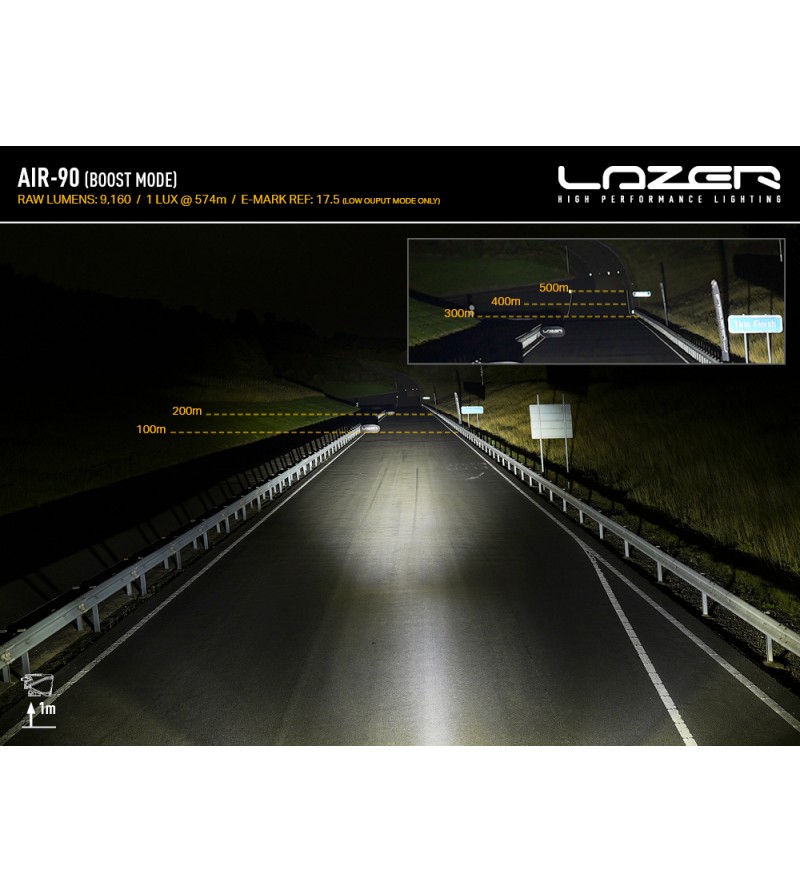

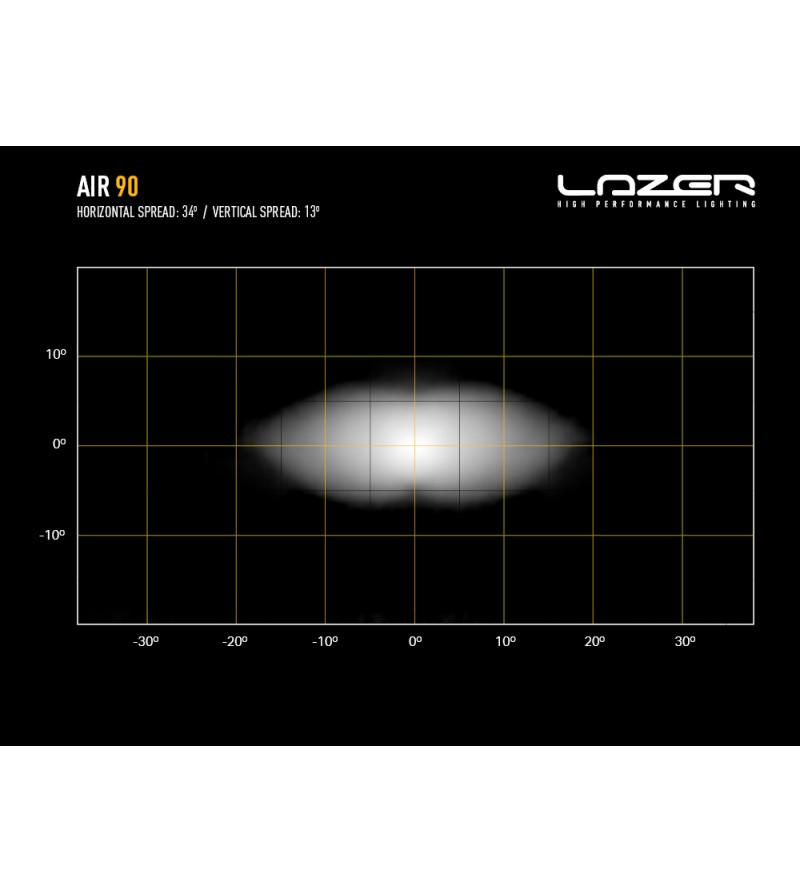

Driving Beam Pattern

Quantity

Lazer AIR-90

What is included:

  • 1x Lazer AIR-90
  • 1x Connector Plug
  • 1x Installation Manual

Technical data and features:

  • Voltage Range: 10-32V
  • LED Life: 50,000 hours
  • Weight: 1.65 kg
  • Lumen: 2290/9160
  • Total Driver 'FOV' Flux†: 1557/6229
  • Kelvin: 5000K
  • Power Consumption: 21.5 Watts/90 Watts
  • Peak Current Draw: 8 Amps
  • Current Draw (at 14.4V): 1.5 Amps/6.3 Amps
  • Width: 411 mm
  • Depth: 105 mm
  • Height: 81 mm
  • High Beam (E9 approval): Low output mode only - ECE R149 - Ref 17.5
  • Position Light (White only): ECE R148
  • EMC Standard: ECE R10
  • IP Rating: IP68
  • Dump Load Protection: ISO 7637-2

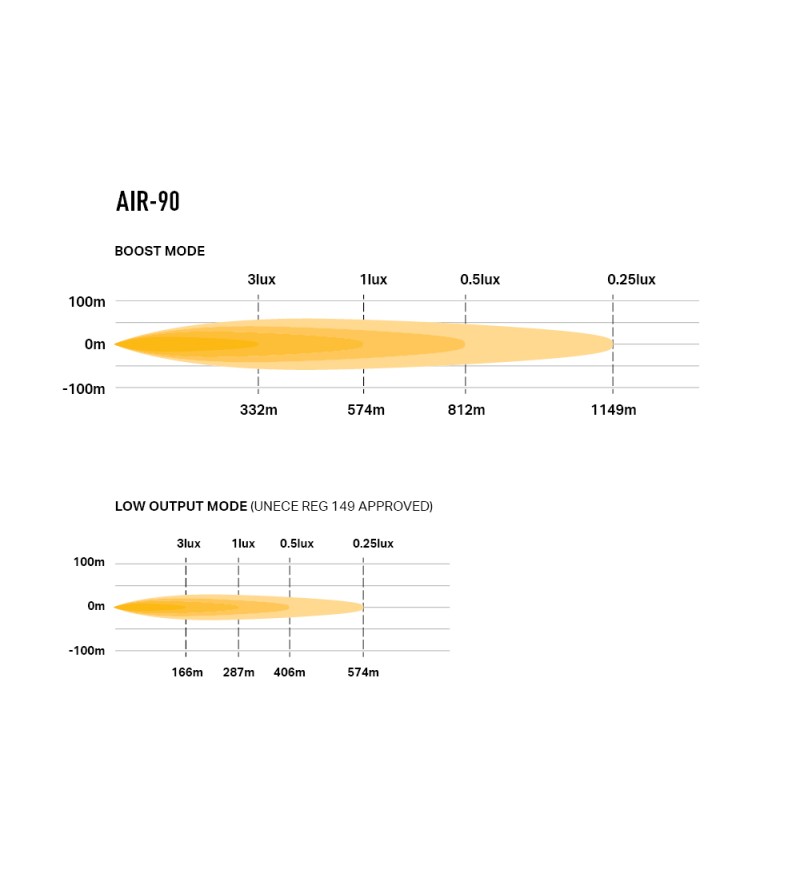

  • Horizontal / Vertical Beam Angle: 34º / 13º
  • 0.25 Lux: 574 m / 1149 m
  • 0.5 Lux: 406 m / 812 m
  • 1 Lux: 287 m / 574 m
  • 3 Lux: 166 m / 332 m
0A90-B 5061003763175

Data sheet

Accessory
Lighting
Producttype
LED Light bar
Product serie
Air
Serial model
90
Series
Lazer Air
Size ( Ø / ↔ )
2) Medium
Shape
Ledbar
Width (mm)
411
Height (mm)
82
Depth (mm)
106
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Position light
Position light
Color of position light
Amber
White
E-mark
yes
IP rating
IP68
Lumen
9160
Light distance (m) at 1 lux
574
Voltage
12V
18V
24V
30V
number of pins
3 pins
Connector
Superseal
Sales unit
Single item
prodcat1
H
Shipping Size
S

Specific References
