LED Light bar - Lazer - Air 55 - 16" - Position light White/Amber - Driving
LED Light bar - Lazer - Air 55 - 16" - Position light White/Amber - Driving

LED Light bar - Lazer - Air 55 - 16" - Position light White/Amber - Driving

€344.95 (tax incl.)

€285.08 (tax excl.)

  • Reference: 0A55-B
  • Producttype: LED Light bar

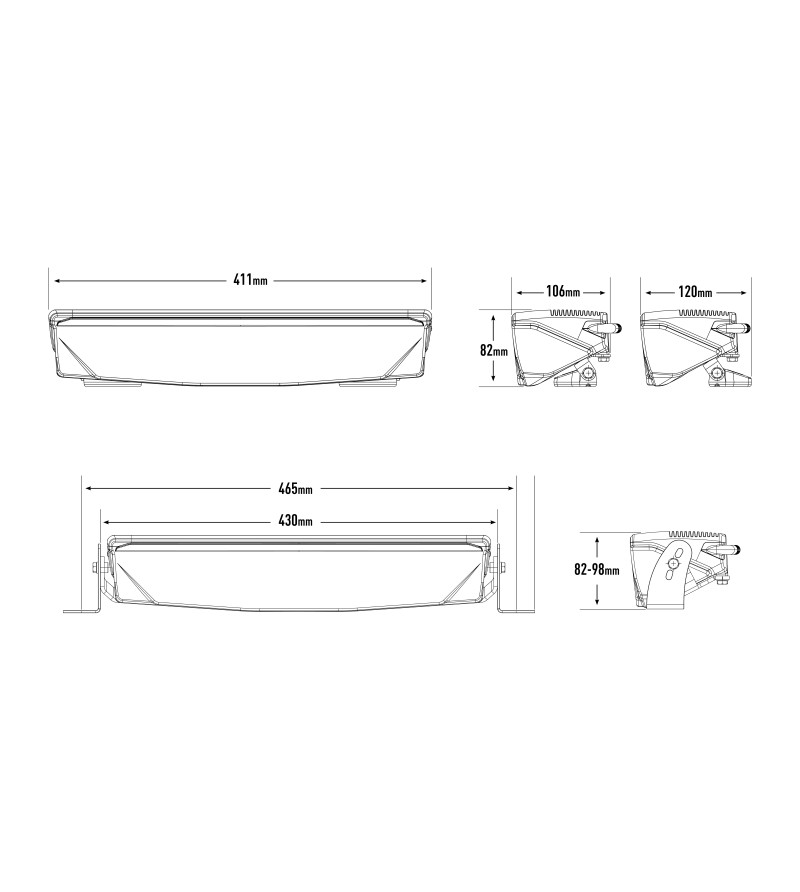

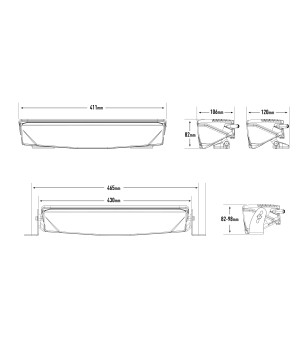

  • Dimensions (mm): 411 (w) x 82 (h) x 106 (d)
  • E-mark: yes

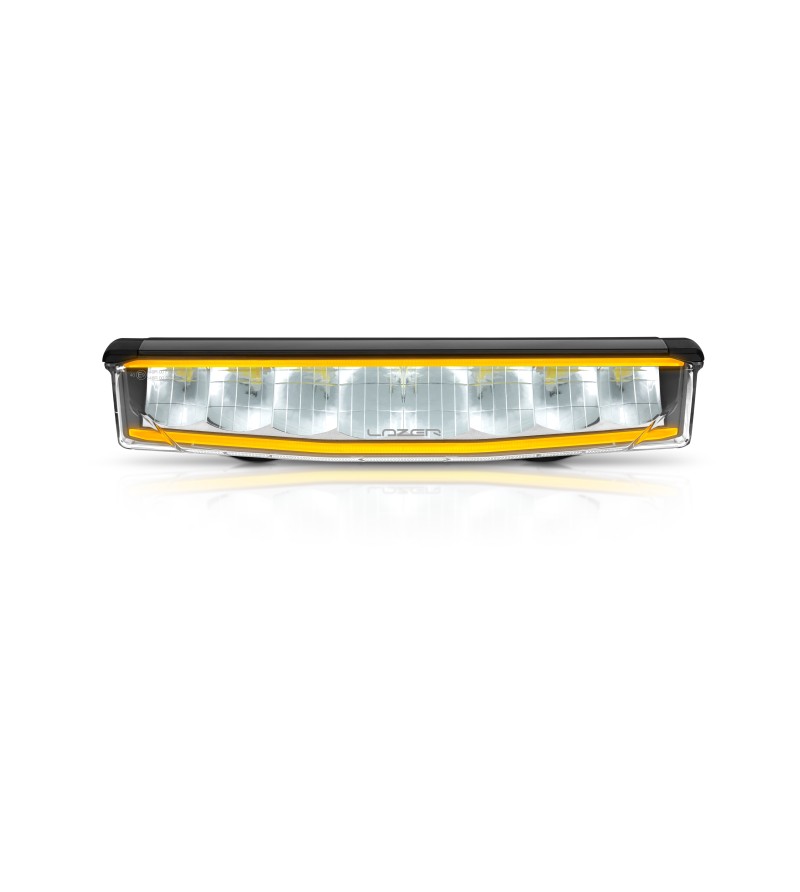

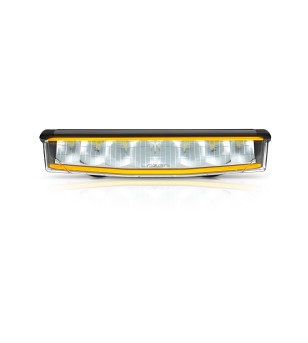

  • Position Light Color: White/Amber
  • Beam type: Driving
  • Sales unit: Single item

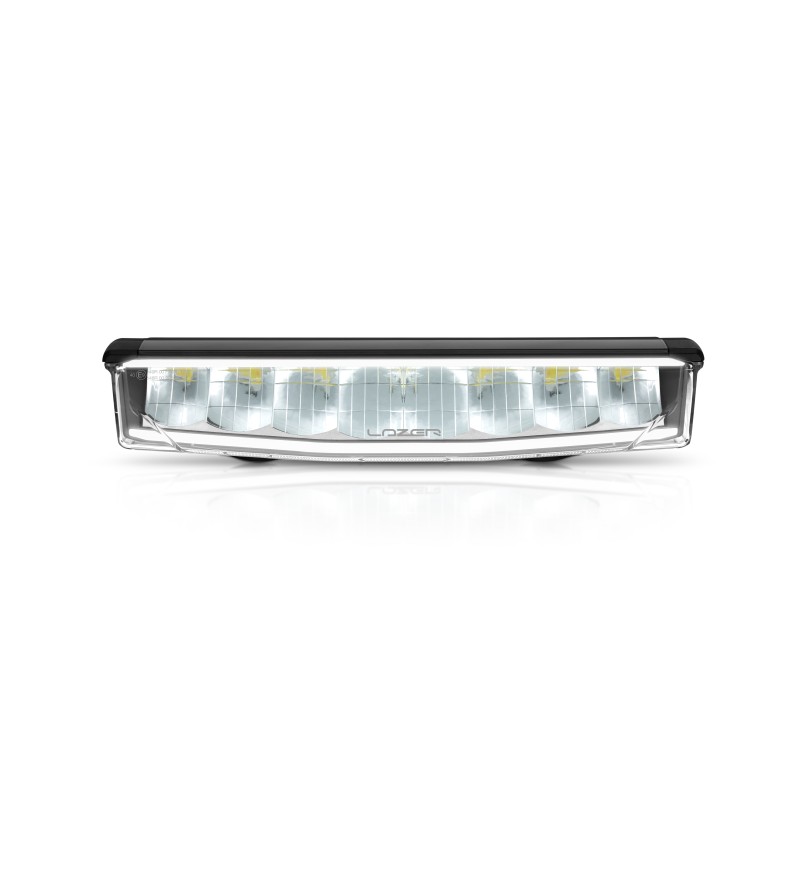

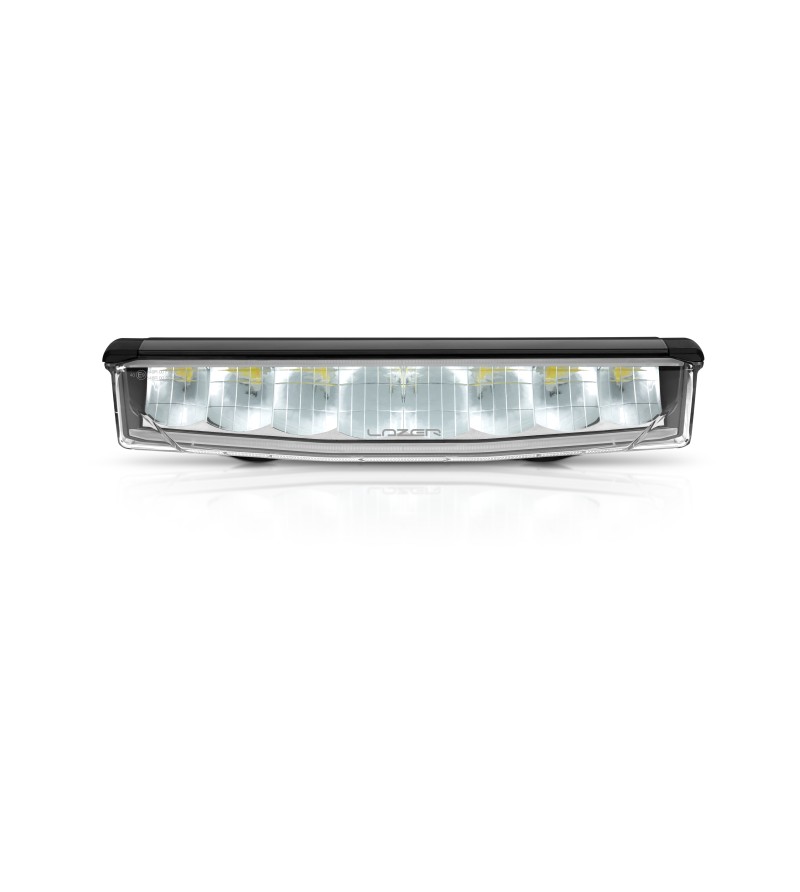

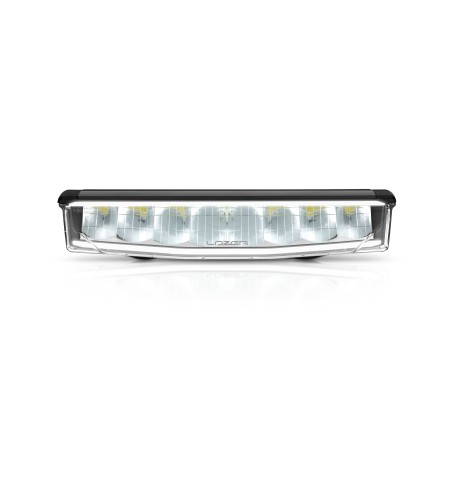

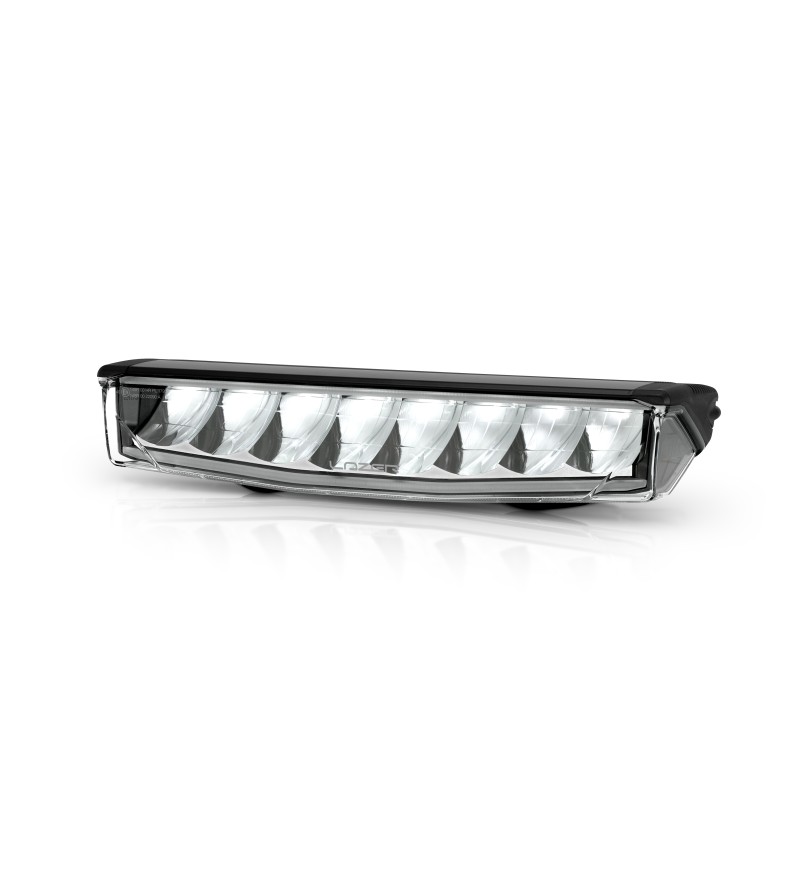

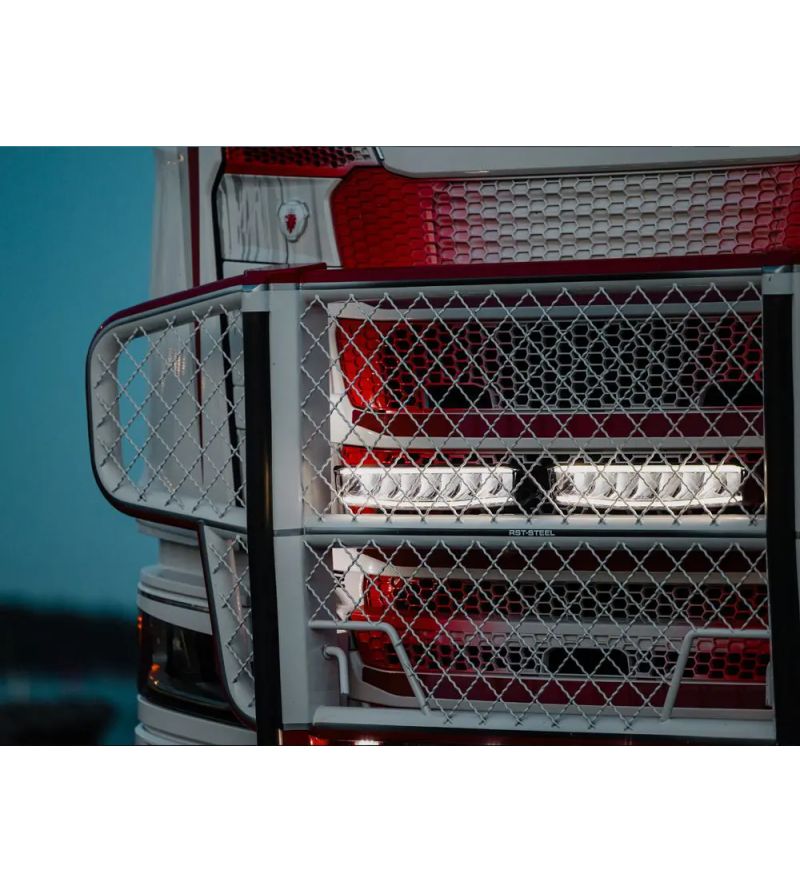

The Lazer Air 55 LED bar, measuring 16 inches, provides powerful lighting with white and amber position lights. This sleek and durable bar is perfect for any ride, adding both visibility and style to your vehicle. Make every road safe and bright!
...Continue

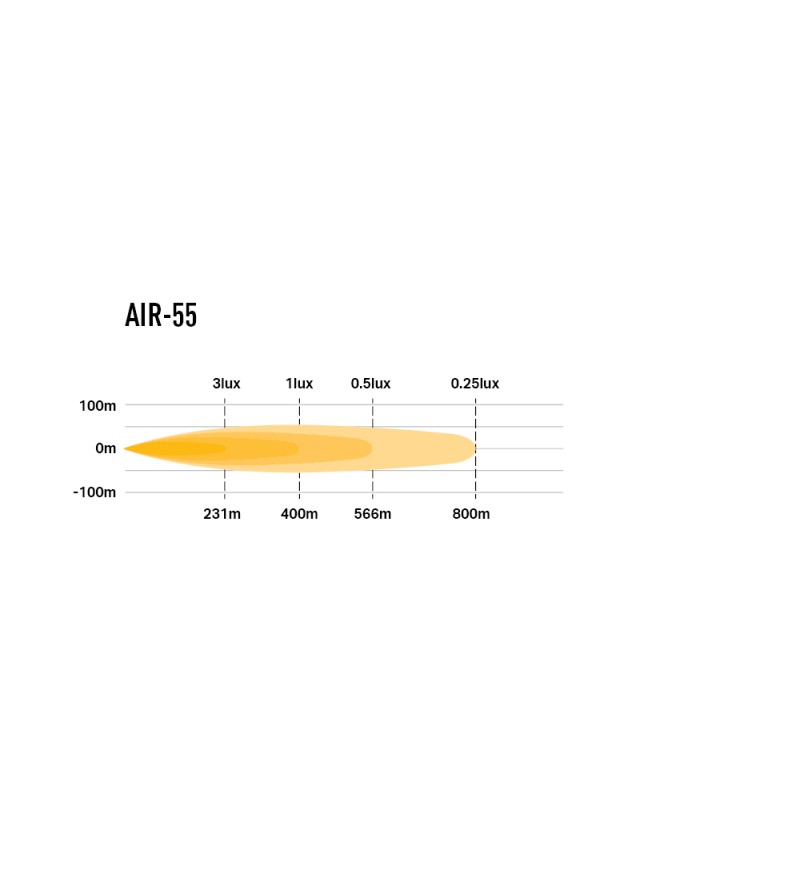

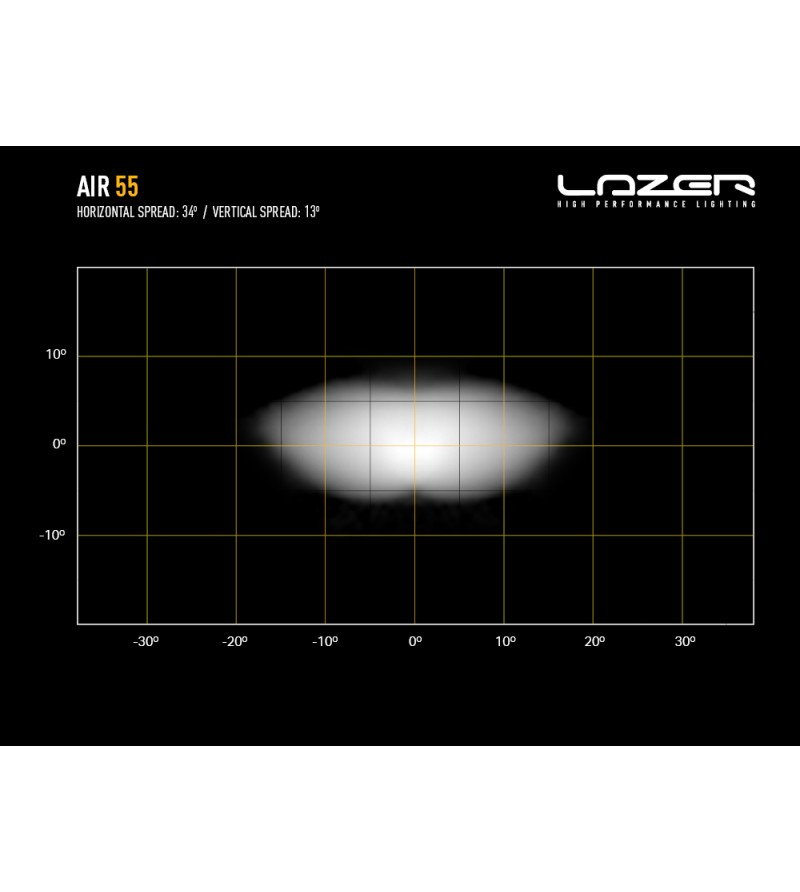

Driving Beam Pattern

Quantity

Lazer AIR-55

What is included:

  • 1x Lazer AIR-55
  • 1x Connector
  • 1x Installation manual

Technical data and features:

  • Voltage: 12-32V
  • LED Life: 50,000 hours
  • Weight: 1.65 kg
  • Lumen: 6800
  • Kelvin: 5000k
  • Power Consumption: 55 watts
  • Peak Current Draw: 5.5 amps
  • Current Draw (at 14.4V): 3.8 amps
  • Width: 411 mm
  • Depth: 105 mm
  • Height: 81 mm
  • IP Rating: IP68
  • High Beam (E-approval): ECE R 149 - Ref 40
  • Position Light White: ECE R148
  • EMC Standard: ECE R10
  • Dump Load Protection: ISO 7637-2

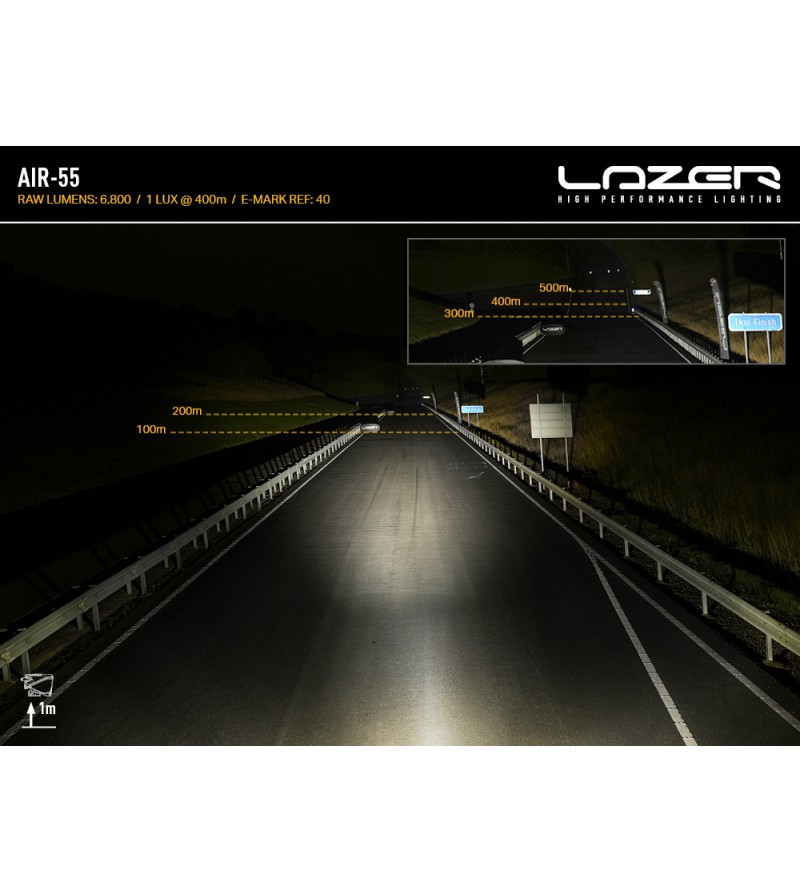

  • Horizontal / Vertical Beam Angle: 34º / 13º
  • 0.25 Lux: 800 m
  • 0.5 Lux: 566 m
  • 1 Lux: 400 m
  • 3 Lux: 231 m
0A55-B 5061003763137

Data sheet

Accessory
Lighting
Producttype
LED Light bar
Product serie
Air
Serial model
55
Series
Lazer Air
Size ( Ø / ↔ )
2) Medium
Shape
Ledbar
Width (mm)
411
Height (mm)
82
Depth (mm)
106
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Position light
Position light
Color of position light
Amber
White
E-mark
yes
IP rating
IP68
Lumen
6800
Light distance (m) at 1 lux
400
Voltage
12V
18V
24V
30V
number of pins
3 pins
Connector
Superseal
Sales unit
Single item
prodcat1
H
Shipping Size
S
