Grille kit - Lazer - Triple-R 850 - Ford - Ranger - Raptor - 2023+

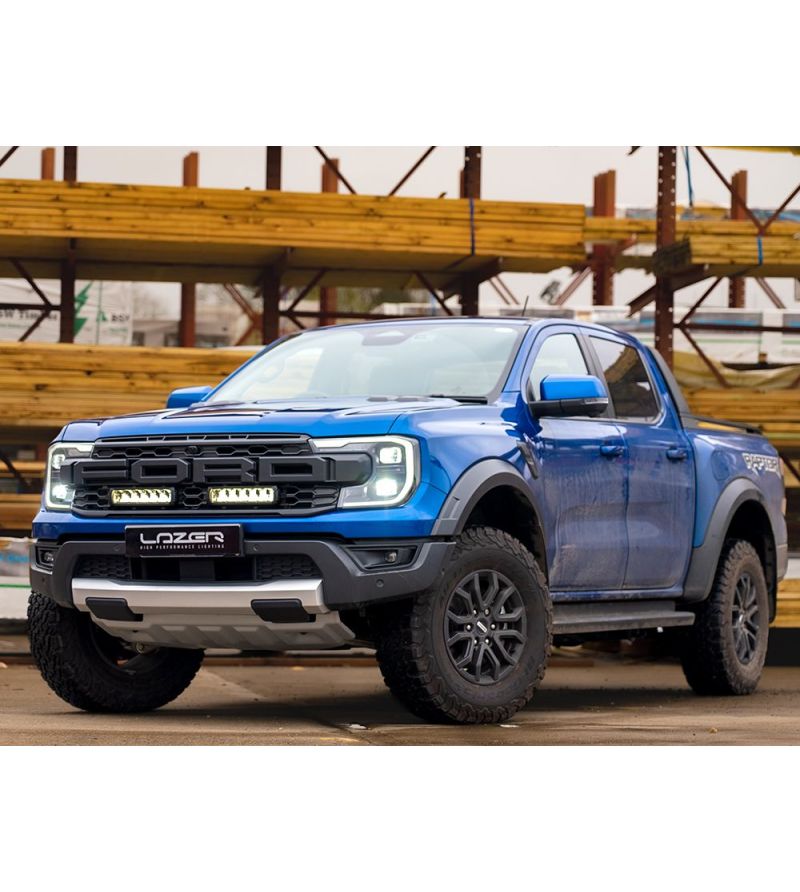

Ford Ranger 2023+ Raptor Lazer LED Grille Kit

What's included:

• 1x grille mounting kit
• 2x Triple-R 850 LED lamps
• 1x wiring kit for two lamps
• Installation instructions

For installation of additional OE quality spotlights, the Lazer Grille Integration Kits include custom mounting brackets that allow Lazer High Performance LED spotlights to be quickly and easily mounted into the front grille of the most popular street cars, pickup trucks and light commercial vehicles . vehicles. Designed to blend seamlessly with each vehicle's original styling, the resulting lighting setup remains completely robust and safe.

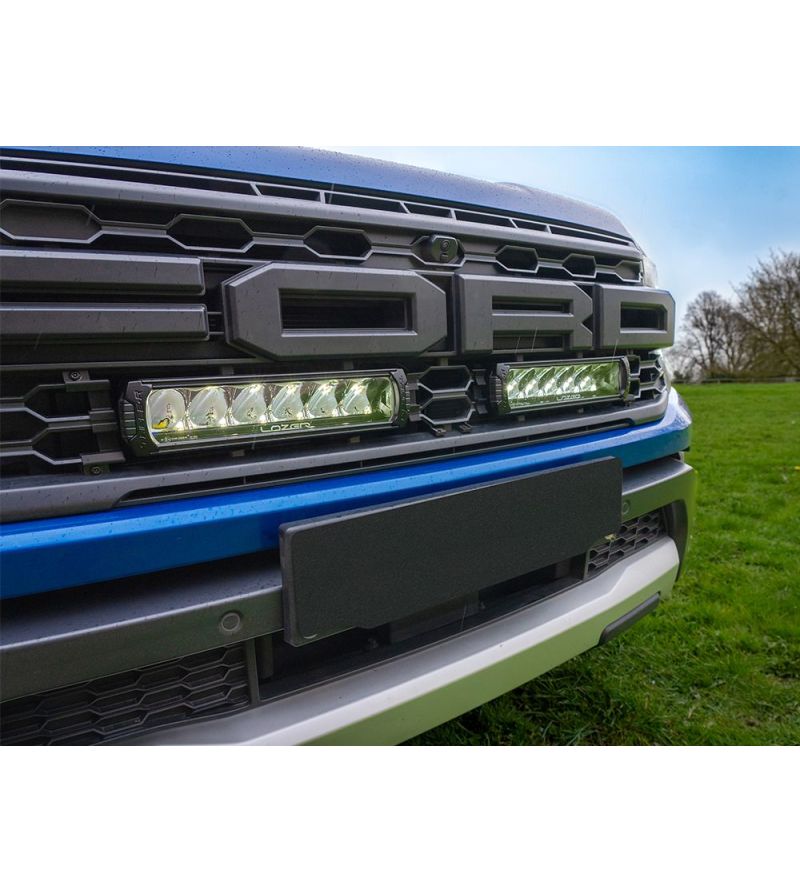

Designed for 2023 model year vehicles, the Ford Ranger Raptor kit includes a pair of Triple-R 850 High Performance LED Driving Lights, plus a wiring kit, in addition to 4x brackets precision engineered to fit perfectly into the standard central grille of the vehicle, with extra strength and safety due to the included self-tapping (plastic) screws. Made from a high-strength composite material, known for its excellent strength and UV stability, the brackets are completely weather and chemical resistant to ensure your installation remains in good condition year after year.

In addition to the mounting brackets, a set of cutting guides are supplied, designed to ease installation and ensure a perfect fit every time, without removing the grille or bumper parts from the vehicle.

The Ford Ranger Raptor Grille Integration Kit has been carefully designed and optimized for use with Triple-R 850 High Performance LED spotlights. Our warranty does not cover grille attachments fitted to non-Lazer Lamps branded products.

If the vehicle is equipped with Xenon or LED headlights as standard, it may not be possible to detect a 12V high beam signal. In these cases it will be necessary to complete the electrical installation using a Lazer CAN interface. Click here for advice on checking for a 12V high beam signal.

PRODUCT FEATURES
Custom vehicle integration kit for installation of Lazer LED Spotlight
Custom made for Ford Ranger Raptor (model year 2023)

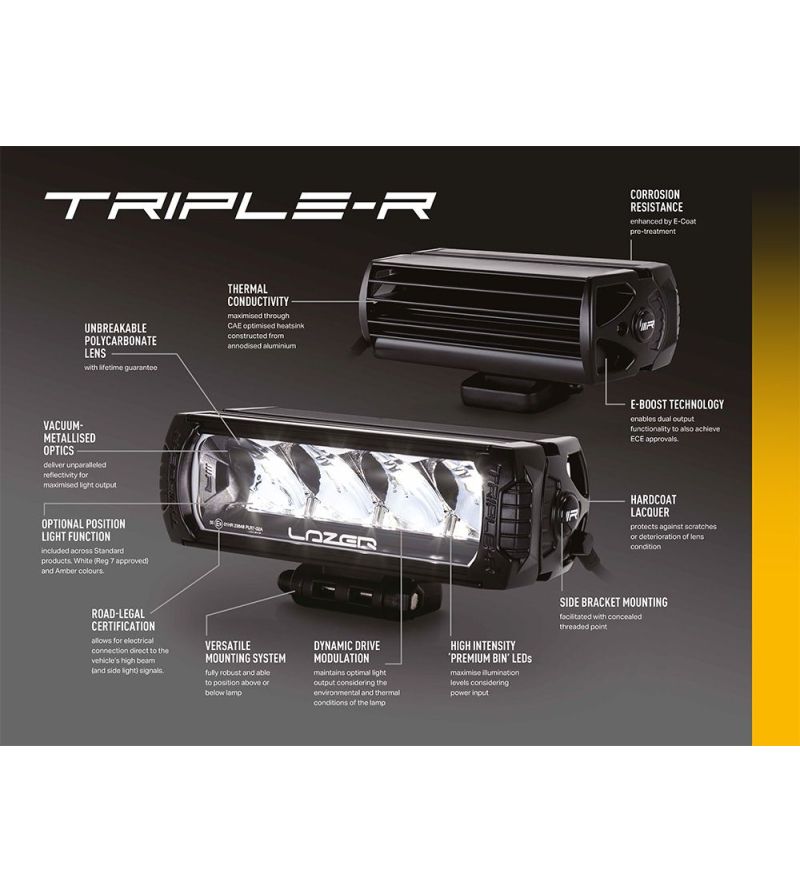

Available with: Triple-R 850 High Performance LED spotlights
Added option for integrated white and orange backlight function (only white approved for road use - standard model only)
The kit also includes custom mounting brackets and a cable kit for two lamps
Includes cutting guides
Brackets made of very strong, UV-stable composite material
Completely street legal
5 years warranty
Made in Great Britain

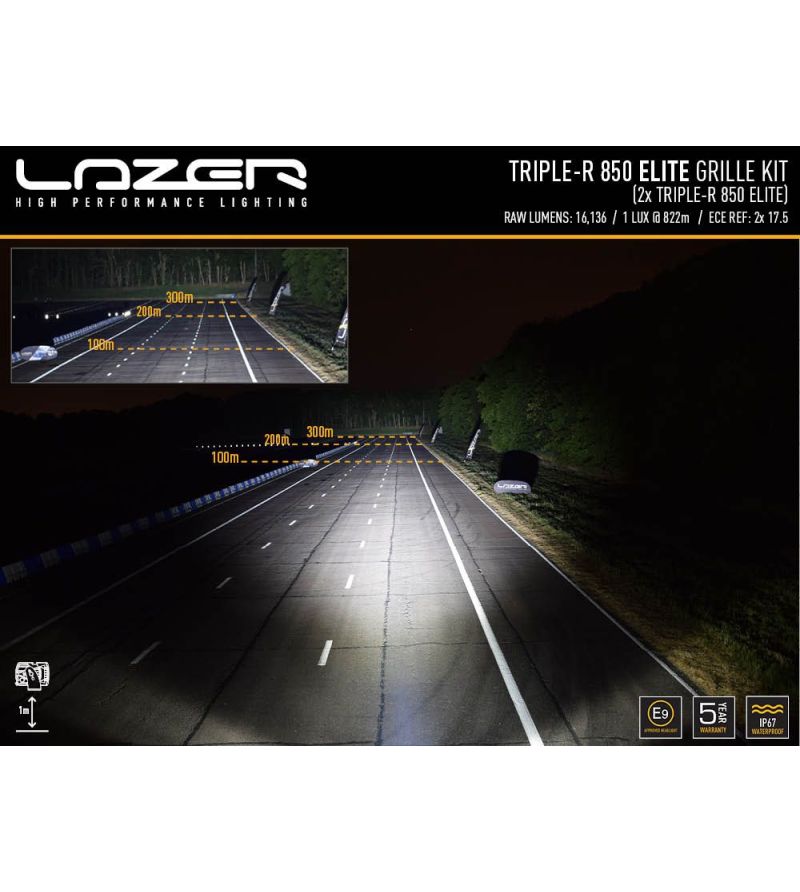

2x Triple-R 850 Elite (E-Boost mode)
Voltage range: 10-32V
LED life: 50,000 hours
Weight 2.6 kg

High beam function:
Total luminous flux: 16136 Lm
Total Driver 'FOV' Flux † 10634 Lm
Color temperature 5000K
Number of High Output LEDs 2 x 6
Energy consumption 146 watts
Power consumption (at 14.4 V) 10.2 Amps

Certification:
High beam ECE R112
ECE reference: N/A

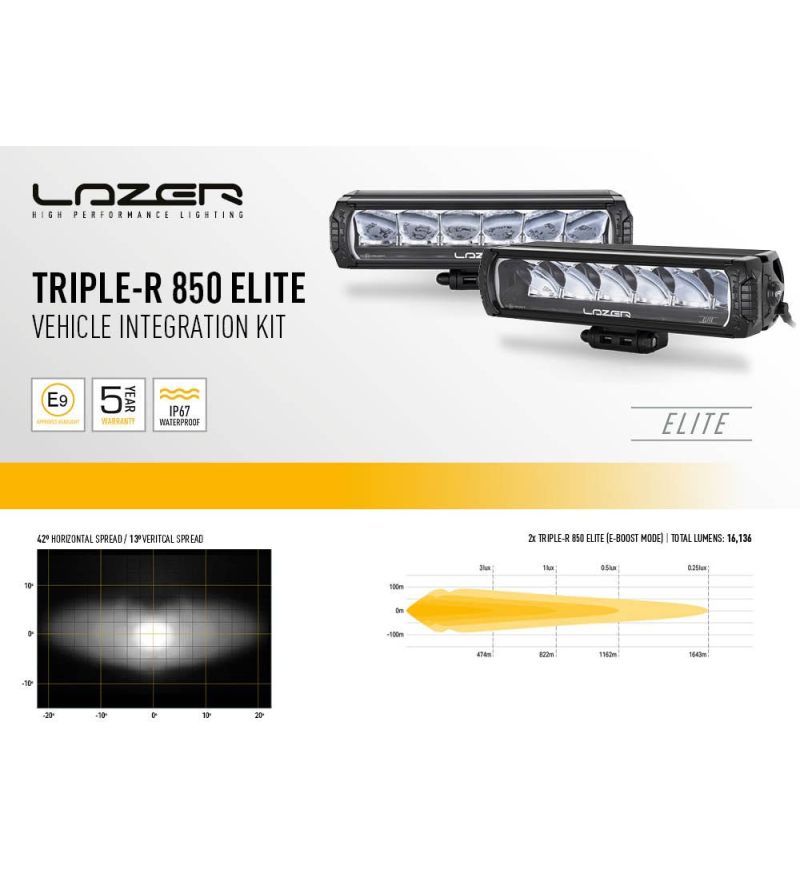

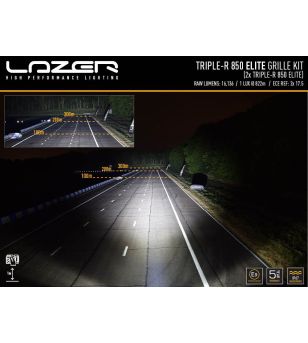

Photometric data:
Horizontal Beam Angle 42°
0.25 lx line: 1643m
0.5 lx line: 1162m
1 lx Line: 822m
3 lx line: 474m

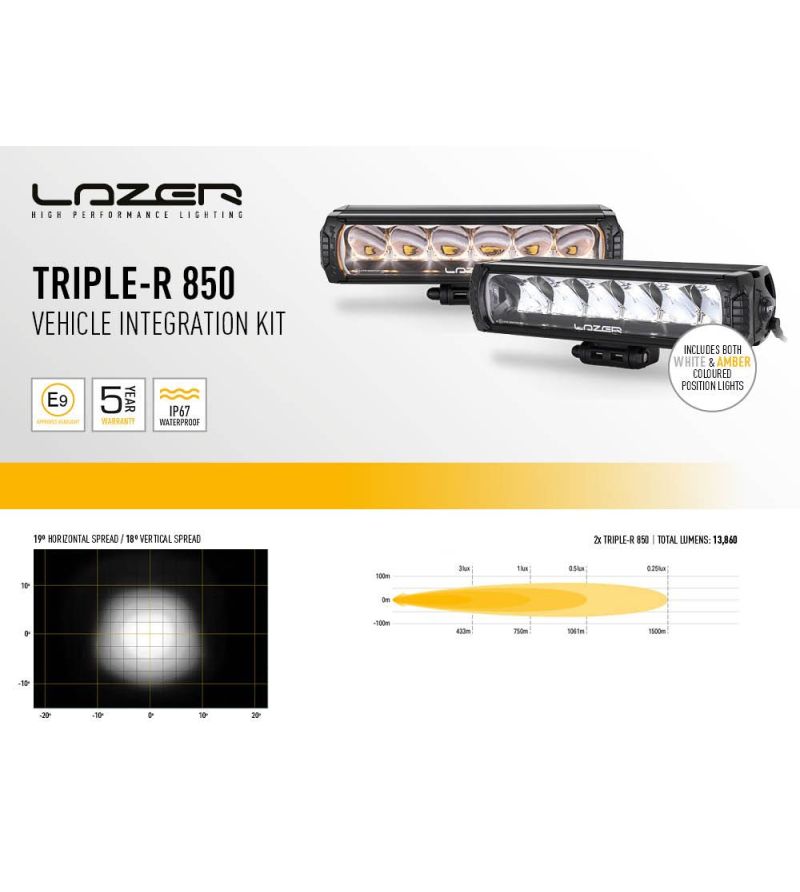

2x Triple-R 850
Voltage range: 10-32V
LED life: 50,000 hours
Weight 2.6 kg

High beam function:
Total luminous flux: 13860 Lm
Total Driver 'FOV' Flux † 8358 Lm
Color temperature 5000K
Number of High Output LEDs 2 x 6
Energy consumption 132 watts
Power consumption (at 14.4 V) 19.2 Amps

Certification:
High beam ECE R112
ECE reference: (17.5 x2 - E-Mark mode)

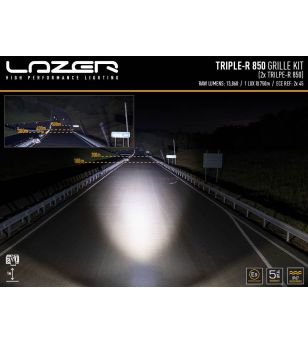

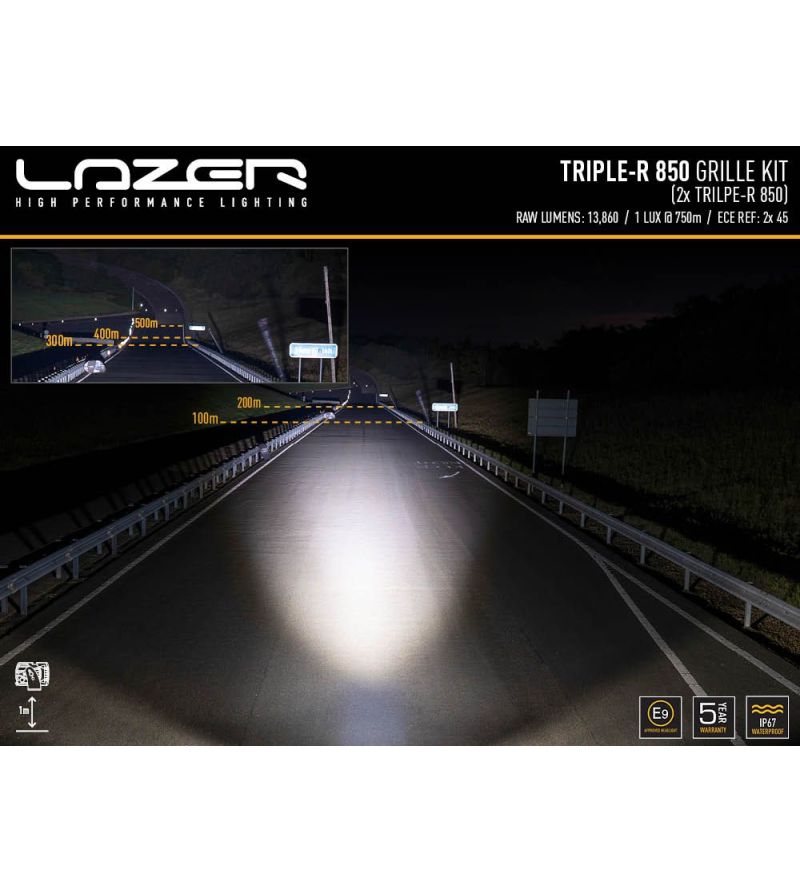

Photometric data:
Horizontal Beam Angle 19°
0.25 lx line: 1500m
0.5 lx line: 1061m
1 lx Line: 750m
3 lx line: 433m

†Driver FOV flux is a measure of effective lumens, taking into account the amount of light in a driver's 'field of view', defined as an area +/- 45° left/right and +/- 10° up /down.
