Headlight - JW Speaker - 8700 Evolution 2 - Smartheat Dual Burn - Clear - Black - Position light - Set

€1,874.95 (tax incl.)

€1,549.55 (tax excl.)

  • Reference: 0556301 DEFSet
  • Producttype: Headlight
  • Diameter (mm): 170
  • E-mark: yes
  • Sales unit: Set
  • Standard Delivery time: 1-3 business days

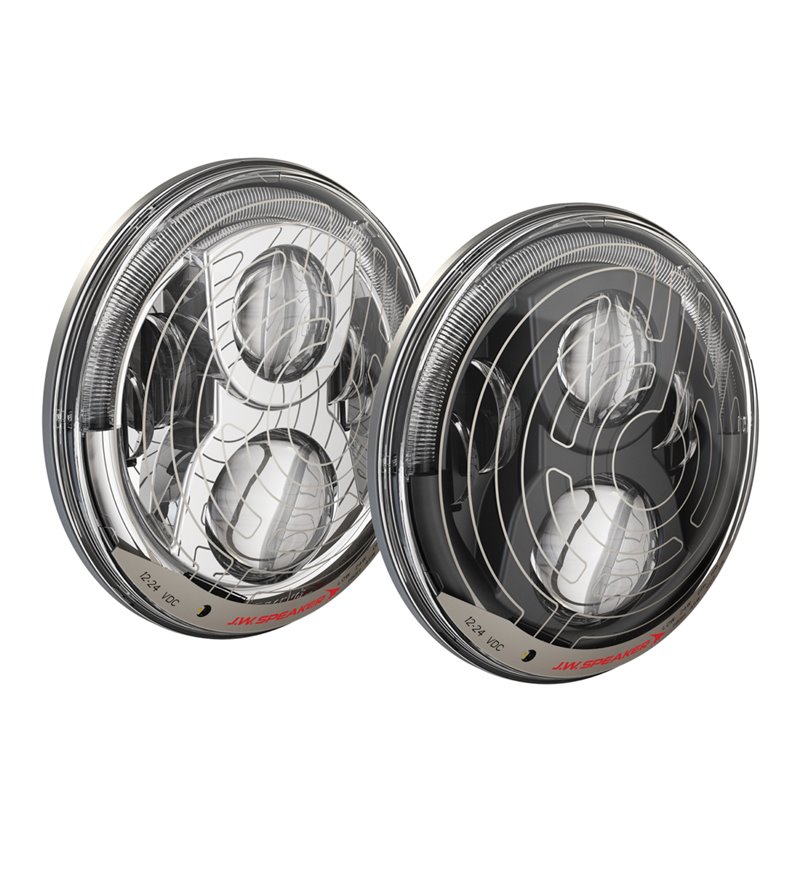

The JW Speaker 8700 Evolution 2 is a 7" headlight with bright light and black finish. Featuring Smartheat and Dual Burn technology, this set provides optimal illumination and includes an integrated position light. Suitable for 12V-24V vehicles.
...Continue

Quantity

JW Speaker 8700 Evo 2 smartheat dual burn led black Defender headlight set with Daytime Running Lights

These lamp sets have been developed for traffic that drives on the right side of the road.

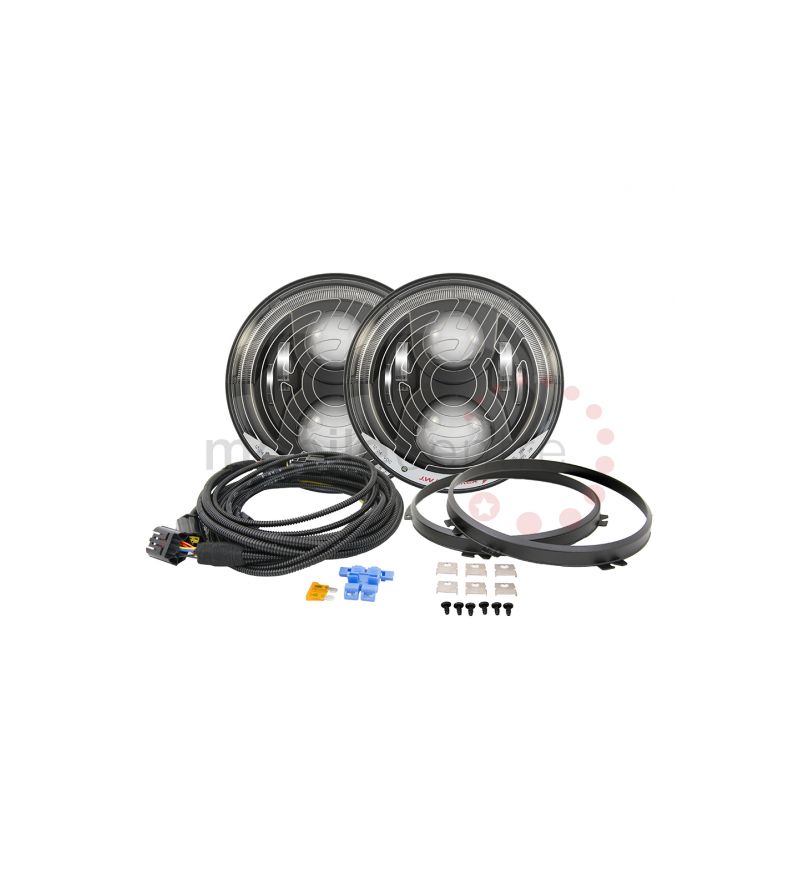

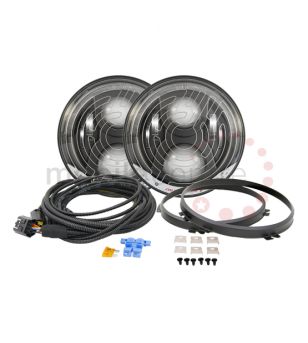

Supplied with a Land Rover Defender specific fitting kit and wiring kit which is plug and play for Defenders made in and after 1994 (Start 300tdi - pre 1994 versions may require some cutting and wiring. The kit is an upgrade to High performance LED and also increases the functionality of the DRL (Daytime Running Lights)

The Model 8700 Evo 2 Dual Burn is a replacement for 7" round (PAR56) headlights. They have a distinctive look that dramatically improves the driver's view on a variety of vehicles, including trucks, motorcycles, classic cars, and more.

Characteristics:
Dual Burn® high beam optics for extra light

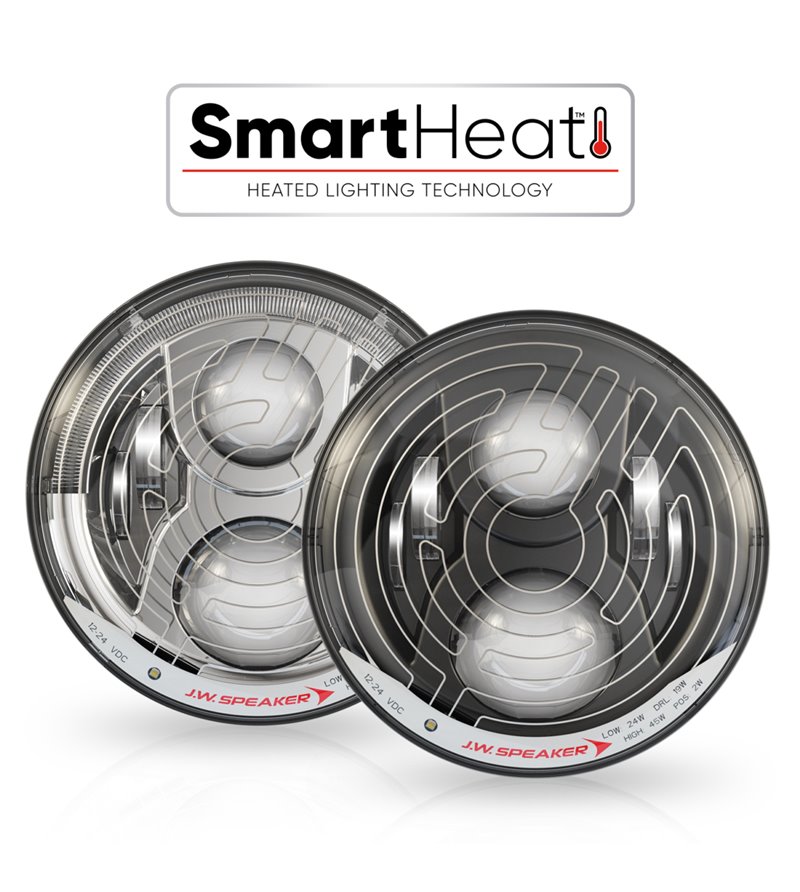

Equipped with SmartHeat® technology that heats the glass
Simple plug-and-play installation for a 7" LED headlight
ECE compliant for road use
Black lamp ring
ComfortLite® high beam

12-24V ECE LED RHT High & Low Beam Heated Headlight with Black Inner Ring - Single Light - FP & DRL

Specifications:
Height: 176.53mm / 6.95in
Width: 176.53mm / 6.95in
Depth: 99.82mm / 3.93in
Shape: round
Outer lens material: Polycarbonate
Color outer lens: clear
Housing Material: Aluminium
Housing color: gray
Edge color: Black
Minimum Operation Temperature: -40°C / -40°F
Maximum Operation Temperature: 65°C / 149°F

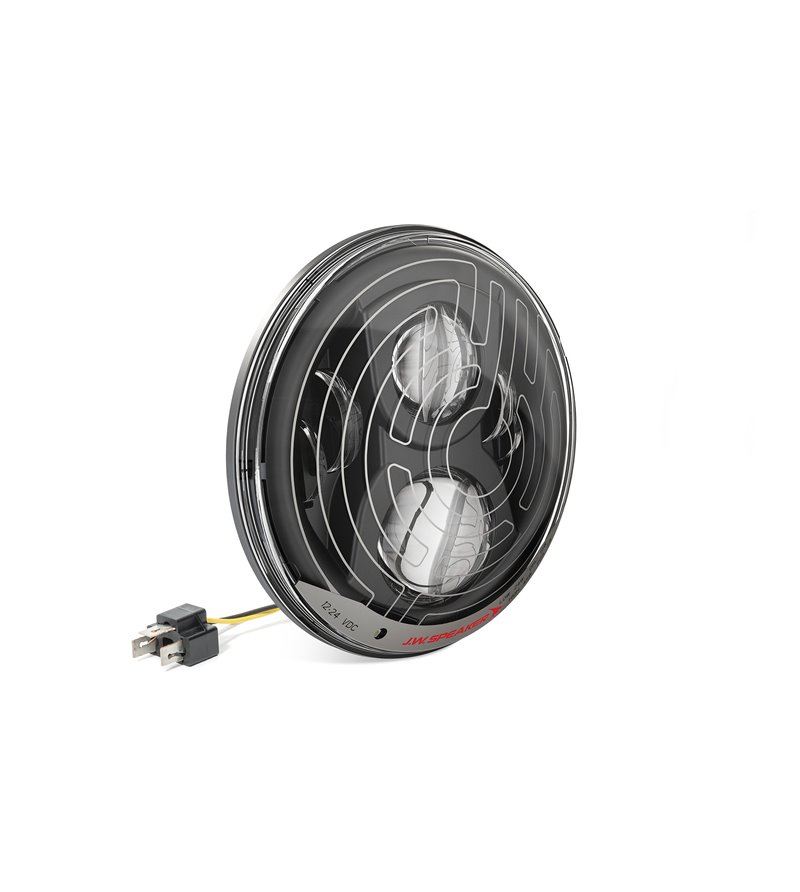

Connector or wiring: H4
Coupling connector: H4 AMP#172615-2
Product Weight: 2.31 lbs / 1.05 kg

Resume:
The bright, white LED light of JW Speaker headlights is now even brighter. Dual Burn 7" LED headlights keep the dipped beam optic on when drivers switch to high beam. The effective light output on the high beam is increased by approximately 10% - while the precision solid optics direct the light and remain street legal.

The Model 8700 Evo 2 Dual Burn features both high and low beam functions. The rugged die-cast aluminum housing, hard-coated polycarbonate lens, top quality LEDs and superior beam pattern make the Model 8700 Evo 2 Dual Burn perfect for both on and off road use.

0556301 DEFSet 0708315997992

Data sheet

Accessory
Lighting
Producttype
Headlight
Product serie
8700 Evolution
Serial model
2
Feature
Black
Version
Smartheat Dual Burn
Series
Lights & Styling
Size ( Ø / ↔ )
2) Medium
Shape
Round
Diameter (mm)
170
Light type
LED
Lighting - Type
Daytime Running Light
High beam
Low beam
Light color
Halogen white
Position light
Position light
Color temperature
5000K
E-mark
yes
ECE approval
R87
R112
Glass color
Clear
IP rating
IP67
Mount
Flush mount
Lumen
3200
Voltage
12V
18V
24V
Sales unit
Set
Standard Delivery time
1-3 business days
vehicle type
car
prodcat1
H
Shipping Size
S

Specific References
