Work light - Hella - S5000 2.0 - White/Amber - Position light - Work / Scene
  • Work light - Hella - S5000 2.0 - White/Amber - Position light - Work / Scene
  • Work light - Hella - S5000 2.0 - White/Amber - Position light - Work / Scene
  • Work light - Hella - S5000 2.0 - White/Amber - Position light - Work / Scene
Work light - Hella - S5000 2.0 - White/Amber - Position light - Work / Scene

Work light - Hella - S5000 2.0 - White/Amber - Position light - Work / Scene

€109.95 (tax incl.)

€90.87 (tax excl.)

  • Reference: 1GA 357 109-231
  • Producttype: Work light
  • Diameter (mm): 125

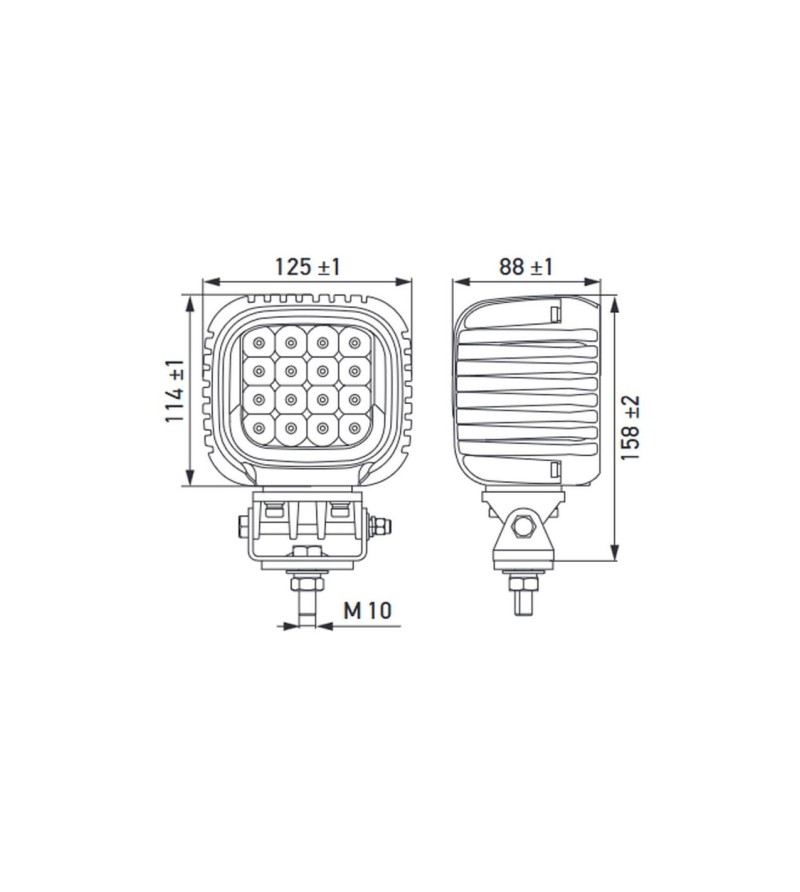

  • Dimensions (mm): 125 (w) x 158 (h) x 88 (d)
  • E-mark: yes
  • Light Color: White/Amber
  • Beam type: Work / Scene
  • Sales unit: Single item
  • Standard Delivery time: 1-3 business days
x
...Continue

Work-Scene Beam Pattern

Quantity

Work Lamp – Hella S5000 2.0 – Work / Scene

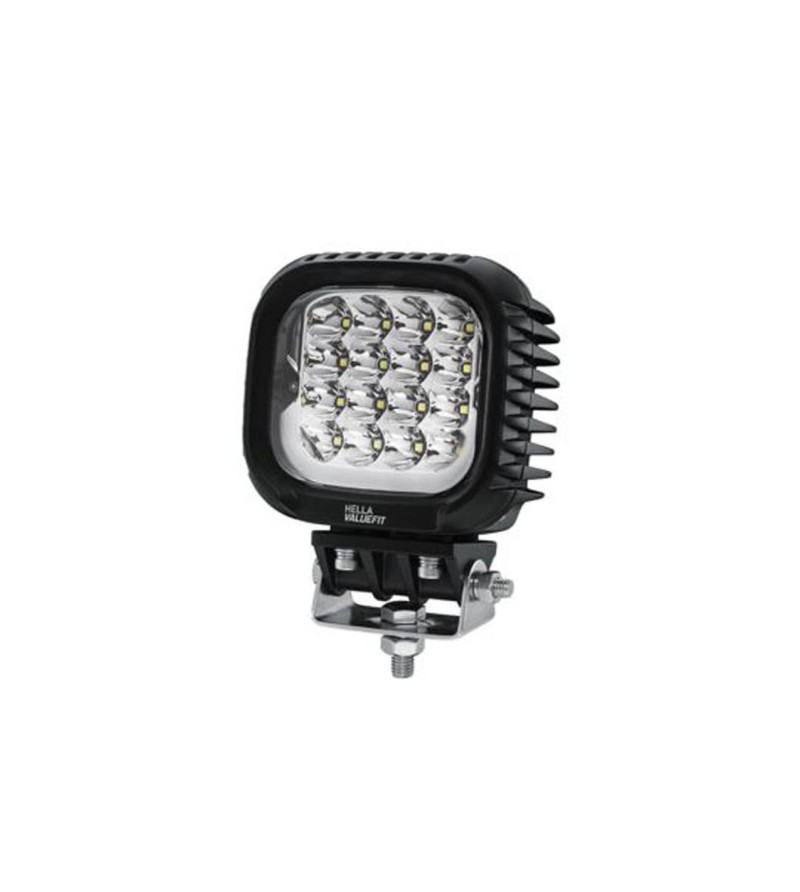

The Hella S5000 2.0 is a powerful, universal LED work lamp from the ValueFit series, developed for professional work and scene applications where maximum light output and durability are required. With a light output of up to 5,000 lumens and a color temperature of 6,000 K, this lamp delivers outstanding illumination even in the harshest conditions.

The S5000 2.0 features an additional position light function, which can be fitted with either white (ECE-approved) or amber (offroad only) position light. The housing is made of lightweight, robust aluminum with an impact-resistant polycarbonate lens and a corrosion-resistant stainless steel bracket. With protection classes IP6K7 and IP6K9, the lamp is fully dust- and waterproof and suitable for intensive, industrial use.

Key Features

  • Luminous flux: 5,000 lumens (LED)
  • Color temperature: 6,000 K (bright white)
  • Power: 66 W (S5000 2.0)
  • Operating voltage: Multivolt 12–30 V
  • Protection class: IP6K7, IP6K9 (fully dust- and waterproof)
  • Material: Aluminum housing, polycarbonate lens, stainless steel bracket
  • Temperature range: –40°C to +65°C
  • Position light: white (ECE-R148, road legal) or amber (offroad only)
  • Mounting: upright, easy to install with DEUTSCH DT connector
  • ECE-R10 approval (EMC)

What’s Included?

  • Hella S5000 2.0 LED work lamp
  • Mounting bracket and hardware

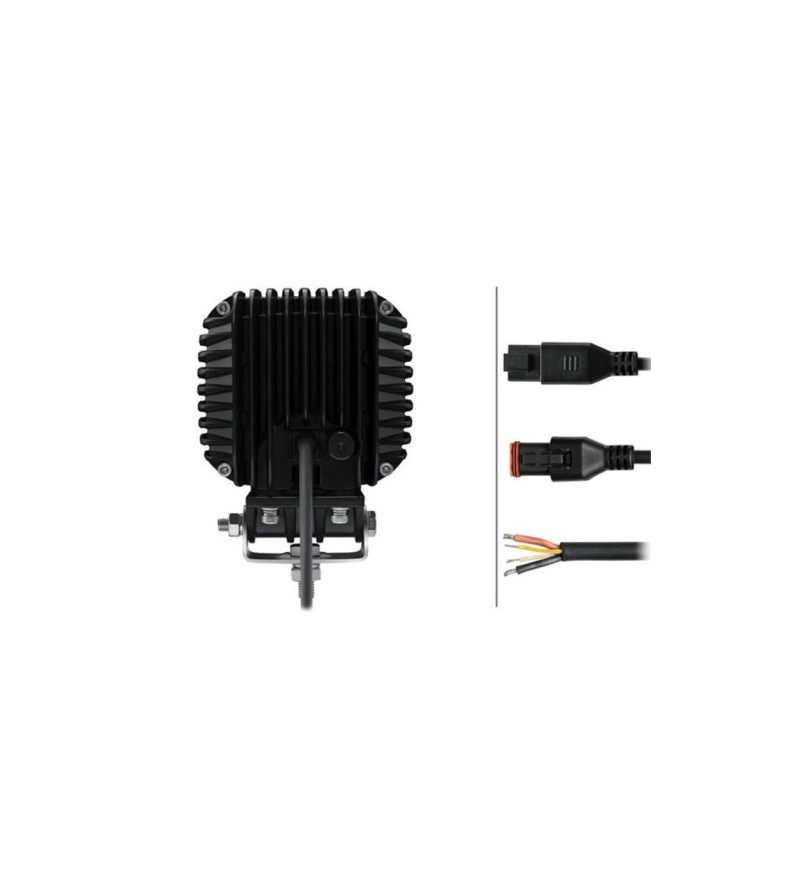

  • 300 mm cable with 4-pin DEUTSCH DT connector + 500 mm adapter cable
  • Clear instructions

Application

Ideal for mounting on vehicles, machines, commercial vehicles, and offroad applications where large area and maximum light output are required. For road use, the white position light must be installed at 0° inclination, with a maximum mounting height of 2,500 mm.

Advice

Questions about the best application or installation of the Hella S5000 2.0? Contact us for expert advice.

1GA 357 109-231 4082300914276

Data sheet

Accessory
Lighting
Producttype
Work light
Product serie
S5000
Serial model
2.0
Size ( Ø / ↔ )
2) Medium
Shape
Led Pod
Diameter (mm)
125
Width (mm)
125
Height (mm)
158
Depth (mm)
88
Beam type
Work / Scene
Light type
LED
Lighting - Type
Work light
Light color
Amber
White
Position light
Position light
Color temperature
6500K
E-mark
yes
ECE approval
R10
R148
Glass color
Clear
Chrome / RVS
no
Housing color
black
IP rating
IP67
Mount
Normal
Lumen
5000
Voltage
12V
18V
24V
30V
Watts
66W
LEDs per lamp
16
Sales unit
Single item
Standard Delivery time
1-3 business days
prodcat1
H
Shipping Size
S
