€119.95 (tax incl.)

€99.13 (tax excl.)

  • Reference: 1FJ 357 199-181
  • Producttype: Driving light
  • Diameter (mm): 222
  • Dimensions (mm): 222 (w) x 153 (h) x 58 (d)
  • E-mark: yes
  • Beam type: Driving
  • Sales unit: Single item
x
...Continue

Driving Beam Pattern

Must-have accessories

Protective cover

Quantity

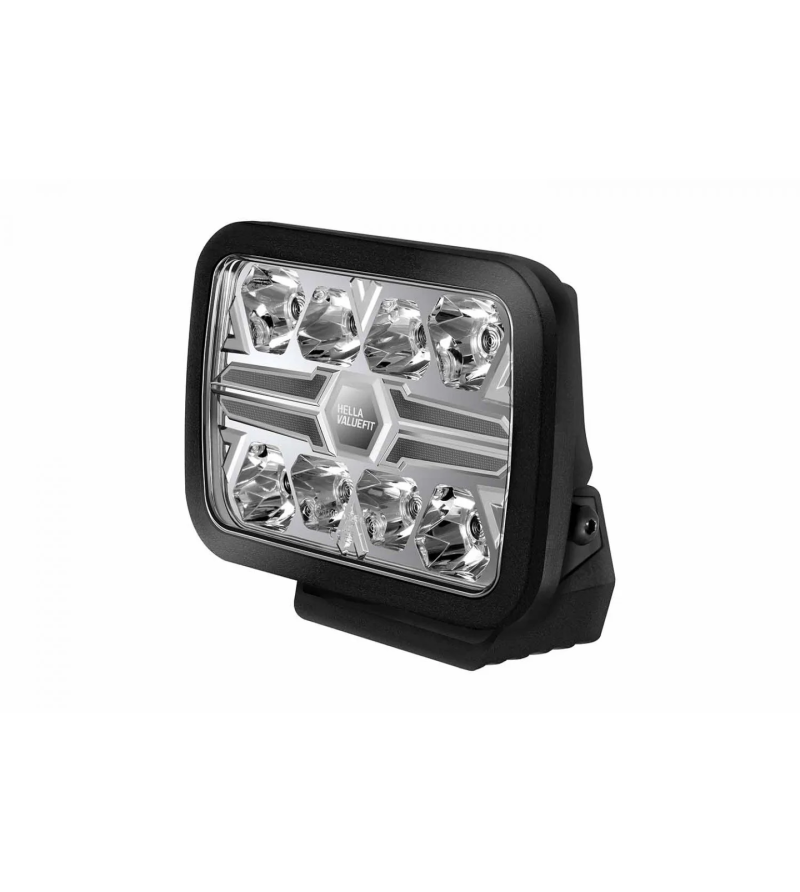

Hella Blade 9" Rectangular Driving Light – Black with Position Light

The Hella VALUEFIT Blade 9" rectangular driving light in black combines powerful performance with a sleek design, making it ideal for both on- and off-road use. This lamp delivers an impressive light output of 1700 lumens and a beam distance of up to 450 meters at 1 lux, ensuring excellent visibility even in demanding conditions.

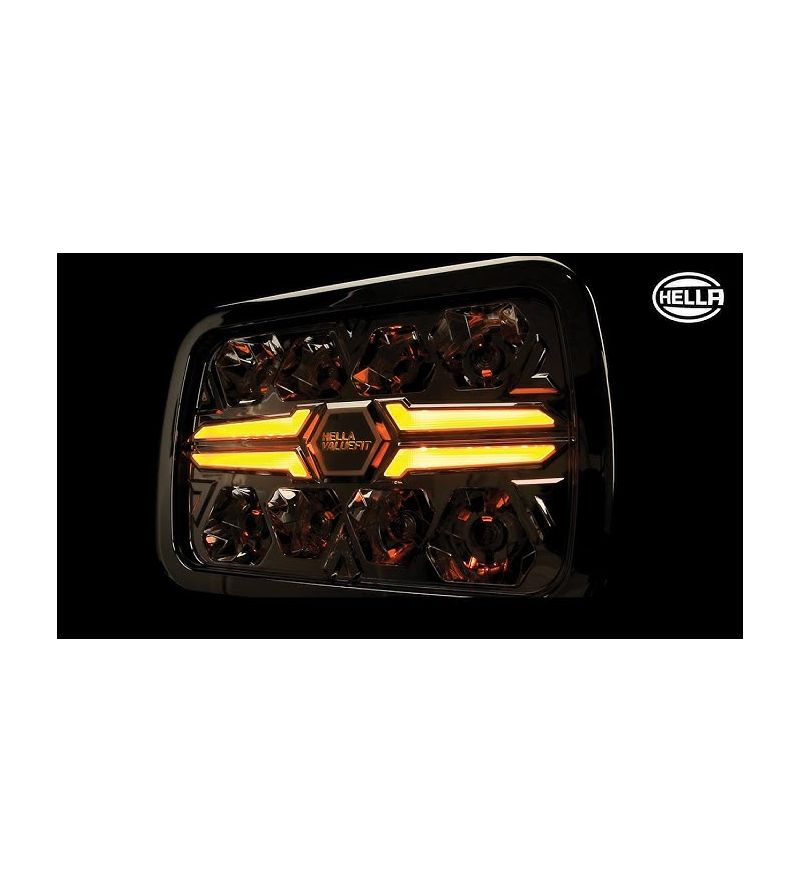

The integrated position lights are available in both white and amber. The white position light is ECE-approved for road use, while the amber position light is intended for off-road use only. This dual-color feature gives your vehicle a distinctive look and increases both visibility and safety.

The housing is made of robust aluminum with a black finish, combined with an ABS plastic bezel and a polycarbonate lens. The lamp is suitable for both 12V and 24V systems, making it versatile for various vehicles such as trucks, SUVs, and off-roaders.

Main Features

  • Powerful LED driving light with 1700 lumen output (Ref. 25)
  • Beam distance: 450 meters at 1 lux
  • Dual-color position light: white (road legal) and amber (off-road)
  • Voltage range: 12-24V DC (dual voltage)
  • Robust aluminum housing with black finish
  • ABS plastic bezel and polycarbonate lens
  • Weight: approx. 1550 grams
  • Mounting: upright or pendant
  • Protection rating: IP69K and IP67 (water and dust resistant)
  • ECE R10 (EMC), R148, R149 approvals

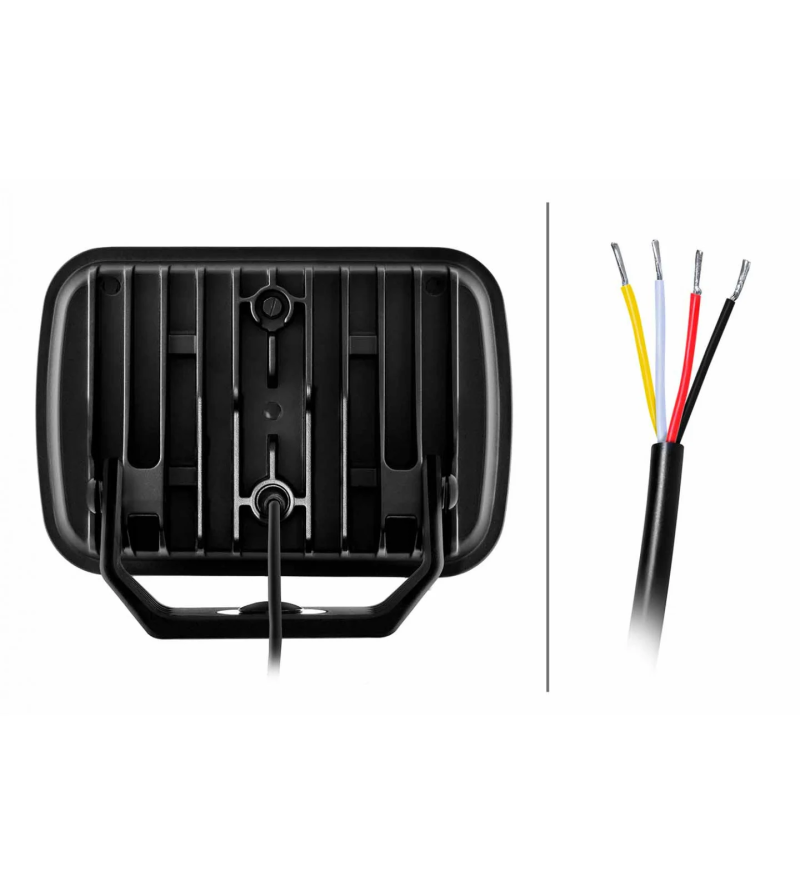

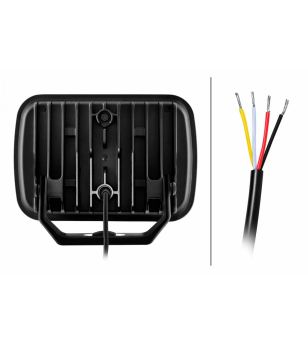

  • 500 mm cable with open ends for easy installation

What’s included?

  • 1x Hella Blade 9" rectangular driving light (black, with dual position light)
  • Mounting bracket and hardware
  • Installation manual

Delivery

This popular Hella Blade 9" rectangular driving light is available from stock and will be delivered quickly. If temporarily out of stock, you will be informed about the expected delivery time.

Advice

Need help choosing the right driving light or installation advice? Feel free to contact us for expert support.

1FJ 357 199-181

Data sheet

Accessory
Lighting
Producttype
Driving light
Product serie
Blade
Version
Rectangular
Size ( Ø / ↔ )
3) Large
Shape
Rectangular / Oval
Diameter (mm)
222
Width (mm)
222
Height (mm)
153
Depth (mm)
58
Beam type
Driving
Light type
LED
Lighting - Type
Driving Light
Position light
Position light
E-mark
yes
ECE approval
R10
R148
R149
Glass color
Clear
Chrome / RVS
no
Color
Black
Voltage
12V
18V
24V
Watts
36W
LEDs per lamp
8
Sales unit
Single item
prodcat1
L
Prodcat2
AB
Shipping Size
S

Specific References
