      €46.99(tax incl.)

      €38.83 (tax excl.)

      • Reference: 809275
      • Producttype: Work light
      • Dimensions (mm): 76.4 (w) x 75.7 (h) x 39.3 (d)
      • E-mark: Yes
      • Beam type: Work / Scene
      • Sales unit: Single item
      • Standard delivery time: 1-3 business days
      🔙 Compact, powerful, and perfect as a reversing light!
      ...Continue

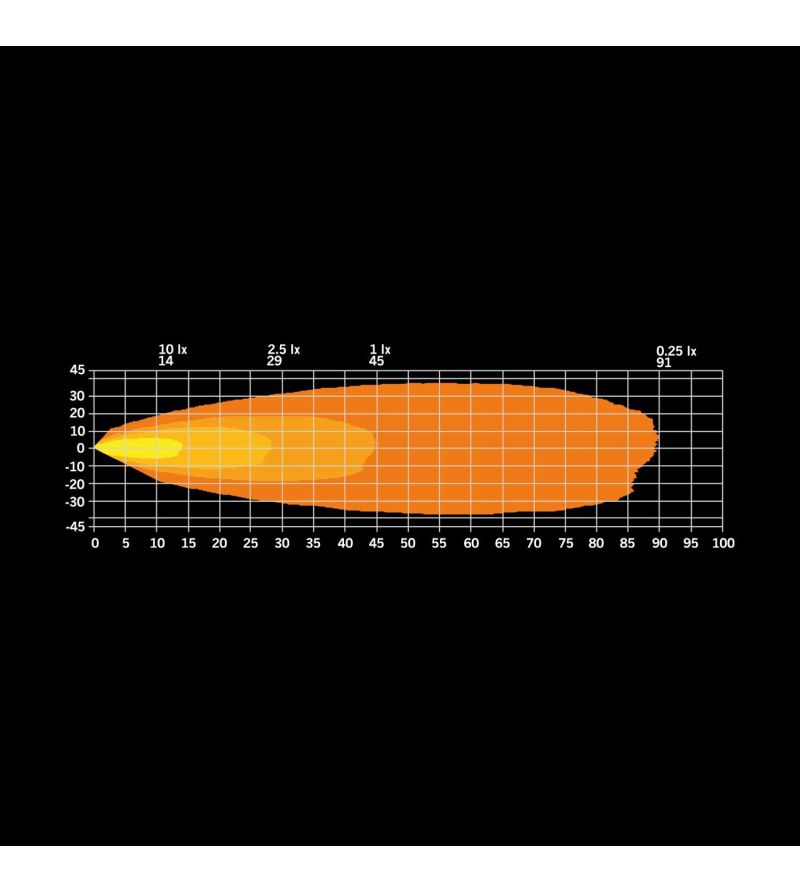

      Work-Scene Beam Pattern

      Quantity :
      • Pay Pay in a secure environment
      • Questions Questions about this product? Our experts are here to help
      • 4.8/5 4.8/5 More than 10,000 customers have already gone before you

      The Strands Unity Edge Work Light 20W is a powerful LED work light from the Unity series. Thanks to its wide beam and high light output of 2600 lumens, this lamp is ideal for illuminating large areas around vehicles and machinery.

      With ECE R23 approval, the Unity Edge 20W is also suitable as a reversing lamp, perfect for installation on larger vehicles such as trucks, machinery, or vans. Its slim design and wide light spread make it easy to install in various locations, even where space is limited.

      The robust aluminium housing and polycarbonate lens protect the lamp from impacts, stone chips, and environmental conditions. Thanks to its IP68 rating, installation close to the ground or in exposed areas is no problem. Compatible with 12V and 24V systems due to its wide voltage range (10–32V). Supplied with a DT-2 connector and 150 mm cable. Includes a 3-year warranty!

      • 🔦 Luminous output: 2,600 lumens
      • 📏 Beam distance: 62 metres (1 lux)
      • ⚡ Power: 20W
      • 🌐 Beam pattern: Work / Scene
      • 🔋 Voltage: 10–32V DC
      • 🔌 Connection: DT2, 500 mm cable

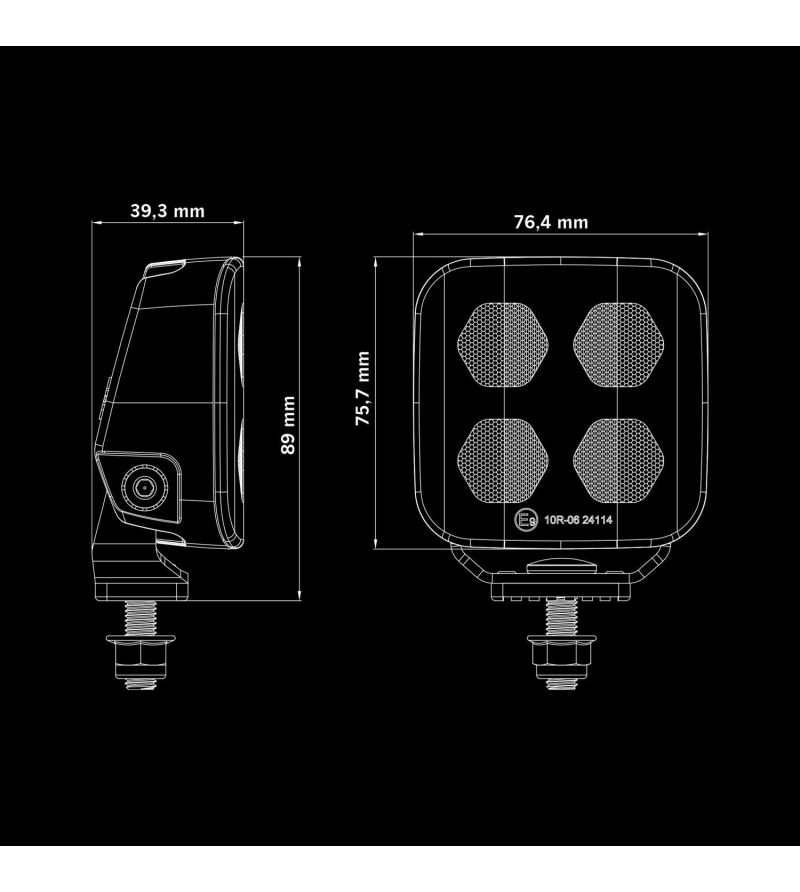

      • 📐 Dimensions: 76 x 75 x 39 mm
      • 🛡️ Material: Aluminium housing, polycarbonate lens
      • 💦 IP rating: IP68, IP69K
      • 📡 Certification: ECE R10, R23
      Strands
      809275

      Data sheet

      General: Accessory
      Lighting
      General: Producttype
      Work light
      General: Product serie
      Unity Edge
      General: Serial model
      20W
      Dimensions and weight: Size ( Ø / ↔ )
      1) Compact
      General: Shape
      Led Pod
      Dimensions and weight: Width (mm)
      76.4
      Dimensions and weight: Height (mm)
      75.7
      Dimensions and weight: Height incl. bracket (mm)
      89
      Dimensions and weight: Depth (mm)
      39.3
      Light and vision: Beam type
      Work / Scene
      Light and vision: Light type
      LED
      Light and vision: Lighting - type
      Work light
      Light and vision: Light color
      White
      Design and material: Glass color
      Clear
      Light and vision: Position light
      No position light
      Light and vision: Color temperature
      5700K
      Light and vision: Theoretical Lumens
      2010
      Light and vision: Effective Lumens
      2010
      Light and vision: Light distance (m) at 1 lux
      45
      certifications and delivery: E-mark
      Yes
      certifications and delivery: Certifications
      R10
      certifications and delivery: ADR approved
      No
      Technical specifications: Voltage
      12V
      18V
      24V
      30V
      36V
      Technical specifications: Watts
      22W
      Technical specifications: LEDs per lamp
      4
      Technical specifications: Wattage per LED
      5.5W
      Technical specifications: Number of pins
      2 pins
      Technical specifications: Connector
      Deutsch DT
      Technical specifications: Cable Length (cm)
      15
      Design and material: Housing color
      Black
      Design and material: Housing material
      Aluminum
      certifications and delivery: IP rating
      IP68
      IP69K
      certifications and delivery: What is delivered
      1 light
      Connector
      General manual
      Mounting frame
      certifications and delivery: Sales unit
      Single item
      certifications and delivery: Standard delivery time
      1-3 business days
      Size in inches
      3
      Size in cm
      7.6
      Prodcat1
      M
      Shipping Size
      Standard
      certifications and delivery: IR-code
      a0..st

      Specific References

      UPC
      1
