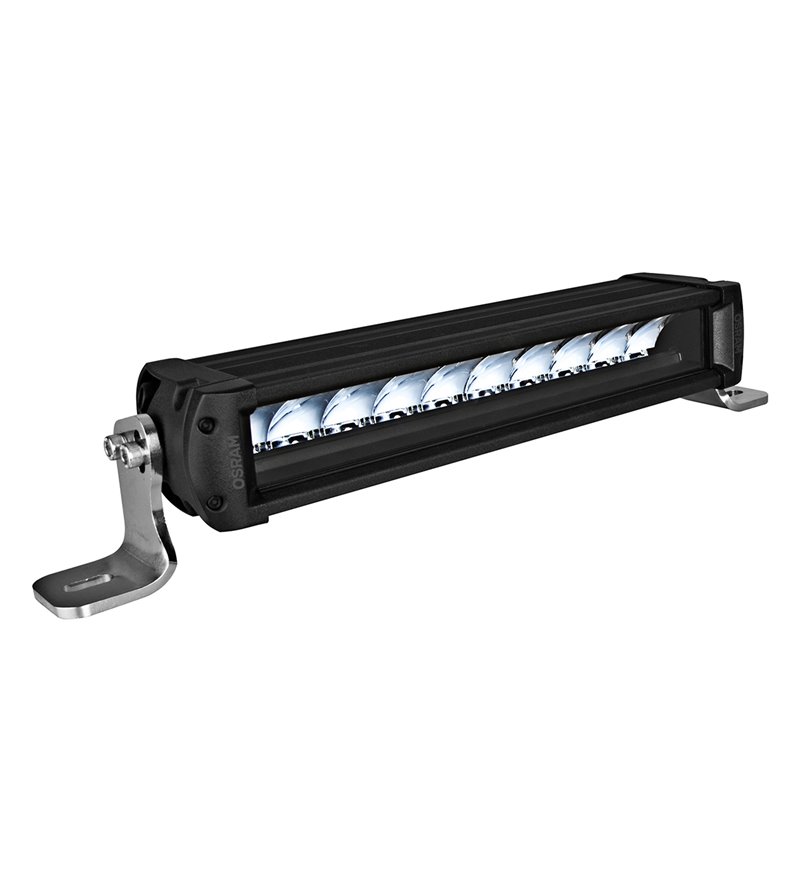

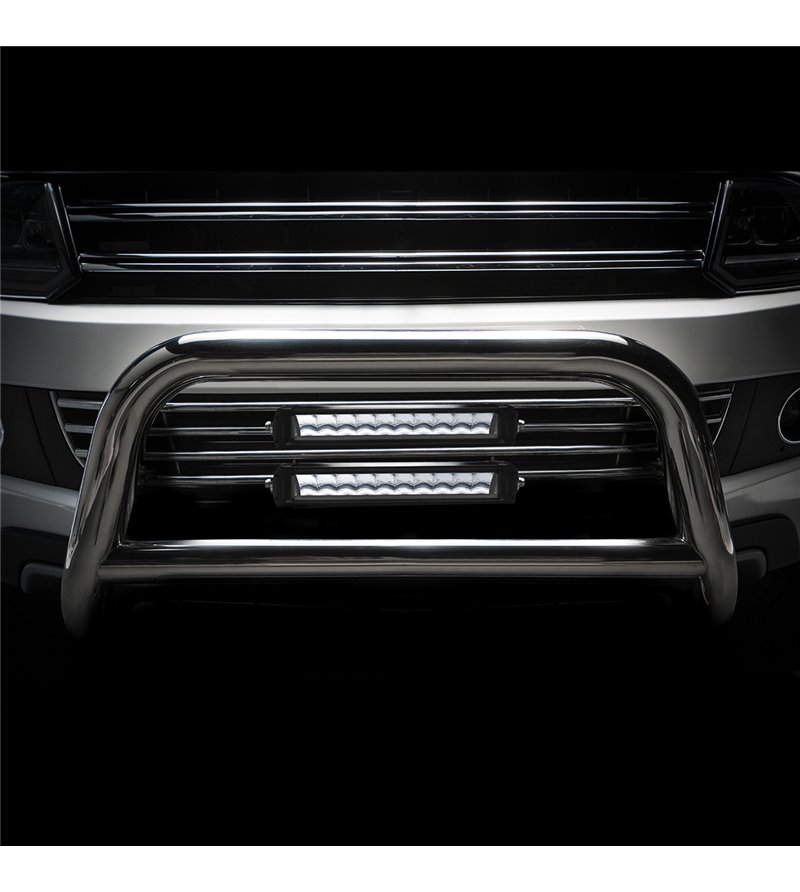

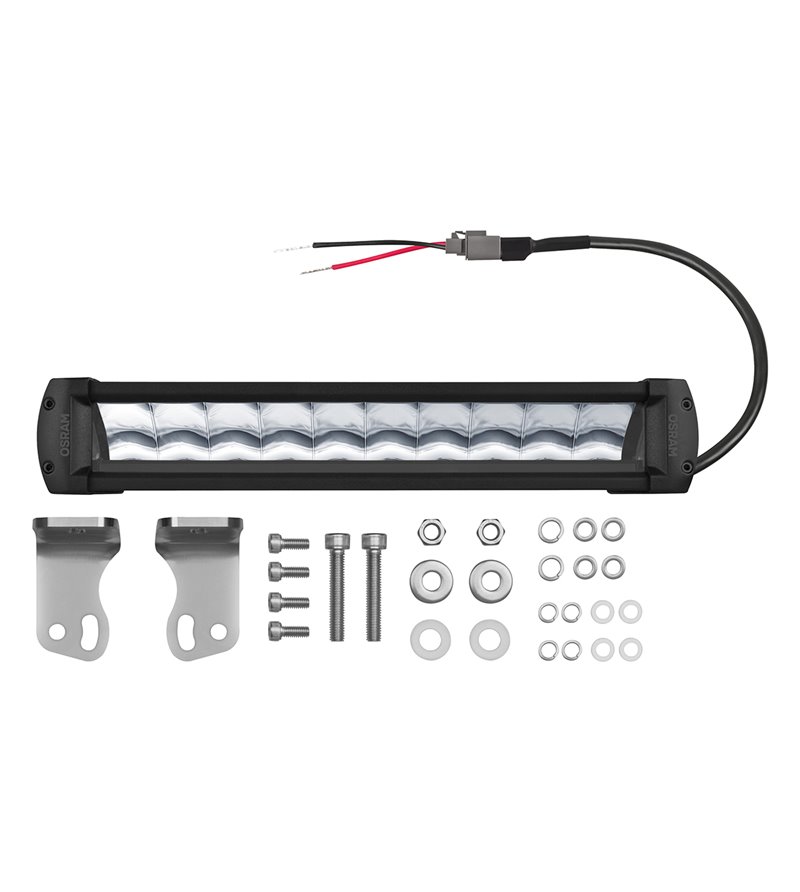

LED Light bar - OSRAM - FX 250-CB - 15.3" - 38.8cm - Driving Spot Combo
€169.95(tax incl.)
€140.45 (tax excl.)
- Reference: LEDDL103-CB
- Producttype: LED Light bar

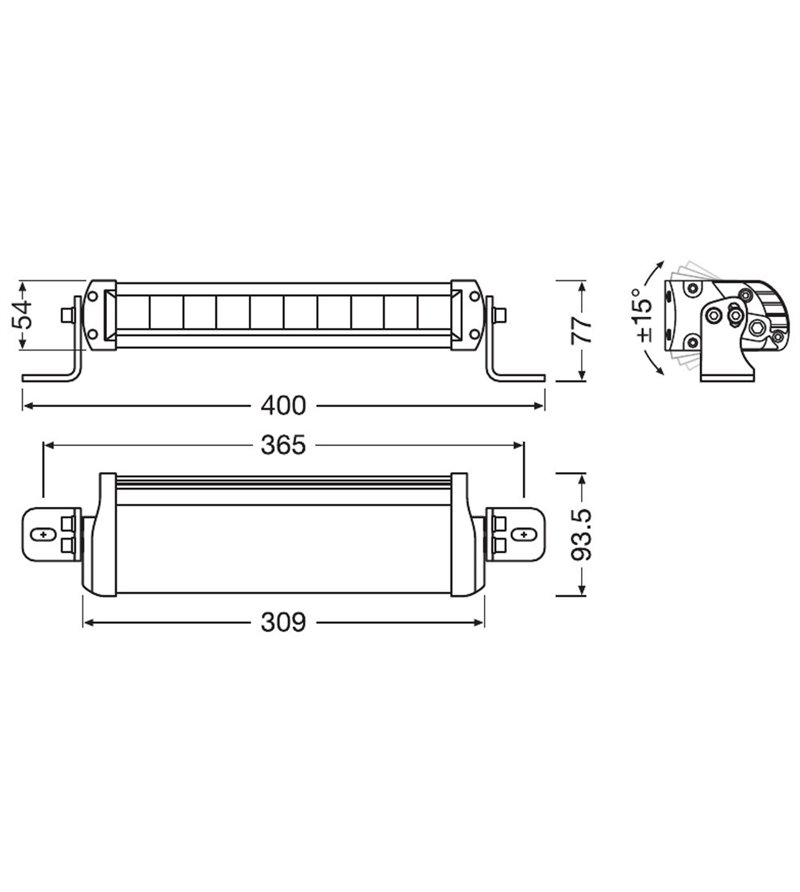

- Dimensions (mm): 388 (w) x 90 (h) x 137 (d)
- E-mark: Yes
- Beam type: Driving Spot Combo
- Sales unit: Single item
- Standard delivery time: 1-3 business days
Verlicht je avonturen met de OSRAM FX 250-CB LED bar. Deze 15-inch driving spot combo biedt krachtige verlichting voor elke rit, waardoor je beter zichtbaar bent en met vertrouwen kunt rijden in alle omstandigheden.
...Continue
Must-have accessoires
Wiring Kit
The Lazer Utility cable set easily connects two lamps with a switch for reliable lighting. Perfect for all your 12V projects and quick to install, so you can get back on the road right away. ...Continue |
Wiring kit - Lazer - 1 lamp - Incl. switch - 2 pins - Deutsch DT - 12V |
|
|
Wiring kit - Ledson - Connect - Reversing light - 2 lamps - 2 pins - Deutsch DT - 12V |
Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you
Features
• Fully ECE compliant auxiliary high beam
• Combo beam pattern: combined near field & far
field illumination
• Increased road safety: Up to 320m light beam
with 5°beam angle
• Compact and robust: Unbreakable polycarbonate
lens to endure heavy duty application, over and
under voltage protection
• Integrated driver and thermal management
system for a superior lifetime
• 10 high performance OSRAM LED’s
• 5-year guarantee*
Technical Specifications LEDDL103-CB

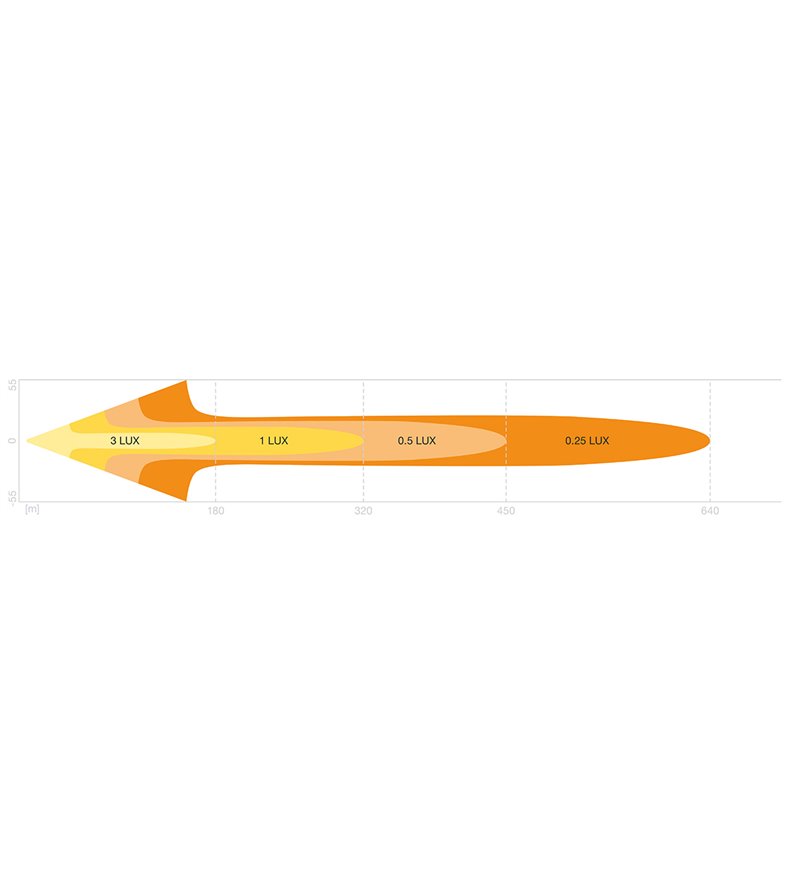

• Light distance @1lx: ~320m
• Hot Lumen: 2700lm
• Color temperature: 6000K
• Beam angle: 5°
• Rated input power: 35W
• Input voltage: 12/24V
• IP Protection: IP67
• ECE: R112 (ECE Ref. 27,5)
• EMC/EMI: ECE R10
• Polarity protection
• Cable length: 100cm
• Weight: 1450g
LEDDL103-CB
Data sheet
- General: Accessory
- Lighting
- General: Producttype
- LED Light bar
- General: Product serie
- FX
- General: Serial model
- 250-CB
- General: Series
- Osram Functional Series
- Dimensions and weight: Size ( Ø / ↔ )
- 2) Medium
- General: Shape
- Ledbar
- Dimensions and weight: Width (mm)
- 388
- Dimensions and weight: Height (mm)
- 90
- Dimensions and weight: Depth (mm)
- 137
- Light and vision: Beam type
- Driving Spot Combo
- Light and vision: Light type
- LED
- Light and vision: Lighting - type
- Driving light
- Light and vision: Light color
- White
- Design and material: Glass color
- Clear
- Light and vision: Position light
- No position light
- Light and vision: Color temperature
- 6000K
- certifications and delivery: Reference number per unit
- 27.5
- certifications and delivery: E-mark
- Yes
- certifications and delivery: Certifications
- R10
R112 - Technical specifications: Voltage
- 12V
18V
24V
30V
36V - Technical specifications: Watts
- 35W
- Technical specifications: LEDs per lamp
- 10
- Technical specifications: Number of pins
- 2 pins
- Technical specifications: Connector
- Deutsch DT
- Design and material: Chrome / RVS
- No
- Design and material: Housing color
- Black
- Design and material: Housing material
- Aluminum
- Design and material: Lamp rim color
- Black
- Design and material: Lamp rim material
- Aluminum
- certifications and delivery: IP rating
- IP67
- fit and mounting: Mount
- Normal
- fit and mounting: Vehicle brand
- Universal
- certifications and delivery: Sales unit
- Single item
- certifications and delivery: Standard delivery time
- 1-3 business days
- Size in inches
- 15.3
- Size in cm
- 38.8
- Prodcat1
- L
- Shipping Size
- Standard
- certifications and delivery: IR-code
- a1..st
Specific References
- UPC
- 1
- EAN13
- 4052899595354
- MPN
- 0001-000-009808
