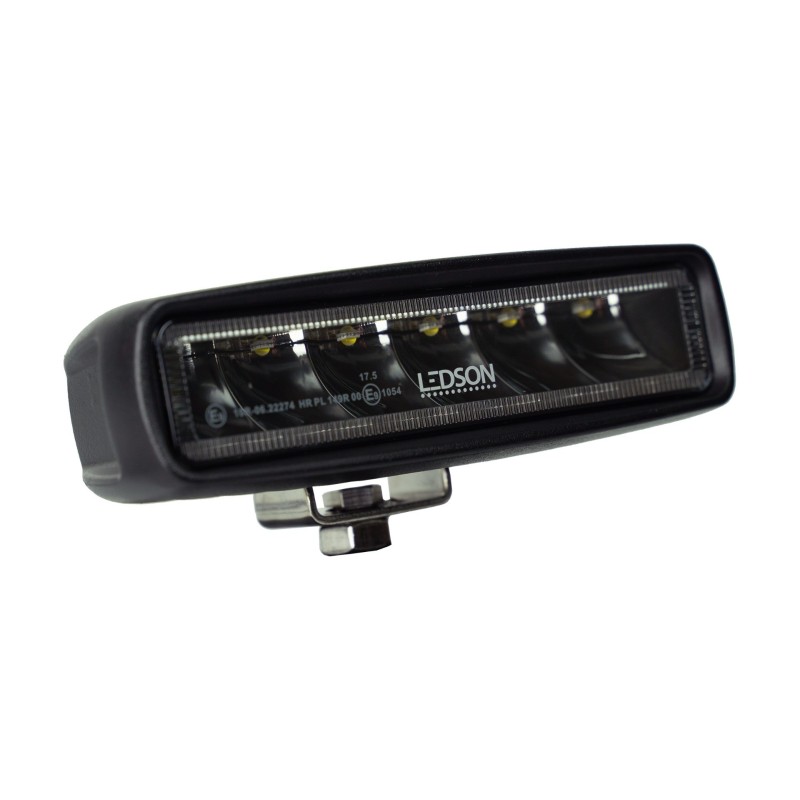

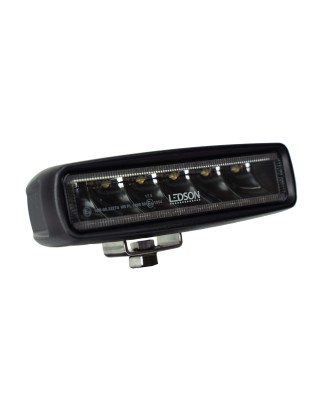

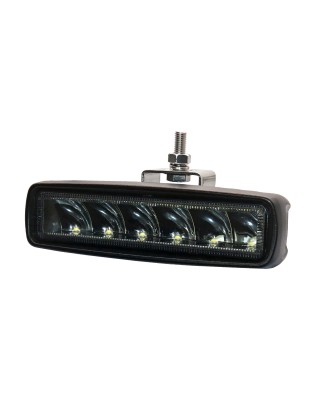

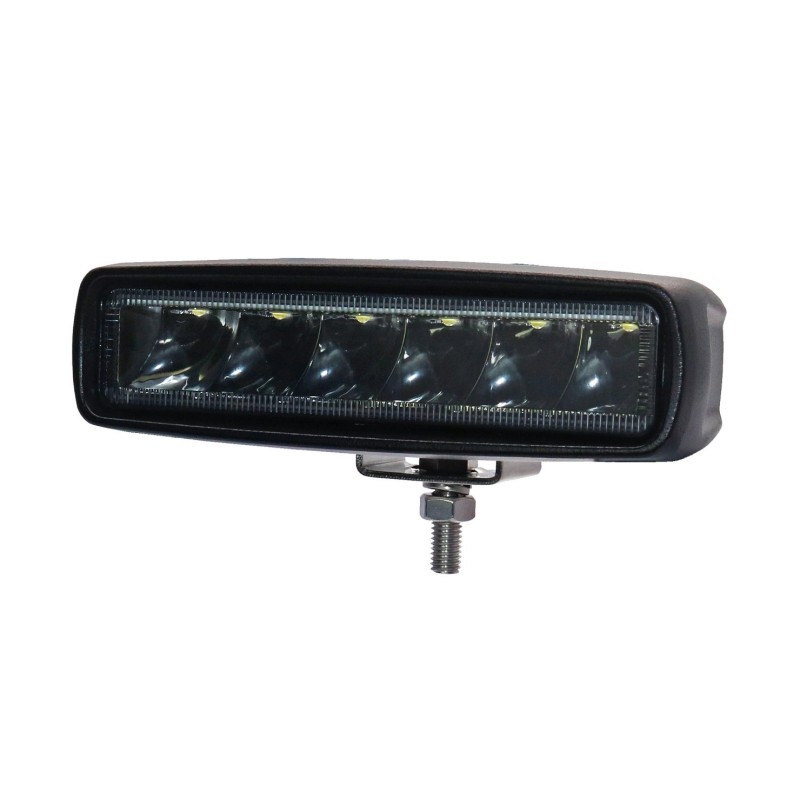

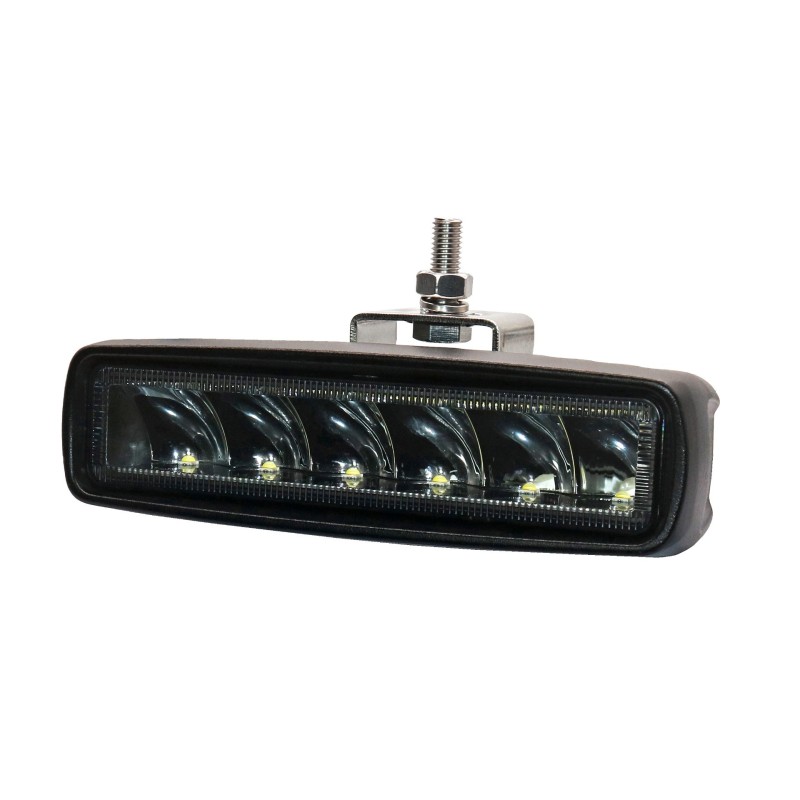

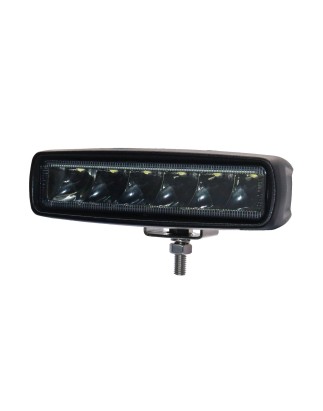

Work light - Ledson - Raptor 30 - S - 6.3" - 16cm - Smoke - Spot
€61.95(tax incl.)
€51.20 (tax excl.)
- Reference: 3350561
- Producttype: Work light
- Dimensions (mm): 160 (w) x 46 (h) x 64 (d)
- E-mark: Yes
- Beam type: Spot
- Sales unit: Single item
- Standard delivery time: 1-3 business days
Ledson Raptor 30S LED Auxiliary Driving Light / High Beam Spot - Upgrade your vehicle with a powerful spot beam and 275-meter range!
...Continue
Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you
Ledson Raptor 30S LED Auxiliary Driving Light &ndash Powerful Spot Beam & ECE R112 Approval
Looking for a high-performance, E-marked auxiliary driving light for your truck, 4x4, off-road vehicle, tractor, or commercial van? The Ledson Raptor 30S LED auxiliary light functions as a premier High beam and Driving light. Featuring a narrow, focused spot beam pattern, it delivers 2259 actual lumens of brilliant illumination, providing a 1 lux beam range reaching up to 275 meters for exceptional long-distance visibility at night.
- ✓ Combined High beam and Driving light functionality fully approved according to ECE R112 regulations as a street-legal auxiliary high beam
- ✓ Narrow long-range spot beam pattern (Spot beam) engineered to pierce through darkness over vast distances
- ✓ Superior lighting performance: 2520 theoretical lumens and 2259 actual lumens of crisp cool white light (5700K)
- ✓ ECE R10 EMC suppressed to prevent any unwanted radio or electrical interference in your vehicle
- ✓ IP67 waterproof and dustproof robust housing built to withstand harsh Nordic weather and heavy-duty use
- ✓ Multi-voltage compatibility supporting 10V to 32V electrical systems (10V, 12V, 18V, 24V, 30V)
- ✓ Includes two distinct mounting brackets for either upright or hanging installations
- ! Note! The DT connector must not be cut, as this increases the risk of moisture damage and voids the warranty. A male DT connector with splice is included
- ✓ Backed by a solid 3-year manufacturer warranty for complete long-term peace of mind
Technical Specifications:
&bull Product Series: Ledson Raptor
&bull Lighting Types: High beam, Driving light, Auxiliary high beam
&bull Beam Pattern: Spot beam (narrow long-range beam pattern)
&bull Light Output: 2520 theoretical lumens / 2259 actual lumens (5700K cool white)

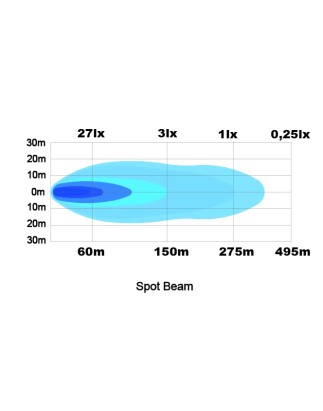

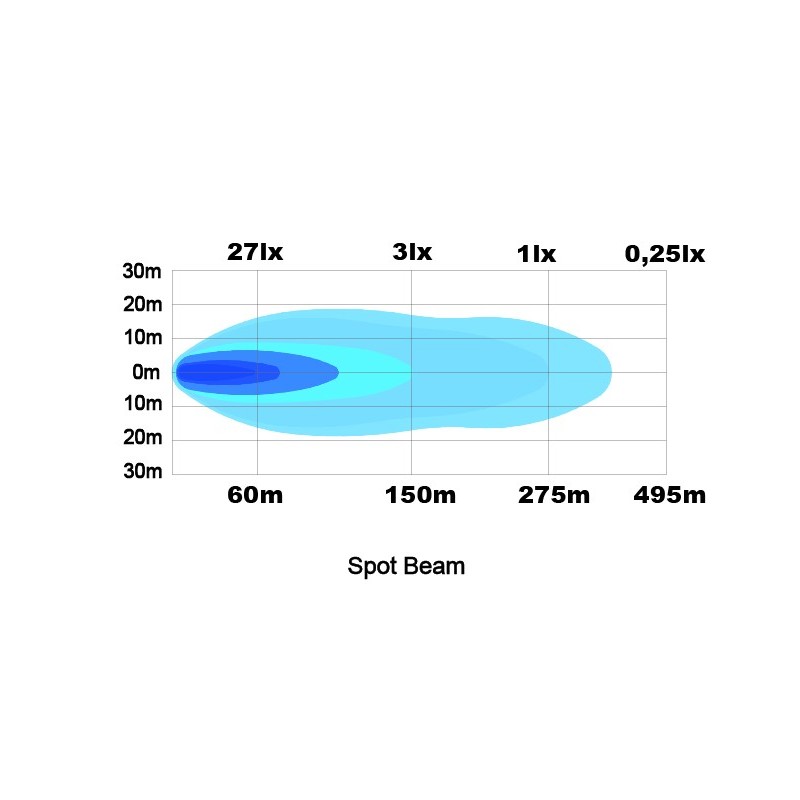

&bull Range: 1 lux at 275 meters
&bull Voltage: 10-32V multi-voltage (10V, 12V, 18V, 24V, 30V)
&bull Power: 30W (6 x 5W Osram LEDs)

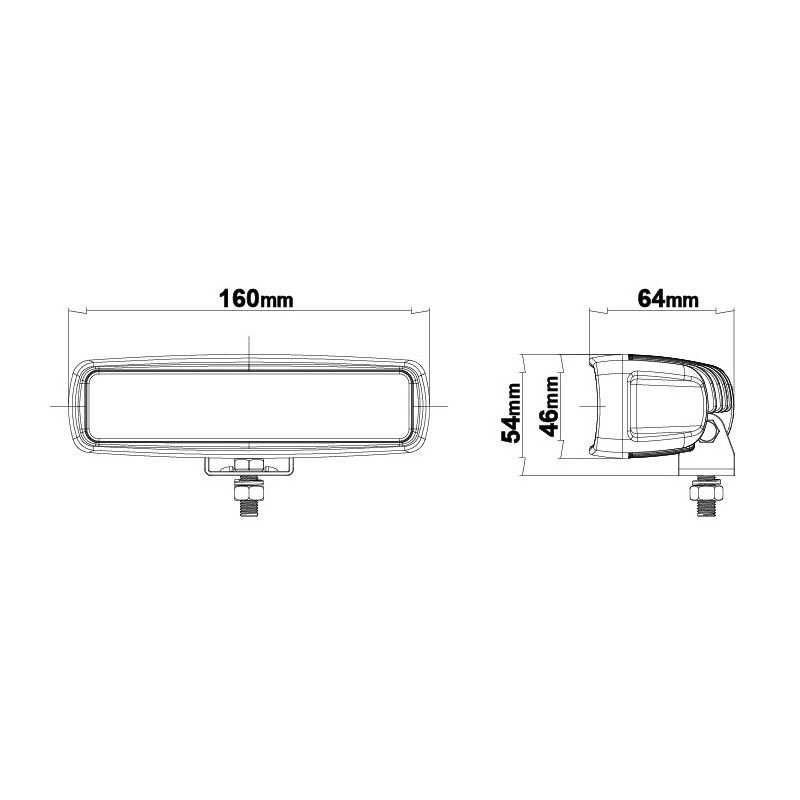

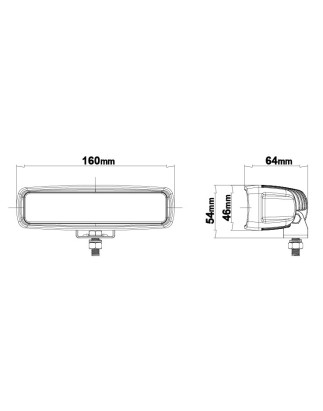

&bull Dimensions: Length 160 mm x Height 46 mm x Depth 64 mm (Weight: 640 grams)
&bull Connector: Deutsch DT connector (includes mating connector with splice)
&bull Certifications & Protection: ECE R112 approved, ECE R10 EMC, IP67 rated
&bull Mounting: Upright or hanging (Includes 2 brackets and mounting hardware)
Important Installation Note:
Please note! The included Deutsch DT connector must never be cut off. Cutting the connector increases the risk of moisture ingress and will void the manufacturer warranty. Always use the provided mating connector for a secure, watertight hookup.
About the Manufacturer &ndash Ledson:
Ledson is a premier Swedish automotive lighting brand recognized across Europe for engineering durable LED solutions. Designed to excel in harsh Nordic weather, Ledson products combine rugged reliability, smart mounting engineering, and crisp lighting designs that fleet operators and professional drivers rely on every day.
Why Shop at Lights And Styling?
Even though our headquarters is located in the Netherlands, our focus is entirely on your country and delivering top-notch service wherever you are! At Lights And Styling, we deliver quality products with genuine passion for vehicles. We provide proactive problem-solving, personalized advice, and quick responses to all your questions with infectious enthusiasm. Feel free to contact us anytime &ndash we’ll keep you updated throughout your order, guaranteeing a seamless ordering process. You’re in good hands with us!
3350561
Data sheet
- General: Accessory
- Lighting
- General: Producttype
- Work light
- General: Product serie
- Raptor
- General: Serial model
- 30
- General: Version
- S
- Dimensions and weight: Size ( Ø / ↔ )
- 3) Large
- General: Shape
- Ledbar
- Dimensions and weight: Width (mm)
- 160
- Dimensions and weight: Height (mm)
- 46
- Dimensions and weight: Height incl. bracket (mm)
- 54
- Dimensions and weight: Depth (mm)
- 64
- Dimensions and weight: Weight (kg)
- 0.6
- Light and vision: Beam type
- Spot
- Light and vision: Light type
- LED
- Light and vision: Lighting - type
- Driving light
- fit and mounting: Position
- Front
- Light and vision: Light color
- White
- Design and material: Glass color
- Smoke
- Light and vision: Color temperature
- 5700K
- Light and vision: Theoretical Lumens
- 2520
- Light and vision: Effective Lumens
- 2259
- Light and vision: Light distance (m) at 1 lux
- 275
- certifications and delivery: E-mark
- Yes
- certifications and delivery: Certifications
- R10
R112 - Technical specifications: Voltage
- 10V
12V
18V
24V
30V - Technical specifications: Watts
- 30W
- Technical specifications: Number of pins
- 2 pins
- Technical specifications: Connector
- Deutsch DT
- certifications and delivery: IP rating
- IP67
- certifications and delivery: What is delivered
- 1 light
General manual
Mounting bracket
Mounting material - fit and mounting: Mount
- Normal
- certifications and delivery: Sales unit
- Single item
- certifications and delivery: Standard delivery time
- 1-3 business days
- Size in inches
- 6.3
- Size in cm
- 16
- Vehicle type
- ATV
Boat
Camper
Car
Motor
Tractor
Van - Prodcat1
- M
- Shipping Size
- Standard
- certifications and delivery: Warranty
- 3 year
- certifications and delivery: IR-code
- a6.E22.st
- Additional information: Ideal for
- ATV
Bikes
Campers
Off-road vehicles
Tractors
Vans - Additional information: Target audience
- 4x4 drivers
People who live in rural areas
Racing
Rally - certifications and delivery: Manufacturer
- Ledson Lights AB | Bangatan 3 | 265 38 | Astorp | Sweden | www.ledsonlights.com | [email protected]
Specific References
- UPC
- 1
- EAN13
- 7323230042828
- MPN
- 0002-100-001929
