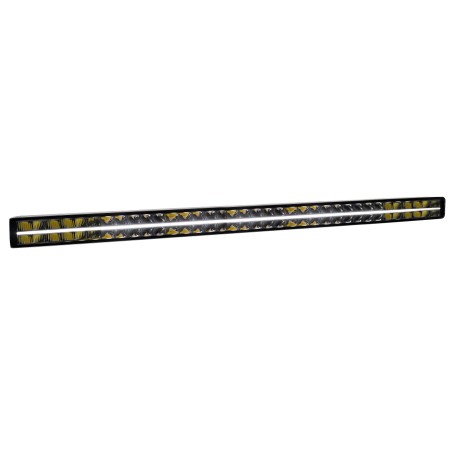

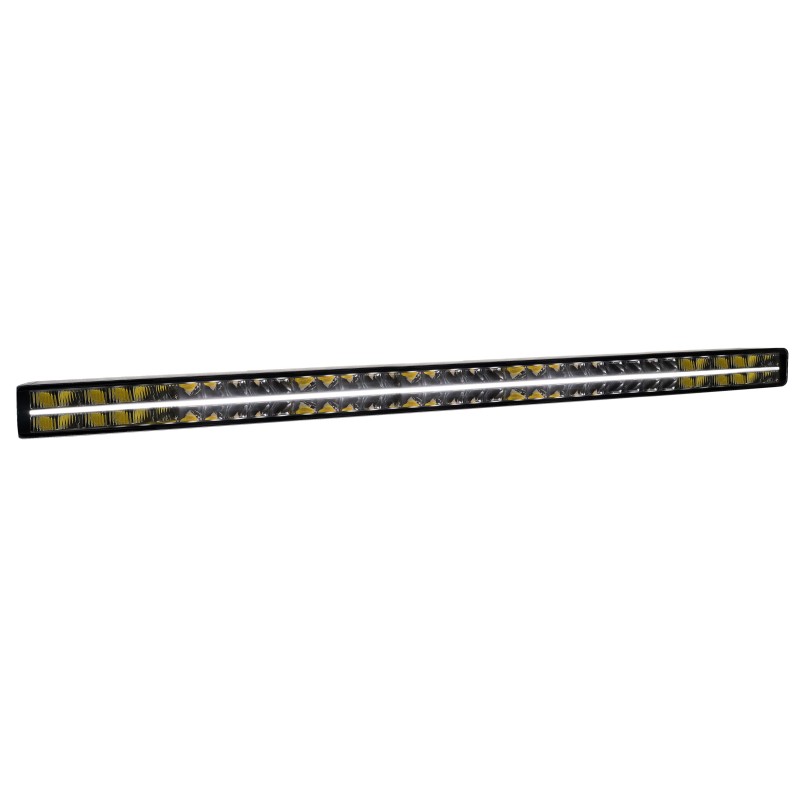

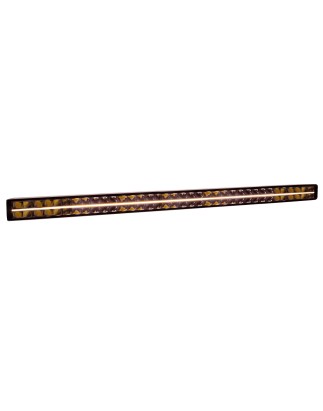

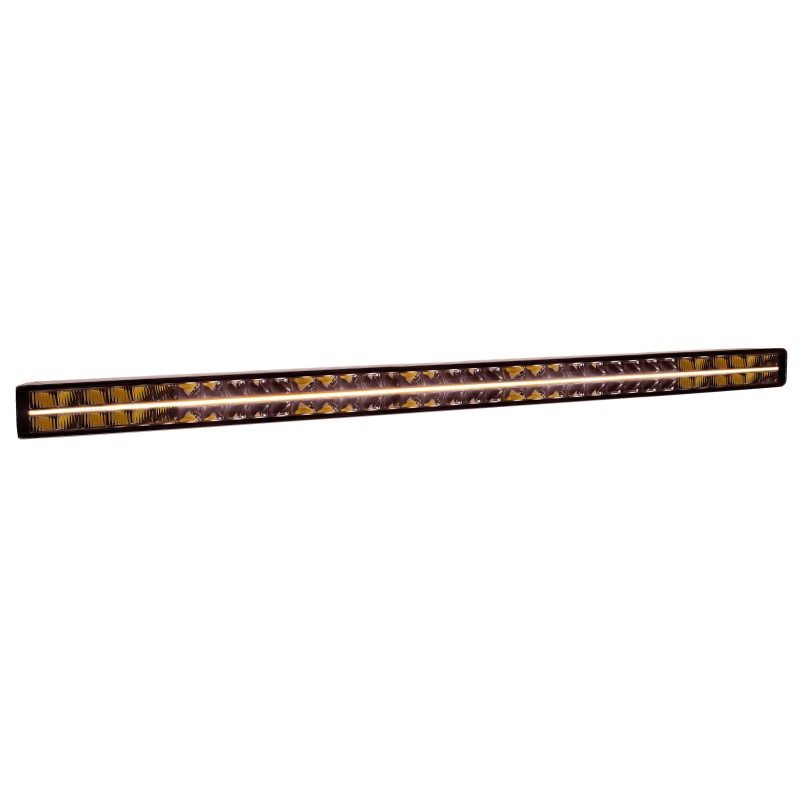

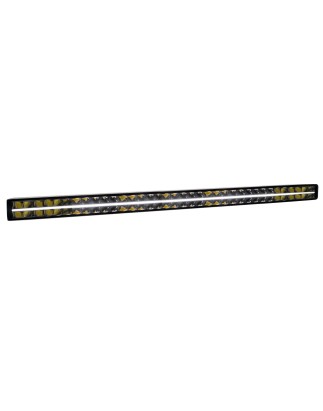

LED Light bar - Ledson - Orbix 40+ - Duo - 41" - 104.1cm - Smoke - Position light White/Amber - Driving
€501.95(tax incl.)
€414.83 (tax excl.)
- Reference: 33507255
- Producttype: LED Light bar
- Dimensions (mm): 1041 (w) x 64 (h) x 70 (d)
- E-mark: Yes
- Position Light Color: White/Amber
- Beam type: Driving
- Sales unit: Single item
- Standard delivery time: 1-3 business days
Ledson Orbix40+ Duo LED Light Bar 360W - Upgrade your vehicle with a massive output, selectable position lights, and 850m range!
...Continue
Pay in a secure environment
Questions about this product? Our experts are here to help
4.8/5 More than 10,000 customers have already gone before you

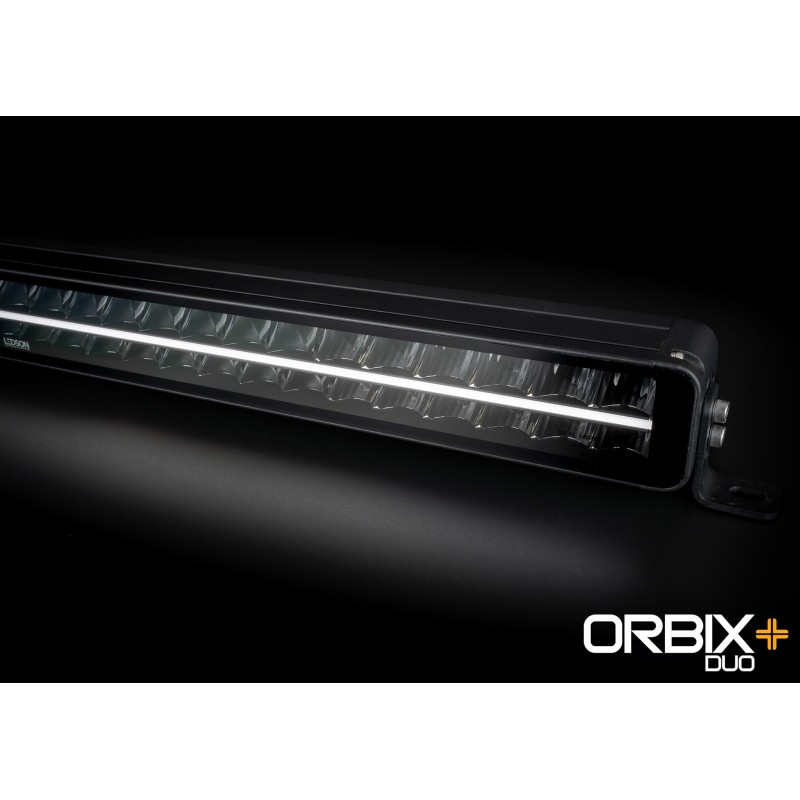

Ledson Orbix40+ Duo LED Light Bar 360W &ndash Massive Output & Selectable Position Light
Looking to equip your truck, van, off-road vehicle, or rally car with ultimate illumination and a striking appearance? The Ledson Orbix40+ Duo (40" / 104 cm) is a powerful double-row LED light bar featuring continuous, stylish position lights that deliver a uniform, high-end look. Engineered with 72 high-power LEDs, this massive light bar outputs an astonishing 27,000 actual lumens, projecting an impressive 1 lux beam range reaching up to 850 meters. The integrated position light can be configured to a modern cool white or a vibrant yellow-orange (amber) tone.
- ✓ Combined High beam and Driving light functionality featuring a computer-designed Driving Beam pattern combining width and distance

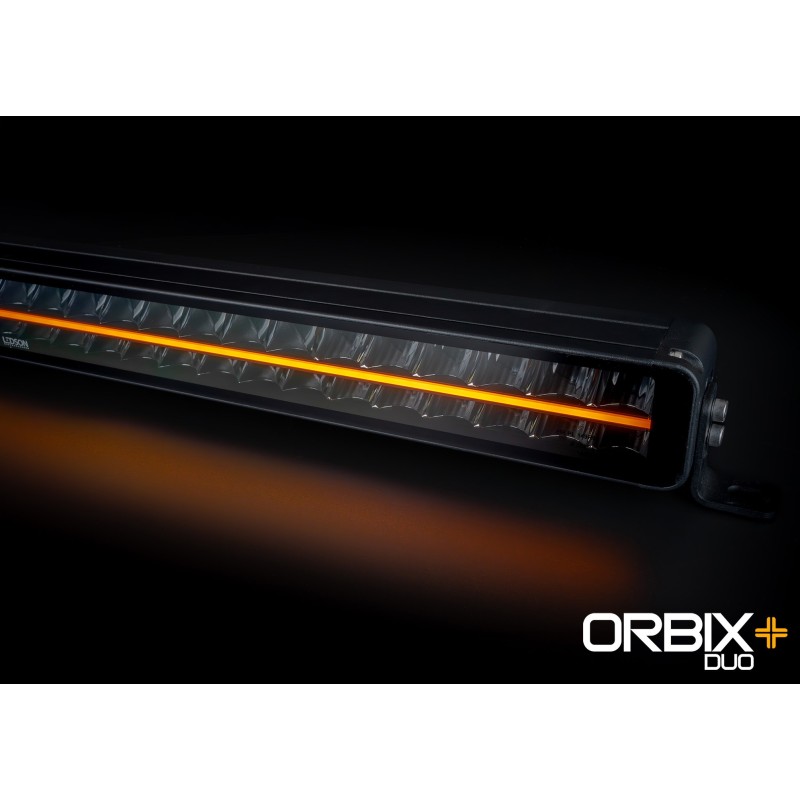

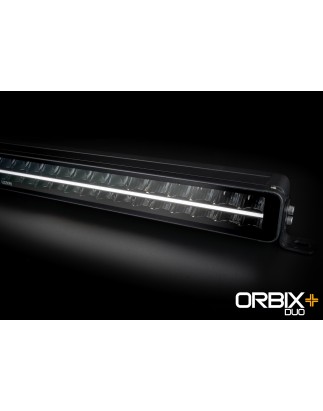

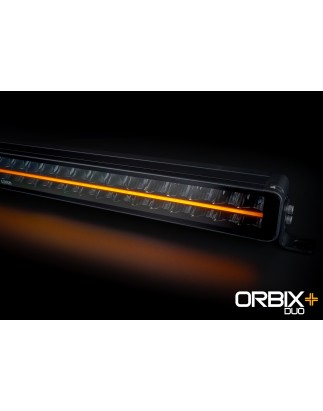

- ✓ Continuous stylish position light switchable between modern cool white and amber yellow
- ✓ Exceptional lighting performance: 30,240 theoretical lumens and 27,000 actual lumens of crisp 5700K cool white light
- ✓ ECE R148 approved and ECE R10 EMC suppressed for fully compliant road usage
Technical Specifications:
&bull Product Series: Ledson Orbix
&bull Lighting Types: High beam, Driving light, Dual-row LED light bar

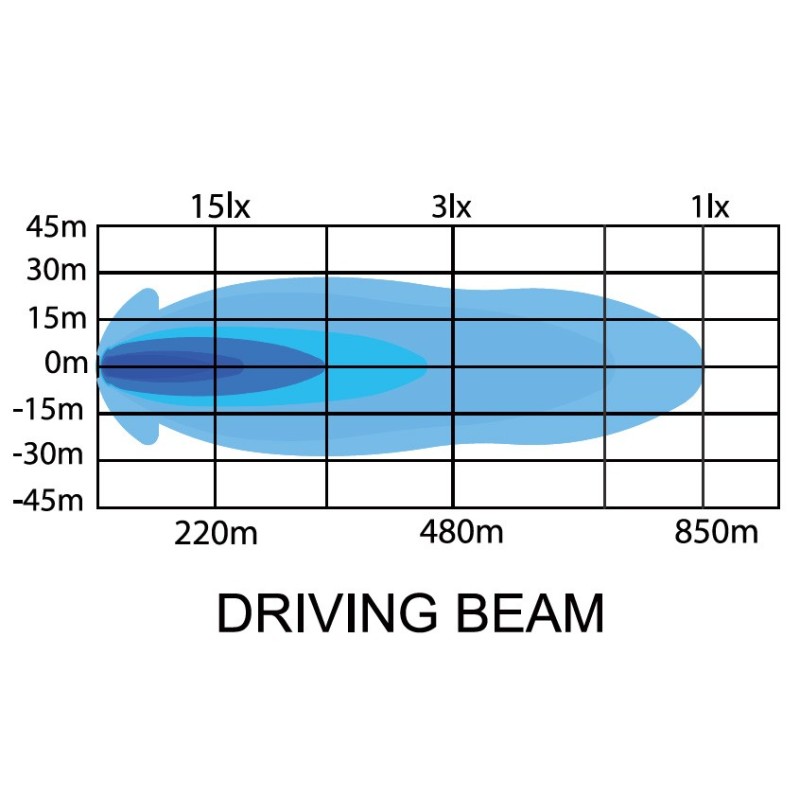

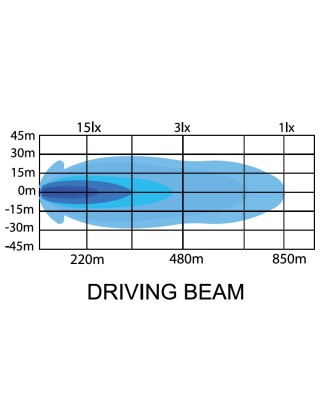

&bull Beam Pattern: Driving beam (optimized combo beam for width and distance)
&bull Light Output: 30,240 theoretical lumens / 27,000 actual lumens (5700K cool white)
&bull Range: 1 lux at 850 meters
&bull Voltage: 10-32V multi-voltage (Current draw: 19.6A at 12V / 12.6A at 24V)
&bull Nominal Power: 235.2W (Theoretical power: 360W across 72 x 5W LEDs)
&bull Dimensions: Width 1041 mm x Height 64 mm x Depth 70 mm
&bull Connector: 4-pole Deutsch DT connector
&bull Certifications & Protection: ECE R148 approved, ECE R10 EMC, IP69K waterproof rating
&bull Mounting: Side feet and sliding brackets (Standing/hanging hardware included)
Important 12V Installation Note:
Please note! The Orbix40+ Duo is designed for 12V and 24V. When operating at 12V, the connector must be cut and the wiring properly spliced with a moisture-proof adhesive crimp joint (e.g., DuraSeal). Every splice point increases moisture risk and requires proper sealing to maintain warranty coverage.
About the Manufacturer &ndash Ledson:
Ledson is a premier Swedish automotive lighting brand recognized across Europe for engineering durable LED solutions. Designed to excel in harsh Nordic weather, Ledson products combine rugged reliability, smart mounting engineering, and crisp lighting designs that fleet operators and rally drivers rely on every day.
Why Shop at Lights And Styling?
Even though our headquarters is located in the Netherlands, our focus is entirely on your country and delivering top-notch service wherever you are! At Lights And Styling, we deliver quality products with genuine passion for vehicles. We provide proactive problem-solving, personalized advice, and quick responses to all your questions with infectious enthusiasm. Feel free to contact us anytime &ndash we’ll keep you updated throughout your order, guaranteeing a seamless ordering process. You’re in good hands with us!
33507255
Data sheet
- General: Accessory
- Lighting
- General: Producttype
- LED Light bar
- General: Product serie
- Orbix
- General: Serial model
- 40+
- General: Version
- Duo
- Dimensions and weight: Size ( Ø / ↔ )
- 3) Large
- General: Shape
- Ledbar
- Dimensions and weight: Width (mm)
- 1041
- Dimensions and weight: Height (mm)
- 64
- Dimensions and weight: Depth (mm)
- 70
- Dimensions and weight: Weight (kg)
- 2.9
- Light and vision: Beam type
- Driving
- Light and vision: Light type
- LED
- Light and vision: Lighting - type
- Driving light
- fit and mounting: Position
- Front
- Light and vision: Light color
- White
- Design and material: Glass color
- Smoke
- Light and vision: Position light
- Position light
- Light and vision: Color of position light
- Amber
White - Light and vision: Color temperature
- 5700K
- Light and vision: Theoretical Lumens
- 30240
- Light and vision: Effective Lumens
- 27000
- Light and vision: Light distance (m) at 1 lux
- 850
- certifications and delivery: E-mark
- Yes
- certifications and delivery: Certifications
- R10
R148 - Technical specifications: Voltage
- 10V
12V
18V
24V
30V - Technical specifications: Watts
- 360W
- Technical specifications: Number of pins
- 4 pins
- Technical specifications: Connector
- Deutsch DT
- certifications and delivery: IP rating
- IP69K
- certifications and delivery: What is delivered
- 1 light
General manual
Mounting material - fit and mounting: Mount
- Normal
- certifications and delivery: Sales unit
- Single item
- certifications and delivery: Standard delivery time
- 1-3 business days
- Size in inches
- 41
- Size in cm
- 104.1
- Vehicle type
- ATV
Boat
Camper
Car
Pickup
Tractor
Truck
Van - Prodcat1
- M
- Shipping Size
- Medium
- certifications and delivery: Warranty
- 3 year
- certifications and delivery: IR-code
- a1.D12.st
- Additional information: Ideal for
- ATV
Campers
Off-road vehicles
Tractors
Trucks
Vans - Additional information: Target audience
- 4x4 drivers
Fleet owners
Transportation companies
Truckers - certifications and delivery: Manufacturer
- Ledson Lights AB | Bangatan 3 | 265 38 | Astorp | Sweden | www.ledsonlights.com | [email protected]
- Design and material: Ledbar Type
- Double Row
- Design and material: Ledbar Shape
- Straight
Specific References
- UPC
- 1
- EAN13
- 7323230051752
- MPN
- 0001-100-019367
